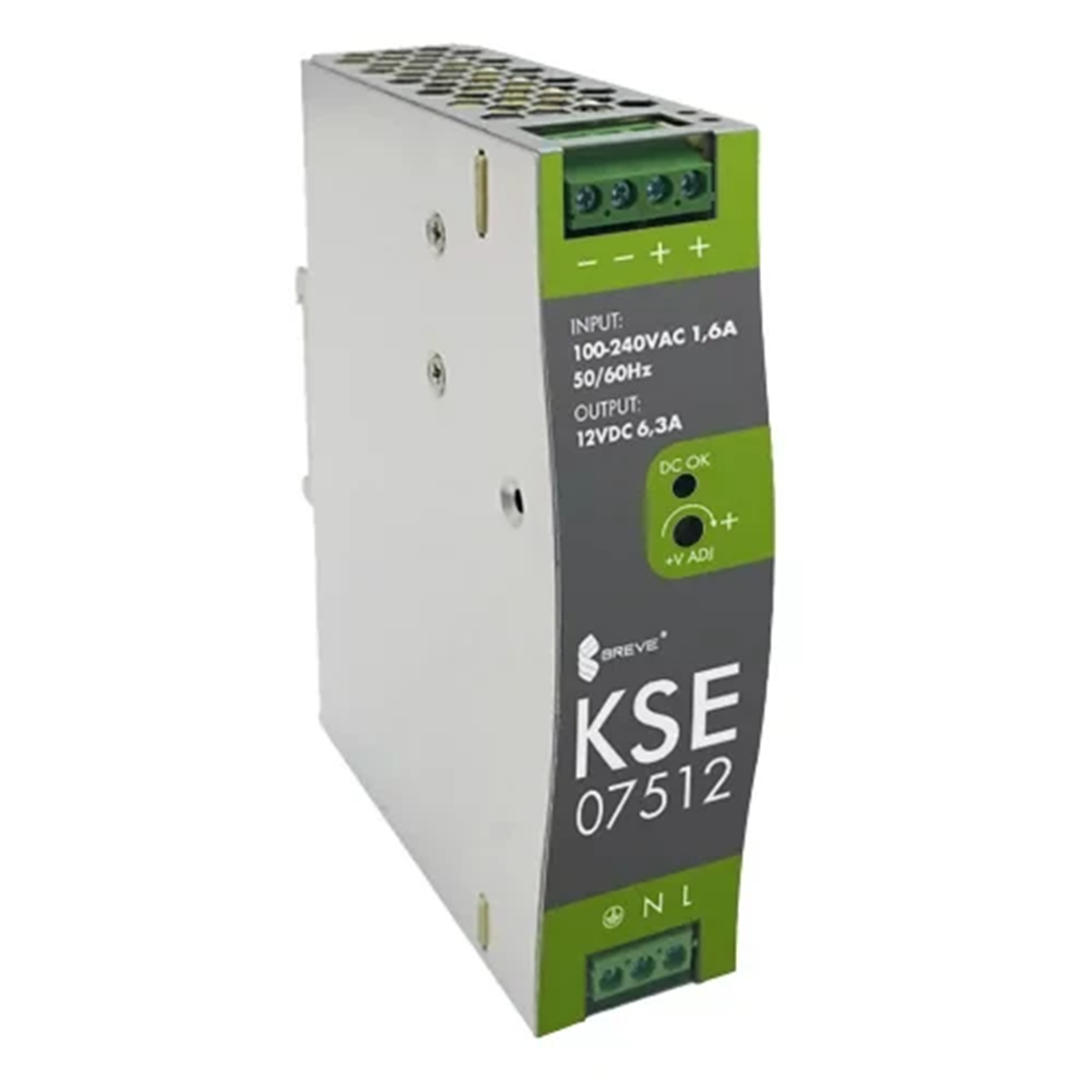

KSE 07512M 230/12VDC 6.3A stabilized switching power supply with protection and voltage regulation IP20 TH-35 17000-1545

local index:
AUU038BREV
Catalog No:
17000-1545
EAN code:
5907812757366
KSE 07512M 230/12VDC 6.3A stabilized switching power supply with protection and voltage regulation IP20 TH-35
Manufacturer: BREVE
number of phases: 1
Power [W]: 75
Installation: On the TH-35 rail
Price:
24,21 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Stabilized, industrial switching power supplies for mains voltage intended for use in industrial automation systems. Equipped with LED switch-on and overload indication, cooled by natural air flow. Mounted on DIN T-35 rail. Protection: thermal, short circuit, overload and overvoltage. Power supplies with a power of 240W and 480W are additionally equipped with a PFC power factor correction system. Made in IP20 protection class.

Technical data

  • number of phases
    1
  • Installation
    On the TH-35 rail
  • Rated current [A]
    6.3
  • Level of security
    IP20
  • Efficiency [%]
    84
  • Short circuit resistance
    Yes
  • Power [W]
    75
  • DC output voltage [V]
    12
  • Family
    KSE
  • Dimensions [mm]
    102x32x125.2
  • AC input voltage [V]
    96-264
