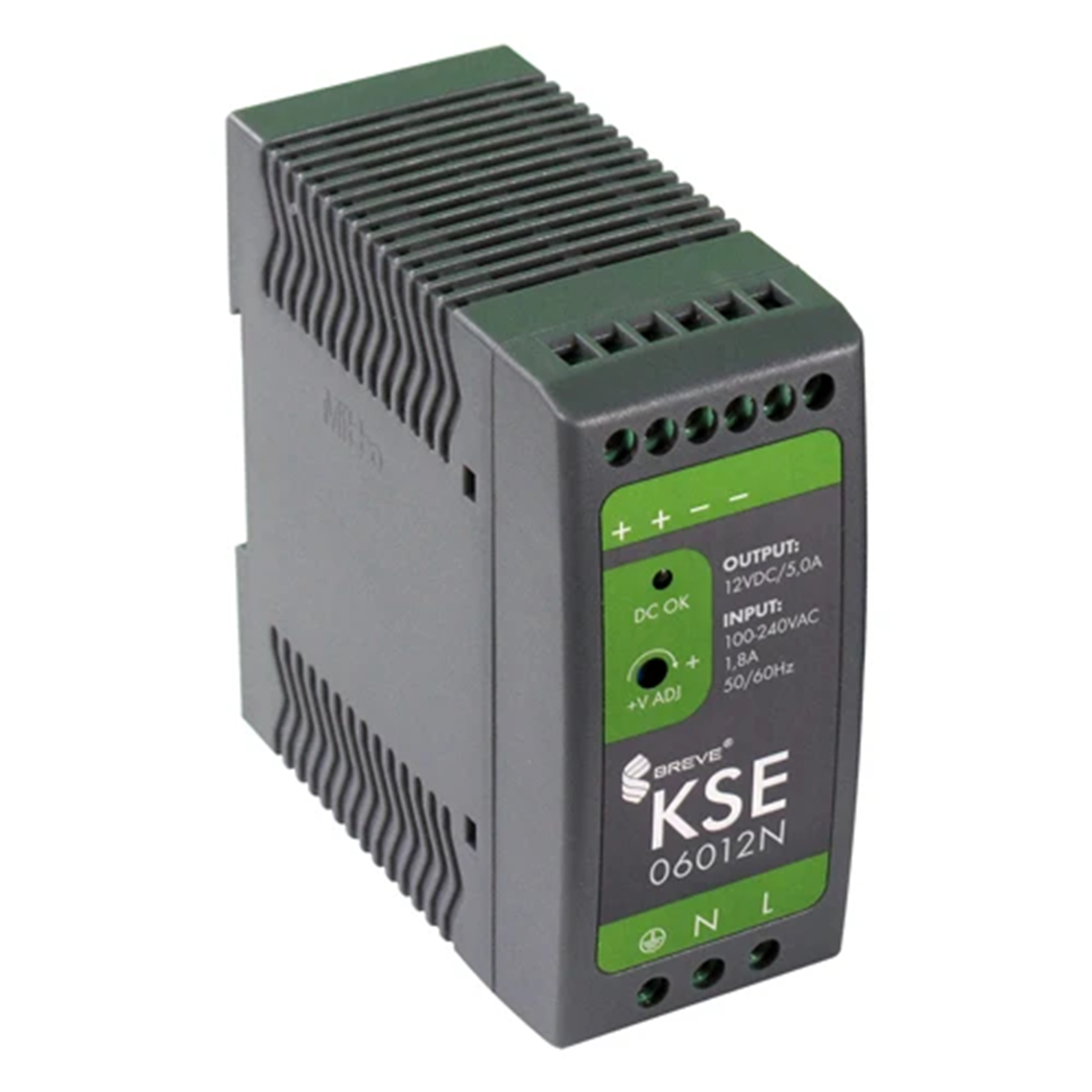

KSE 06012P 230/12VDC 5.0A stabilized switching power supply with protection and voltage regulation IP20 TH-35 18912-9989
local index:
AUU062BREV
Catalog No:
18912-9989
EAN code:
5907812719913
Price:
19,57 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Stabilized, industrial switching power supplies for mains voltage intended for use in industrial automation systems. Equipped with LED switch-on and overload indication, cooled by natural air flow. Mounted on DIN T-35 rail. Protection: thermal, short circuit, overload and overvoltage. 100W power supplies are additionally equipped with a PFC power factor correction system. Made to IP20 protection class.
Technical data
-
number of phases1
-
InstallationOn the TH-35 rail
-
Rated current [A]5
-
Level of securityIP20
-
Efficiency [%]86
-
Short circuit resistanceYes
-
Power [W]60
-
DC output voltage [V]12
-
FamilyKSE
-
Dimensions [mm]100x40x90
-
AC input voltage [V]85-264
Other technical data
-
Voltage type (supply voltage)AC
-
Secondary voltage adjustableYes
-
Output voltage stabilizedYes
-
Type of electric connectionScrew connection
-
Modular versionYes
-
Height40 mm
-
Degree of protection (IP)IP20
-
Max. output current 15 A
-
Short-circuit-proofYes
-
StabilizedYes
-
Rail mounting possibleYes
-
Width100 mm
-
Depth90 mm
