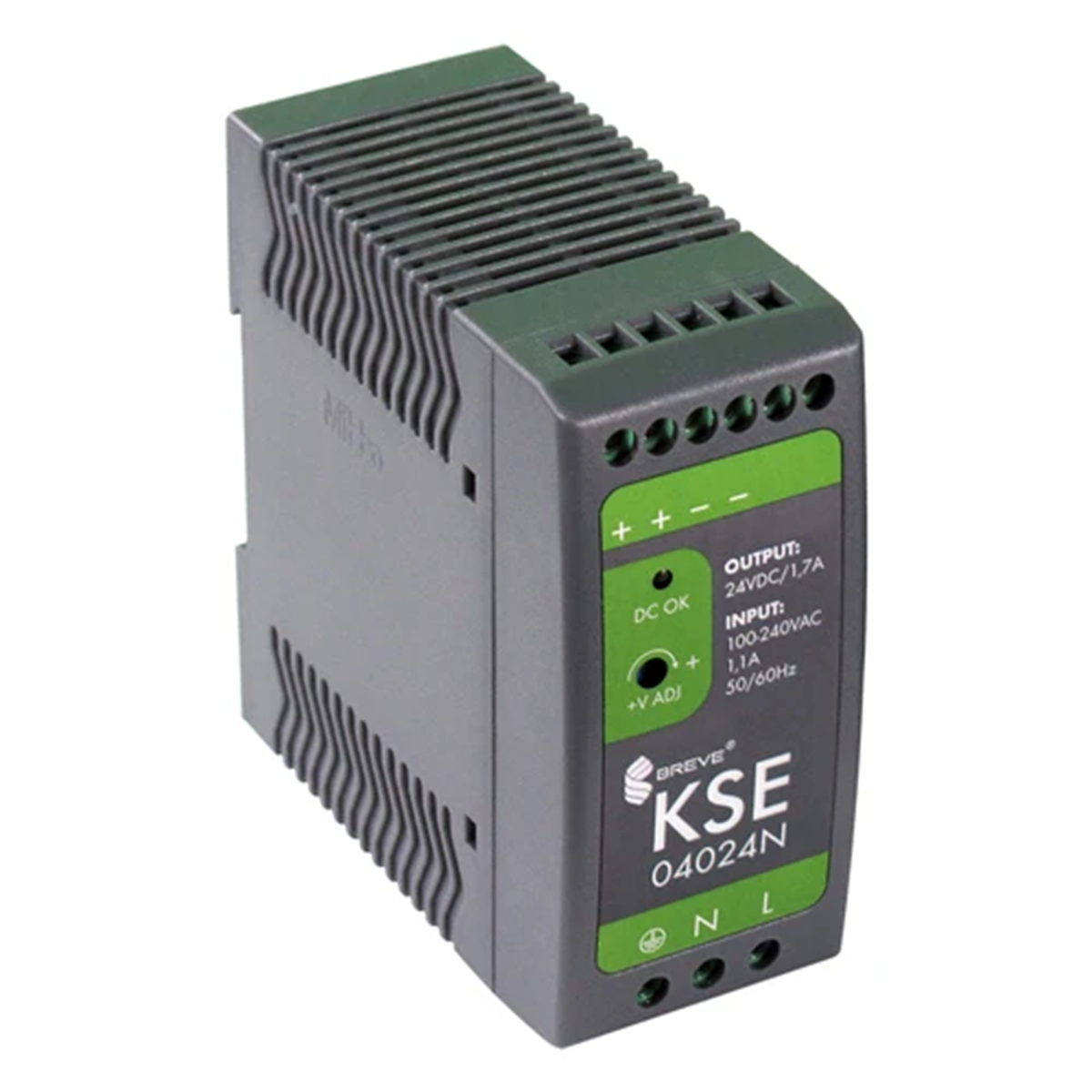

IP20 stabilized switching power supply for 40W DIN rail 18924-9983
local index:
AUU026BREV
Catalog No:
18924-9983
EAN code:
5907812719890
Price:
18,92 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
KSE switching power supplies - high quality, stabilized industrial switching power supplies mains voltage for use in industrial automation systems for mounting on a DIN rail. Cooled by natural airflow. Ideal for modular applications. They have an IP20 degree of protection. 240W power supplies equipped with LED signaling of activation and overload were have security features:
- < li>thermal,
- short circuit,
- overload,
- overvoltage.
Have compliance with safety standards: EN55032, EN61000-3-2, EN61000-3-3, EN55035, EN60950-1.
Technical data
-
Depth [mm]90
-
Power [W]40
-
DC output voltage [V]24
-
Width [mm]40
-
Rated supply voltage for AC 50 Hz [V]240
-
Maximum output current [A]1.7
-
InstallationOn the TH-35 rail
-
Level of securityIP20
-
Height [mm]100
-
PKWIU27.11.50.0
