Fuse transformer TR340 12/24 40VA 413097

local index:

AUP017LEGR

Catalog number:

413097

EAN code:

3245064130974

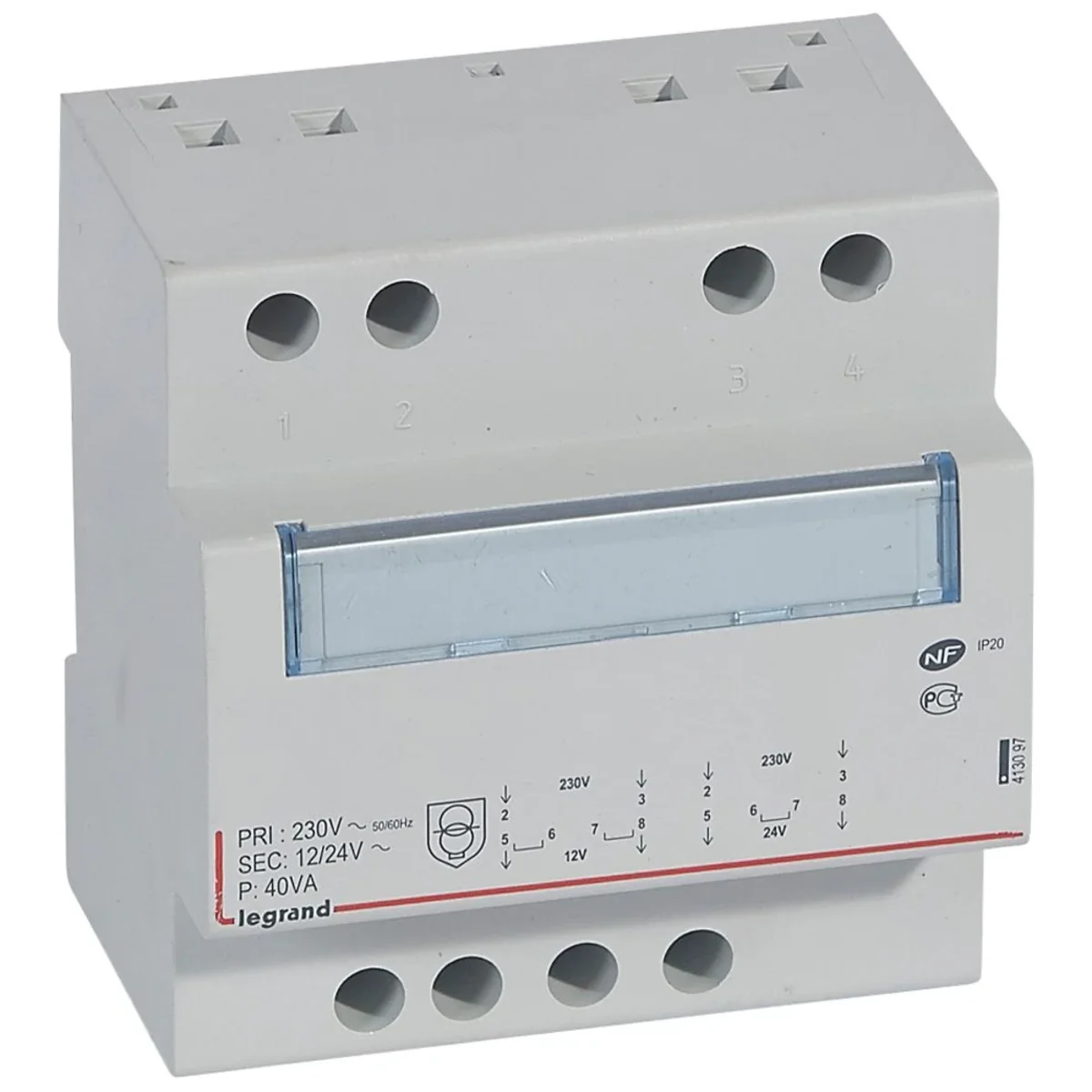

Click on the photo to enlarge

Manufacturer: LEGRAND

Power [VA]: 40

Primary voltage [V]: 12

Secondary voltage [V]: 24

See full description

517

zł

gross / pcs. (including VAT 23%)

Dostępne up to 2 weeks

On request

Choose your wholesaler

Choose

Quantity pcs. (multiplicity: 1 )

Add to inquiry

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

The primary windings have built-in overload protection. In the event of an overload, they automatically switch off and allow the transformer to cool down before switching it on again.
Equipped with a window enabling the description of the transformer
Mounting on a TH35 rail or screws to a flat surface
Transformers completely enclosed with insulating material
Primary voltage : 230 V~
Secondary voltage: 12 or 24 V~
Power: 40 VA
Width in 17.5 mm modules: 5

Technical data

Power [VA]

40
Secondary voltage [V]

24

Primary voltage [V]

12
PKWIU

27.11.42.0

Other technical data

Primary voltage

230 V
Secondary voltage 2

24 V
Max. power loss

4 W
Do montażu natynkowego

Yes
Modular version

Yes
Width

66 mm
Width in number of modular spacings

5
Temperature protection

Yes

Secondary voltage 1

12 V
Max. output power

40 W
Type of transformer

Safety transformer
Do montażu podtynkowego

Yes
Length

89 mm
Height

95 mm
Short-circuit protected

Yes
With on/off switch

No

Manufacturer details

Manufacturer

Legrand Polska Sp. z o.o.
Address

57-200 Ząbkowice Śląskie Waryńskiego 20 Polska
E-mail

info@legrand.com.pl

Bulk packaging

A kind of package	Pudełko	Karton	Paleta
Quantity	1 pcs.	8 pcs.	176 pcs.
Weight (kg)	1,131	9,408	206,976
Volume (m3)	0,001	0,013	0,492
Width (m)	0,102	0,290	1,200
Length (m)	0,090	0,130	0,410
Depth (m)	0,113	0,350	1,000
