Power sources
Inverters

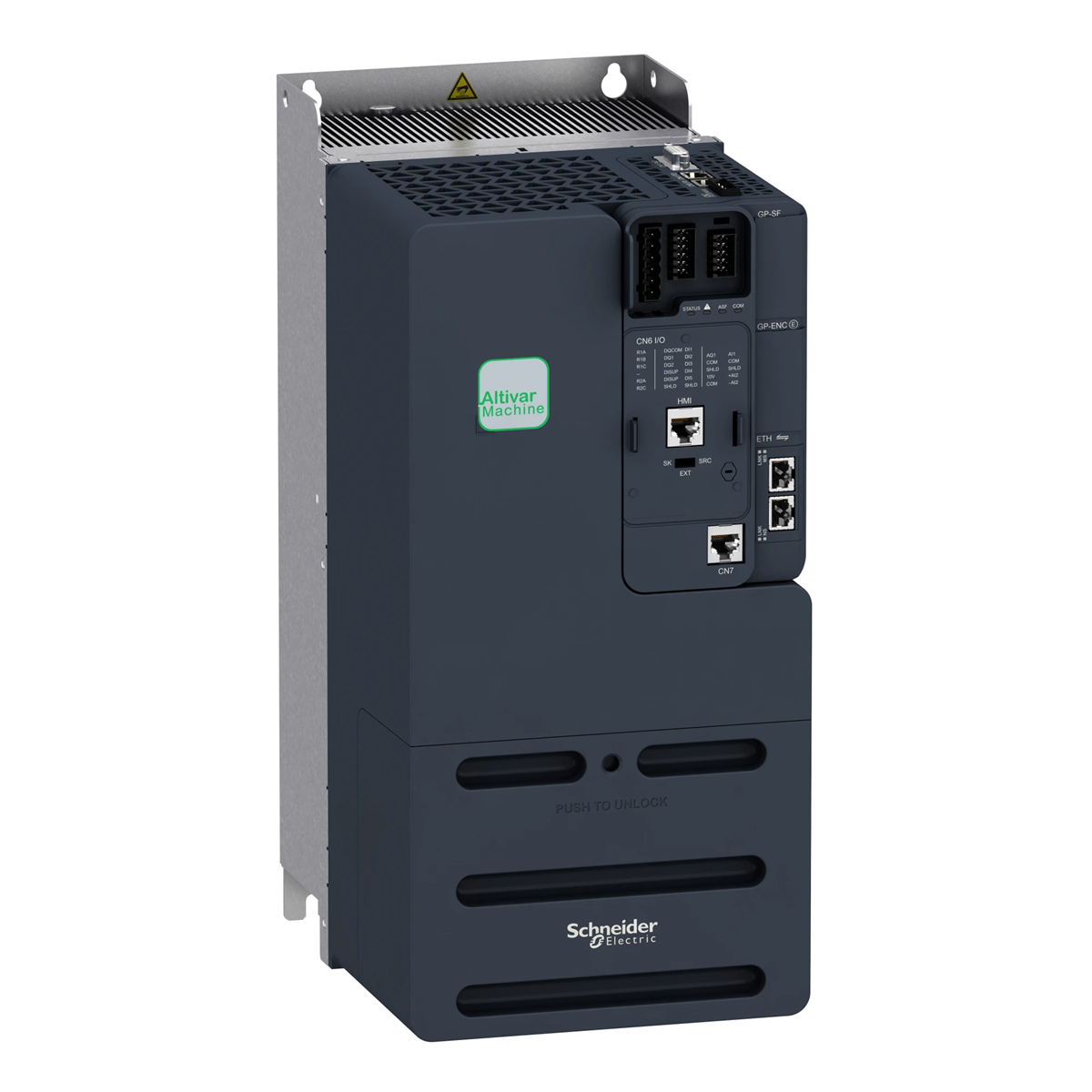

Frequency inverter 15kW 400V 3 phase ATV340 Ethernet ATV340D15N4E
local index:
AUF012SCHN
Catalog No:
ATV340D15N4E
EAN code:
3606480967061
Click on the photo to enlarge
Manufacturer:
SCHNEIDER ELECTRIC
Power [kW]:
15
Height [mm]:
385
See full description
Price:
2075,10 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Files to download
Product description
Frequency inverter 15kW 400V 3 phase ATV340 Ethernet
Technical data
Power [kW]
15
PKWIU
27.90.41.0
Height [mm]
385
Other technical data
Mains voltage
380 ... 480 V
Number of phases input
3
Max. output frequency
599 Hz
Nominal output current I2N
42.4 A
Max. output at linear load at rated output voltage
18.5 kW
Relative symmetric net voltage tolerance
10 %
Number of analogue inputs
2
Number of digital inputs
5
Application in industrial area permitted
Yes
Supporting protocol for TCP/IP
Yes
Supporting protocol for CAN
No
Supporting protocol for ASI
No
Supporting protocol for Modbus
Yes
Supporting protocol for DeviceNet
No
Supporting protocol for LON
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
No
Number of interfaces PROFINET
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces serial TTY
0
Number of HW-interfaces parallel
0
With optical interface
No
Integrated breaking resistance
No
Type of converter
U converter
Height
385 mm
Depth
249 mm
Mains frequency
50/60 Hz
Number of phases output
3
Max. output voltage
480 V
Max. output at quadratic load at rated output voltage
18.5 kW
Relative symmetric net frequency tolerance
5 %
Number of analogue outputs
1
Number of digital outputs
2
With control element
No
Application in domestic- and commercial area permitted
No
Supporting protocol for PROFIBUS
No
Supporting protocol for INTERBUS
No
Supporting protocol for KNX
No
Supporting protocol for Data-Highway
No
Supporting protocol for SUCONET
No
Supporting protocol for PROFINET IO
No
Supporting protocol for SERCOS
No
Supporting protocol for EtherNet/IP
Yes
Supporting protocol for DeviceNet Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for BACnet
No
Number of HW-interfaces industrial Ethernet
2
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-485
1
Number of HW-interfaces USB
0
Number of HW-interfaces other
1
With PC connection
Yes
4-quadrant operation possible
Yes
Degree of protection (IP)
IP20
Width
180 mm
Files to download
ENVPEP1609006EN_V1.pdf
ENVEOLI1609006EN_V1.pdf
