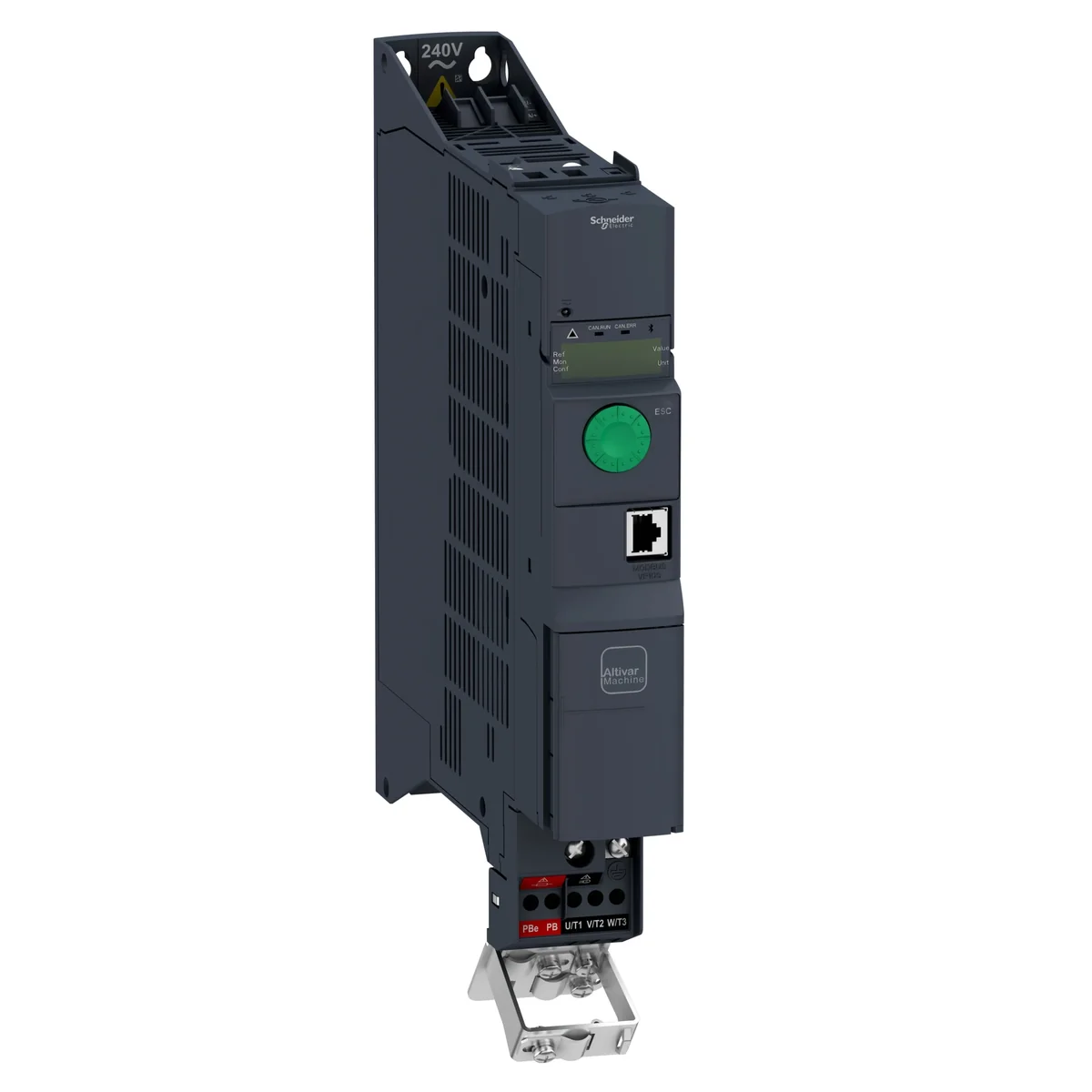

Frequency converter ATV320, 0.37kW, 200...240V, 1 phase, book ATV320U04M2B
Lokaler Index:
AUF003SCHN
Katalognummer:
ATV320U04M2B
EAN-Code:
3606480966323
Hersteller:
SCHNEIDER ELECTRIC
Preis:
1 511,53 zł
gross / stk.
(inklusive MwSt 23%)
Auf Bestellung
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken
Fragen Sie nach dem Produkt
Technische Daten
-
PKWIU27.90.41.0
Weitere technische Daten
-
Mains voltage200 ... 240 V
-
Number of phases input1
-
Max. output frequency599 Hz
-
Nominal output current I2N3.3 A
-
Max. output at linear load at rated output voltage0.37 kW
-
Relative symmetric net voltage tolerance10 %
-
Number of analogue inputs3
-
Number of digital inputs6
-
Application in industrial area permittedYes
-
Supporting protocol for TCP/IPNo
-
Supporting protocol for CANYes
-
Supporting protocol for ASINo
-
Supporting protocol for ModbusYes
-
Supporting protocol for DeviceNetYes
-
Supporting protocol for LONNo
-
Supporting protocol for PROFINET CBANo
-
Supporting protocol for Foundation FieldbusNo
-
Supporting protocol for AS-Interface Safety at WorkNo
-
Supporting protocol for INTERBUS-SafetyNo
-
Supporting protocol for SafetyBUS pNo
-
Supporting protocol for other bus systemsYes
-
Number of interfaces PROFINET0
-
Number of HW-interfaces RS-4220
-
Number of HW-interfaces serial TTY0
-
Number of HW-interfaces parallel0
-
With optical interfaceNo
-
Integrated breaking resistanceNo
-
Type of converterU converter
-
Height325 mm
-
Depth245 mm
-
Mains frequency50/60 Hz
-
Number of phases output3
-
Max. output voltage240 V
-
Max. output at quadratic load at rated output voltage0.37 kW
-
Relative symmetric net frequency tolerance5 %
-
Number of analogue outputs1
-
Number of digital outputs1
-
With control elementYes
-
Application in domestic- and commercial area permittedNo
-
Supporting protocol for PROFIBUSYes
-
Supporting protocol for INTERBUSNo
-
Supporting protocol for KNXNo
-
Supporting protocol for Data-HighwayNo
-
Supporting protocol for SUCONETNo
-
Supporting protocol for PROFINET IOYes
-
Supporting protocol for SERCOSNo
-
Supporting protocol for EtherNet/IPYes
-
Supporting protocol for DeviceNet SafetyNo
-
Supporting protocol for PROFIsafeNo
-
Supporting protocol for BACnetNo
-
Number of HW-interfaces industrial Ethernet1
-
Number of HW-interfaces RS-2320
-
Number of HW-interfaces RS-4851
-
Number of HW-interfaces USB0
-
Number of HW-interfaces other1
-
With PC connectionYes
-
4-quadrant operation possibleYes
-
Degree of protection (IP)IP20
-
Width45 mm
