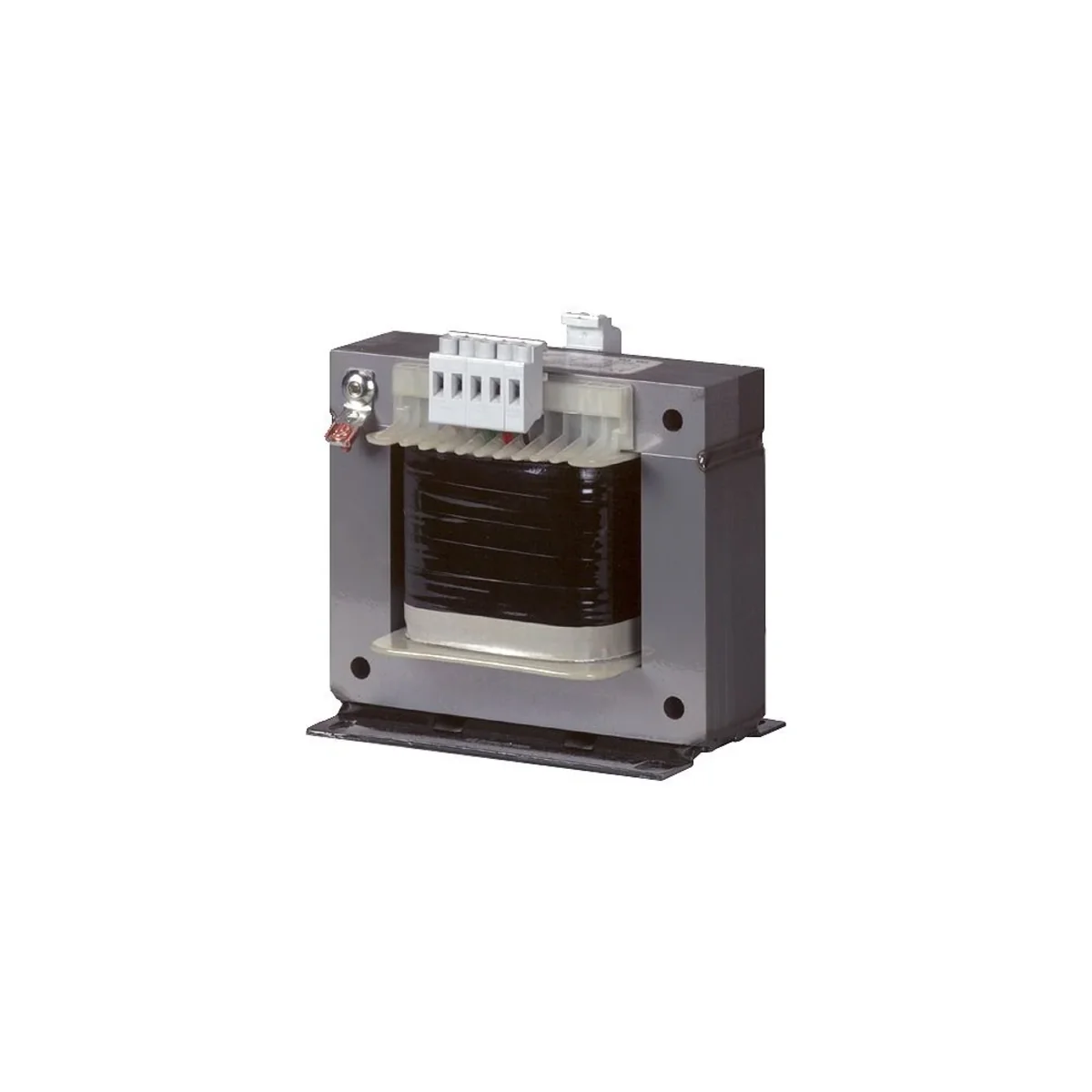

Control transformer, 60VA, STI0.06(230/24) 029977

local index:
AUU001MOEL
Catalog No:
029977
EAN code:
4015080299776
Manufacturer: EATON
Short-time power [kVA]: 0.13
Power [kVA]: 0.06
DC rated voltage [V]: 24
Price:
130,08 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Single-phase preferred voltage control transformers IEC/EN 61558-2-2/2-4/2-6 VDE 0570 part 2-2, part 2-6 (safety transformers), part 2-4 (isolation transformers). Rated input voltage 230 ±5%V, 400 ±5%V. Rated output voltage 24 V, 230 V.

Technical data

  • Short-time power [kVA]
    0.13
  • DC rated voltage [V]
    24
  • Power [kVA]
    0.06

Other technical data

  • Built as safety transformer
    Yes
  • Built as energy saving transformer
    No
  • Primary voltage 2
    0 ... 0 V
  • Primary voltage 4
    0 ... 0 V
  • Primary voltage 6
    0 ... 0 V
  • Primary voltage 8
    0 ... 0 V
  • Primary voltage 10
    0 ... 0 V
  • Secondary voltage 2
    0 ... 0 V
  • Secondary voltage 4
    0 ... 0 V
  • Secondary voltage 6
    0 ... 0 V
  • Secondary voltage 8
    0 ... 0 V
  • Secondary voltage 10
    0 ... 0 V
  • Type of insulation material according to IEC 85
    B
  • Relative short circuit voltage
    7.8 %
  • Height
    91 mm
  • Degree of protection (IP)
    IP00
  • Suitable for mounting on PCB
    No
  • Conductor material
    Copper
  • Built as isolating transformer
    Yes
  • Primary voltage 1
    230 ... 230 V
  • Primary voltage 3
    0 ... 0 V
  • Primary voltage 5
    0 ... 0 V
  • Primary voltage 7
    0 ... 0 V
  • Primary voltage 9
    0 ... 0 V
  • Secondary voltage 1
    24 ... 24 V
  • Secondary voltage 3
    0 ... 0 V
  • Secondary voltage 5
    0 ... 0 V
  • Secondary voltage 7
    0 ... 0 V
  • Secondary voltage 9
    0 ... 0 V
  • Rated apparent power
    60 VA
  • Short-circuit-proof
    No
  • Width
    85 mm
  • Depth
    75 mm
  • Ring core
    No
  • Modular version
    No

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 1,590
Volume (m3) 0,002
Width (m) 0,145
Length (m) 0,117
Depth (m) 0,127
