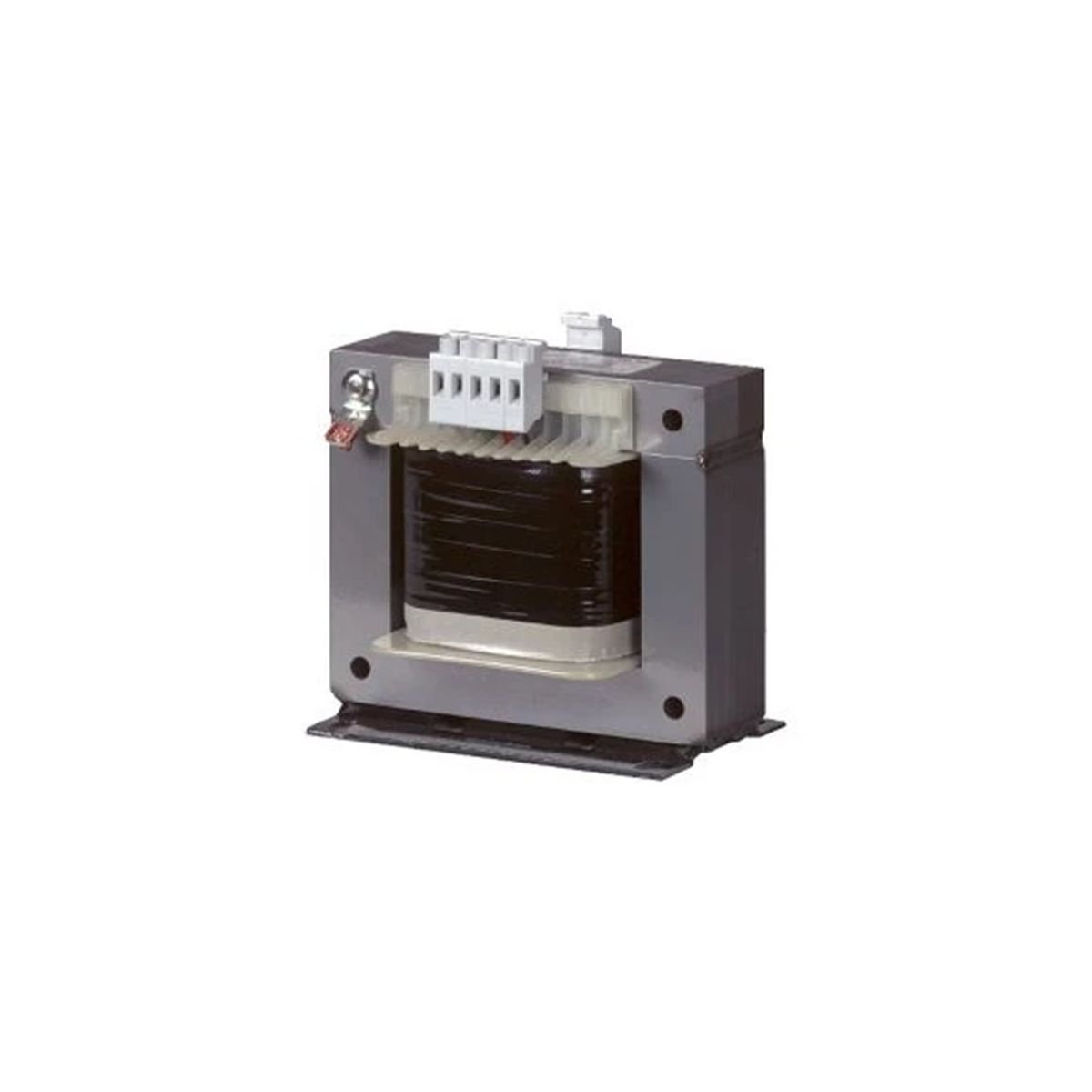

Name: Control transformer, 1kVA, STI1.0(230/24)
Brand: EATON
SKU: AUU004MOEL
Price: 436.18 PLN

Single-phase preferred voltage control transformers IEC/EN 61558-2-2/2-4/2-6 VDE 0570 part 2-2, part 2-6 (safety transformers), part 2-4 (isolation transformers). Rated input voltage 230 ±5%V, 400 ±5%V. Rated output voltage 24 V, 230 V.

Short-time power [kVA]

2.8
DC rated voltage [V]

24

Power [kVA]

1

Other technical data

Built as safety transformer

Yes
Built as energy saving transformer

No
Primary voltage 2

0 ... 0 V
Primary voltage 4

0 ... 0 V
Primary voltage 6

0 ... 0 V
Primary voltage 8

0 ... 0 V
Primary voltage 10

0 ... 0 V
Secondary voltage 2

0 ... 0 V
Secondary voltage 4

0 ... 0 V
Secondary voltage 6

0 ... 0 V
Secondary voltage 8

0 ... 0 V
Secondary voltage 10

0 ... 0 V
Type of insulation material according to IEC 85

B
Relative short circuit voltage

2.9 %
Height

157 mm
Degree of protection (IP)

IP00
Suitable for mounting on PCB

No
Conductor material

Copper

Built as isolating transformer

Yes
Primary voltage 1

230 ... 230 V
Primary voltage 3

0 ... 0 V
Primary voltage 5

0 ... 0 V
Primary voltage 7

0 ... 0 V
Primary voltage 9

0 ... 0 V
Secondary voltage 1

24 ... 24 V
Secondary voltage 3

0 ... 0 V
Secondary voltage 5

0 ... 0 V
Secondary voltage 7

0 ... 0 V
Secondary voltage 9

0 ... 0 V
Rated apparent power

1000 VA
Short-circuit-proof

No
Width

151 mm
Depth

164 mm
Ring core

No
Modular version

No

Manufacturer details

Manufacturer

EATON Electric Sp. z o.o.
Address

80-299 Gdańsk ul. Galaktyczna 30
E-mail

pl-gdansk@eaton.com
WWW

https://www.moeller.pl
Tax identification number

5841022327
GLN

5900009970944

A kind of package		Skrzynia
Quantity	1 pcs.	1 pcs.
Weight (kg)	14,468	15,312
Volume (m3)	0,004	0,011
Width (m)	0,151	0,221
Length (m)	0,164	0,231
Depth (m)	0,157	0,207
