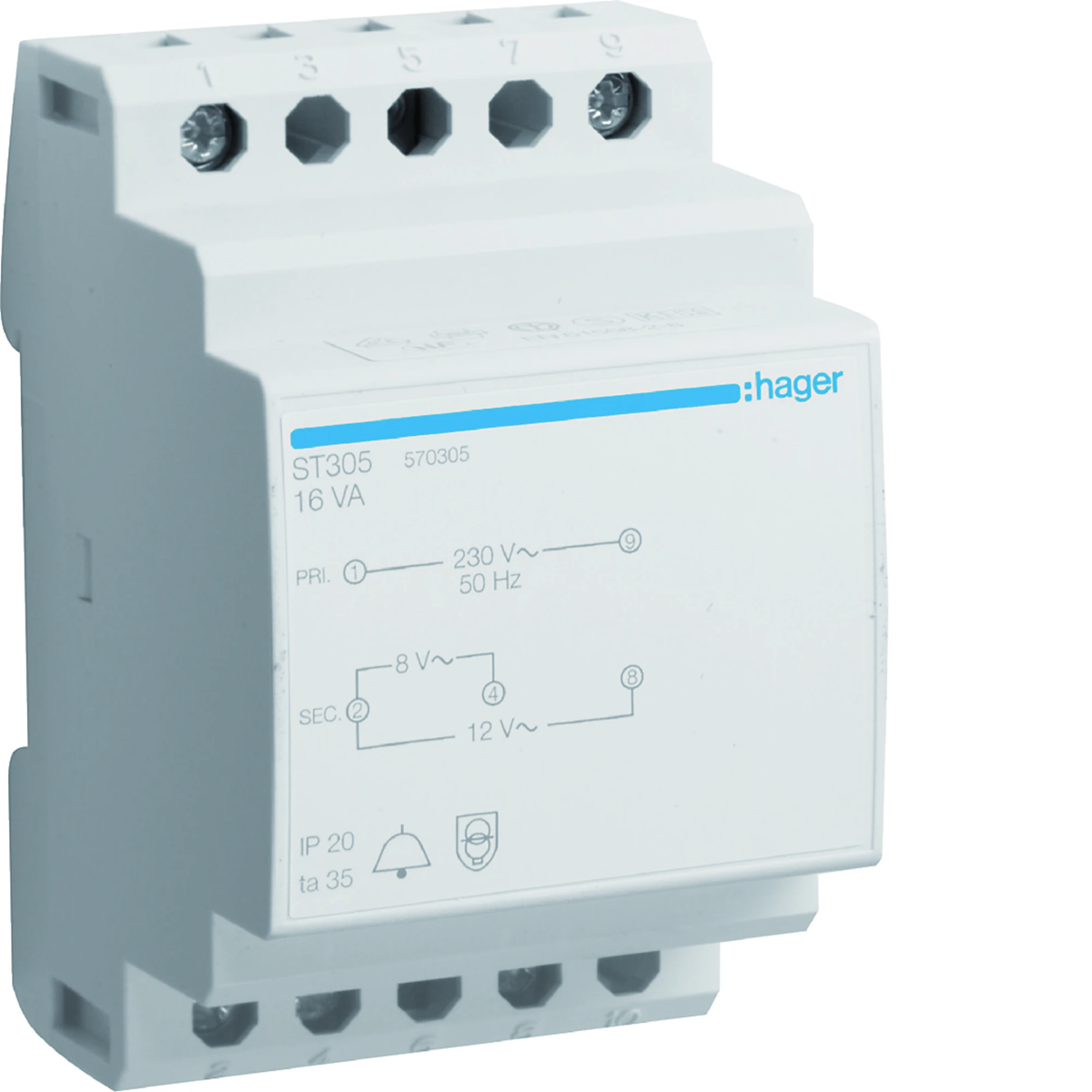

Bell transformer secondary voltage 8V/2A or 12V/1 33A ST305

local index:
AUP016HAGE
Catalog No:
ST305
EAN code:
3250615703057
Manufacturer: HAGER
Depth [mm]: 65
Number of modules: 3
Power [VA]: 16
Price:
55,47 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Safety transformers with separated primary and secondary windings. Output voltage 12/24 V AC Safety transformers and bell transformers are short-circuit proof.

Technical data

  • Depth [mm]
    65
  • Power [VA]
    16
  • Rated voltage [V]
    8
  • Power dissipation [W]
    1.8
  • Height [mm]
    111
  • PKWIU
    27.11.42.0
  • Number of modules
    3
  • Operating voltage [V]
    230
  • Rated insulation voltage [V]
    4000
  • Width [mm]
    53
  • Number of modules
    3

Other technical data

  • Primary voltage
    230 V
  • Secondary voltage 2
    12 V
  • Secondary amperage 2
    1.33 A
  • Max. output current
    2000 A
  • Modular version
    Yes
  • Width
    54 mm
  • Width in number of modular spacings
    3
  • Temperature protection
    Yes
  • Secondary voltage 1
    8 V
  • Secondary amperage 1
    2 A
  • Max. output power
    16 W
  • Type of transformer
    Standard bell ringing transformer
  • Length
    111 mm
  • Height
    65 mm
  • Short-circuit protected
    Yes
  • With on/off switch
    No

Manufacturer details

  • Manufacturer
    HAGER POLO Sp. z o. o.
  • Address
    43-100 Tychy Fabryczna 10
  • Tax identification number
    6460015532

Bulk packaging

A kind of package Karton Pakiet Paleta Karton Pakiet Paleta
Quantity 1 pcs. 48 pcs. 1152 pcs. 1 pcs. 48 pcs. 1152 pcs.
Weight (kg) 0,405 19,440 489,560 0,405 19,440 489,560
Width (m) 0,080 0,315 0,800 0,080 0,315 0,800
Length (m) 0,060 0,235 1,050 0,060 0,235 1,050
Depth (m) 0,095 0,360 1,200 0,095 0,360 1,200
