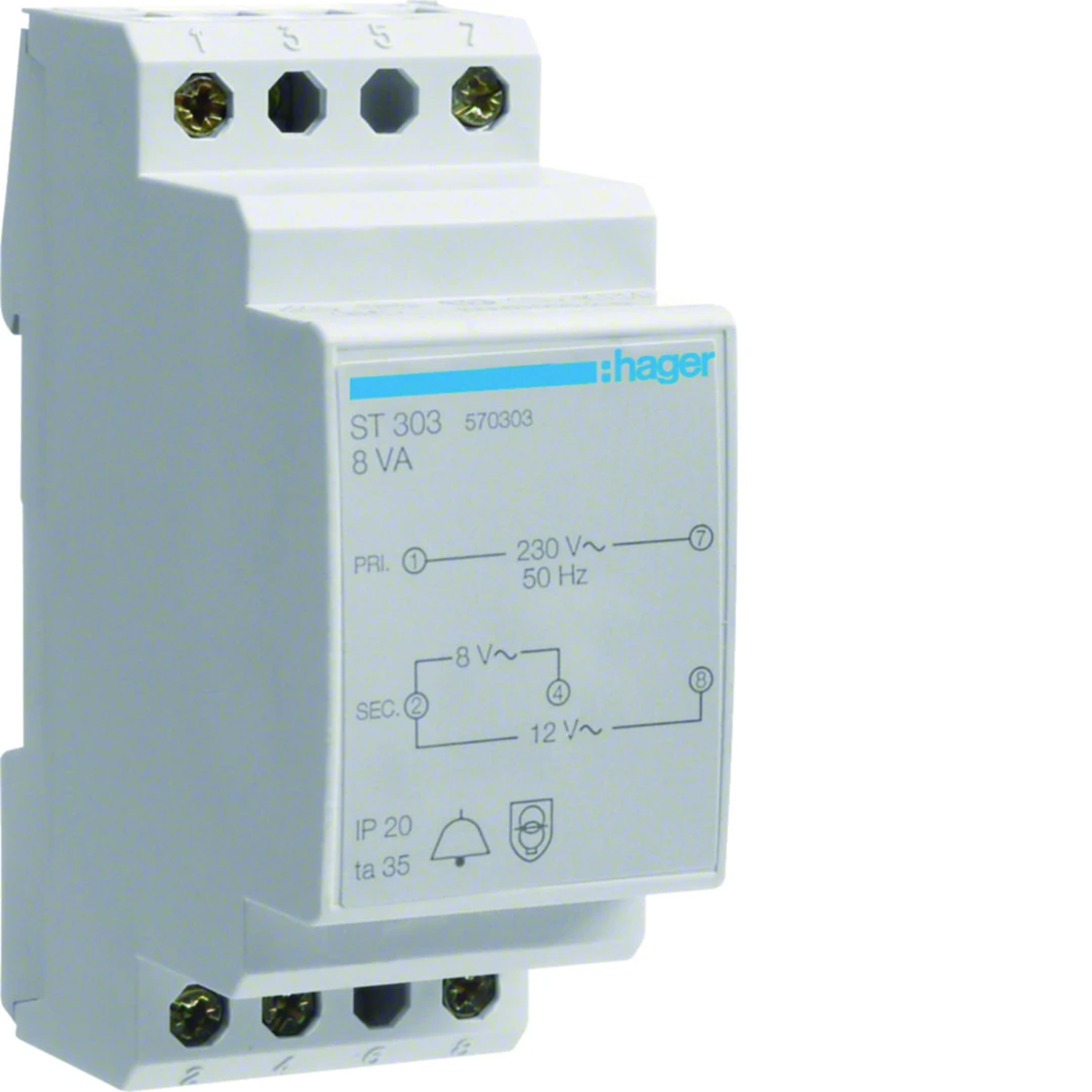

Bell transformer secondary voltage 8V/1A or 12V/0 67A ST303

local index:
AUP015HAGE
Catalog No:
ST303
EAN code:
3250615703033
Manufacturer: HAGER
Depth [mm]: 65
Number of modules: 2
Power [VA]: 8
Price:
38,79 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print

Product description

Safety transformers with separated primary and secondary windings. Output voltage 12/24 V AC Safety transformers and bell transformers are short-circuit proof.

Technical data

  • Depth [mm]
    65
  • Power [VA]
    8
  • Power dissipation [W]
    2.2
  • Height [mm]
    111
  • PKWIU
    27.11.42.0
  • Number of modules
    2
  • Rated voltage [V]
    12
  • Width [mm]
    35
  • Number of modules
    2

Other technical data

  • Primary voltage
    230 V
  • Secondary voltage 2
    12 V
  • Secondary amperage 2
    0.67 A
  • Max. output current
    1000 A
  • Modular version
    Yes
  • Width
    35 mm
  • Width in number of modular spacings
    2
  • Temperature protection
    Yes
  • Secondary voltage 1
    8 V
  • Secondary amperage 1
    1 A
  • Max. output power
    8 W
  • Type of transformer
    Standard bell ringing transformer
  • Length
    111 mm
  • Height
    65 mm
  • Short-circuit protected
    Yes
  • With on/off switch
    No

Manufacturer details

Bulk packaging

A kind of package Karton Pakiet Paleta Karton Pakiet Paleta
Quantity 6 pcs. 72 pcs. 1728 pcs. 6 pcs. 72 pcs. 1728 pcs.
Weight (kg) 1,440 17,280 414,720 1,440 17,280 414,720
Width (m) 0,100 0,320 0,800 0,100 0,320 0,800
Length (m) 0,080 0,230 1,050 0,080 0,230 1,050
Depth (m) 0,220 0,360 1,200 0,220 0,360 1,200
