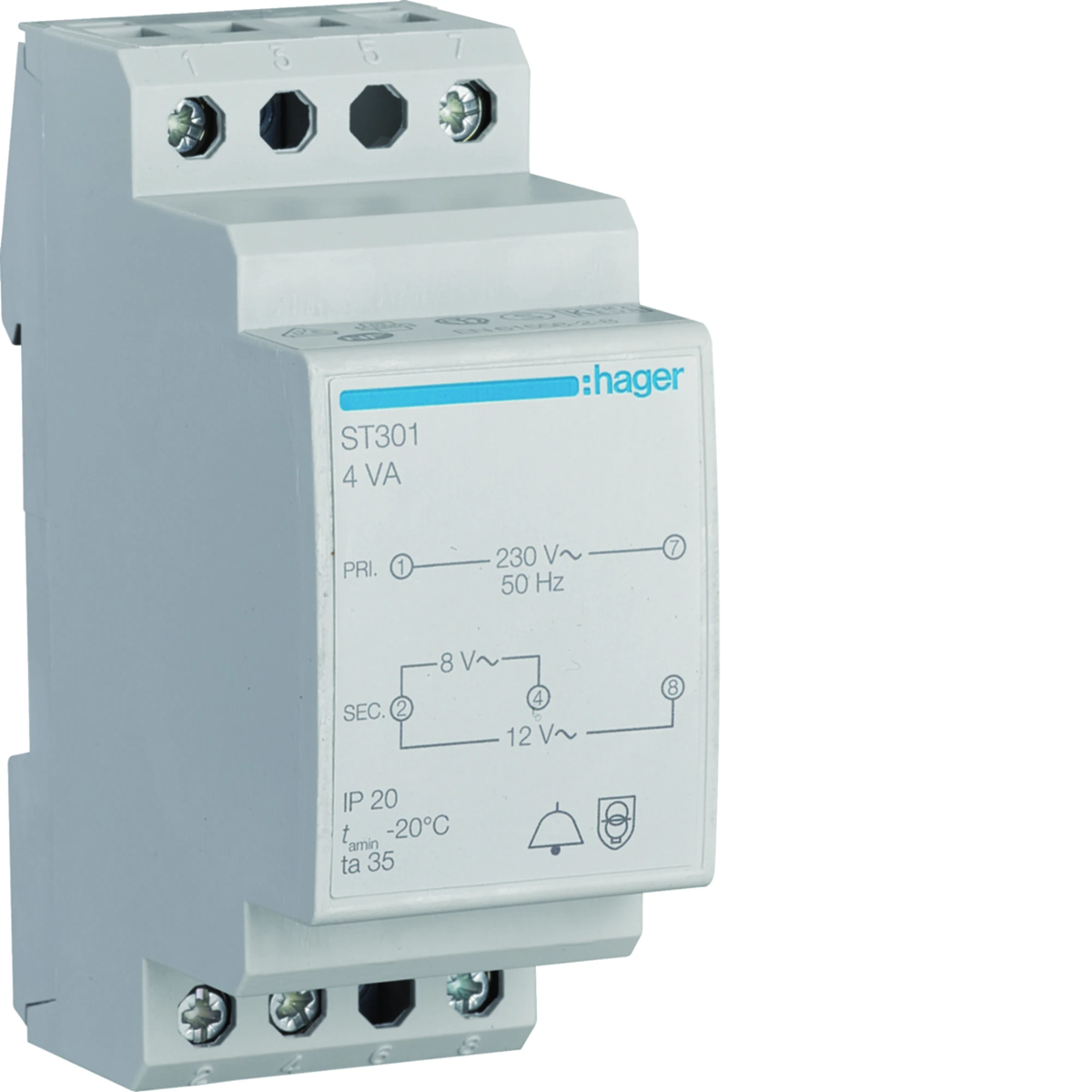

Bell transformer secondary voltage 8V/0 5A or 12V/0 33A ST301

Name: Bell transformer secondary voltage 8V/0 5A or 12V/0 33A
Brand: HAGER
SKU: AUP014HAGE
Price: 36.54 PLN

local index:

AUP014HAGE

Catalog No:

ST301

EAN code:

3250615703019

Bell transformer secondary voltage 8V/0 5A or 12V/0 33A

Click on the photo to enlarge

Manufacturer: HAGER

Power [VA]: 4

Rated voltage [V]: 12

See full description

Price:

36,54 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Safety transformers with separated primary and secondary windings. Output voltage 12/24 V AC Safety transformers and bell transformers are short-circuit proof.

Technical data

Power [VA]

4
PKWIU

27.11.42.0

Rated voltage [V]

12

Other technical data

Primary voltage

230 V
Secondary voltage 2

12 V
Secondary amperage 2

0.33 A
Max. output current

5 A
Modular version

Yes
Width

35 mm
Width in number of modular spacings

2
Temperature protection

Yes

Secondary voltage 1

8 V
Secondary amperage 1

0.5 A
Max. output power

4 W
Type of transformer

Standard bell ringing transformer
Length

111 mm
Height

65 mm
Short-circuit protected

Yes
With on/off switch

No

Manufacturer details

Manufacturer

HAGER POLO Sp. z o. o.
Address

43-100 Tychy Fabryczna 10
Tax identification number

6460015532

Bulk packaging

A kind of package	Karton	Pakiet	Paleta
Quantity	6 pcs.	72 pcs.	1728 pcs.
Weight (kg)	1,400	17,160	438,840
Width (m)	0,100	0,315	0,800
Length (m)	0,080	0,235	1,118
Depth (m)	0,225	0,365	1,200
