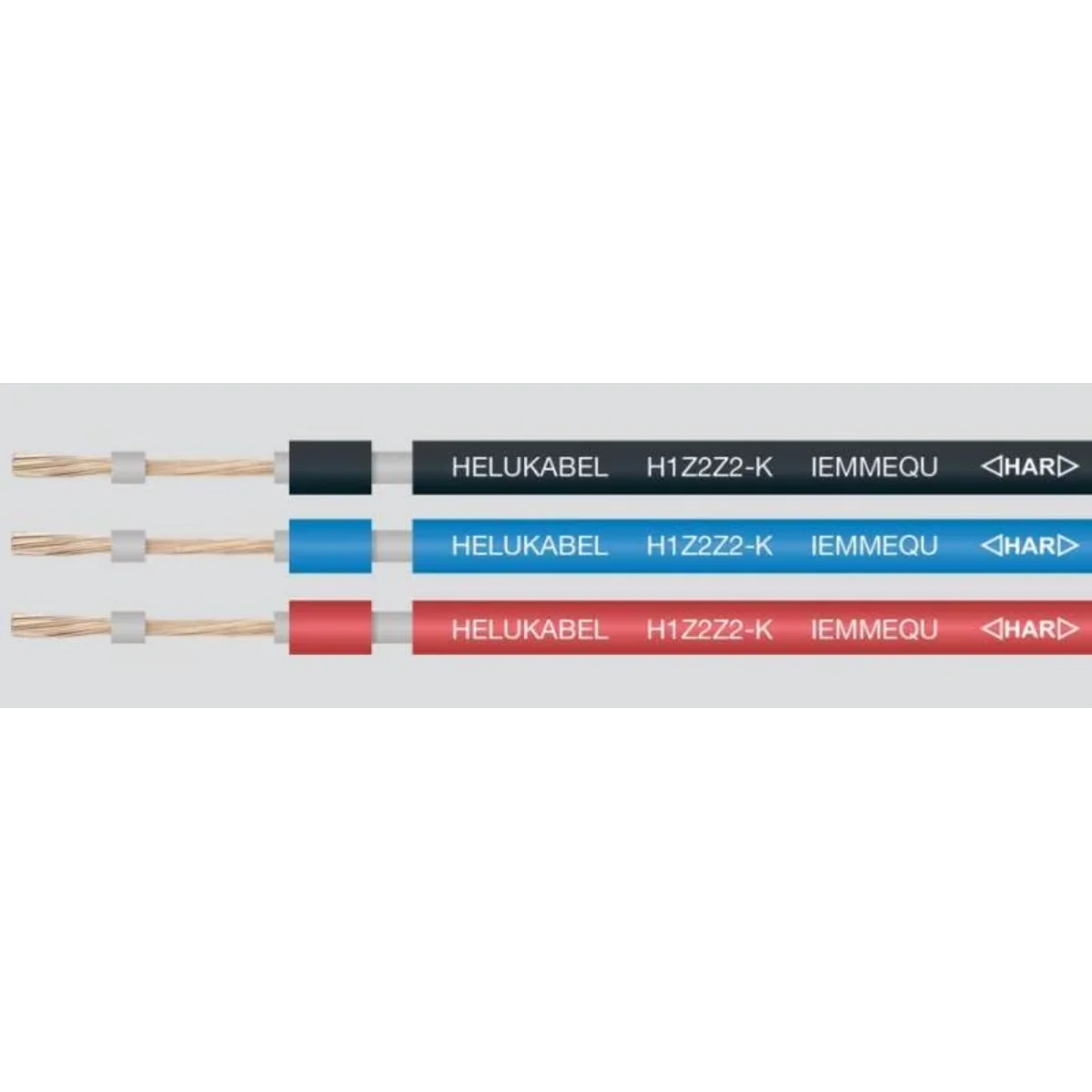

Flexible single-core cable H1Z2Z2-K 1x6mm2 red 18048772

Flexible cable, single-core, halogen-free.

Technical data:

• Single-core cable for photovoltaic installations, made according to EN 50618
• Operating temperature range
  • stationary from –40°C to +90°C
  • maximum core temperature +120°C
• Operating voltage
  • U0/U 1000/1000 V AC
  • U0/U 1500/1500 V DC
  • Um 1800 V DC – maximum voltage to earth
• Test voltage: 6.5 kV AC
• Minimum bending radius fixed installation 3x ∅
• Cable life
  • 1) Continuous operation at +90°C on the conductor and ambient temperature up to +60°C ensures at least 25 years of service life, and at +120°C on conductor and a maximum ambient temperature of +90°C, the service life is reduced to 20,000h, i.e. about 2 years and 3 months.
  • 2) Direct laying in the ground reduces the service life of the cable

  Construction:

  • Tinned copper conductor, flexible, class 5 according to DIN VDE 0295/IEC 60228
  • Core insulation made of special cross-linked halogen-free material
  • Insulation color: light gray
  • Sheath made of special cross-linked halogen-free material
  • Metered cable

  Properties:

  • Maximum short-circuit wire temperature +250°C for 5 seconds
  • Meets the requirements of protection class II in protection against electric shock
  • UV resistant and weather conditions, including ozone resistance
  • Used for outdoor and indoor installations
  • Suitable for direct burial, but casing pipes are recommended
  • Cable life min. 25 years

  Use in photovoltaic systems.
