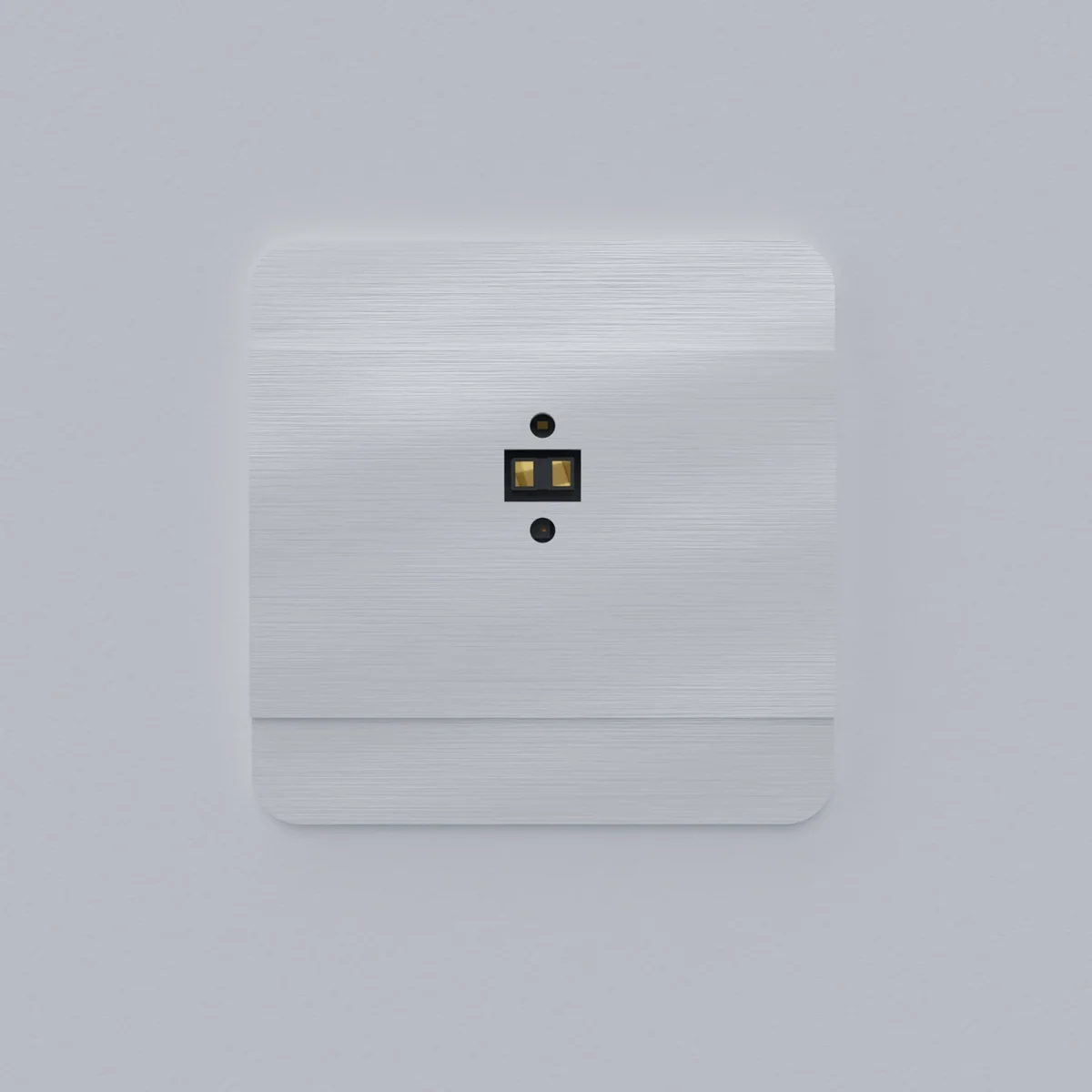

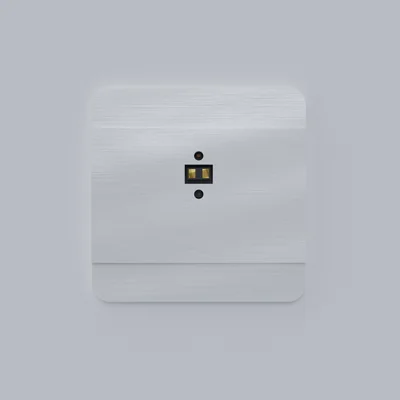

White ToF laser distance sensor DRL-12-1

local index:
APK019FIFQ
Catalog No:
DRL-12-1
EAN code:
5902431674414
Manufacturer: F&F
Color: White
Maximum load current [A]: 4
Tightening torque [Nm]: 0.4
Price:
82,10 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 19 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Laser distance sensor from the manufacturer F&F. The product part number is DRL-12-1. Intended for control lighting in corridors and stairwells.. The principle of operation Time of Flight laser distance sensor is based on the emission of a light beam and measurement of the delay of light which returns due to reflection from an obstacle. This allows you to precisely determine the distance of the object. Then this distance is compared with the set detection range. If something appears at a distance less than the indicated value, the light is turned on. Such a solution  is perfect for switching on lighting circuits, e.g. on open stairs, where it is important that the sensor only detects presence on the stairs and ignores everything that happens outside them.



  • detection range set smoothly from 0.1 to 2 m;
  • brightness sensor preventing switching on the light at high brightness level;
  • adjustable activation hold time lights;
  • possibility of direct control of 12/24 V lighting circuits (load capacity up to 4 A, which can be increased by adding LED-AMP amplifiers);
  • soft switching function and switching off controlled lighting circuits1);
  • possibility of triggering AS-225 cascade controllers;

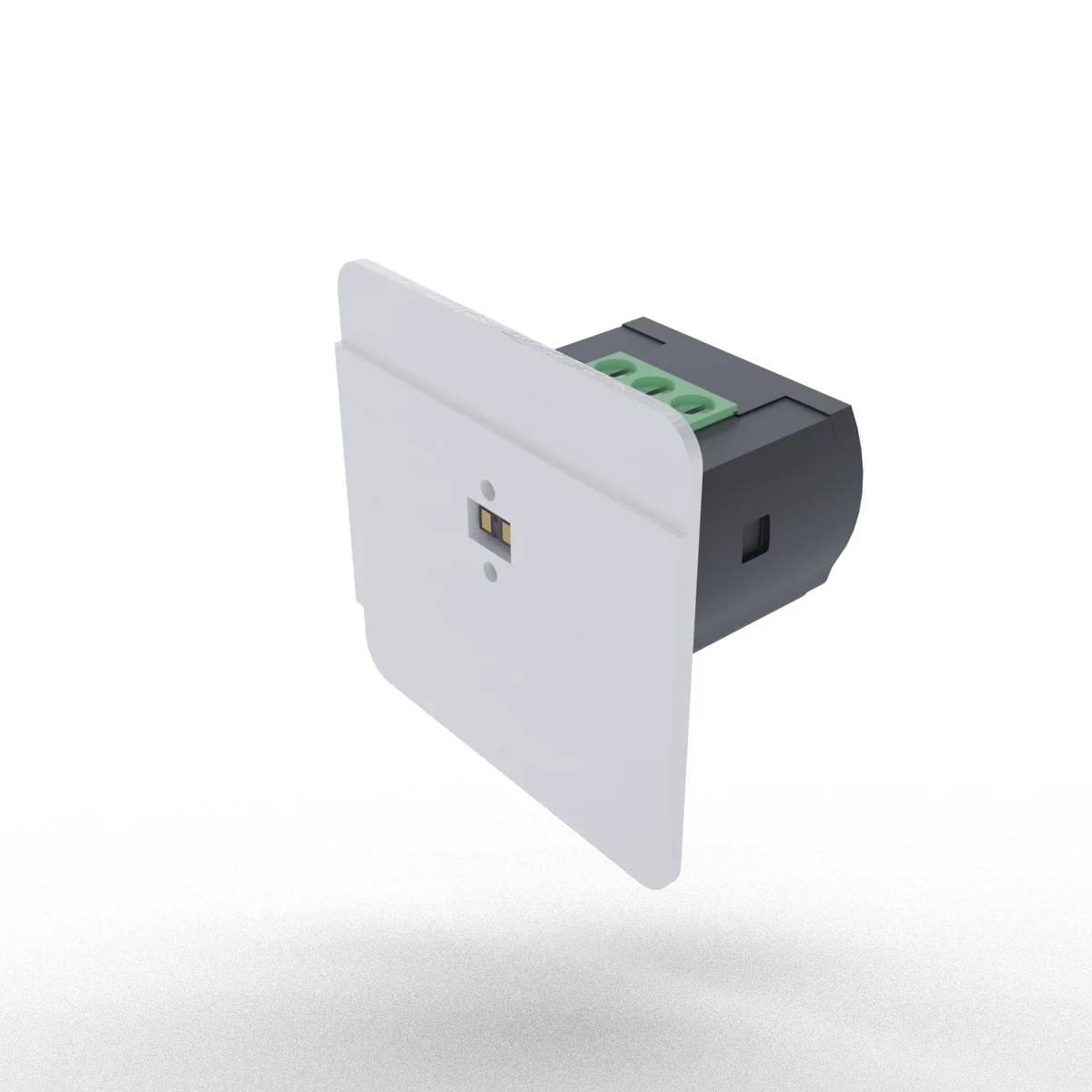

  • small size, mounting in a ø35 mm box, supplied with the sensor;
  • LED indicating the sensor's operating status;
  • thermal protection against exceeding the permissible temperature inside the housing.



Parameters

  • Detection field: 0.1÷2.0 m adjustable.
  • Receiver activation time - adjustable: 0÷10 min.
  • Detection type: ToF laser sensor.
  • Wavelength: 940 nm.
  • Safety: class 1.
  • Connection: screw terminals 2 .5 mm².
  • Operating temperature: -10÷45°C.
  • Dimensions: external 45×45×1.5 mm; internal (box) ø35 mm, depth 45 mm.

Technical data

  • Color
    White
  • Tightening torque [Nm]
    0.4
  • Power consumption [W]
    0.3
  • Level of security
    IP40
  • DC supply voltage [V]
    9÷27
  • PKWIU
    27.12.24.0
  • Maximum load current [A]
    4
  • Installation
    Flush-mounted
  • Actuation threshold - adjustable [Lx]
    2÷500
  • Range [m]
    2
  • Terminal type
    Threaded

Other technical data

  • Model
    Movement sensor
  • With DALI interface
    No
  • HVAC-control
    No
  • Forced switch off
    No
  • Creep-under protection
    No
  • Scan angle
    10 °
  • Bridging switch
    No
  • Max. presence range
    1 m²
  • Diameter reach on floor
    1 m
  • Remote operation
    No
  • Response value sensitivity adjustable
    Yes
  • With signal unit
    Yes
  • Suitable for ceiling mounting
    No
  • Dim function with dimmer basic element
    Yes
  • Connection type
    Screwed terminal
  • Material quality
    Stainless steel
  • Surface protection
    Other
  • Colour
    Stainless steel
  • Degree of protection (IP)
    IP20
  • Voltage type
    DC
  • Min. switch-on time
    1 s
  • Switch-off delay
    1 s
  • Response value luminosity
    2 ... 500 lx
  • Suitable for C-load
    Yes
  • Max. starting current
    4 A
  • Substation input
    No
  • Width
    45 mm
  • Depth
    45 mm
  • Built-in width
    35 mm
  • Built-in length
    45 mm
  • Min. depth of built-in installation box
    45 mm
  • Sensor type
    Other
  • Constant light control
    Yes
  • Forced switch on
    Yes
  • Animal zone
    No
  • Networkable
    Yes
  • Staircase light controller
    Yes
  • Max. reach sideways
    0 m
  • Max. reach frontally
    2 m
  • Suitable for wireless transmission
    No
  • With remote control
    No
  • Response value luminosity adjustable
    Yes
  • Teach-function for response value luminosity
    No
  • Suitable for wall mounting
    Yes
  • Mounting method
    Flush-mounted
  • Material
    Metal
  • Halogen free
    No
  • Anti-bacterial treatment
    No
  • Transparent
    No
  • Impact strength
    IK00
  • Nominal voltage
    12 V
  • Max. duty cycle
    10 min
  • Switching-on delay
    1 s
  • Max. switching power
    50 W
  • Number of switching zones
    1
  • Min. starting current
    0.1 A
  • With alarm function
    No
  • Height
    45 mm
  • Diameter
    35 mm
  • Built-in depth
    45 mm
  • Built-in diameter
    35 mm
