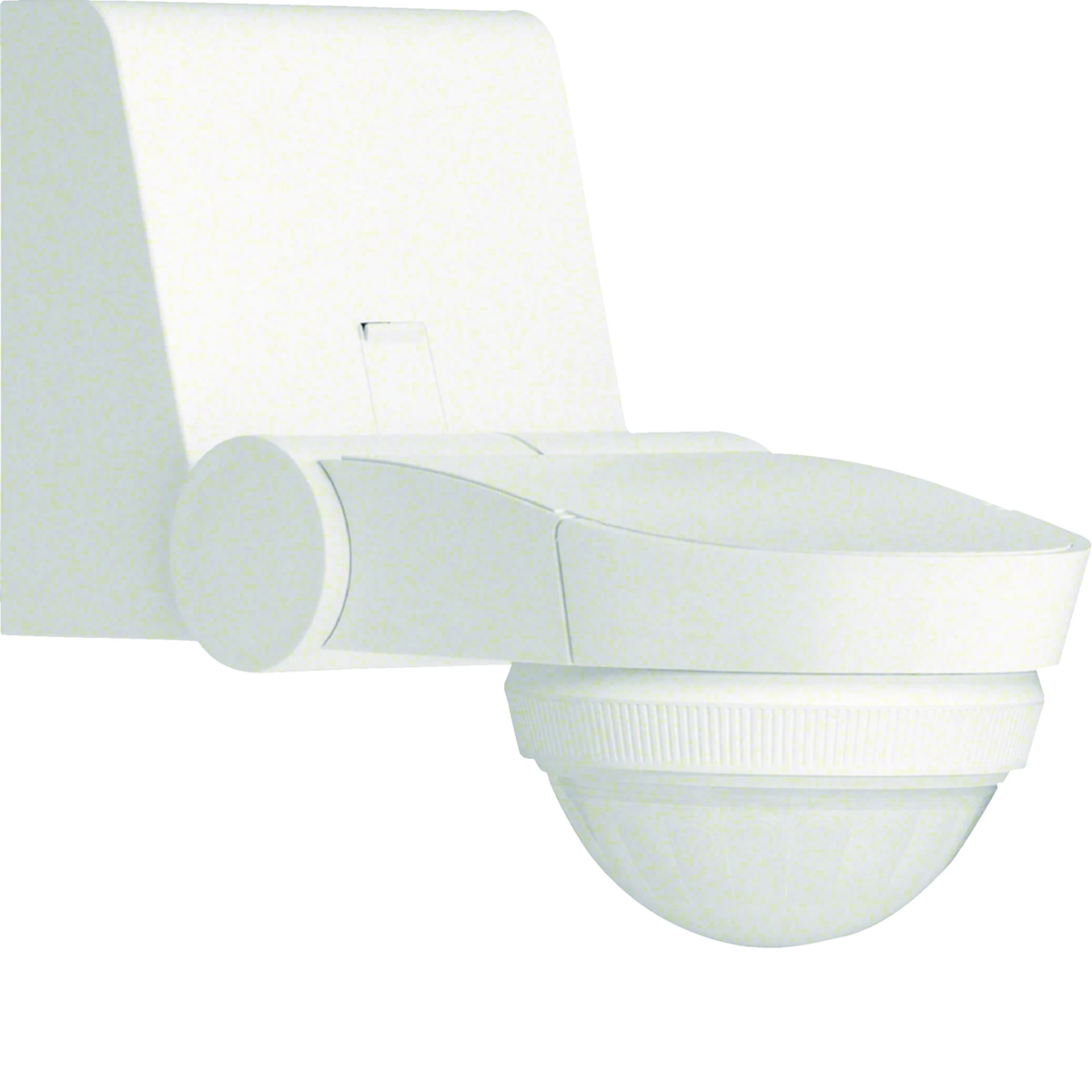

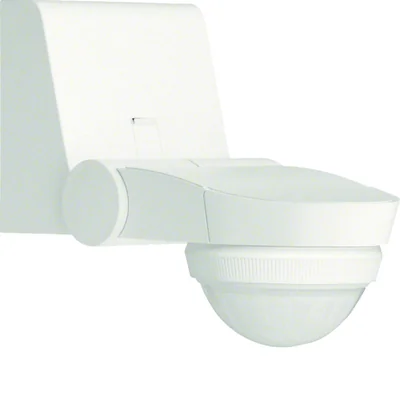

Surface-mounted motion sensor, 360 degrees, white, IP55 EE840

local index:
APK010HAGE
Catalog No:
EE840
EAN code:
3250612258406
Manufacturer: HAGER
Rated frequency [Hz]: 50/60
Installation: Surface-mounted
Contact type: 1W+Neutral
Price:
210,45 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Motion sensors basic version
power supply: 230 V~ 50 Hz
relay output: 10A AC1
installation height 2.5 m
detection field:
140° front: 16 m / side: 6 m
200° front: 16 m / side: 8 m
360°: diameter 12 m
delay time 5 sec to 15 min.
illuminance 5 to 1000 Lux
iP55
for automatic control of lighting circuits depending on motion detection and light intensity
delay time and lighting intensity set using potentiometers
sensors equipped with a Fresnel lens guaranteeing high quality of detection
140° sensor designed to detect motion and light levels
200° sensor adapted for mounting on the facade of the building
360° sensor adapted to protect corner areas
mounting accessories enable ceiling and corner mounting

Technical data

  • Rated frequency [Hz]
    50/60
  • Contact type
    1W+Neutral
  • Working temperature [°C]
    -20 to 55
  • Delay range [s]
    5 to 900
  • Connection type
    Quick Connect
  • PKWIU
    27.33.11.0
  • Installation
    Surface-mounted
  • Level of security
    IP55
  • Illuminance Range [Lux]
    5/1000
  • Breaking capacity
    AC1
  • Maximum bulb power [W]
    1500

Other technical data

  • Model
    Movement sensor
  • Constant light control
    no
  • Forced switch off
    no
  • Networkable
    yes
  • Max. reach sideways
    6 m
  • Suitable for wireless transmission
    no
  • With remote control
    no
  • Response value luminosity adjustable
    yes
  • Teach-function for response value luminosity
    yes
  • Mounting method
    Surface mounted
  • Anti-bacterial treatment
    no
  • Degree of protection (IP)
    IP55
  • Detection angle horizontal
    360 ... 360 °
  • Built-in width
    0 mm
  • With DALI interface
    no
  • HVAC-control
    no
  • Animal zone
    no
  • Optimum mounting height
    2.5 m
  • Max. reach frontally
    12 m
  • Remote operation
    yes
  • Response value sensitivity adjustable
    yes
  • With signal unit
    no
  • Suitable for wall mounting
    yes
  • Material
    Plastic
  • RAL-number (similar)
    9010
  • Frequency
    50 ... 60 Hz
  • Substation input
    yes
  • Built-in length
    0 mm

Bulk packaging

A kind of package Pakiet Paczka Paleta
Quantity 1 pcs. 10 pcs. 240 pcs.
Weight (kg) 0,390 4,285 125,840
Width (m) 0,125 0,310 0,800
Length (m) 0,095 0,210 0,990
Depth (m) 0,140 0,370 1,200
