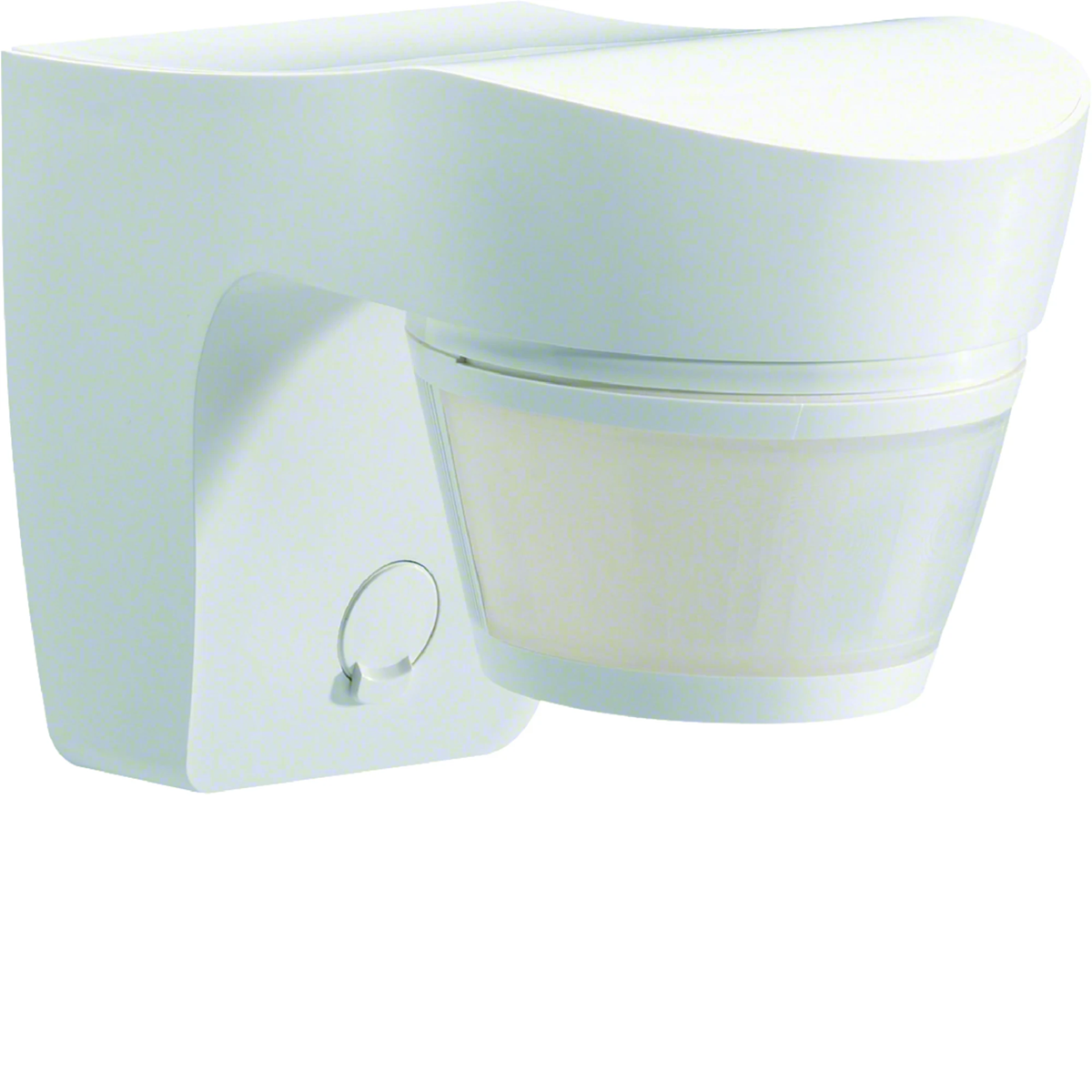

Surface-mounted motion sensor 200 degrees white, IP55 EE830

Motion sensors basic version
power supply: 230 V~ 50 Hz
relay output: 10 A AC1
mounting height 2.5 m
detection field:
140° ; front: 16 m/lateral: 6 m
200° front: 16 m/lateral: 8 m
360°: diameter 12 m
delay time 5 sec to 15 min.
illumination intensity 5 to 1000 Lux iP55

- for automatic control of lighting circuits depending on motion detection and light intensity
- delay time and light intensity set with potentiometers
- sensors equipped with a Fresnel lens guaranteeing high quality of detection< br /> - sensor 140° designed for motion and light level detection
- 200° adapted for mounting on the facade of the building
- 360° adapted to protect corner areas
- mounting accessories enable ceiling and corner mounting
