Motion sensors basic version
power supply: 230 V~ 50 Hz
relay output: 10A AC1
installation height 2.5 m
detection field:
140° front: 16 m / side: 6 m
200° front: 16 m / side: 8 m
360°: diameter 12 m
delay time 5 sec to 15 min.
illuminance 5 to 1000 Lux
iP55
for automatic control of lighting circuits depending on motion detection and light intensity
delay time and lighting intensity set using potentiometers
sensors equipped with a Fresnel lens guaranteeing high quality of detection

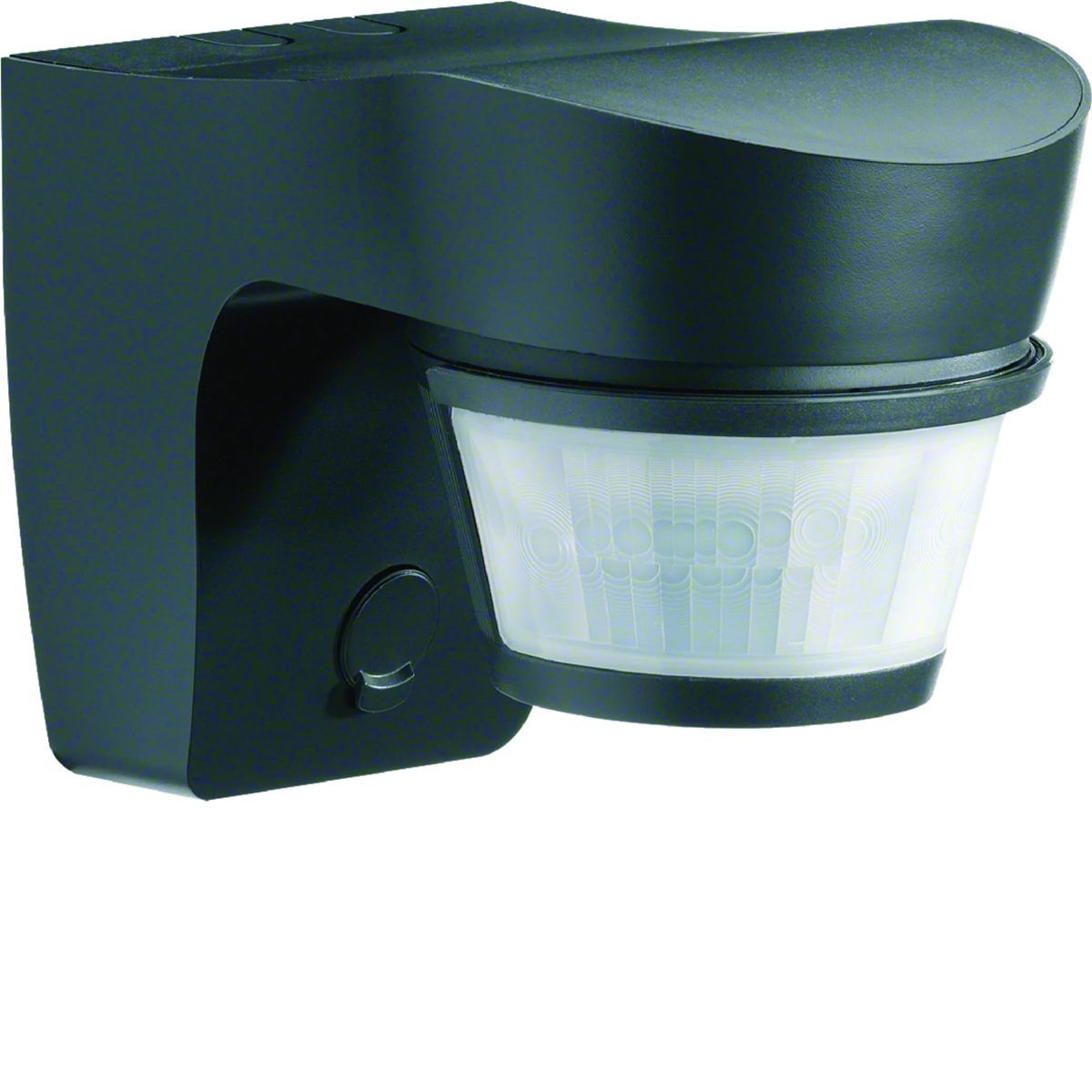

140° sensor designed to detect motion and light levels
200° sensor adapted for mounting on the facade of the building
360° sensor adapted to protect corner areas
mounting accessories enable ceiling and corner mounting

Rated frequency [Hz]

50/60
Contact type

1W+Neutral
Working temperature [°C]

-20 to 55
Delay range [s]

5 to 900
Connection type

Quick Connect
PKWIU

27.33.11.0

Installation

Surface-mounted
Level of security

IP55
Illuminance Range [Lux]

5/1000
Breaking capacity

AC1
Maximum bulb power [W]

1500

Other technical data

Model

Movement sensor
Constant light control

No
Forced switch off

No
Networkable

Yes
Max. reach sideways

8 m
Suitable for wireless transmission

No
With remote control

No
Response value luminosity adjustable

Yes
Teach-function for response value luminosity

Yes
Mounting method

Surface mounted
Halogen free

Yes
Anti-bacterial treatment

No
Frequency

50 ... 60 Hz
Substation input

Yes
Built-in width

0 mm

With DALI interface

No
HVAC-control

No
Animal zone

No
Optimum mounting height

4 m
Max. reach frontally

16 m
Remote operation

Yes
Response value sensitivity adjustable

Yes
With signal unit

No
Suitable for wall mounting

Yes
Material

Plastic
Surface finishing

Matt
Degree of protection (IP)

IP55
Detection angle horizontal

140 ... 140 °
Height

97 mm
Built-in length

0 mm

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	12 pcs.	288 pcs.
Weight (kg)	0,311	0,315	4,165	122,960
Width (m)	0,115	0,110	0,310	0,800
Length (m)	0,097	0,095	0,215	1,050
Depth (m)	0,149	0,140	0,365	1,200
