SERIES 18 PIR motion sensor IP54 1Z 10A 230V AC 5-350lx 100° 10m 181182300000PAS
local index:
APK008FIND
Catalog No:
181182300000PAS
EAN code:
8012823310473
Price:
51,28 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print
Ask about the product
Product description

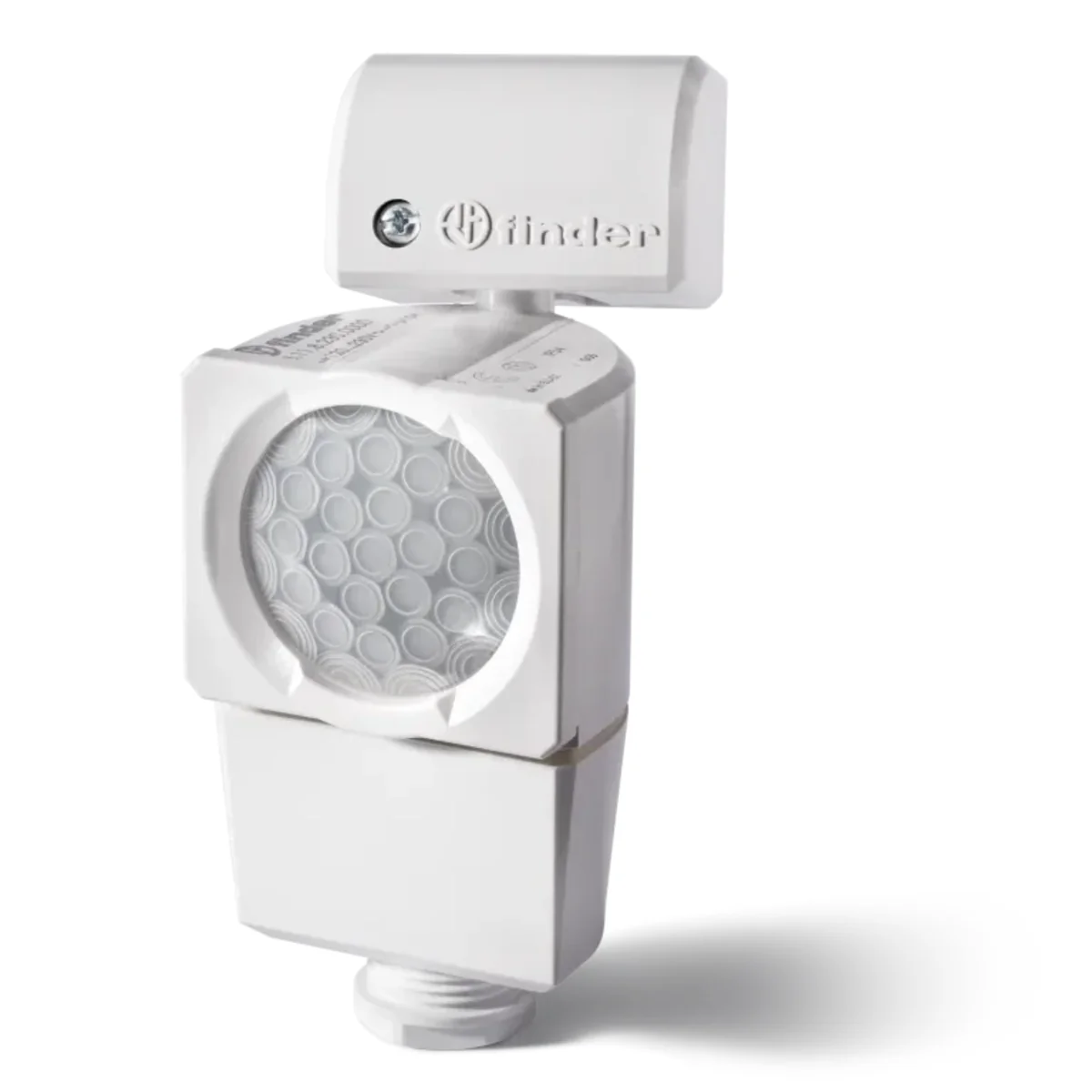

Infrared motion sensor for mounting outside objects on the wall
Properties:
- Contact output connected to the power circuit
- Small dimensions
- Adjustable activation sensitivity
- Adjustable operating time
- Rotated base - detection area adjustment
- Wide view
Technical data
-
Depth [mm]69.5
-
Contact materialAgSnO2
-
InstallationSurface-mounted
-
Rated voltage [V]230
-
Power consumption [VA]2.5
-
Contact typepowered
-
Level of securityIP54
-
Height [mm]118.5
-
Number of contacts1Z
-
Type of coil voltageAC
-
Rated switching power for AC1 [VA]2300
-
Electrical durability AC1 [number of cycles]100000
-
Switching time range [s-min]10-12
-
Detection angle [°]100
-
Fixingscrew terminals
-
AC coil voltage [V]120-230
-
Overvoltage resistance [kV]1
-
Rated current [A]10
-
Family18
-
Width [mm]50.6
-
Rated inrush current [A]20
-
Maximum detection distance [m]10
-
Rated AC switching voltage [V]230
-
Rated switching power for AC15 (230V AC) [VA]450
-
Sensitivity setting range [lx]5-350
