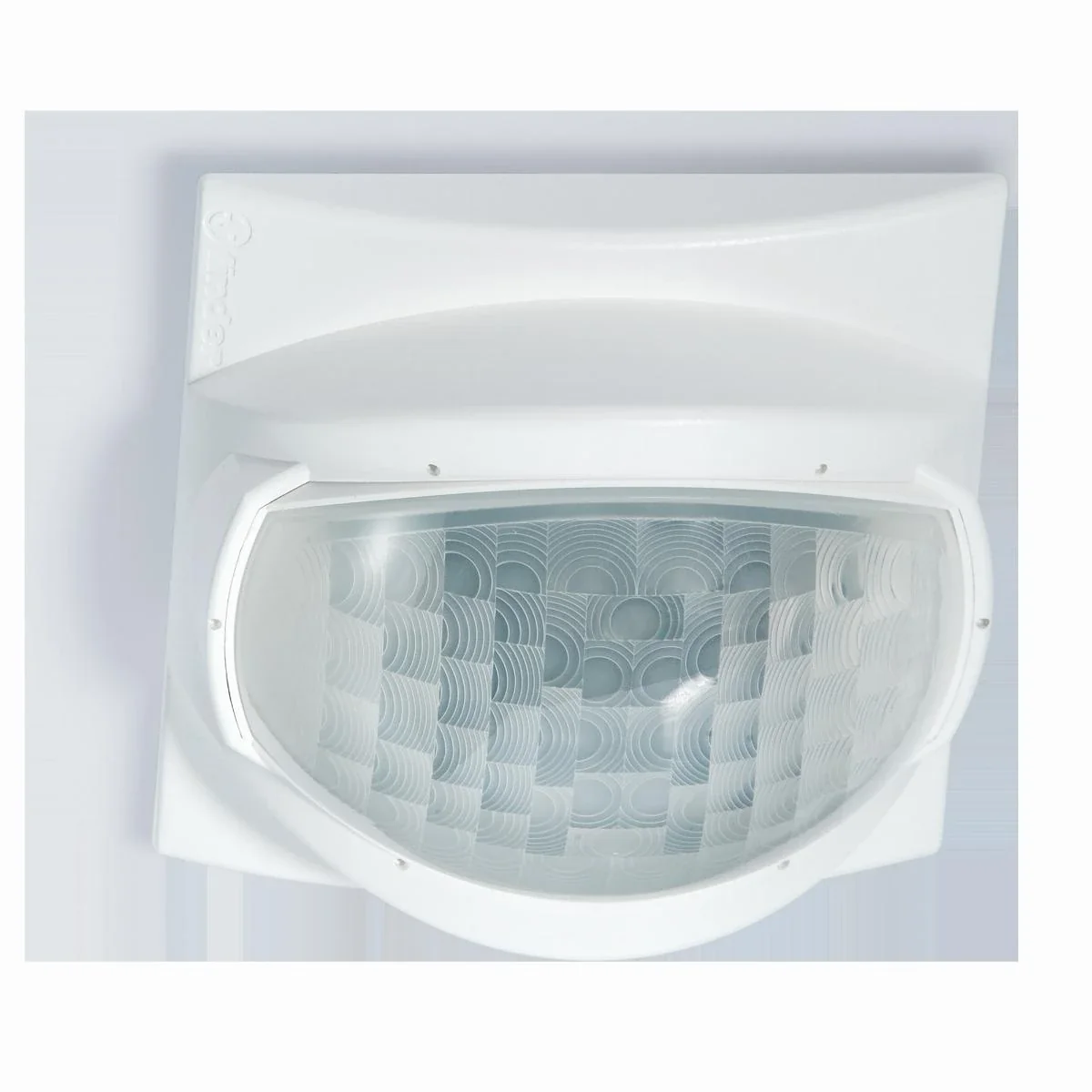

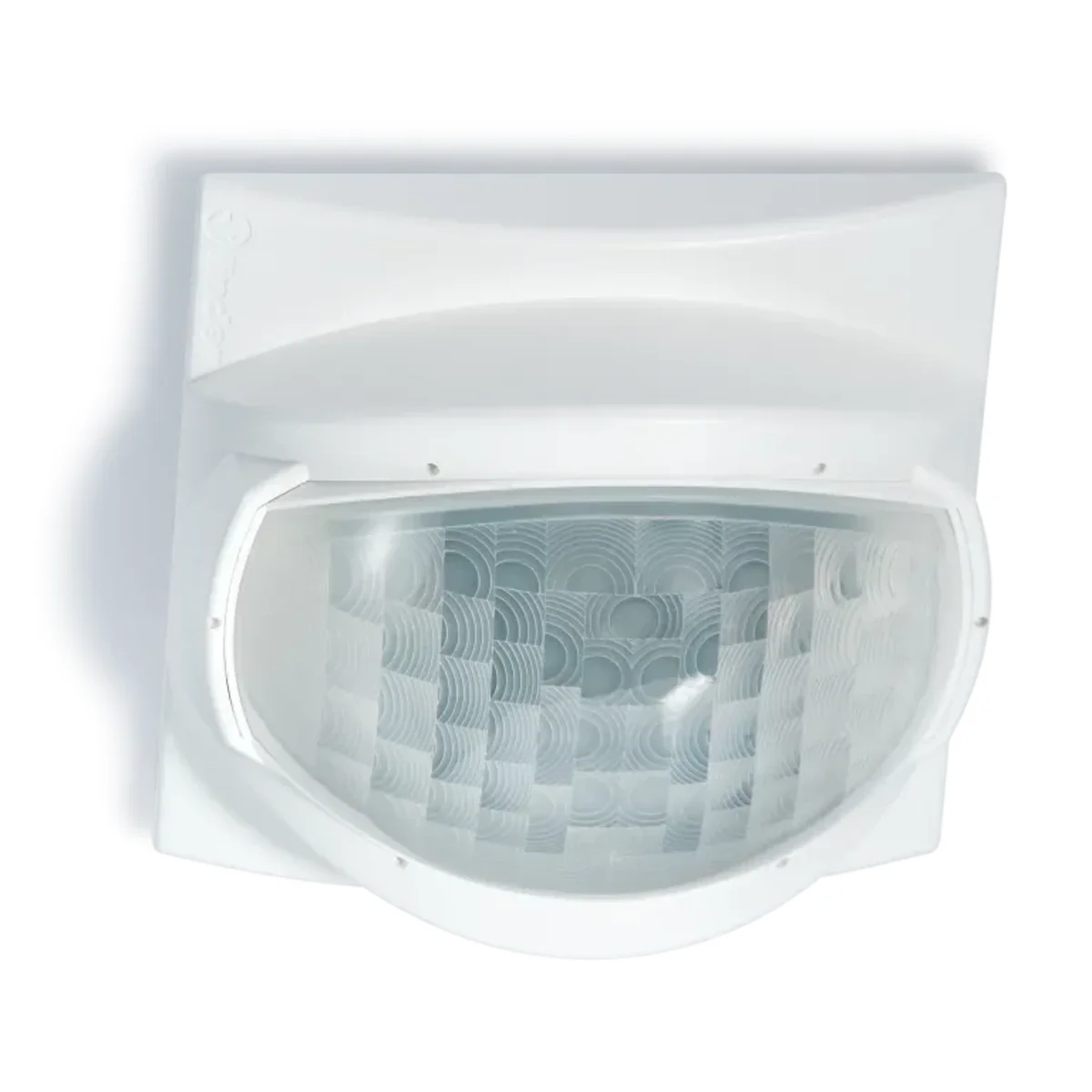

SERIES 18 PIR motion sensor IP40 1Z 10A 230V AC 1-500lx 360° 4x30m 184182300300PAS

local index:
APK007FIND
Catalog No:
184182300300PAS
EAN code:
8012823376738
Price:
107,98 €
gross / pcs.
including VAT 23%
Last lowest price:
104,85 € gross
Base price:
133,02 € gross -19%
Availability:
Check availability in branches
In warehouses 13 pcs.
Delivery:
From 3,47 € (prepaid courier) Details
Estimated delivery time:
DHL, Inpost 1-3 working days

Delivery in 3h

Pickup in 1h

Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Motion sensor with push-in terminals for mounting inside objects, with contact separated from the power circuit

Features:

  • Large detection range up to 120 m2
  • Modern design
  • Fast installation thanks to push-in terminals
  • 1 NO contact 10 A with switch-on front
  • Mounting to a 60 mm box or 502 box
  • Mounting in corridors (ceiling)
  • Double clamps for easier connection of sensors

Application:

  • corridors in hotels and offices
  • passageways

Technical data

  • Depth [mm]
    80.1
  • Contact material
    AgSnO2
  • Installation
    Flush-mounted
  • Rated voltage [V]
    230
  • Power consumption [VA]
    1.5
  • Rated current [A]
    10
  • Family
    18
  • Width [mm]
    84
  • Rated inrush current [A]
    20
  • Maximum detection distance [m]
    4x30
  • Rated AC switching voltage [V]
    400
  • Rated switching power for AC15 (230V AC) [VA]
    450
  • Sensitivity setting range [lx]
    1-500
  • Detection angle [°]
    360
  • Fixing
    Push-in terminals
  • AC coil voltage [V]
    110-230
  • Overvoltage resistance [kV]
    1
  • Power consumption [W]
    1
  • Contact type
    Potential-free
  • Level of security
    IP40
  • Height [mm]
    84
  • Number of contacts
    1Z
  • Type of coil voltage
    AC
  • Rated switching power for AC1 [VA]
    2500
  • Electrical durability AC1 [number of cycles]
    100000
  • Switching time range [s-min]
    12-35
