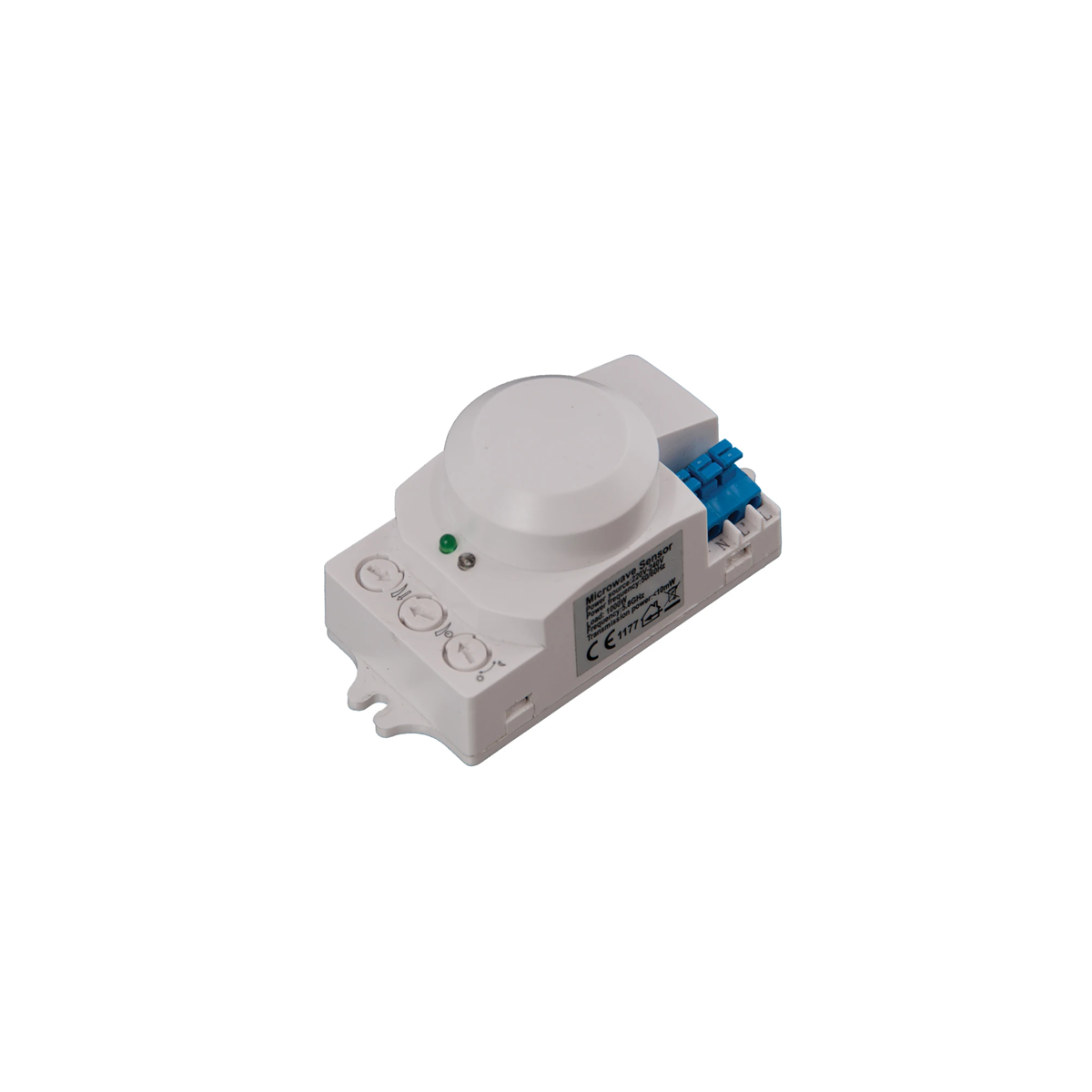

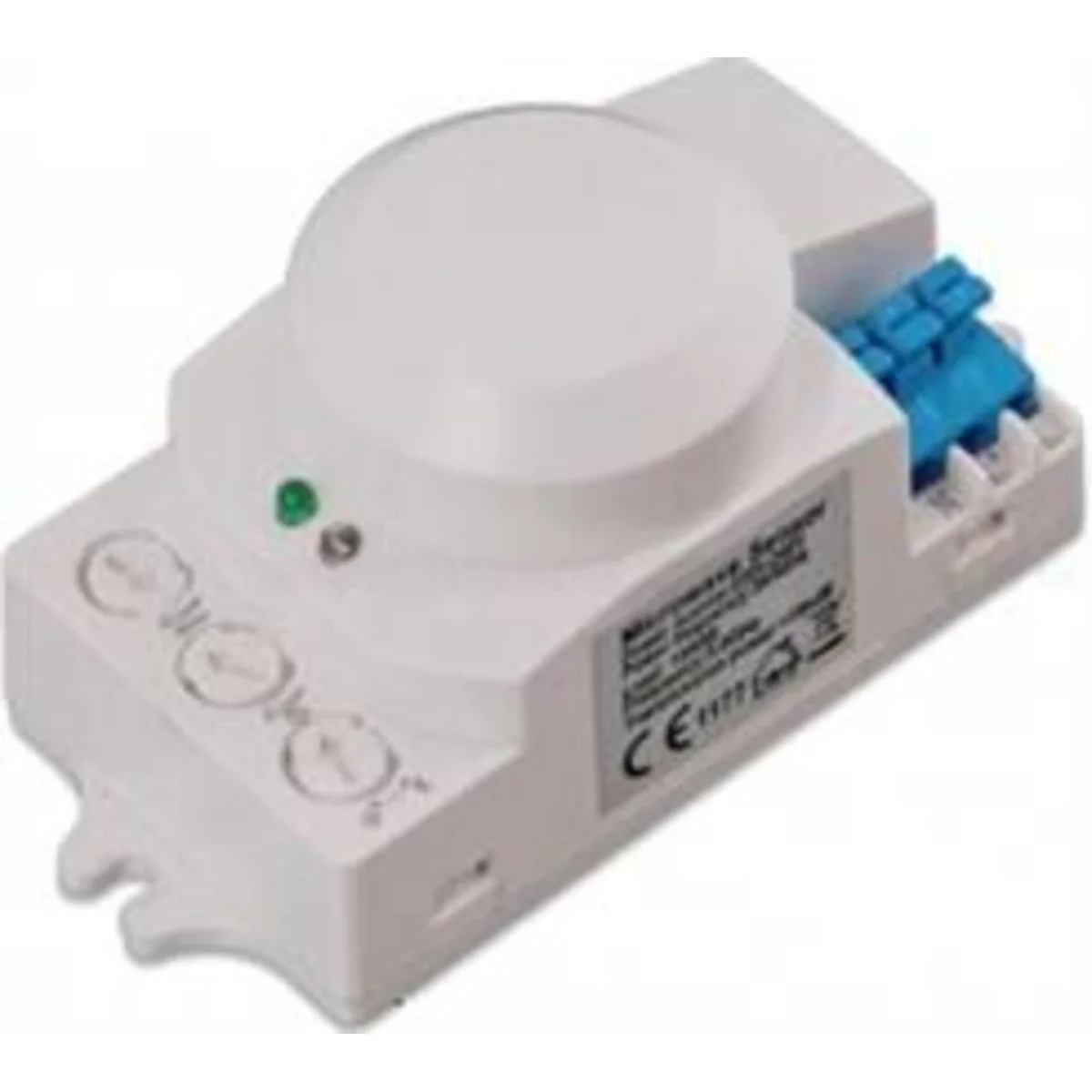

Radar motion sensor 24V D.3408

local index:
APK001PAWB
Catalog No:
D.3408
EAN code:
5901350807941
Manufacturer: PAWBOL
Rated voltage [V]: 24
Dimensions [mm]: 90x42x44
Range [m]: 8
Price:
24,45 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

  • The 24V radar motion sensor detects motion through doors, glass and drywall.

Technical data:

  • Power supply: ~24V AC, 50-60Hz
  • Maximum load: 10A
  • Transmission power: <10mW
  • Range: 1 – 8m
  • Detection range: 360°
  • Power consumption: approx. 0.9W
  • Run time: 8 seconds to 12 minutes

24V radar motion detector functions

  • identifies day and night
  • sensitivity is adjustable depending on the place of use – ideal for large rooms
  • time delay added on a regular basis, with the ability to adjust the delay as needed

24V radar motion sensor combines:

  • convenience
  • security
  • energy saving

Technical data

  • Rated voltage [V]
    24
  • Range [m]
    8
  • Dimensions [mm]
    90x42x44
  • PKWIU
    27.40.25.0

Other technical data

  • Model
    Movement sensor
  • Constant light control
    No
  • Networkable
    Yes
  • Creep-under protection
    No
  • Max. reach sideways
    12 m
  • Diameter reach on floor
    24 m
  • Response value luminosity adjustable
    Yes
  • Dim function with dimmer basic element
    No
  • Staircase light controller
    Yes
  • Material quality
    Thermoplastic
  • Suitable for degree of protection (IP)
    IP30
  • Min. switch-on time
    10 s
  • Switch-off delay self-learning
    No
  • Colour
    White
  • Mounting method
    Other
  • HVAC-control
    No
  • Suitable for wireless transmission
    No
  • Mounting height
    8 m
  • Max. reach frontally
    8 m
  • Response value sensitivity adjustable
    Yes
  • Teach-function for response value luminosity
    No
  • Animal zone
    Yes
  • Material
    Plastic
  • Halogen free
    No
  • Operation mode switch
    No
  • Max. duty cycle
    12 min
  • Detection angle horizontal
    360 ... 360 °
  • RAL-number (similar)
    9010
