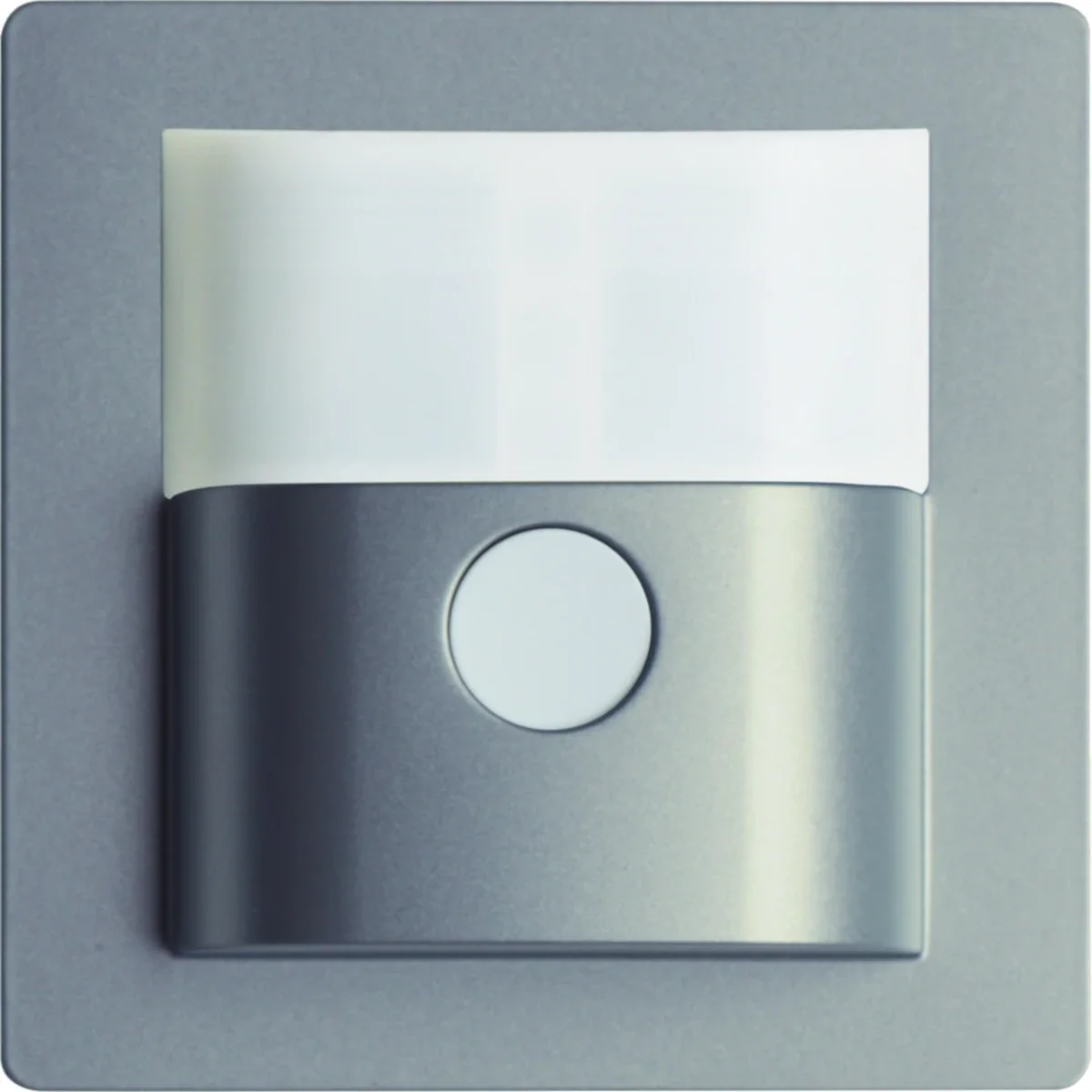

Q.1/Q.3 KNX RF quicklink comfort motion sensor attachment 2.2 m Berker.Net, alu velvet, varnished 85346124
local index:
APK010BERK
Catalog No:
85346124
EAN code:
4011334443643
Price:
208,57 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Q.1/Q.3 KNX RF quicklink comfort motion sensor attachment 2.2 m Berker.Net, alu velvet, varnished
Technical data
-
Halogen freeNO
-
MaterialThermoplastic
-
SurfaceVelvet
-
Radio transmitter/receiver frequency [MHz]868.3
-
Number of radio channels1
-
Number of quicklinksup to 20 transmitters/receivers
-
Operation brightness level [%]10 - 100
-
Way of workmicroprocessor operation control
-
Lateral range [m]≈ 6
-
Range of the radio transmitter (in the building) [m]thirty
-
Delay time, adjustable≈ 1 s - 3 h
-
Detection angle [°]45-90
-
Detection field8x12
-
Operating temperature range [°C]from -5 to 45
-
Receiver category2
-
Number of detection planes2
-
Radio transmitter power [mA]<10
-
Radio protocolKNX
-
Relative humidity (no condensation) [%]0 - 65 (non-condensing)
-
Straight range [m]≈ 8
-
Radio transmitter range (in open area) [m]100
-
PKWIU26.51.20.0
Other technical data
-
Bus system KNXNo
-
Bus system radio frequentNo
-
Bus system PowernetNo
-
Radio frequent bidirectionalYes
-
Mounting methodFlush-mounted
-
Material qualityThermoplastic
-
Surface finishingMatt
-
RAL-number (similar)9006
-
With bus connectionYes
-
Creep-under protectionYes
-
Animal zoneNo
-
Response value luminosity adjustableYes
-
Switch-off delay self-learningNo
-
Max. reach sideways6 m
-
Diameter reach on floor0 m
-
Detection angle horizontal90 ... 180 °
-
Switching power0 W
-
Max. duty cycle180 min
-
Bus system KNX-RF (Radio Frequent)Yes
-
Bus system LONNo
-
Other bus systemsNone
-
ModelMovement sensor
-
MaterialPlastic
-
Surface protectionLacquered
-
ColourAluminium
-
TransparentNo
-
Substation inputYes
-
Operation mode switchYes
-
Staircase light controllerYes
-
Teach-function for response value luminosityYes
-
Optimum mounting height2.2 m
-
Max. reach frontally8 m
-
Detection angle vertical3 ... 45 °
-
Number of channels1
-
Min. switch-on time1 s
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 36 pcs. | 1152 pcs. |
| Weight (kg) | 0,067 | 0,092 | 3,577 | 134,454 |
| Width (m) | 0,058 | 0,084 | 0,300 | 0,800 |
| Length (m) | 0,043 | 0,070 | 0,225 | 1,050 |
| Depth (m) | 0,058 | 0,085 | 0,400 | 1,200 |
