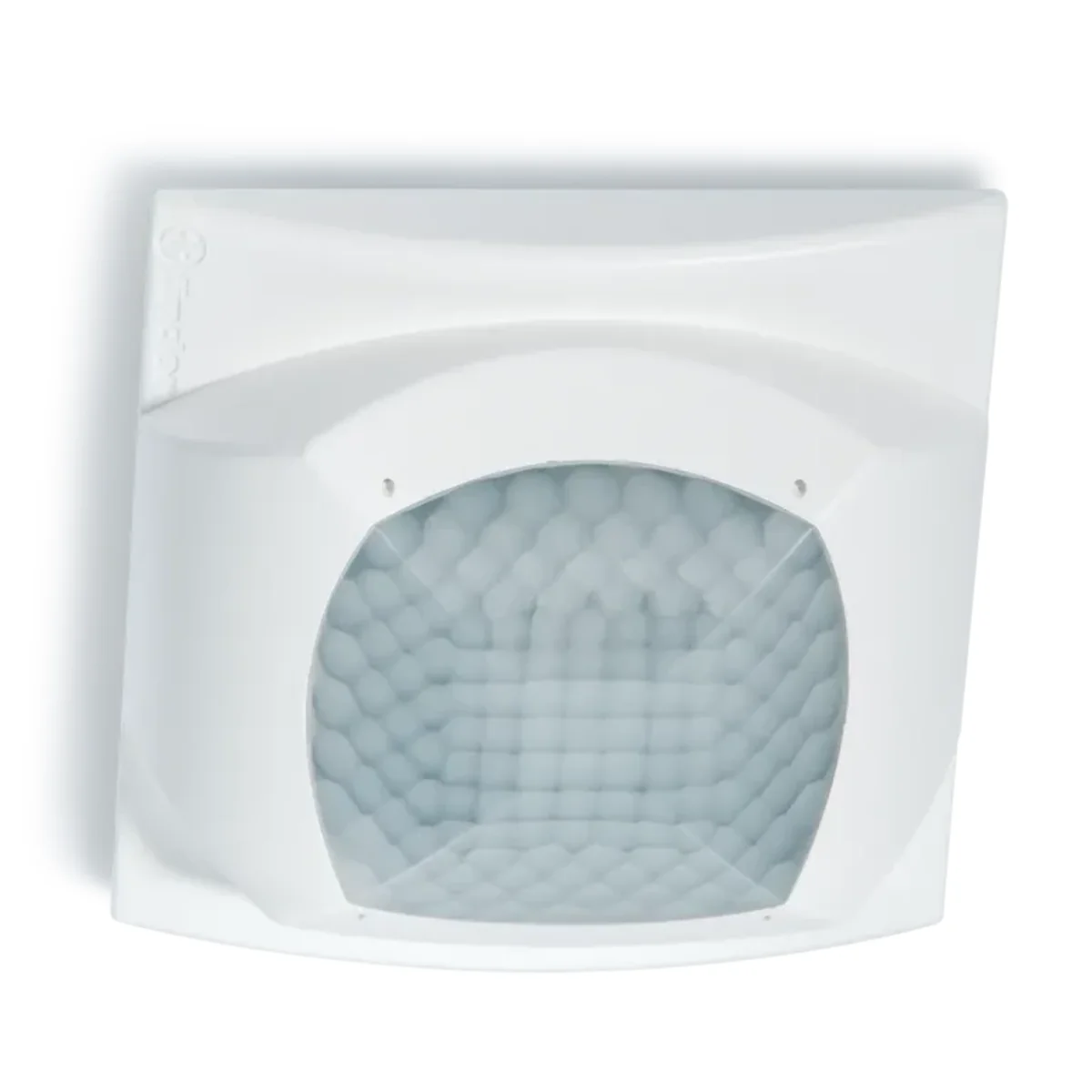

PIR motion sensor with bluetooth function IP40 1Z 10A 230V AC 4-1000lx 360° 8x8m 18518230B300
local index:
APK023FIND
Catalog No:
18518230B300
EAN code:
8012823412016
Price:
93,78 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Motion and presence sensor with push-in terminals for installation inside objects
Features:
- Large detection range up to 64 m2
- Two detection zones: “presence” for low activity and “traffic” for passageways or high activity areas
- Modern design
- Push-in quick installation
- 1 10 A normally open contact with zero switching
- Mounting to a 60 mm box or a 502 box
- Double clamps for easier connection of sensors
- Programmable via Bluetooth LE (Low Energy) using a smartphone with Android and iOS
Technical data
-
Depth [mm]80.1
-
Contact materialAgSnO2
-
InstallationFlush-mounted
-
Rated voltage [V]230
-
Power consumption [VA]1.5
-
Rated current [A]10
-
Family18
-
Width [mm]84
-
interfaceBluetooth
-
Number of contacts1Z
-
Type of coil voltageAC
-
Rated switching power for AC1 [VA]2300
-
Electrical durability AC1 [number of cycles]100000
-
Switching time range [s-min]12-25
-
Detection angle [°]360
-
FixingPush-in terminals
-
AC coil voltage [V]110-230
-
Overvoltage resistance [kV]1
-
Power consumption [W]1
-
Contact typePotential-free
-
Level of securityIP40
-
Height [mm]84
-
Rated inrush current [A]20
-
Maximum detection distance [m]8x8
-
Rated AC switching voltage [V]230
-
Rated switching power for AC15 (230V AC) [VA]450
-
Sensitivity setting range [lx]4-1000
Bulk packaging
| A kind of package | Sztuka | Sztuka |
| Quantity | 5 pcs. | 1 pcs. |
| Weight (kg) | 1,633 | 0,268 |
| Width (m) | 0,480 | 0,093 |
| Length (m) | 0,185 | 0,180 |
| Depth (m) | 0,190 | 0,185 |
