PIR motion sensor IP55 PUSH-IN 1Z 10A 230V AC 5-1000lx 100° 10m 18A182300000PAS

local index:
APK009FIND
Catalog No:
18A182300000PAS
EAN code:
8012823400174
PIR motion sensor IP55 PUSH-IN 1Z 10A 230V AC 5-1000lx 100° 10m
Manufacturer: FINDER
Depth [mm]: 45.5
Detection angle [°]: 100
Contact material: AgSnO2
Price:
86,89 €
gross / pcs.
(including VAT 23%)
Last lowest price: 86,89 € gross
Base price: 125,93 € gross -31%
Delivery in 3h
Accessible 20 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

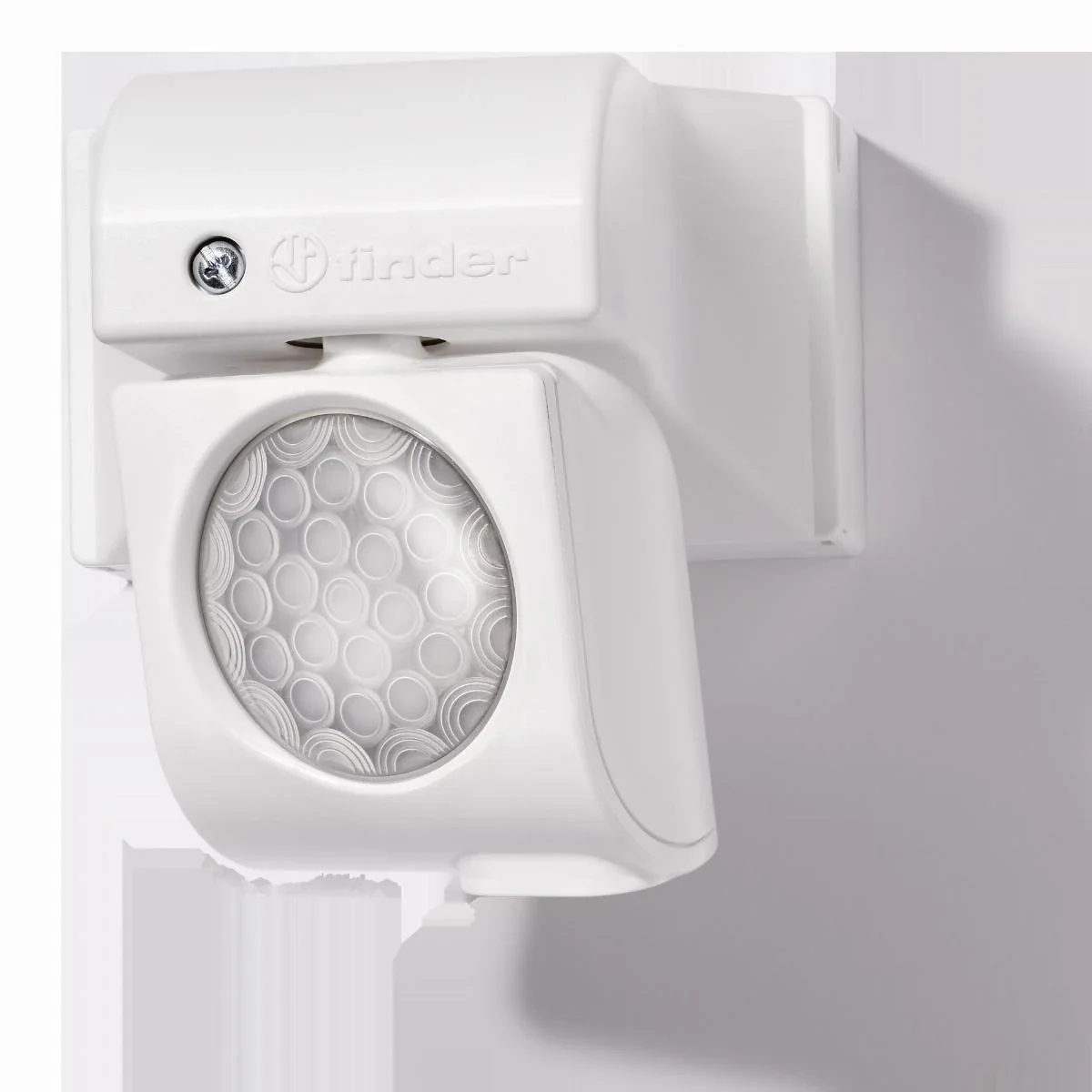

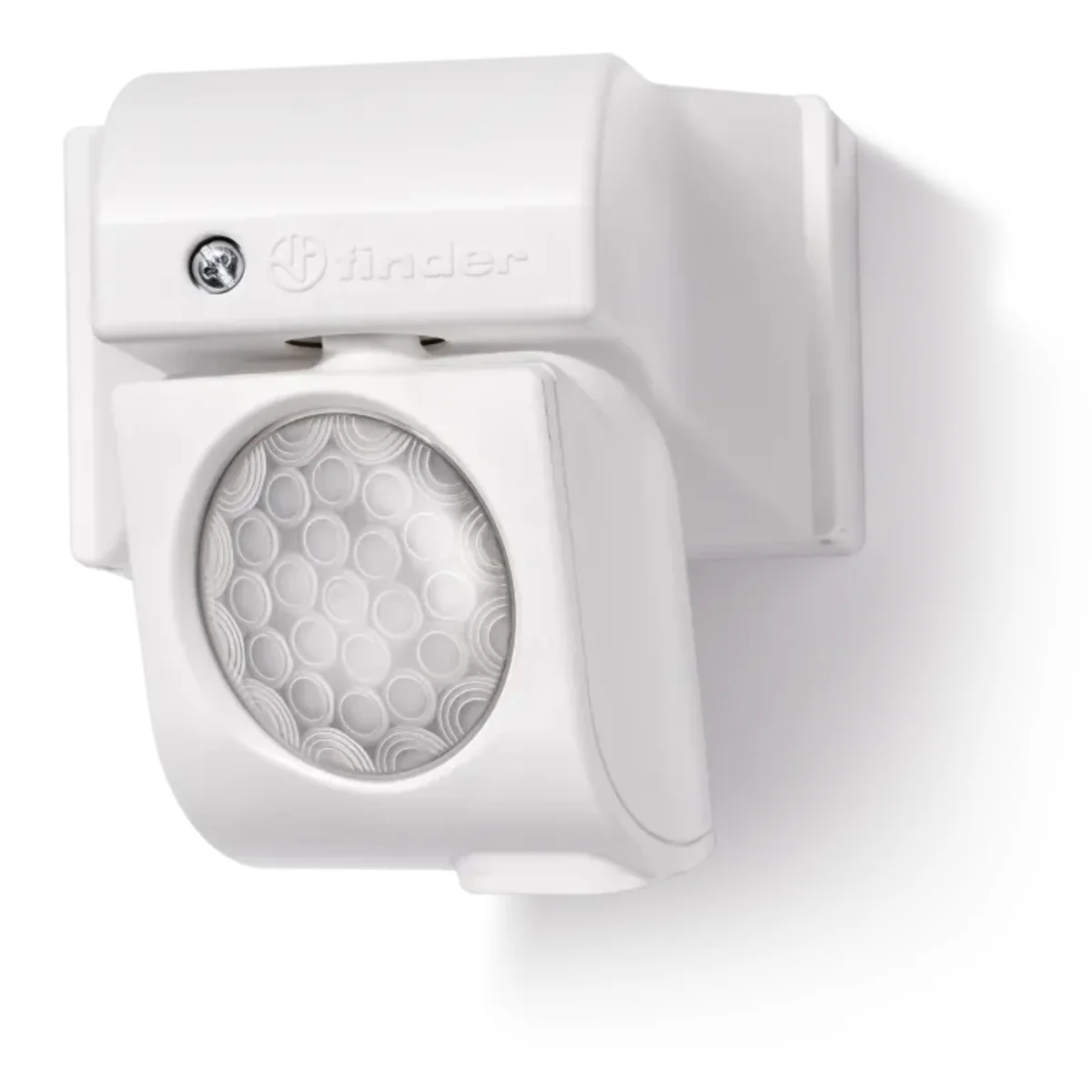

Infrared motion sensor for mounting outside objects on the wall

Properties:

  • Contact output connected to the power circuit
  • Small dimensions
  • Adjustable activation sensitivity
  • Adjustable operation time
  • Rotated base - detection area adjustment
  • Wide viewing angle
  • Clamp for PE connection
  • Push-in terminals

Technical data

  • Depth [mm]
    45.5
  • Contact material
    AgSnO2
  • Installation
    Surface-mounted
  • Rated voltage [V]
    230
  • Power consumption [VA]
    2
  • Rated current [A]
    10
  • Family
    18
  • Width [mm]
    22.5
  • Rated inrush current [A]
    20
  • Maximum detection distance [m]
    10
  • Rated AC switching voltage [V]
    230
  • Rated switching power for AC15 (230V AC) [VA]
    450
  • Sensitivity setting range [lx]
    5-1000
  • Detection angle [°]
    100
  • Fixing
    Push-in terminals
  • AC coil voltage [V]
    110-230
  • Overvoltage resistance [kV]
    1
  • Power consumption [W]
    0.8
  • Contact type
    powered
  • Level of security
    IP55
  • Height [mm]
    42
  • Number of contacts
    1Z
  • Type of coil voltage
    AC
  • Rated switching power for AC1 [VA]
    2300
  • Electrical durability AC1 [number of cycles]
    100000
  • Switching time range [s-min]
    10-20
