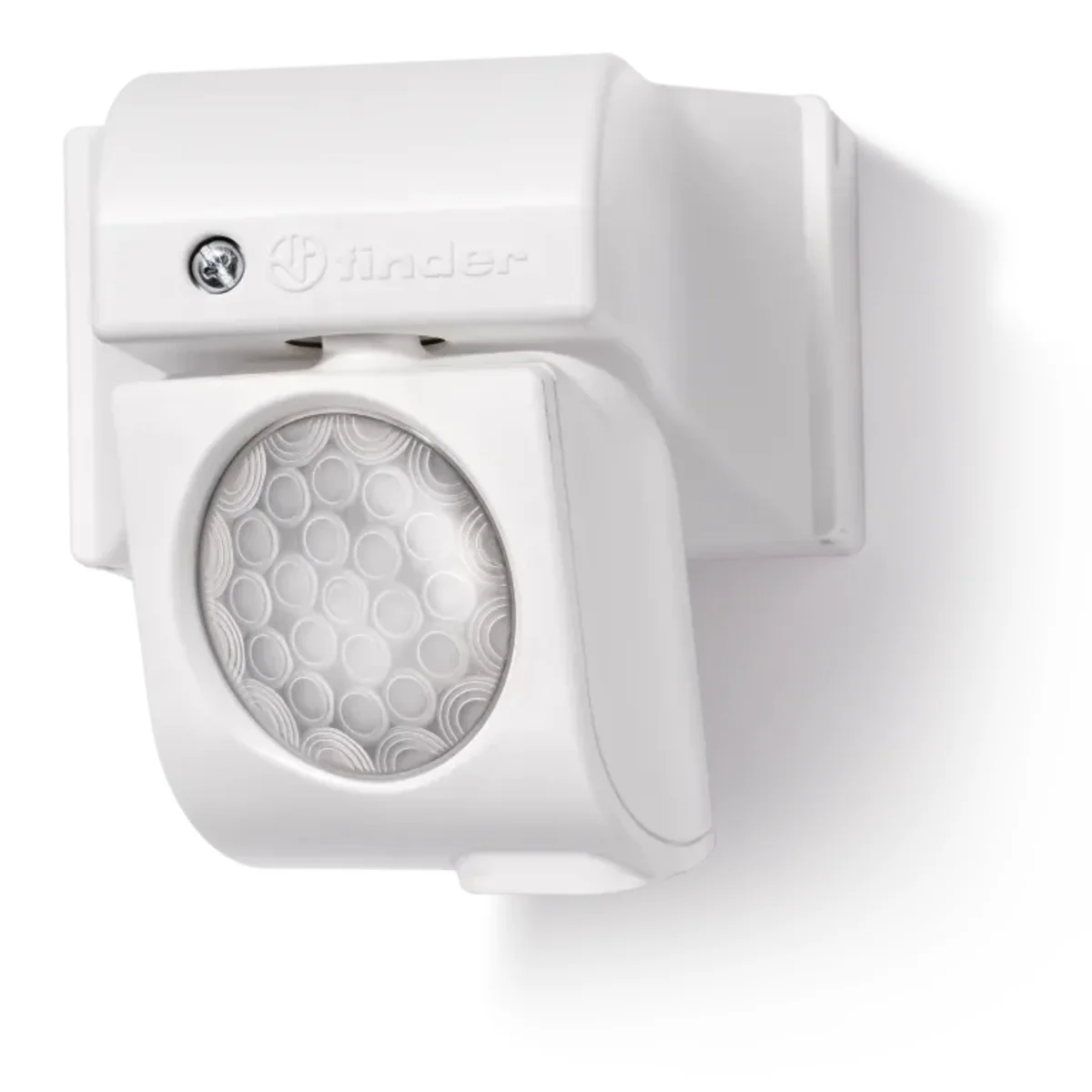

PIR motion sensor IP55 PUSH-IN 1Z 10A 230V AC 5-1000lx 100° 10m 18A182300000

local index:
APK011FIND
Catalog No:
18A182300000
EAN code:
8012823400167
PIR motion sensor IP55 PUSH-IN 1Z 10A 230V AC 5-1000lx 100° 10m
Manufacturer: FINDER
Depth [mm]: 45.5
Detection angle [°]: 100
Contact material: AgSnO2
Price:
83,80 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Infrared motion sensor for mounting outside objects on the wall

Properties:

  • Contact output connected to the power circuit
  • Small dimensions
  • Adjustable activation sensitivity
  • Adjustable operating time
  • Rotated base - detection area adjustment
  • Wide viewing angle
  • Clamp for PE connection
  • Push-in terminals

Technical data

  • Depth [mm]
    45.5
  • Contact material
    AgSnO2
  • Installation
    Surface-mounted
  • Rated voltage [V]
    230
  • Power consumption [VA]
    2
  • Rated current [A]
    10
  • Family
    18
  • Width [mm]
    22.5
  • Rated inrush current [A]
    20
  • Maximum detection distance [m]
    10
  • Rated AC switching voltage [V]
    230
  • Rated switching power for AC15 (230V AC) [VA]
    450
  • Sensitivity setting range [lx]
    5-1000
  • Detection angle [°]
    100
  • Fixing
    Push-in terminals
  • AC coil voltage [V]
    110-230
  • Overvoltage resistance [kV]
    1
  • Power consumption [W]
    0.8
  • Contact type
    powered
  • Level of security
    IP55
  • Height [mm]
    42
  • Number of contacts
    1Z
  • Type of coil voltage
    AC
  • Rated switching power for AC1 [VA]
    2300
  • Electrical durability AC1 [number of cycles]
    100000
  • Switching time range [s-min]
    10-20

Other technical data

  • Model
    Movement sensor
  • HVAC-control
    Yes
  • Animal zone
    Yes
  • Networkable
    Yes
  • Staircase light controller
    Yes
  • Max. reach sideways
    10 m
  • Suitable for wireless transmission
    Yes
  • Response value sensitivity adjustable
    Yes
  • With signal unit
    Yes
  • Dim function with dimmer basic element
    Yes
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • Transparent
    Yes
  • Voltage type
    AC
  • Min. switch-on time
    10 s
  • Detection angle horizontal
    110 ... 110 °
  • Max. switching power
    1000 W
  • Max. starting current
    100 A
  • Control current
    11 mA
  • With alarm function
    Yes
  • Constant light control
    Yes
  • Forced switch off
    Yes
  • Creep-under protection
    Yes
  • Optimum mounting height
    2 m
  • Bridging switch
    Yes
  • Max. reach frontally
    10 m
  • Remote operation
    Yes
  • Response value luminosity adjustable
    Yes
  • Teach-function for response value luminosity
    Yes
  • Mounting method
    Surface mounted
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    White
  • Degree of protection (IP)
    IP54
  • Nominal voltage
    230 V
  • Max. duty cycle
    20 min
  • Response value luminosity
    5 ... 1000 lx
  • Temperature
    -30 ... 50 °C
  • Substation input
    Yes
  • Frequency
    50 ... 60 Hz

Bulk packaging

A kind of package Sztuka Sztuka
Quantity 5 pcs. 1 pcs.
Weight (kg) 1,113 0,185
Width (m) 0,470 0,092
Length (m) 0,100 0,092
Depth (m) 0,140 0,130
