PIR motion sensor IP40 1Z 10A 24V AC/DC 5-350lx 360° 8m 182100240300

Name: PIR motion sensor IP40 1Z 10A 24V AC/DC 5-350lx 360° 8m
Brand: FINDER
SKU: APK036FIND
Price: 393.59 PLN
Availability: BackOrder

local index:

APK036FIND

Catalog number:

182100240300

EAN code:

8012823348315

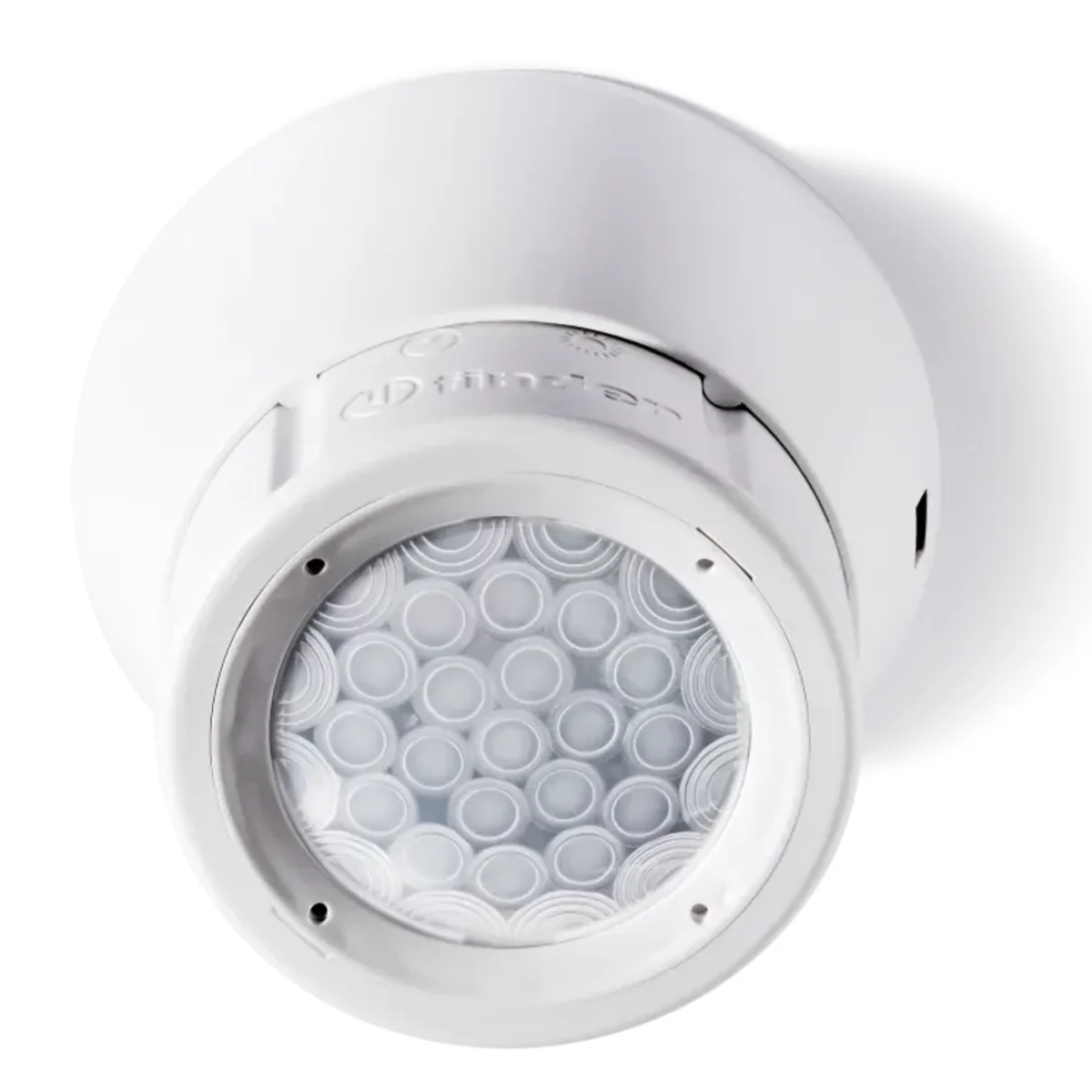

PIR motion sensor IP40 1Z 10A 24V AC/DC 5-350lx 360° 8m

Click on the photo to enlarge

Manufacturer: FINDER

Detection angle [°]: 360

Contact material: AgSnO2

Fixing: screw terminals

See full description

Price:

393,59 zł

gross / pcs.

(including VAT 23%)

2 weeks

On request

Quantity pcs.

(multiplicity:

1

)

Add to inquiry

Add to clipboard

Print

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

Infrared motion sensor for mounting inside objects on the ceiling, with contact separated from the power circuit

Features:

< ul>

Applications where a connection to a PLC or BMS is required

Small dimensions

Adjustable activation sensitivity

Adjustable operating time

Wide view

Technical data

Detection angle [°]

360
Fixing

screw terminals
AC coil voltage [V]

24
Rated voltage [V]

230
Power consumption [VA]

2
Rated current [A]

10
Family

18
Diameter [mm]

75.1
Rated inrush current [A]

20
Maximum detection distance [m]

8
Rated AC switching voltage [V]

400
Rated switching power for AC15 (230V AC) [VA]

450
Sensitivity setting range [lx]

5-350

Contact material

AgSnO2
Installation

Surface-mounted
DC coil voltage [V]

24
Overvoltage resistance [kV]

1
Power consumption [W]

1
Contact type

Potential-free
Level of security

IP40
Height [mm]

50.5
Number of contacts

1Z
Type of coil voltage

AC/DC
Rated switching power for AC1 [VA]

2500
Electrical durability AC1 [number of cycles]

100000
Switching time range [s-min]

10-12

Other technical data

Model

Movement sensor
HVAC-control

Yes
Animal zone

Yes
Networkable

Yes
Staircase light controller

Yes
Max. reach sideways

4 m
Diameter reach on floor

8 m
Remote operation

Yes
Response value luminosity adjustable

Yes
Teach-function for response value luminosity

Yes
Mounting method

Surface mounted
Material quality

Thermoplastic
Surface protection

Untreated
Colour

Grey
Degree of protection (IP)

IP40
Nominal voltage

24 V
Max. duty cycle

12 min
Response value luminosity

5 ... 350 lx
Temperature

-10 ... 50 °C
Substation input

Yes
Frequency

50 ... 60 Hz

Constant light control

Yes
Forced switch off

Yes
Creep-under protection

Yes
Optimum mounting height

2.8 m
Bridging switch

Yes
Max. reach frontally

8 m
Suitable for wireless transmission

Yes
Response value sensitivity adjustable

Yes
With signal unit

Yes
Dim function with dimmer basic element

Yes
Material

Plastic
Halogen free

Yes
Surface finishing

Matt
Transparent

Yes
Voltage type

AC/DC
Min. switch-on time

10 s
Detection angle horizontal

110 ... 110 °
Max. switching power

1000 W
Max. starting current

100 A
Control current

11 mA
With alarm function

Yes

Manufacturer details

Manufacturer

Finder S.p.A. con unico socio
Address

10040 Almese Via Drubiaglio 14 Włochy
E-mail

finder.pl@findernet.com

Bulk packaging

A kind of package	Sztuka	Sztuka	Paczka
Quantity	1 pcs.	5 pcs.	5 pcs.
Weight (kg)	0,107	0,651	-
Width (m)	0,093	0,275	-
Length (m)	0,053	0,095	-
Depth (m)	0,157	0,165	-
