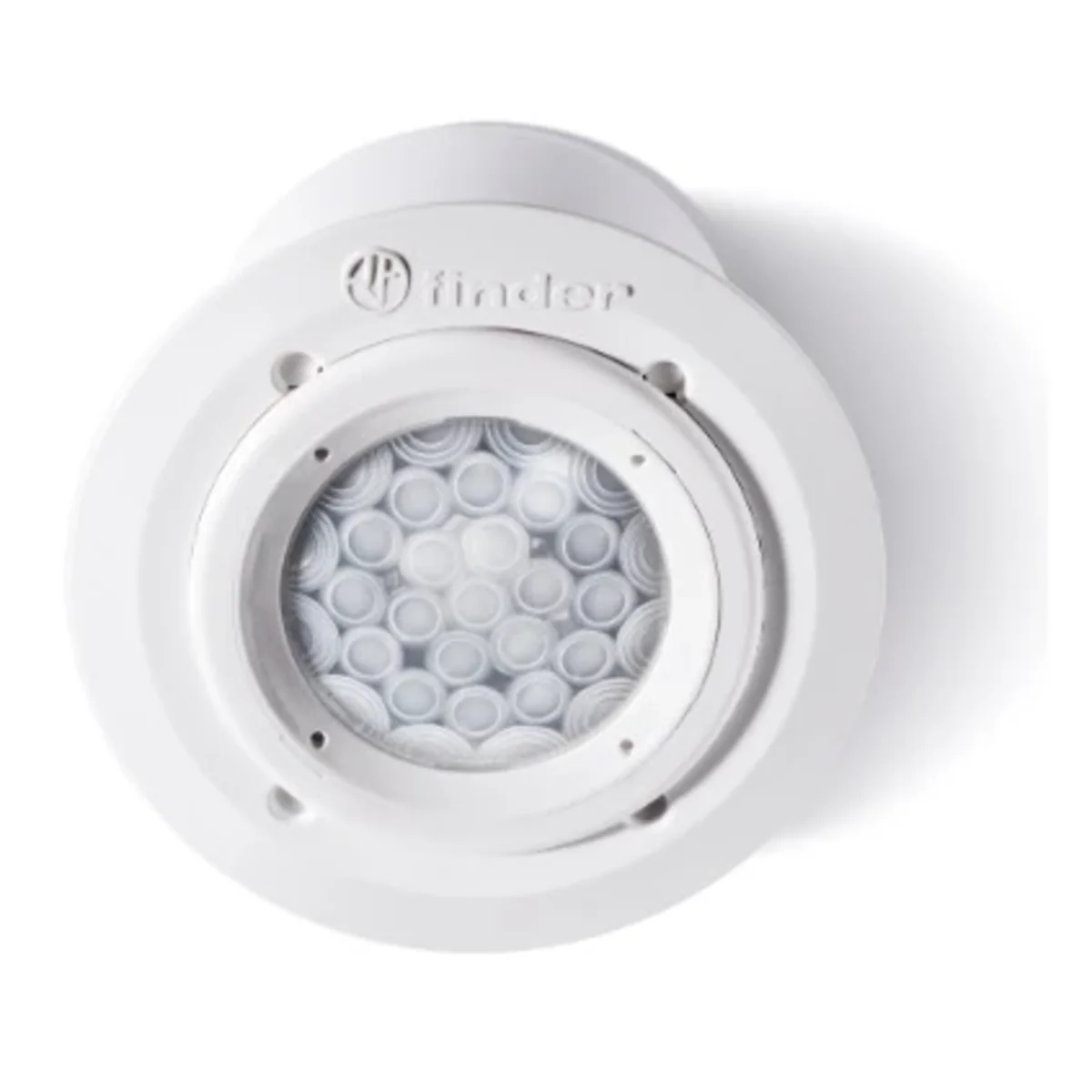

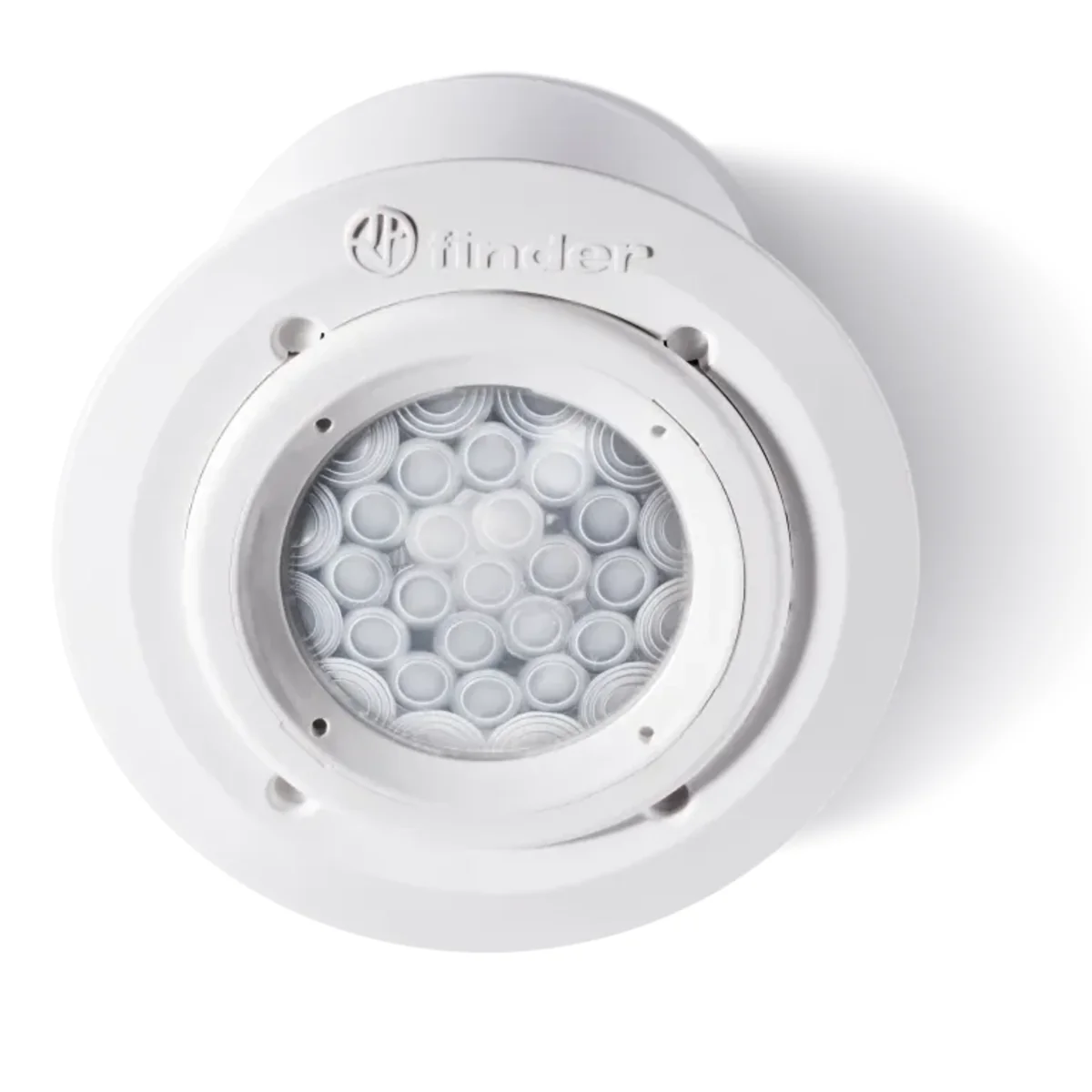

PIR motion sensor IP40 1Z 10A 230V AC 5-350lx 360° 8m 183182300000PAS

local index:
APK010FIND
Catalog No:
183182300000PAS
EAN code:
8012823329321
Manufacturer: FINDER
Detection angle [°]: 360
Contact material: AgSnO2
Fixing: screw terminals
Price:
73,58 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 17 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print

Product description

Infrared motion sensor for mounting inside objects on the ceiling

Features:

  • Output contact connected to the power circuit
  • Small dimensions
  • Adjustable activation sensitivity
  • Adjustable operating time
  • Wide viewing angle
  • Recessed version

Technical data

  • Detection angle [°]
    360
  • Fixing
    screw terminals
  • AC coil voltage [V]
    120-230
  • Overvoltage resistance [kV]
    1
  • Power consumption [W]
    1
  • Contact type
    powered
  • Level of security
    IP40
  • Height [mm]
    40.7
  • Number of contacts
    1Z
  • Type of coil voltage
    AC
  • Rated switching power for AC1 [VA]
    2300
  • Electrical durability AC1 [number of cycles]
    100000
  • Switching time range [s-min]
    10-12
  • Contact material
    AgSnO2
  • Installation
    Flush-mounted
  • Rated voltage [V]
    230
  • Power consumption [VA]
    2
  • Rated current [A]
    10
  • Family
    18
  • Diameter [mm]
    80
  • Rated inrush current [A]
    20
  • Maximum detection distance [m]
    8
  • Rated AC switching voltage [V]
    230
  • Rated switching power for AC15 (230V AC) [VA]
    450
  • Sensitivity setting range [lx]
    5-350
