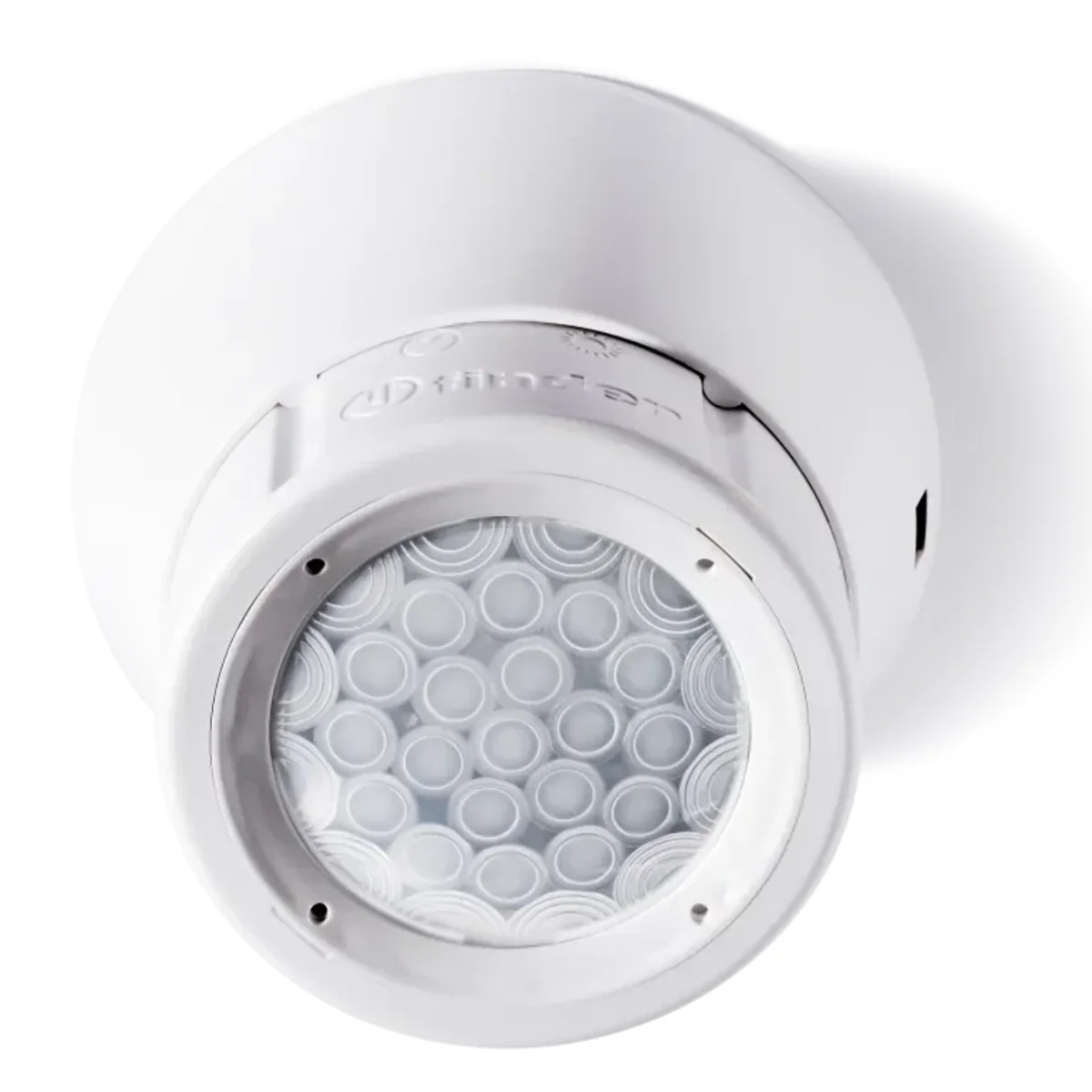

PIR motion sensor IP40 1Z 10A 230V AC 5-350lx 360° 8m 182182300000

local index:
APK002FIND
Catalog No:
182182300000
EAN code:
8012823329291
Manufacturer: FINDER
Number of contacts: 1NO
angle [°]: 360
Detection angle [°]: 360
Price:
73,19 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Infrared motion sensor for mounting inside objects on the ceiling

Features:

  • Output contact connected to the power circuit
  • Small dimensions
  • Adjustable activation sensitivity
  • Adjustable operating time
  • Wide viewing angle

Technical data

  • Number of contacts
    1NO
  • Detection angle [°]
    360
  • Fixing
    screw terminals
  • AC coil voltage [V]
    120-230
  • Overvoltage resistance [kV]
    1
  • Power consumption [W]
    1
  • Contact type
    powered
  • Level of security
    IP40
  • Height [mm]
    50.5
  • Number of contacts
    1Z
  • Type of coil voltage
    AC
  • Rated switching power for AC1 [VA]
    2300
  • Electrical durability AC1 [number of cycles]
    100000
  • Switching time range [s-min]
    10-12
  • angle [°]
    360
  • Contact material
    AgSnO2
  • Installation
    Surface-mounted
  • Rated voltage [V]
    230
  • Power consumption [VA]
    2
  • Rated current [A]
    10
  • Family
    18
  • Diameter [mm]
    75.1
  • Rated inrush current [A]
    20
  • Maximum detection distance [m]
    8
  • Rated AC switching voltage [V]
    230
  • Rated switching power for AC15 (230V AC) [VA]
    450
  • Sensitivity setting range [lx]
    5-350

Other technical data

  • Model
    Movement sensor
  • HVAC-control
    Yes
  • Animal zone
    Yes
  • Networkable
    Yes
  • Staircase light controller
    Yes
  • Max. reach sideways
    4 m
  • Diameter reach on floor
    8 m
  • Remote operation
    Yes
  • Response value luminosity adjustable
    Yes
  • Teach-function for response value luminosity
    Yes
  • Mounting method
    Surface mounted
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    Grey
  • Degree of protection (IP)
    IP40
  • Nominal voltage
    230 V
  • Max. duty cycle
    12 min
  • Response value luminosity
    5 ... 350 lx
  • Temperature
    -10 ... 50 °C
  • Substation input
    Yes
  • Frequency
    50 ... 60 Hz
  • Constant light control
    Yes
  • Forced switch off
    Yes
  • Creep-under protection
    Yes
  • Optimum mounting height
    2.8 m
  • Bridging switch
    Yes
  • Max. reach frontally
    8 m
  • Suitable for wireless transmission
    Yes
  • Response value sensitivity adjustable
    Yes
  • With signal unit
    Yes
  • Dim function with dimmer basic element
    Yes
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • Transparent
    Yes
  • Voltage type
    AC
  • Min. switch-on time
    10 s
  • Detection angle horizontal
    110 ... 110 °
  • Max. switching power
    1000 W
  • Max. starting current
    100 A
  • Control current
    11 mA
  • With alarm function
    Yes

Bulk packaging

A kind of package Sztuka Sztuka
Quantity 1 pcs. 5 pcs.
Weight (kg) 0,108 0,657
Width (m) 0,093 0,275
Length (m) 0,053 0,095
Depth (m) 0,157 0,165
