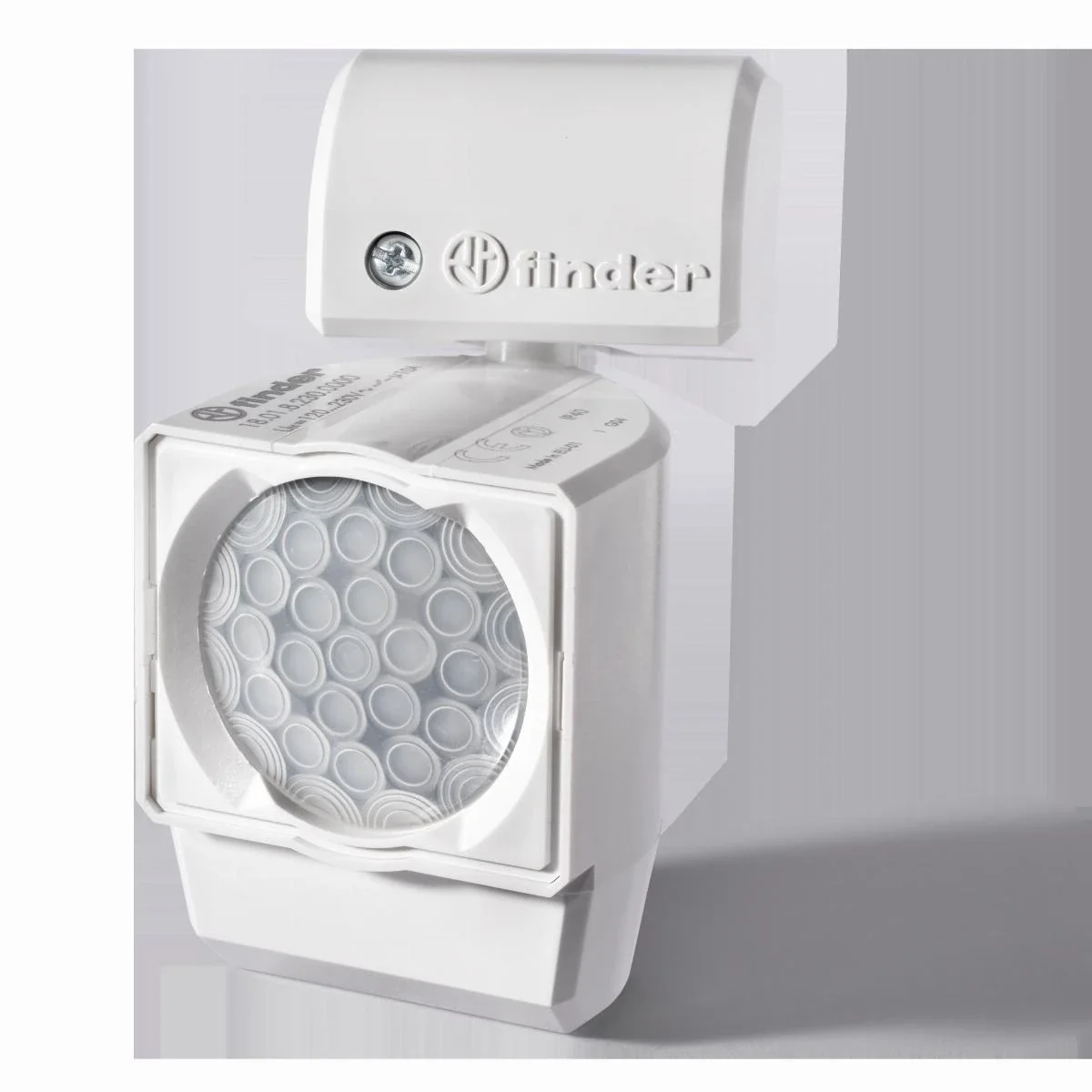

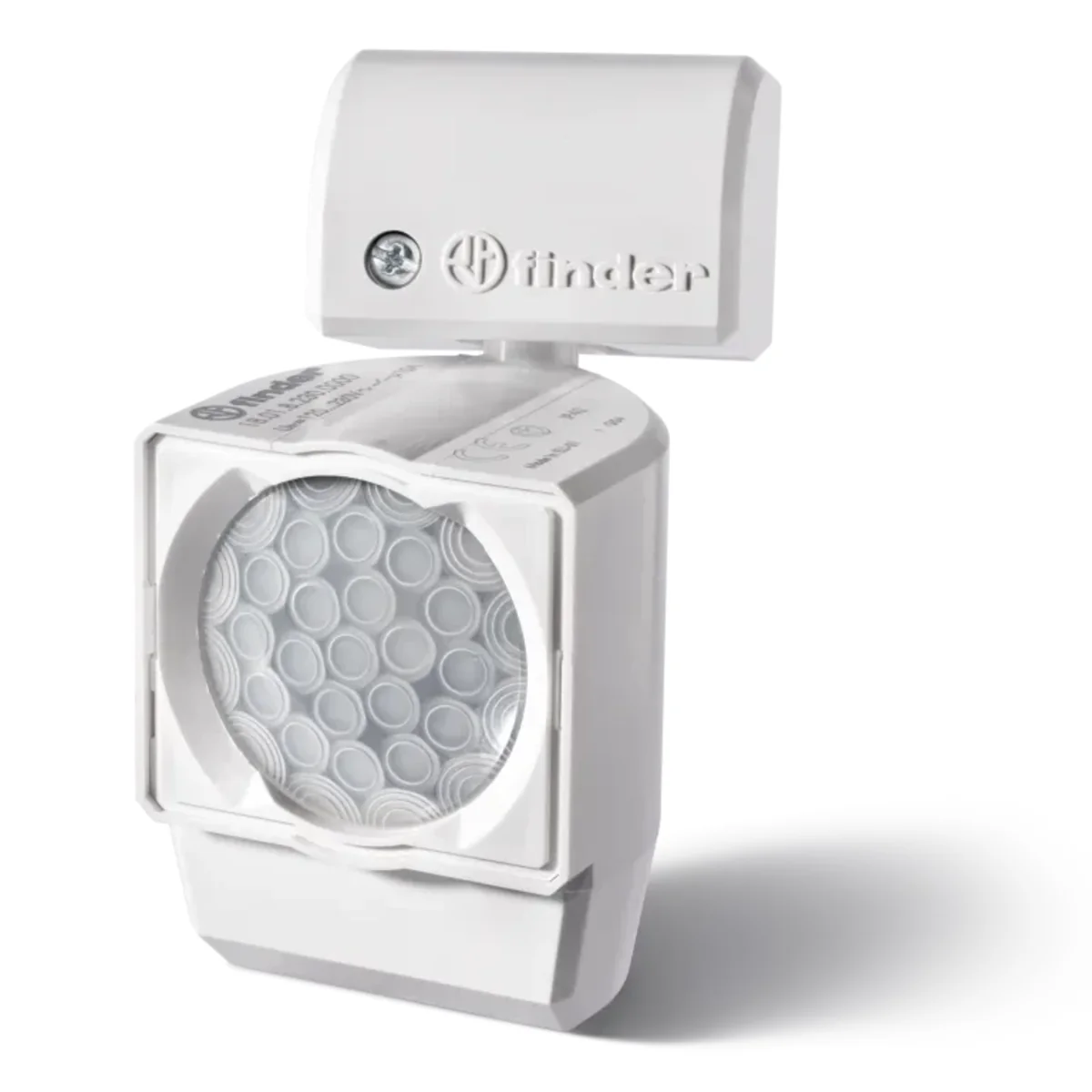

PIR motion sensor IP40 1Z 10A 230V AC 5-350lx 110° 10m 180182300000
local index:
APK001FIND
Catalog No:
180182300000
EAN code:
8012823301624
Price:
42,44 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Infrared motion sensor for mounting inside objects on the wall
Features:
- Output contact connected to the power circuit
- Small dimensions
- Adjustable activation sensitivity
- Adjustable operating time
- Rotated base - detection area adjustment
- Wide view
Technical data
-
Depth [mm]68.7
-
Contact materialAgSnO2
-
InstallationSurface-mounted
-
Rated voltage [V]230
-
Power consumption [VA]2.5
-
Contact typepowered
-
Level of securityIP40
-
Height [mm]94.5
-
Number of contacts1Z
-
Type of coil voltageAC
-
Rated switching power for AC1 [VA]2300
-
Electrical durability AC1 [number of cycles]100000
-
Switching time range [s-min]10-12
-
Detection angle [°]110
-
Fixingscrew terminals
-
AC coil voltage [V]120-230
-
Overvoltage resistance [kV]1
-
Rated current [A]10
-
Family18
-
Width [mm]49
-
Rated inrush current [A]20
-
Maximum detection distance [m]10
-
Rated AC switching voltage [V]230
-
Rated switching power for AC15 (230V AC) [VA]450
-
Sensitivity setting range [lx]5-350
Other technical data
-
ModelMovement sensor
-
HVAC-controlYes
-
Animal zoneYes
-
NetworkableYes
-
Staircase light controllerYes
-
Max. reach sideways4 m
-
Diameter reach on floor8 m
-
Remote operationYes
-
Response value luminosity adjustableYes
-
Teach-function for response value luminosityYes
-
Mounting methodSurface mounted
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
ColourGrey
-
Degree of protection (IP)IP40
-
Nominal voltage230 V
-
Max. duty cycle12 min
-
Response value luminosity5 ... 350 lx
-
Temperature-10 ... 50 °C
-
Substation inputYes
-
Frequency50 ... 60 Hz
-
Constant light controlYes
-
Forced switch offYes
-
Creep-under protectionYes
-
Optimum mounting height2.8 m
-
Bridging switchYes
-
Max. reach frontally8 m
-
Suitable for wireless transmissionYes
-
Response value sensitivity adjustableYes
-
With signal unitYes
-
Dim function with dimmer basic elementYes
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingMatt
-
TransparentYes
-
Voltage typeAC
-
Min. switch-on time10 s
-
Detection angle horizontal110 ... 110 °
-
Max. switching power1000 W
-
Max. starting current100 A
-
Control current11 mA
-
With alarm functionYes
Bulk packaging
| A kind of package | Sztuka | Sztuka |
| Quantity | 1 pcs. | 5 pcs. |
| Weight (kg) | 0,133 | 0,783 |
| Width (m) | 0,093 | 0,275 |
| Length (m) | 0,053 | 0,095 |
| Depth (m) | 0,157 | 0,165 |
