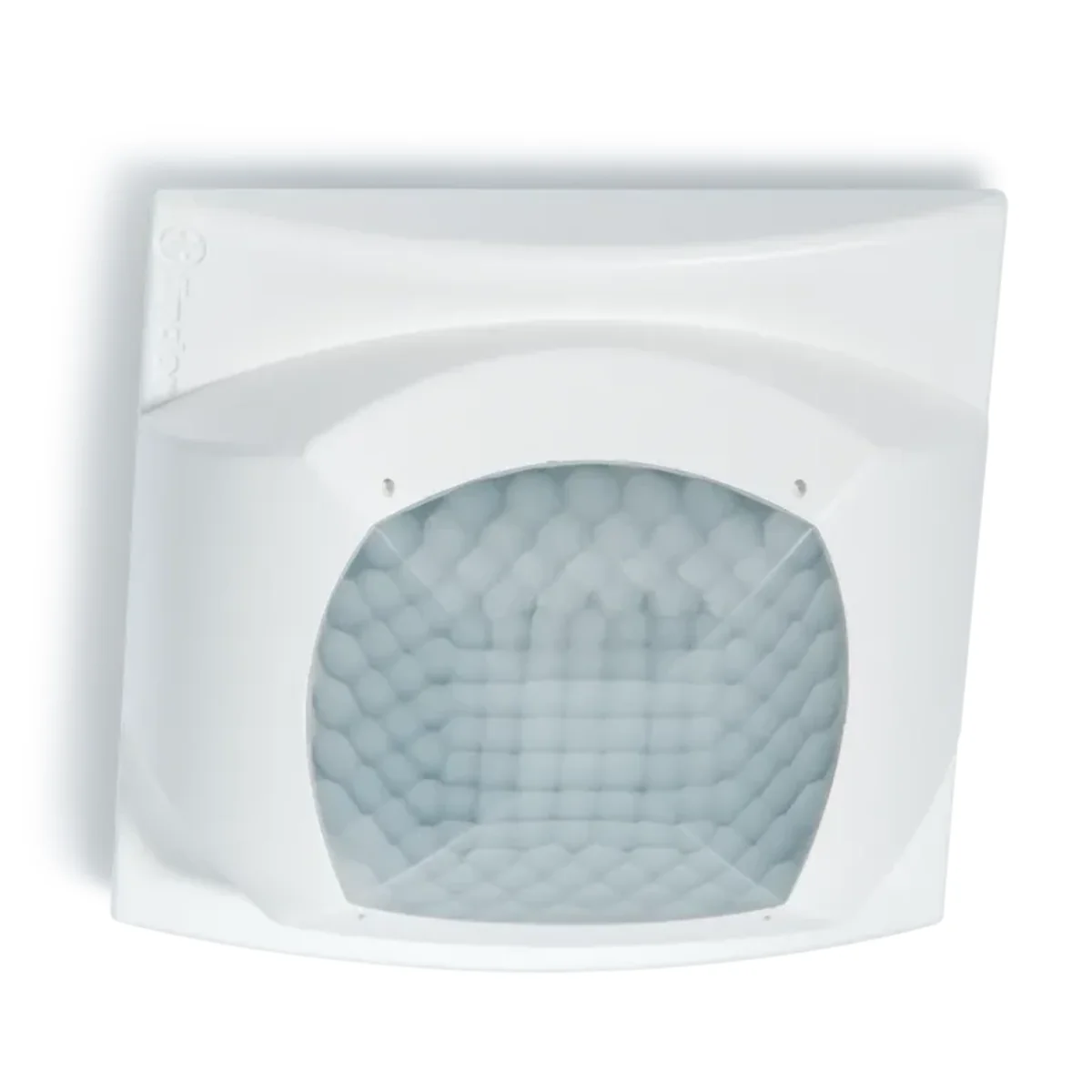

PIR motion sensor IP40 1Z 10A 230V AC 1-500lx 360° 8x8m 185182300300
local index:
APK024FIND
Catalog No:
185182300300
EAN code:
8012823376745
Price:
90,92 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Motion and presence sensor with push-in terminals for installation inside objects
Features:
- Large detection range up to 64 m2
- Two detection zones: “presence” for low activity and “traffic” for passageways or high-activity areas
- Modern design
- Push-in quick installation
- 1 10 A normally open contact with zero switching
- Mounting on a 60 mm or 502 box
- Double terminals for easy connection of sensors
- Standard version
- Dry contact li>
Technical data
-
Depth [mm]80.1
-
Contact materialAgSnO2
-
InstallationSurface Flush-mounted
-
Rated voltage [V]230
-
Power consumption [VA]1.5
-
Rated current [A]10
-
Family18
-
Width [mm]84
-
Rated inrush current [A]20
-
Maximum detection distance [m]8x8
-
Rated AC switching voltage [V]400
-
Rated switching power for AC15 (230V AC) [VA]450
-
Sensitivity setting range [lx]1-500
-
Detection angle [°]360
-
FixingPush-in terminals
-
AC coil voltage [V]110-230
-
Overvoltage resistance [kV]1
-
Power consumption [W]1
-
Contact typePotential-free
-
Level of securityIP40
-
Height [mm]84
-
Number of contacts1Z
-
Type of coil voltageAC
-
Rated switching power for AC1 [VA]2300
-
Electrical durability AC1 [number of cycles]100000
-
Switching time range [s-min]12-35
Other technical data
-
ModelMovement sensor
-
HVAC-controlYes
-
Animal zoneYes
-
NetworkableYes
-
Staircase light controllerYes
-
Max. reach sideways4 m
-
Diameter reach on floor8 m
-
Remote operationYes
-
Response value luminosity adjustableYes
-
Teach-function for response value luminosityYes
-
Mounting methodOther
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
ColourWhite
-
Degree of protection (IP)IP40
-
Nominal voltage230 V
-
Max. duty cycle35 min
-
Max. switching power1000 W
-
Max. starting current100 A
-
Control current7 mA
-
With alarm functionYes
-
Constant light controlYes
-
Forced switch offYes
-
Creep-under protectionYes
-
Optimum mounting height3 m
-
Bridging switchYes
-
Max. reach frontally4 m
-
Suitable for wireless transmissionYes
-
Response value sensitivity adjustableYes
-
With signal unitYes
-
Dim function with dimmer basic elementYes
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingMatt
-
TransparentYes
-
Voltage typeAC
-
Min. switch-on time12 s
-
Response value luminosity1 ... 500 lx
-
Temperature-10 ... 50 °C
-
Substation inputYes
-
Frequency50 ... 60 Hz
Bulk packaging
| A kind of package | Sztuka | Sztuka |
| Quantity | 5 pcs. | 1 pcs. |
| Weight (kg) | 1,640 | 0,269 |
| Width (m) | 0,480 | 0,093 |
| Length (m) | 0,185 | 0,180 |
| Depth (m) | 0,190 | 0,185 |
