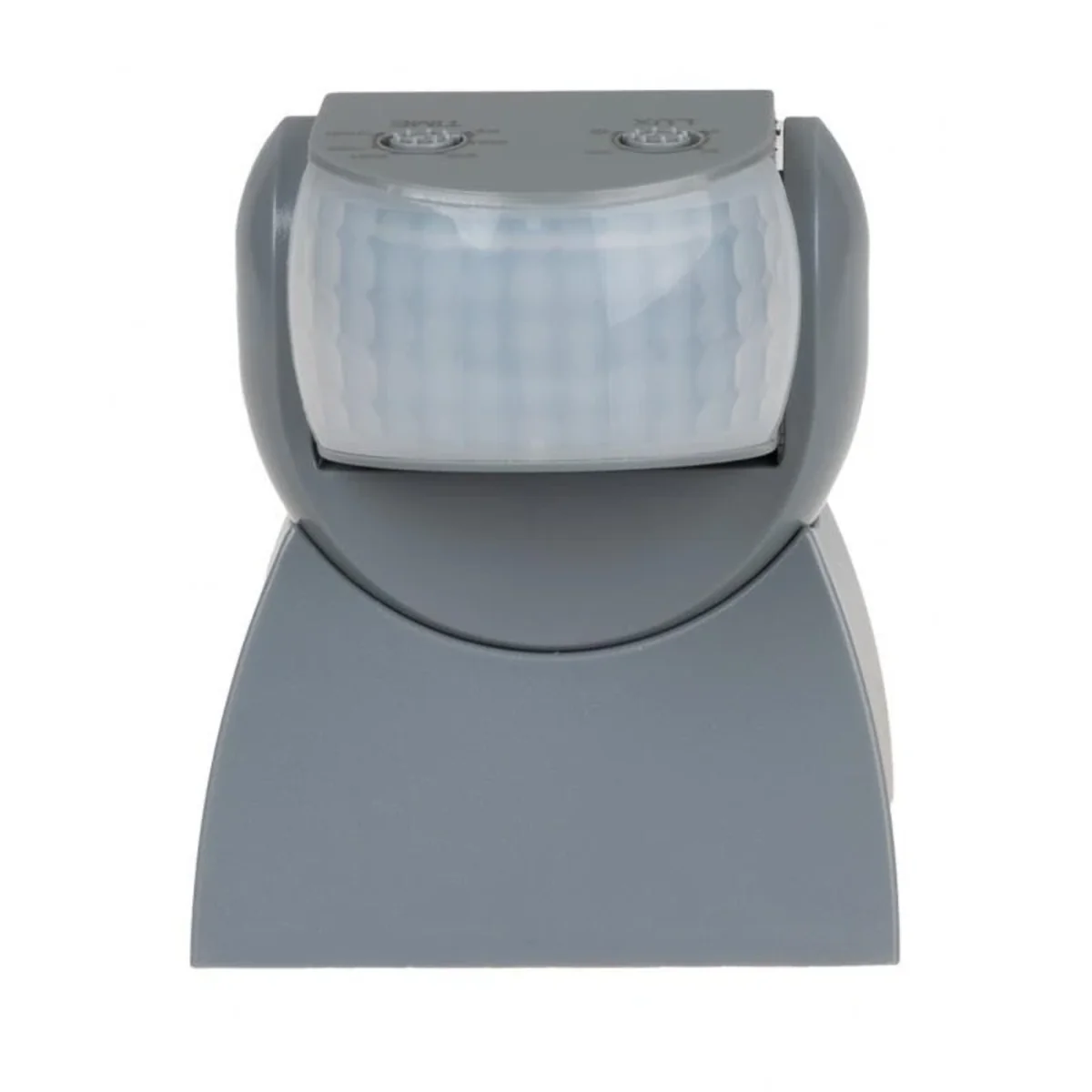

PIR Motion Sensor, Gray IP65 DR-04G
Lokaler Index:
APK024FIFQ
Katalognummer:
DR-04G
EAN-Code:
5908312599982
Hersteller:
F&F
Preis:
72,91 zł
gross / stk.
(inklusive MwSt 23%)
Auf Bestellung
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken
Fragen Sie nach dem Produkt
Technische Daten
Weitere technische Daten
-
ModelMovement sensor
-
Constant light controlYes
-
Animal zoneNo
-
Background monitoringNo
-
Scan angle45 °
-
Staircase light controllerYes
-
Max. reach sideways5 m
-
Max. reach frontally12 m
-
Suitable for wireless transmissionNo
-
With remote controlNo
-
Response value luminosity adjustableYes
-
Teach-function for response value luminosityNo
-
Mounting methodSurface mounted
-
Suitable for wall mountingYes
-
MaterialPlastic
-
Halogen freeNo
-
Anti-bacterial treatmentNo
-
RAL-number (similar)7005
-
Impact strengthIK00
-
Frequency50 ... 50 Hz
-
Min. switch-on time10 s
-
Switch-off delay0 s
-
Detection angle horizontal0 ... 180 °
-
Response value luminosity3 ... 2000 lx
-
Max. switching power LED75 W
-
Number of switching zones1
-
Max. starting current5 A
-
Control current0 mA
-
With alarm functionNo
-
Width95 mm
-
Depth80 mm
-
Built-in width0 mm
-
Built-in length0 mm
-
Min. depth of built-in installation box0 mm
-
With DALI interfaceNo
-
HVAC-controlNo
-
Creep-under protectionNo
-
NetworkableNo
-
Optimum mounting height2.5 m
-
Bridging switchNo
-
Max. presence range0 m²
-
Diameter reach on floor0 m
-
Remote operationNo
-
Response value sensitivity adjustableNo
-
With signal unitYes
-
Dim function with dimmer basic elementNo
-
Suitable for ceiling mountingNo
-
Connection typeScrewed terminal
-
Material qualityThermoplastic
-
Surface finishingMatt
-
ColourGrey
-
Degree of protection (IP)IP65
-
Voltage typeAC
-
Nominal voltage195 ... 265 V
-
Max. duty cycle15 min
-
Switching-on delay1 s
-
Pivoting range sensor, vertical-90 ... 90 °
-
Max. switching power1250 W
-
Suitable for C-loadNo
-
Temperature-20 ... 40 °C
-
Min. starting current0 A
-
Substation inputNo
-
With acoustic sensorNo
-
Height70 mm
-
Diameter0 mm
-
Built-in depth0 mm
-
Built-in diameter0 mm
-
Connection cable length0 mm
Hersteller-Details
-
HerstellerF&F Filipowski S.K.
-
Adresse95-200 Pabianice Konstantynowska 79/81 Polska
-
E-Mail
Großpackungen
| Eine Art Paket | Sztuka |
| Menge | 1 stk. |
| Gewicht (kg) | 0,198 |
| Breite (m) | 0,070 |
| Länge (m) | 0,085 |
| Tiefe (m) | 0,105 |
