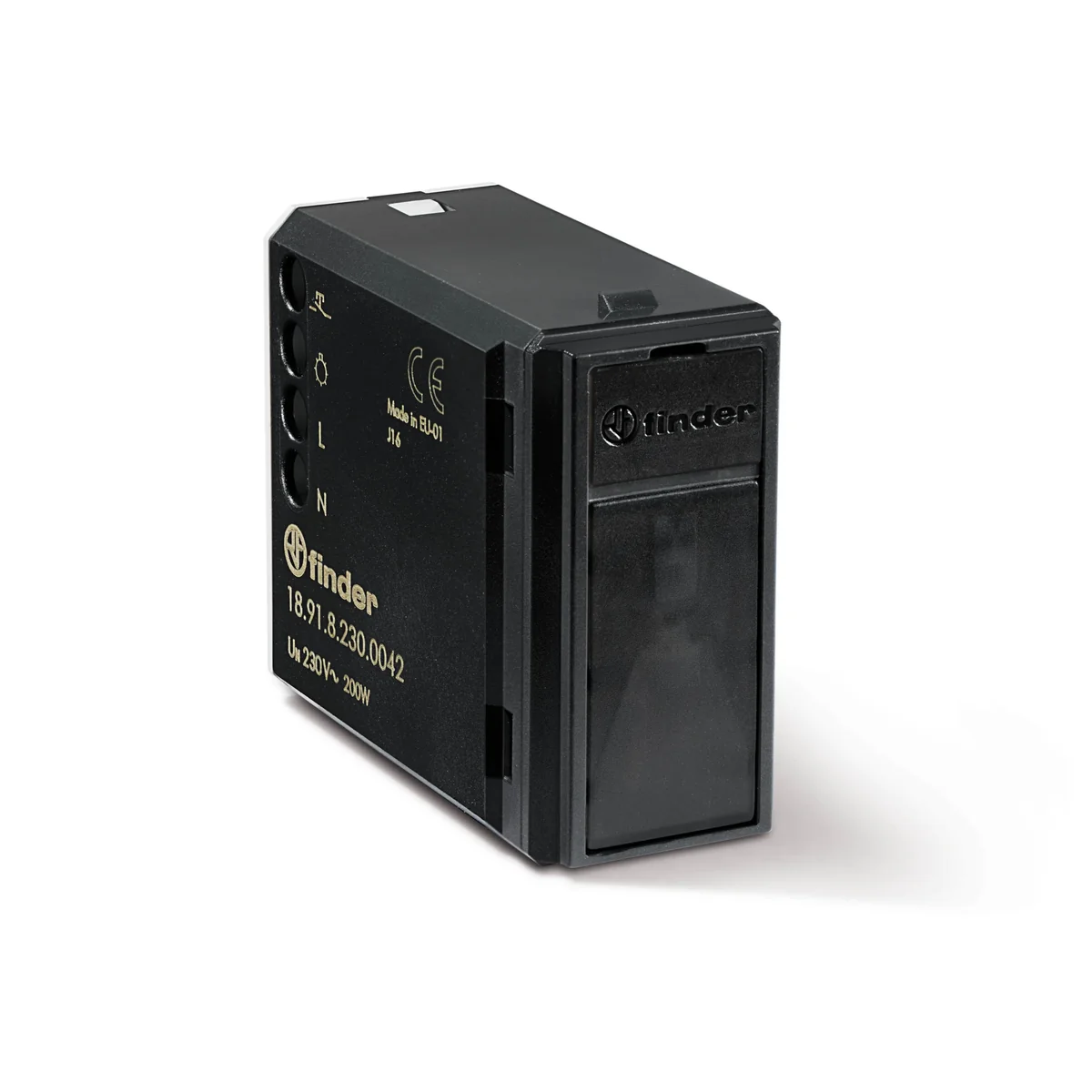

PIR motion sensor for mounting in a box IP20 200W 230V AC 5-500lx 110° 7m black 189182300042
local index:
APK013FIND
Catalog No:
189182300042
EAN code:
8012823416649
Price:
69,02 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Motion sensors for indoor installation
Features:
- Connecting an external button
- Modern design
- 1 output with "zero" switching
- Wall mounting compatible with a 3-module housing, including an adapter for the following luminaires:
- Ave S44
- BTicino Axolute series
- BTicino Living series
- BTicino Living Light series
- BTicino Living Light Air series
- BTicino Matix series
- Gewiss Chorus series
- Gewiss System series
- Simon Urmet Nea
- Vimar Eikon series
- Vimar Idea series
- Vimar Arkè series
- Vimar Plana
Applications:
- corridors
- transit areas
- toilets
- staircases
Technical data
-
Depth [mm]79.5
-
Power [W]200
-
InstallationFlush-mounted
-
Rated voltage [V]230
-
Power consumption [VA]14
-
Contact typepowered
-
Level of securityIP20
-
Height [mm]91.45
-
Maximum detection distance [m]7
-
Sensitivity setting range [lx]5-500
-
Detection angle [°]110
-
Fixingscrew terminals
-
AC coil voltage [V]230
-
Overvoltage resistance [kV]1
-
Power consumption [W]0.5
-
Family18
-
Width [mm]52.9
-
Number of contacts1Z
-
Type of coil voltageAC
-
Switching time range [s-min]10-20
Bulk packaging
| A kind of package | Sztuka | Sztuka |
| Quantity | 1 pcs. | 5 pcs. |
| Weight (kg) | 0,085 | 0,541 |
| Width (m) | 0,108 | 0,320 |
| Length (m) | 0,097 | 0,117 |
| Depth (m) | 0,062 | 0,110 |
