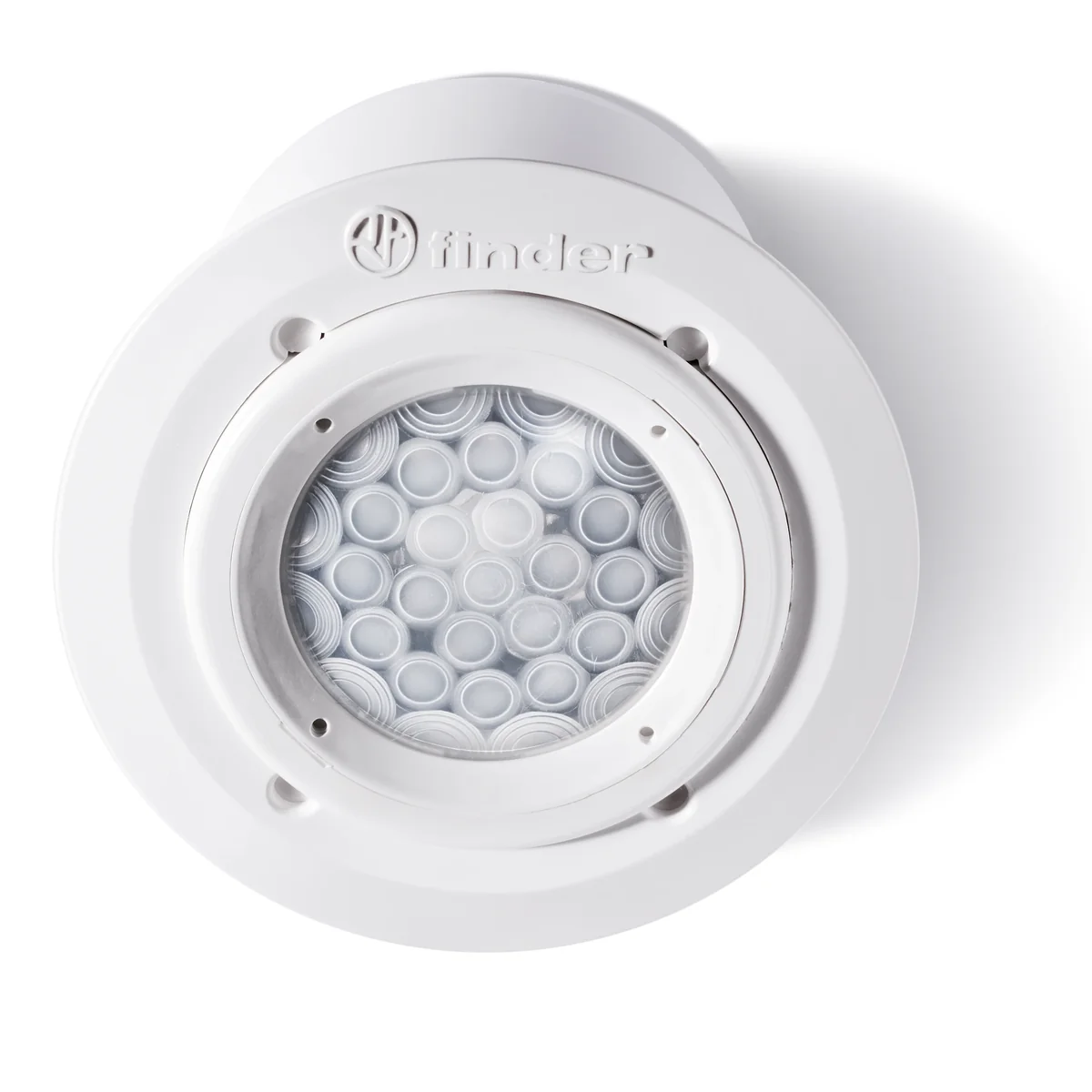

PIR motion sensor for high mounting IP40 1Z 10A 230V AC 5-350lx 360° 12m 183182300031

Name: PIR motion sensor for high mounting IP40 1Z 10A 230V AC 5-350lx 360° 12m
Brand: FINDER
SKU: APK039FIND
Price: 358.80 PLN
Availability: InStock

Indice locale:

APK039FIND

Numero di catalogo:

183182300031

Codice EAN:

8012823359090

PIR motion sensor for high mounting IP40 1Z 10A 230V AC 5-350lx 360° 12m

Produttore: FINDER

Detection angle [°]: 360

Contact material: AgSnO2

Fixing: screw terminals

Vedi la descrizione completa

Prezzo:

358,80 zł

gross / pezzi

(inclusa IVA 23%)

Accessibile 1 pezzi

Quantità pezzi

(multiplo:

1

)

Aggiungi alla richiesta di preventivo

Aggiungi agli appunti

Stampa

Chiedi informazioni sul prodotto

Descrizione del prodotto Dati tecnici Dettagli del produttore Imballaggio sfuso

Descrizione del prodotto

Infrared motion sensor for indoor ceiling mounting

Features:

Output contact connected to the power supply circuit
Small dimensions
Adjustable switching sensitivity
Adjustable operating time
Wide viewing angle
For high rooms (max. 6 m)
Surface-mounted or recessed into a suspended ceiling
Can be used as a presence sensor

Dati tecnici

Detection angle [°]

360
Fixing

screw terminals
AC coil voltage [V]

120-230
Overvoltage resistance [kV]

1
Power consumption [W]

1
Contact type

Potential-free
Level of security

IP40
Height [mm]

50.5
Number of contacts

1Z
Type of coil voltage

AC
Rated switching power for AC1 [VA]

2300
Electrical durability AC1 [number of cycles]

100000
Switching time range [s-min]

10-12

Contact material

AgSnO2
Installation

Surface Flush-mounted
Rated voltage [V]

230
Power consumption [VA]

2
Rated current [A]

10
Family

18
Diameter [mm]

75.1
Rated inrush current [A]

20
Maximum detection distance [m]

12
Rated AC switching voltage [V]

230
Rated switching power for AC15 (230V AC) [VA]

450
Sensitivity setting range [lx]

5-350

Altri dati tecnici

Model

Movement sensor
With DALI interface

No
HVAC-control

No
Forced switch off

No
Networkable

No
Suitable for wireless transmission

No
With remote control

No
Response value luminosity adjustable

Yes
Suitable for ceiling mounting

Yes
Dim function with dimmer basic element

No
Connection type

Screwed terminal
Material quality

Thermoplastic
Surface finishing

Matt
Colour

White
Transparent

Yes
Voltage type

AC
Nominal voltage

230 V
Max. duty cycle

35 min
Max. switching power

1000 W
Temperature

-10 ... 50 °C
Control current

10 mA
With alarm function

No

Sensor type

Passive infrared
Constant light control

No
Forced switch on

No
Animal zone

Yes
Staircase light controller

Yes
Remote operation

No
Response value sensitivity adjustable

Yes
With signal unit

Yes
Suitable for wall mounting

No
Mounting method

Surface mounted
Material

Plastic
Halogen free

Yes
Anti-bacterial treatment

No
RAL-number (similar)

9010
Degree of protection (IP)

IP40
Frequency

50 ... 60 Hz
Min. switch-on time

30 s
Response value luminosity

5 ... 350 lx
Suitable for C-load

Yes
Max. starting current

20 A
Substation input

No

Dettagli del produttore

Produttore

Finder S.p.A. con unico socio
Indirizzo

10040 Almese Via Drubiaglio 14 Włochy
Email

finder.pl@findernet.com

Imballaggio sfuso

Una specie di pacchetto	Sztuka	Sztuka	Paczka
Quantità	1 pezzi	5 pezzi	5 pezzi
Peso (kg)	0,126	0,746	-
Larghezza (m)	0,093	0,275	-
Lunghezza (m)	0,053	0,095	-
Profondità (m)	0,157	0,165	-
