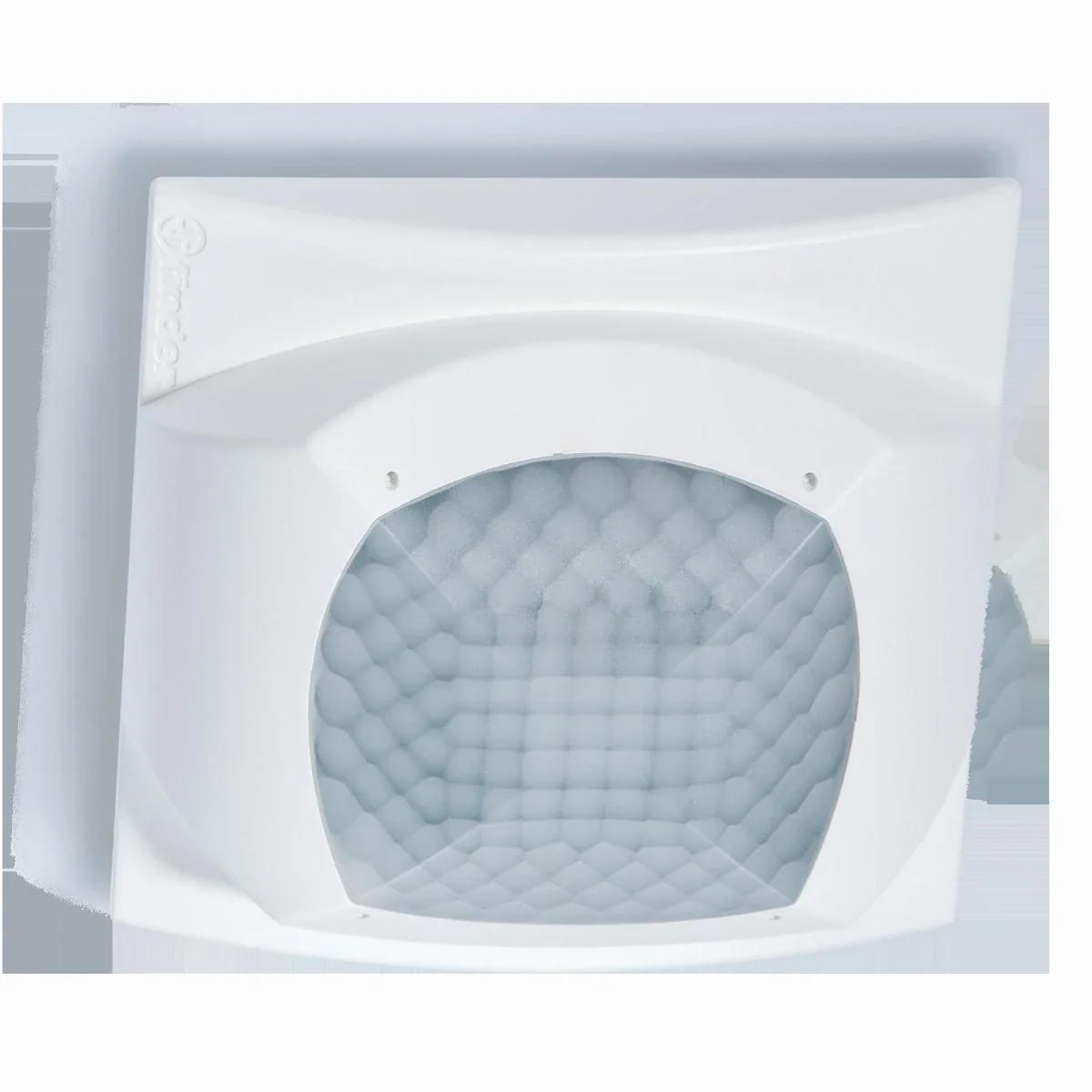

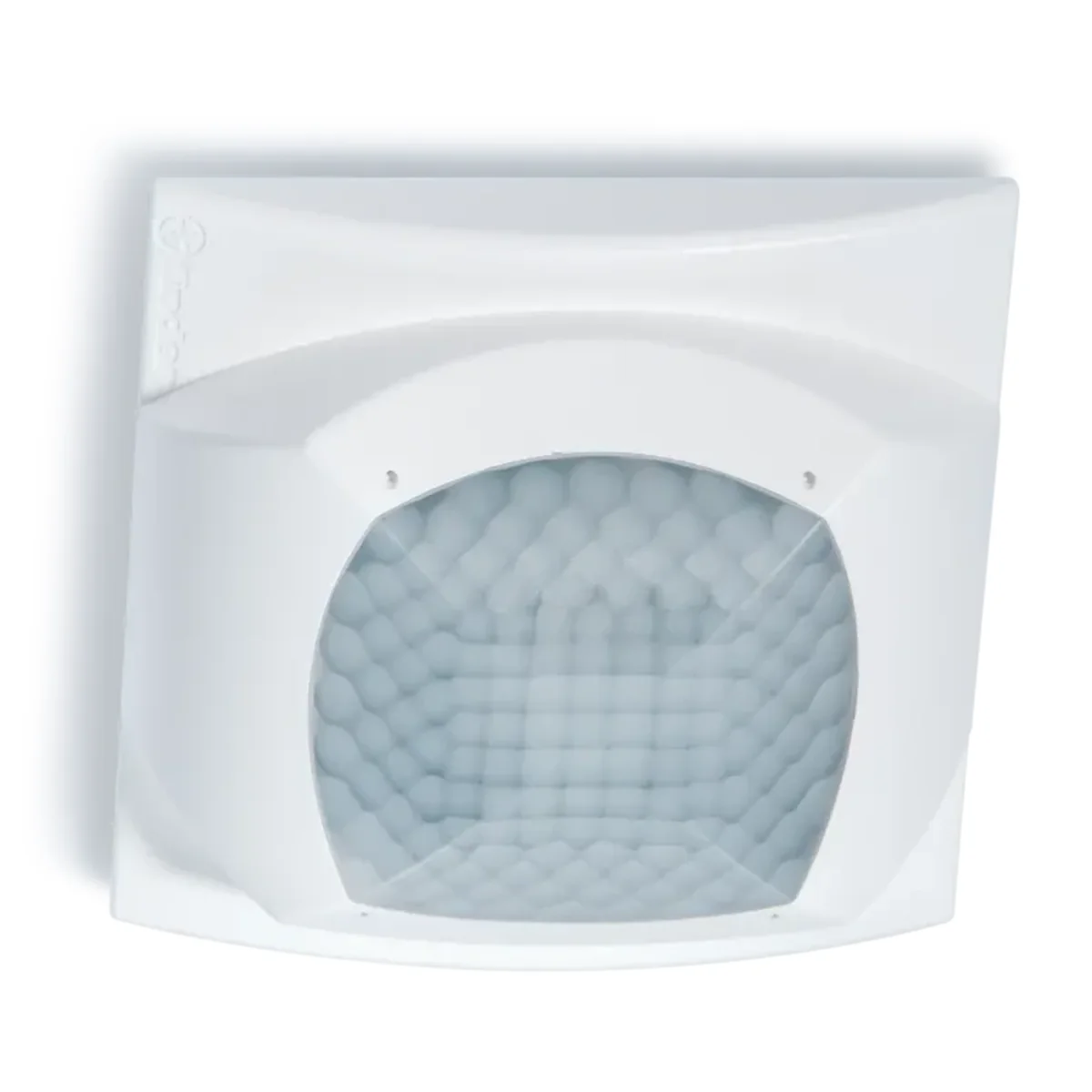

PIR motion sensor DALI IP40 1Z 10A 230V AC 10-500lx 360° 8x8m 185D82300000

local index:
APK021FIND
Catalog No:
185D82300000
EAN code:
8012823407470
Manufacturer: FINDER
Depth [mm]: 80.1
Detection angle [°]: 360
Installation: Flush-mounted
Price:
140,76 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Motion and presence detectors with self-locking connections for installation inside buildings

Features:

  • Three selectable functions:
    • Lighting brightness level control depending on natural light
    • ON/OFF early warning control
    • ON/OFF early warning control + courtesy lighting level< /li>
  • Suitable for direct control of up to 8 DALI ballasts
  • Large detection range up to 64 m2
  • Two detection areas: &ldquo ;presence” suitable for low activity and “movement” suitable for transit areas or high activity areas

Applications:

  • offices
  • schools< /li>
  • low activity zones

Technical data

  • Depth [mm]
    80.1
  • Installation
    Flush-mounted
  • Rated voltage [V]
    230
  • Power consumption [VA]
    1.5
  • Contact type
    powered
  • Level of security
    IP40
  • Height [mm]
    84
  • Type of coil voltage
    AC
  • Switching time range [s-min]
    10-35
  • Detection angle [°]
    360
  • AC coil voltage [V]
    110-230
  • Overvoltage resistance [kV]
    1
  • Power consumption [W]
    1
  • Family
    18
  • Width [mm]
    84
  • Maximum detection distance [m]
    8x8
  • Sensitivity setting range [lx]
    10-500

Other technical data

  • Model
    Movement sensor
  • HVAC-control
    yes
  • Animal zone
    yes
  • Networkable
    yes
  • Staircase light controller
    yes
  • Max. reach sideways
    4 m
  • Diameter reach on floor
    8 m
  • Remote operation
    yes
  • Response value luminosity adjustable
    yes
  • Teach-function for response value luminosity
    yes
  • Mounting method
    Other
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    White
  • Degree of protection (IP)
    IP40
  • Nominal voltage
    230 V
  • Max. duty cycle
    35 min
  • Temperature
    -10 ... 50 °C
  • Control current
    7 mA
  • With alarm function
    yes
  • Constant light control
    yes
  • Forced switch off
    yes
  • Creep-under protection
    yes
  • Optimum mounting height
    3 m
  • Bridging switch
    yes
  • Max. reach frontally
    4 m
  • Suitable for wireless transmission
    yes
  • Response value sensitivity adjustable
    yes
  • With signal unit
    yes
  • Dim function with dimmer basic element
    yes
  • Material
    Plastic
  • Halogen free
    yes
  • Surface finishing
    Matt
  • Transparent
    yes
  • Voltage type
    AC
  • Min. switch-on time
    10 s
  • Response value luminosity
    10 ... 800 lx
  • Substation input
    yes
  • Frequency
    50 ... 60 Hz

Bulk packaging

A kind of package Sztuka Sztuka
Quantity 5 pcs. 1 pcs.
Weight (kg) 1,583 0,258
Width (m) 0,480 0,093
Length (m) 0,185 0,180
Depth (m) 0,190 0,185
