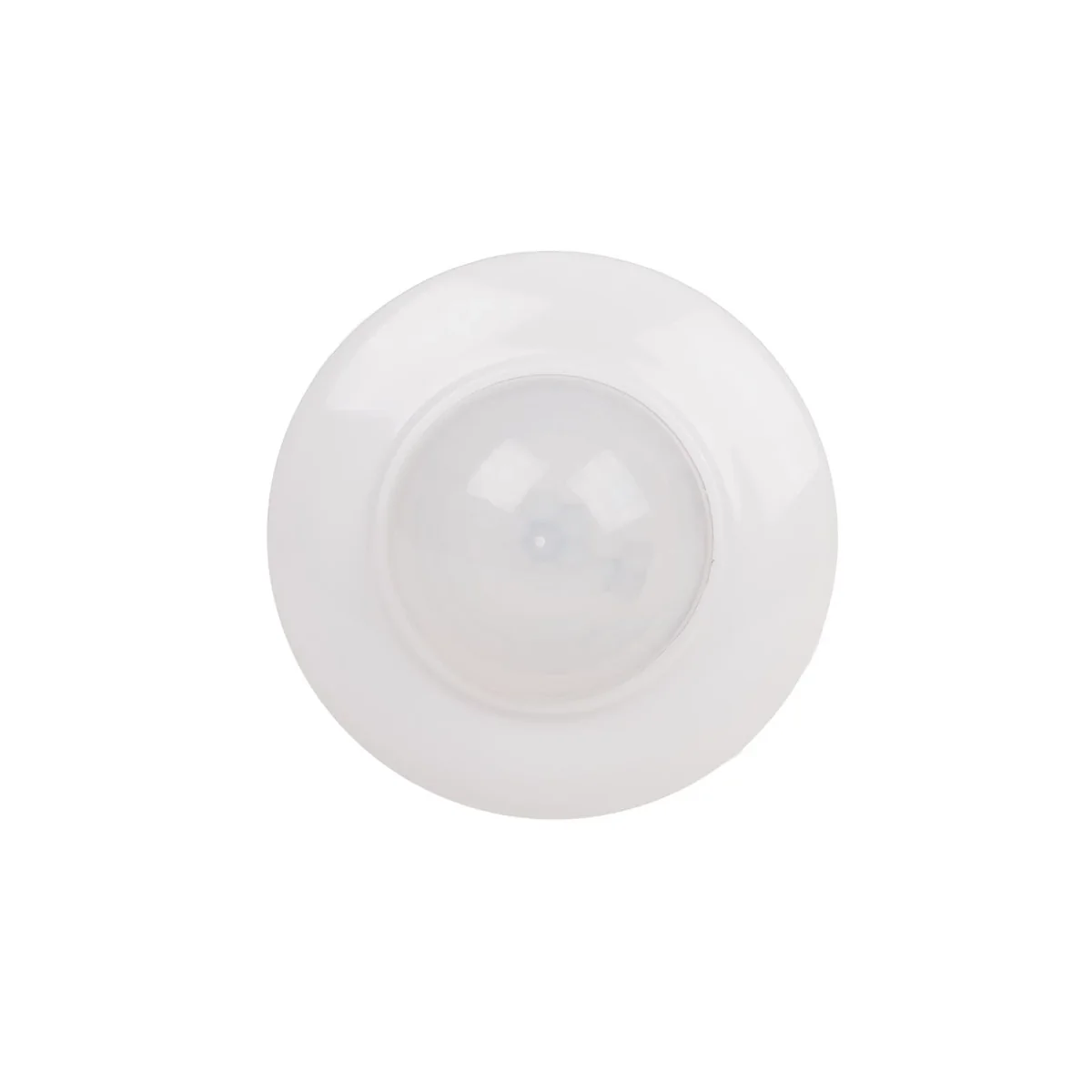

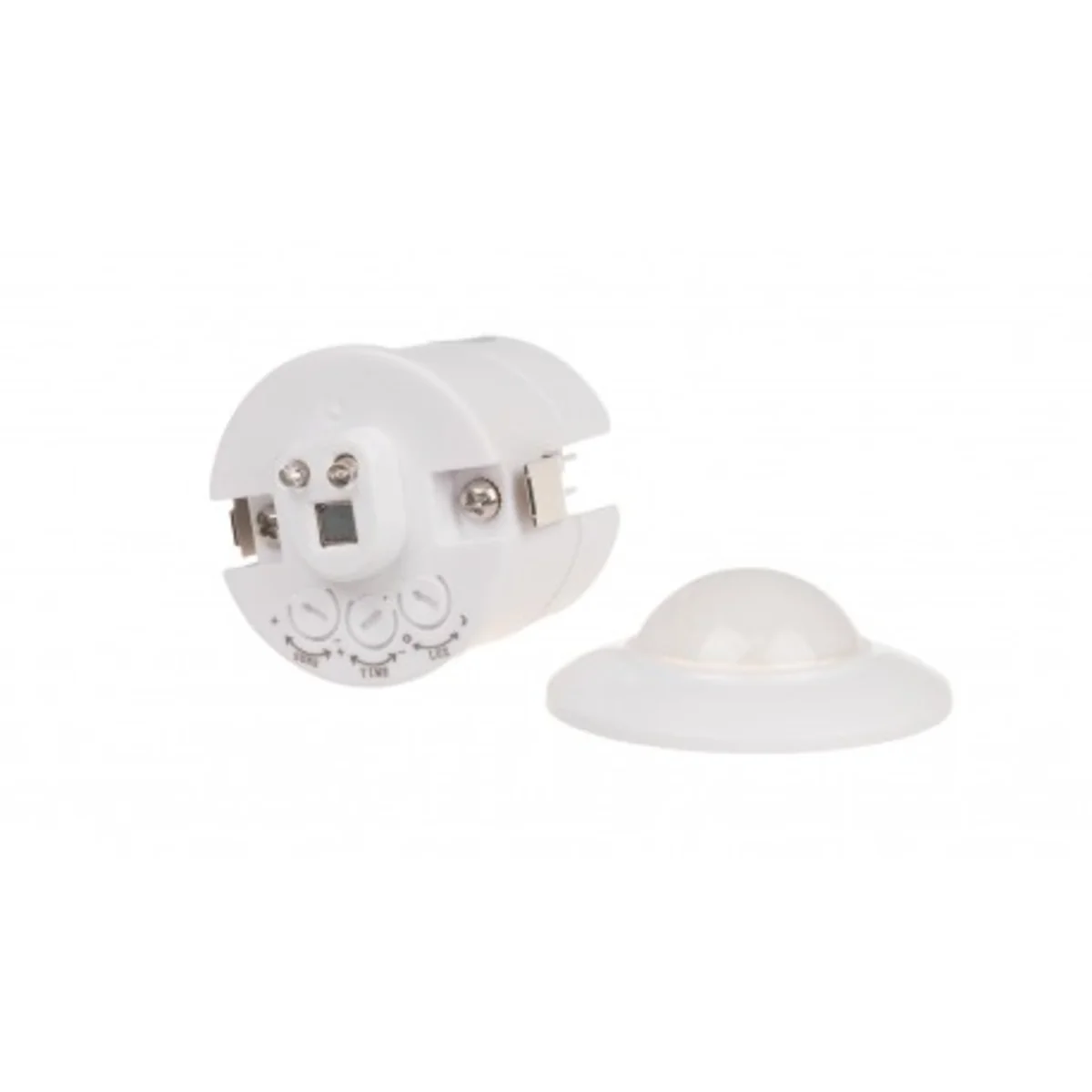

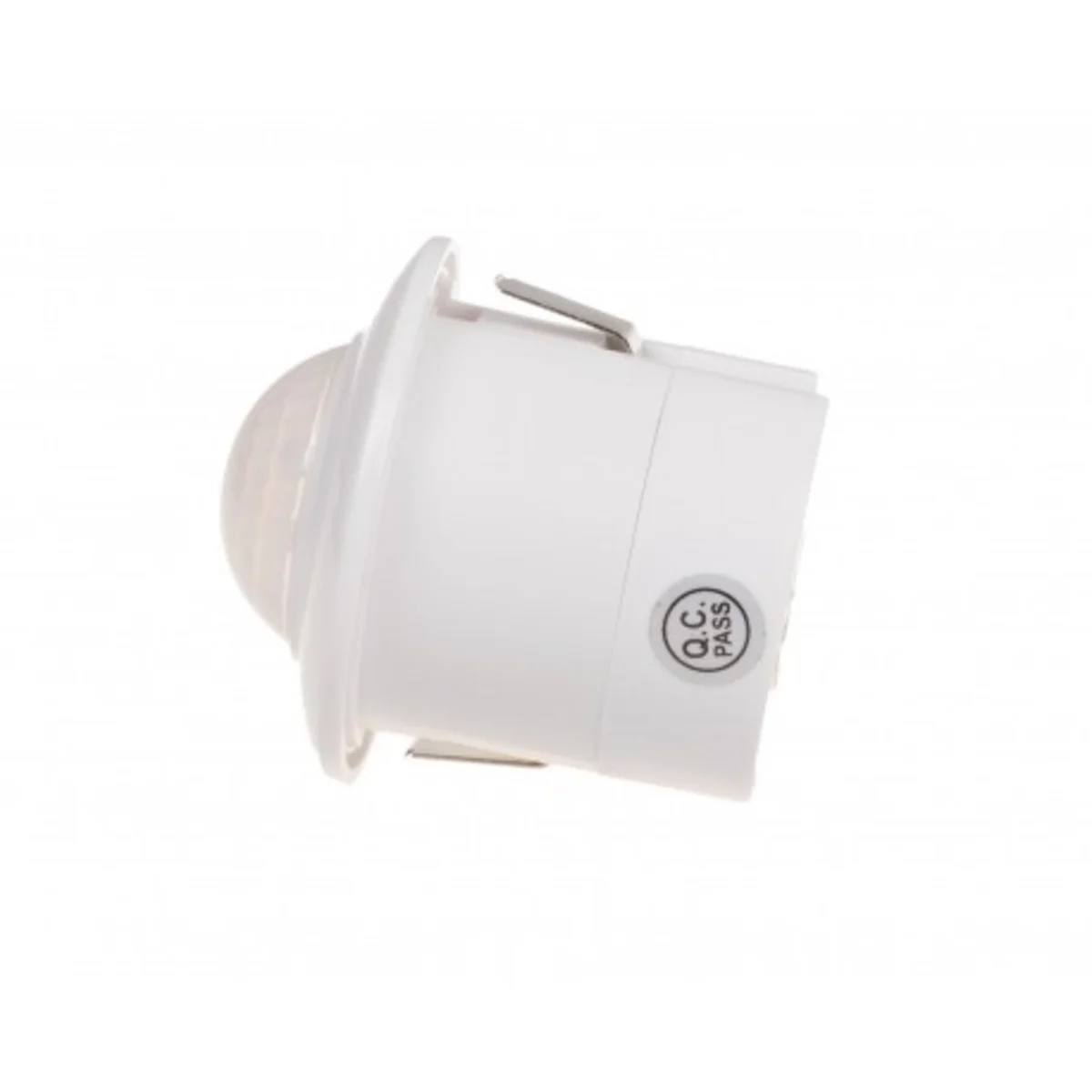

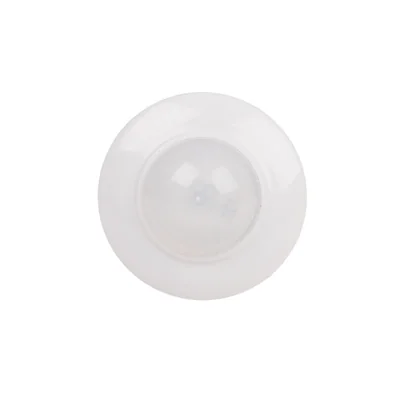

PIR motion sensor 360° 230V AC white DR-07 DR-07

local index:
APK010FIFQ
Catalog No:
DR-07
EAN code:
5908312597742
Manufacturer: F&F
Rated voltage [V]: 230
load current [A]: 1.5
Twilight sensitivity threshold [lx]: 10/2000
Price:
18,78 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description


The sensor detects sources of infrared radiation. It analyzes such parameters as the size of the object, the amount of emitted heat and the speed of movement between individual detection sectors. Movement in the detection field automatically turns on the lighting for the time set by the user. After this time, the lighting will be turned off automatically. The motion sensor is equipped with a twilight switch that prevents switching on the controlled lighting during the day. DR can work indoors and outdoors in places where it is not exposed to direct rain or snow and to the possibility of splashing water or other liquid on the sensor housing and its electrical connection points.

Technical data

  • Rated voltage [V]
    230
  • Twilight sensitivity threshold [lx]
    10/2000
  • Working temperature [°C]
    -0.25
  • Package height [mm]
    52
  • Package weight [kg]
    0.5
  • Vertical detection field
    360°
  • PKWIU
    27.12.24.0
  • load current [A]
    1.5
  • Level of security
    IP20
  • Dimensions
    Ø=50mm, h=52mm
  • Package width [mm]
    50
  • Maximum detection radius [m]
    4
  • Motion detection [m/s]
    0.6/1.5

Other technical data

  • Model
    Movement sensor
  • Constant light control
    No
  • Forced switch off
    Yes
  • Creep-under protection
    No
  • Optimum mounting height
    2.8 m
  • Bridging switch
    No
  • Max. reach frontally
    4 m
  • Suitable for wireless transmission
    No
  • Response value sensitivity adjustable
    Yes
  • With signal unit
    No
  • Suitable for ceiling mounting
    Yes
  • Dim function with dimmer basic element
    No
  • Connection type
    Other
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • Transparent
    No
  • Voltage type
    AC
  • Nominal voltage
    230 V
  • Max. duty cycle
    11 min
  • Response value luminosity
    10 ... 2000 lx
  • Temperature
    -10 ... 40 °C
  • Substation input
    No
  • Depth
    52 mm
  • Built-in depth
    35 mm
  • Sensor type
    Passive infrared
  • HVAC-control
    No
  • Animal zone
    No
  • Networkable
    No
  • Staircase light controller
    Yes
  • Max. reach sideways
    4 m
  • Diameter reach on floor
    8 m
  • Remote operation
    No
  • Response value luminosity adjustable
    Yes
  • Teach-function for response value luminosity
    No
  • Suitable for wall mounting
    Yes
  • Mounting method
    Surface mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Colour
    White
  • Degree of protection (IP)
    IP20
  • Frequency
    50 ... 50 Hz
  • Min. switch-on time
    3 s
  • Detection angle horizontal
    360 ... 360 °
  • Max. switching power
    220 W
  • Max. starting current
    5 A
  • With alarm function
    No
  • Diameter
    50 mm
  • Built-in diameter
    39 mm

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,067
Width (m) 0,060
Length (m) 0,070
Depth (m) 0,055
