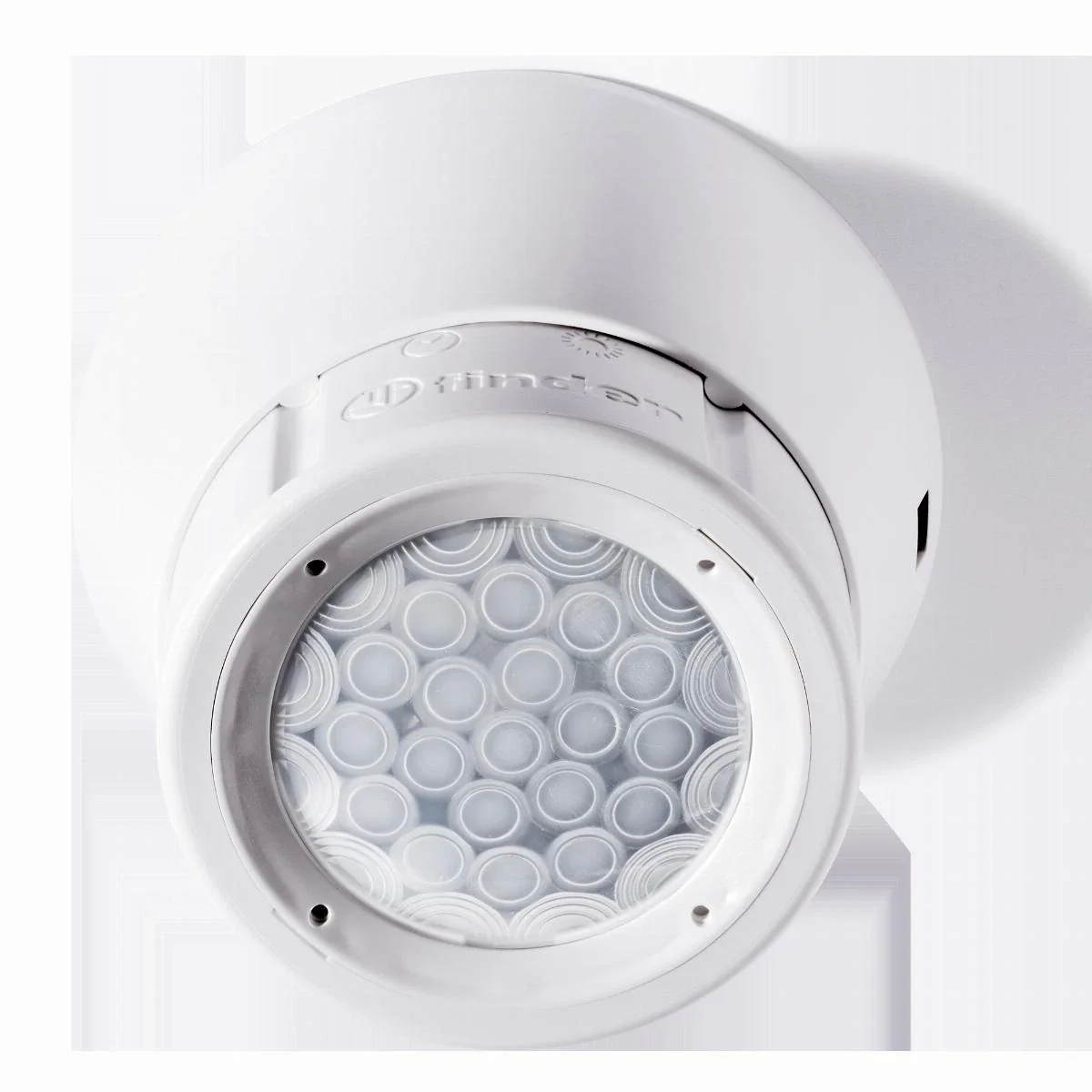

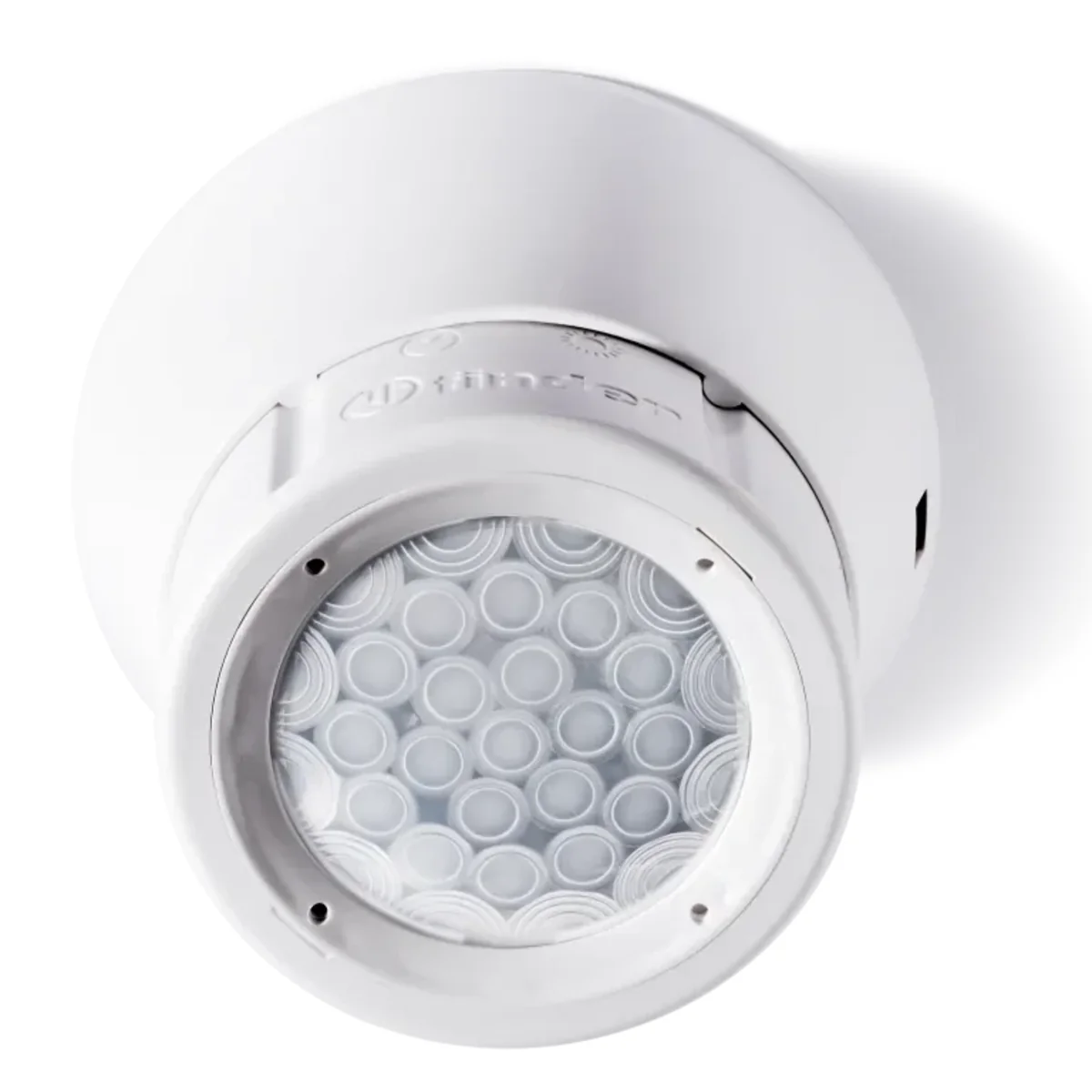

PIR motion detector IP40 1Z 10A 230V AC 5-350lx 360° 8m 182182300300

local index:
APK004FIND
Catalog No:
182182300300
EAN code:
8012823348292
Manufacturer: FINDER
Detection angle [°]: 360
Contact material: AgSnO2
Fixing: screw terminals
Price:
80,85 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

< ul>

  • Applications where a connection to a PLC or BMS is required
  • Small dimensions
  • Adjustable activation sensitivity
  • Adjustable operating time
  • Wide view
  • Technical data

    • Detection angle [°]
      360
    • Fixing
      screw terminals
    • AC coil voltage [V]
      120-230
    • Overvoltage resistance [kV]
      1
    • Power consumption [W]
      1
    • Contact type
      Potential-free
    • Level of security
      IP40
    • Height [mm]
      50.5
    • Number of contacts
      1Z
    • Type of coil voltage
      AC
    • Rated switching power for AC1 [VA]
      2500
    • Electrical durability AC1 [number of cycles]
      100000
    • Switching time range [s-min]
      10-12
    • Contact material
      AgSnO2
    • Installation
      Surface-mounted
    • Rated voltage [V]
      230
    • Power consumption [VA]
      2
    • Rated current [A]
      10
    • Family
      18
    • Diameter [mm]
      75.1
    • Rated inrush current [A]
      20
    • Maximum detection distance [m]
      8
    • Rated AC switching voltage [V]
      400
    • Rated switching power for AC15 (230V AC) [VA]
      450
    • Sensitivity setting range [lx]
      5-350

    Other technical data

    • Model
      Movement sensor
    • HVAC-control
      Yes
    • Animal zone
      Yes
    • Networkable
      Yes
    • Staircase light controller
      Yes
    • Max. reach sideways
      4 m
    • Diameter reach on floor
      8 m
    • Remote operation
      Yes
    • Response value luminosity adjustable
      Yes
    • Teach-function for response value luminosity
      Yes
    • Mounting method
      Surface mounted
    • Material quality
      Thermoplastic
    • Surface protection
      Untreated
    • Colour
      Grey
    • Degree of protection (IP)
      IP40
    • Nominal voltage
      230 V
    • Max. duty cycle
      12 min
    • Response value luminosity
      5 ... 350 lx
    • Temperature
      -10 ... 50 °C
    • Substation input
      Yes
    • Frequency
      50 ... 60 Hz
    • Constant light control
      Yes
    • Forced switch off
      Yes
    • Creep-under protection
      Yes
    • Optimum mounting height
      2.8 m
    • Bridging switch
      Yes
    • Max. reach frontally
      8 m
    • Suitable for wireless transmission
      Yes
    • Response value sensitivity adjustable
      Yes
    • With signal unit
      Yes
    • Dim function with dimmer basic element
      Yes
    • Material
      Plastic
    • Halogen free
      Yes
    • Surface finishing
      Matt
    • Transparent
      Yes
    • Voltage type
      AC
    • Min. switch-on time
      10 s
    • Detection angle horizontal
      110 ... 110 °
    • Max. switching power
      1000 W
    • Max. starting current
      100 A
    • Control current
      11 mA
    • With alarm function
      Yes

    Bulk packaging

    A kind of package Sztuka Sztuka
    Quantity 1 pcs. 5 pcs.
    Weight (kg) 0,107 0,655
    Width (m) 0,093 0,275
    Length (m) 0,053 0,095
    Depth (m) 0,157 0,165
