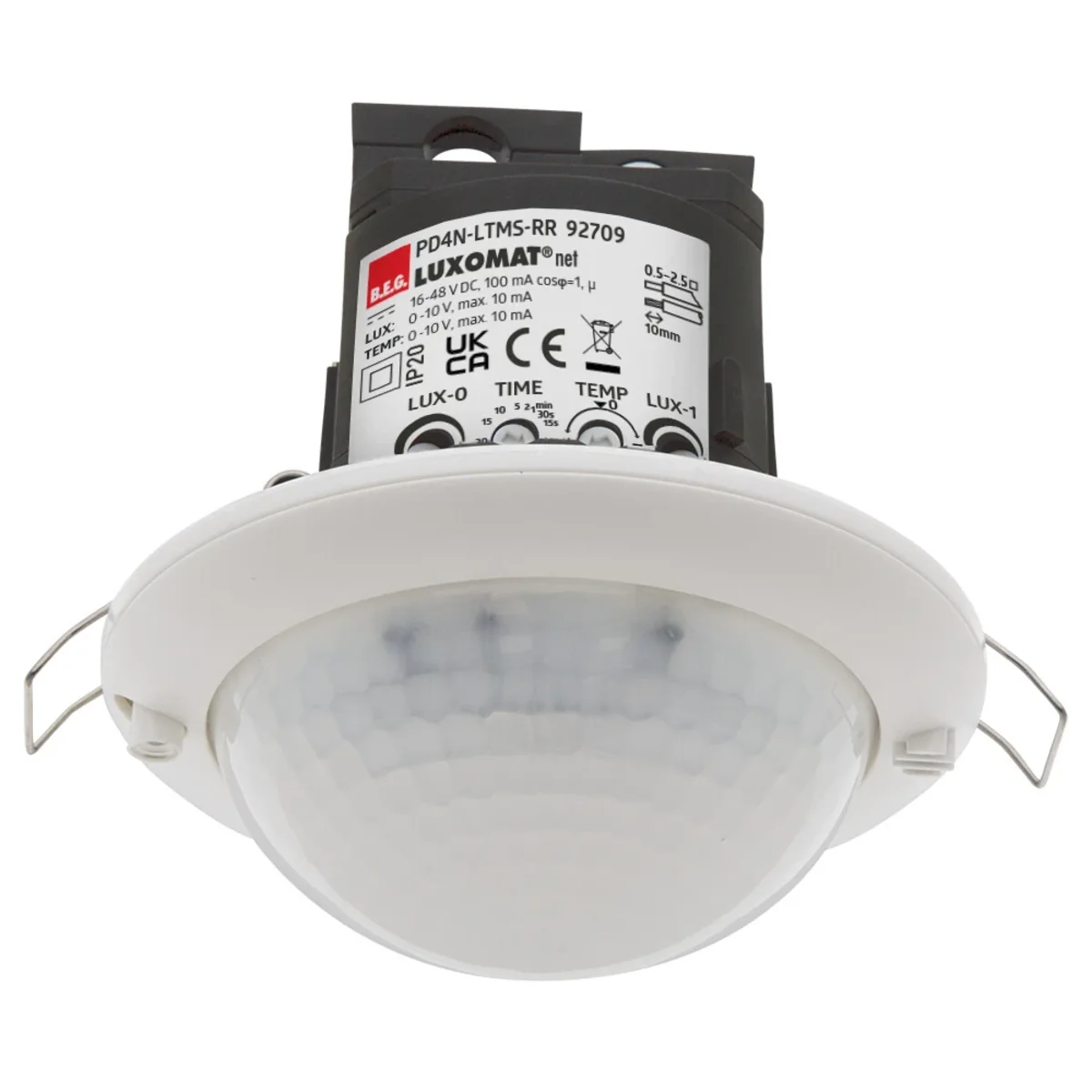

PD4N-LTMS-RR-FC Presence sensor 92709

local index:
APK037BEGQ
Catalog number:
92709
EAN code:
4007529927098
Manufacturer: B.E.G.
Price:
728,18 zł
gross / pcs.
(including VAT 23%)
up to 4 weeks
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print

Technical data

Other technical data

  • Model
    Presence detector
  • HVAC-control
    No
  • Networkable
    No
  • Max. reach sideways
    12 m
  • Max. reach frontally
    8 m
  • Suitable for wireless transmission
    No
  • With remote control
    No
  • With signal unit
    No
  • Suitable for ceiling mounting
    Yes
  • Dim function with dimmer basic element
    No
  • Material
    Plastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • RAL-number (similar)
    9010
  • Voltage type
    DC
  • Min. switch-on time
    1 s
  • Detection angle horizontal
    0 ... 360 °
  • Temperature
    0 ... 50 °C

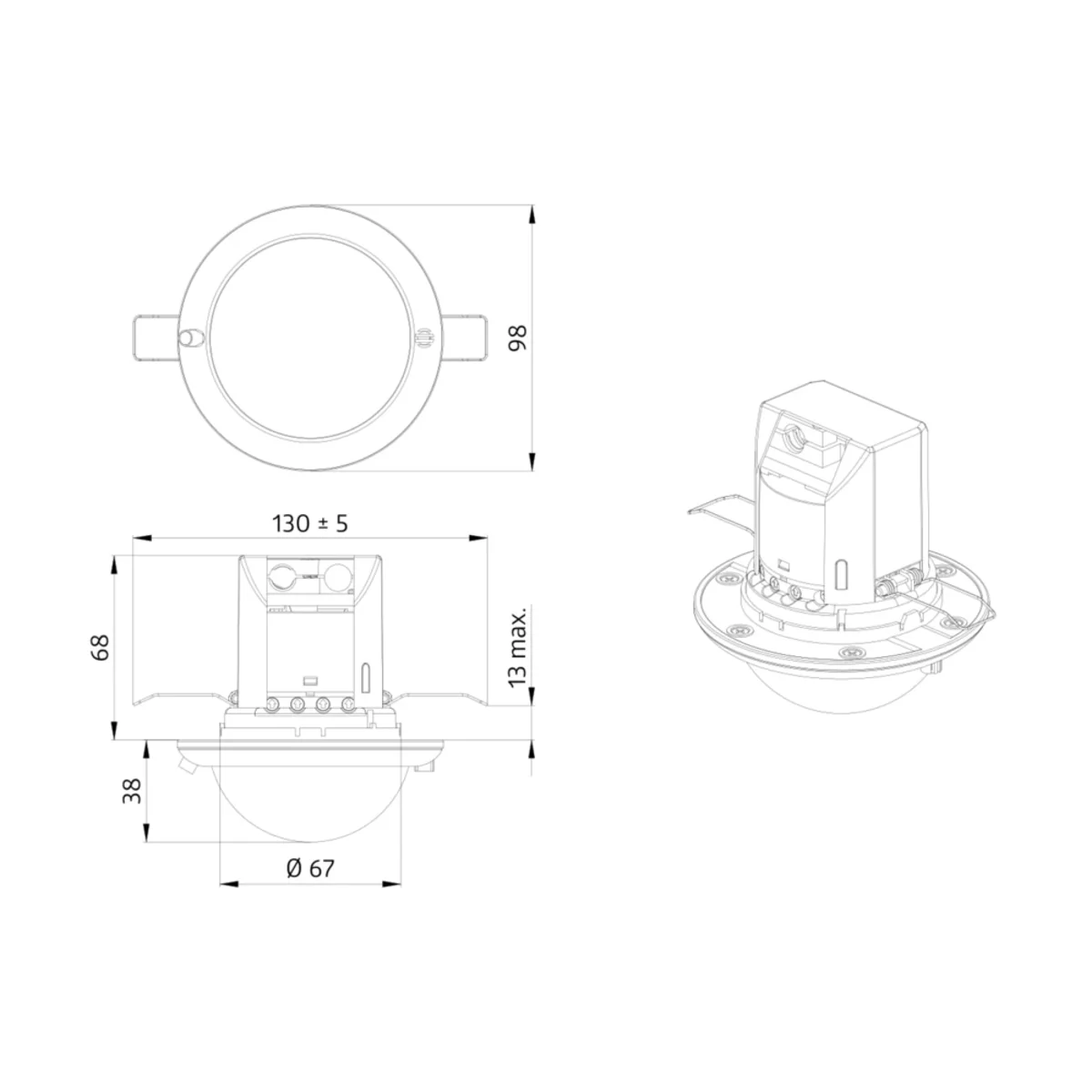

  • Diameter
    98 mm
  • With DALI interface
    No
  • Creep-under protection
    Yes

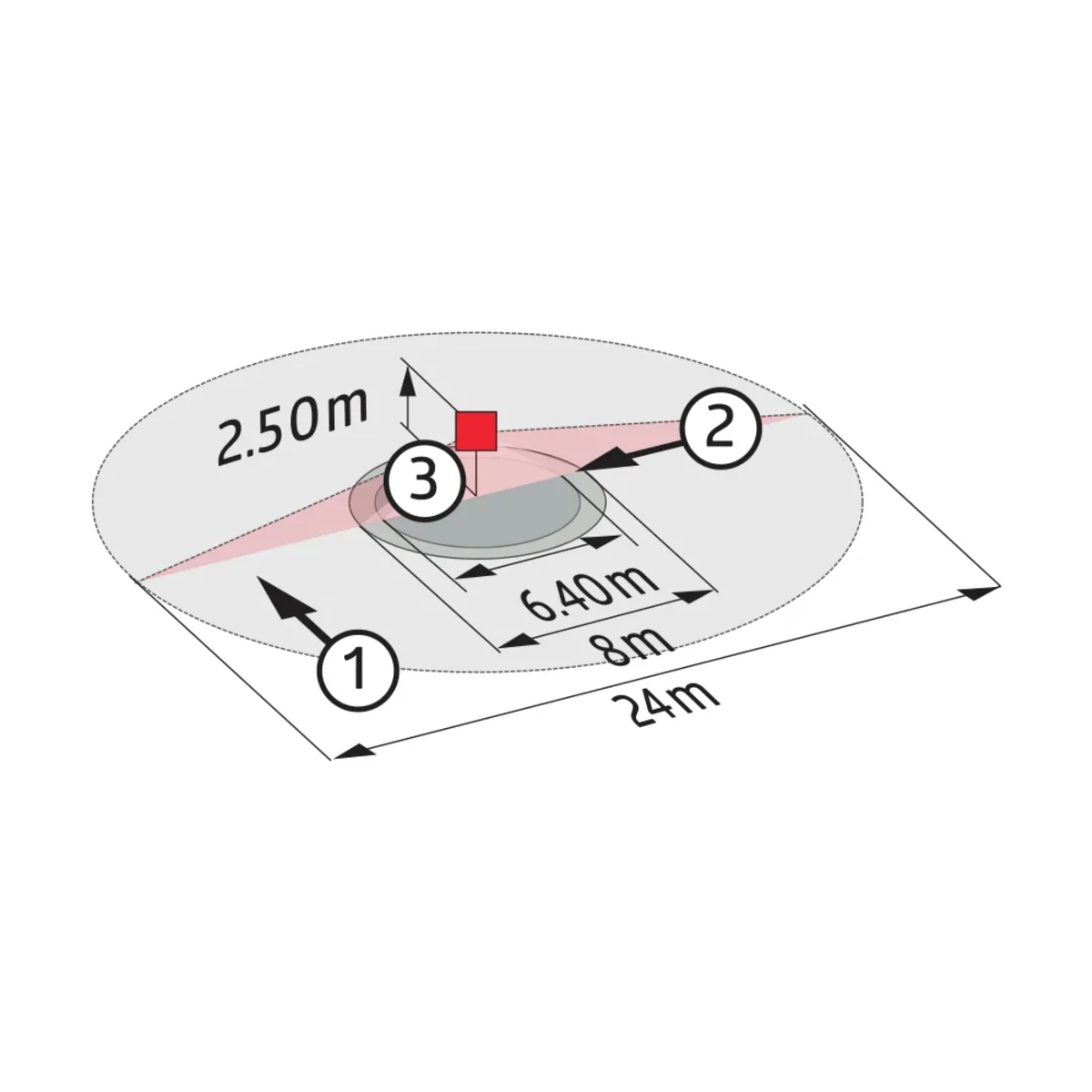

  • Optimum mounting height
    2.5 m
  • Max. presence range
    32 m²
  • Diameter reach on floor
    24 m
  • Remote operation
    Yes
  • Response value luminosity adjustable
    No
  • Teach-function for response value luminosity
    Yes
  • Suitable for wall mounting
    No
  • Mounting method
    Other
  • Material quality
    Other
  • Surface finishing
    Matt
  • Colour
    White
  • Degree of protection (IP)
    IP20
  • Nominal voltage
    48 V
  • Max. duty cycle
    60 min
  • Response value luminosity
    0 ... 0 lx
  • Height
    103 mm

Manufacturer details

  • Manufacturer
    B.E.G. Brück Electronic GmbH
  • Address
    51789 Lindlar Gerberstrasse 33 Niemcy
  • E-mail

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 48 pcs.
Weight (kg) 0,215 10,836
Volume (m3) 0,002 0,095
Width (m) 0,125 0,380
Length (m) 0,125 0,500
Depth (m) 0,125 0,500
