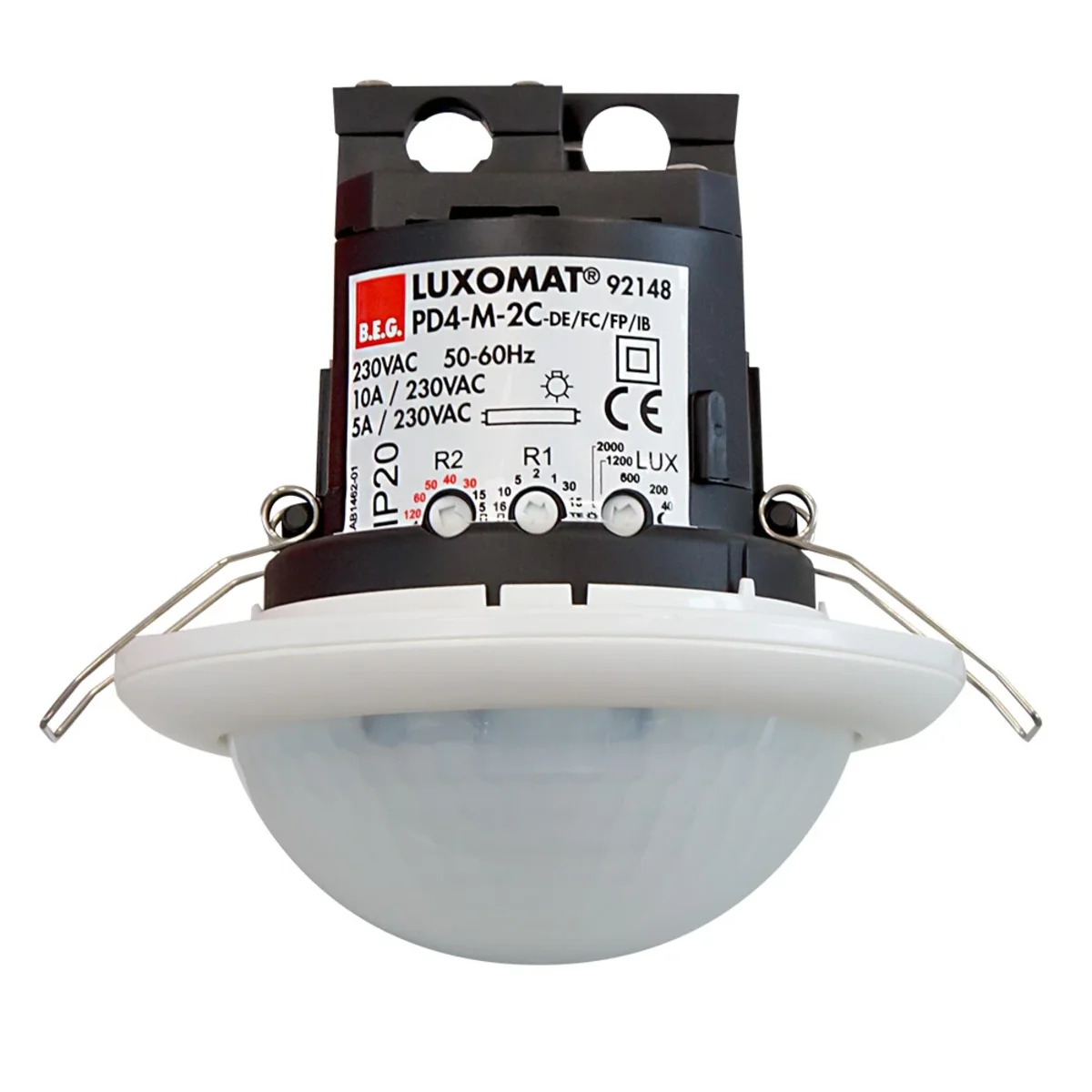

PD4-M-2C-FC Presence sensor 92148

local index:
APK043BEGQ
Catalog number:
92148
EAN code:
4007529921485
Manufacturer: B.E.G.
Price:
773,65 zł
gross / pcs.
(including VAT 23%)
up to 4 weeks
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print

Technical data

Other technical data

  • Model
    Presence detector
  • With DALI interface
    No
  • Forced switch off
    Yes
  • Creep-under protection
    Yes
  • Networkable
    No
  • Staircase light controller
    Yes

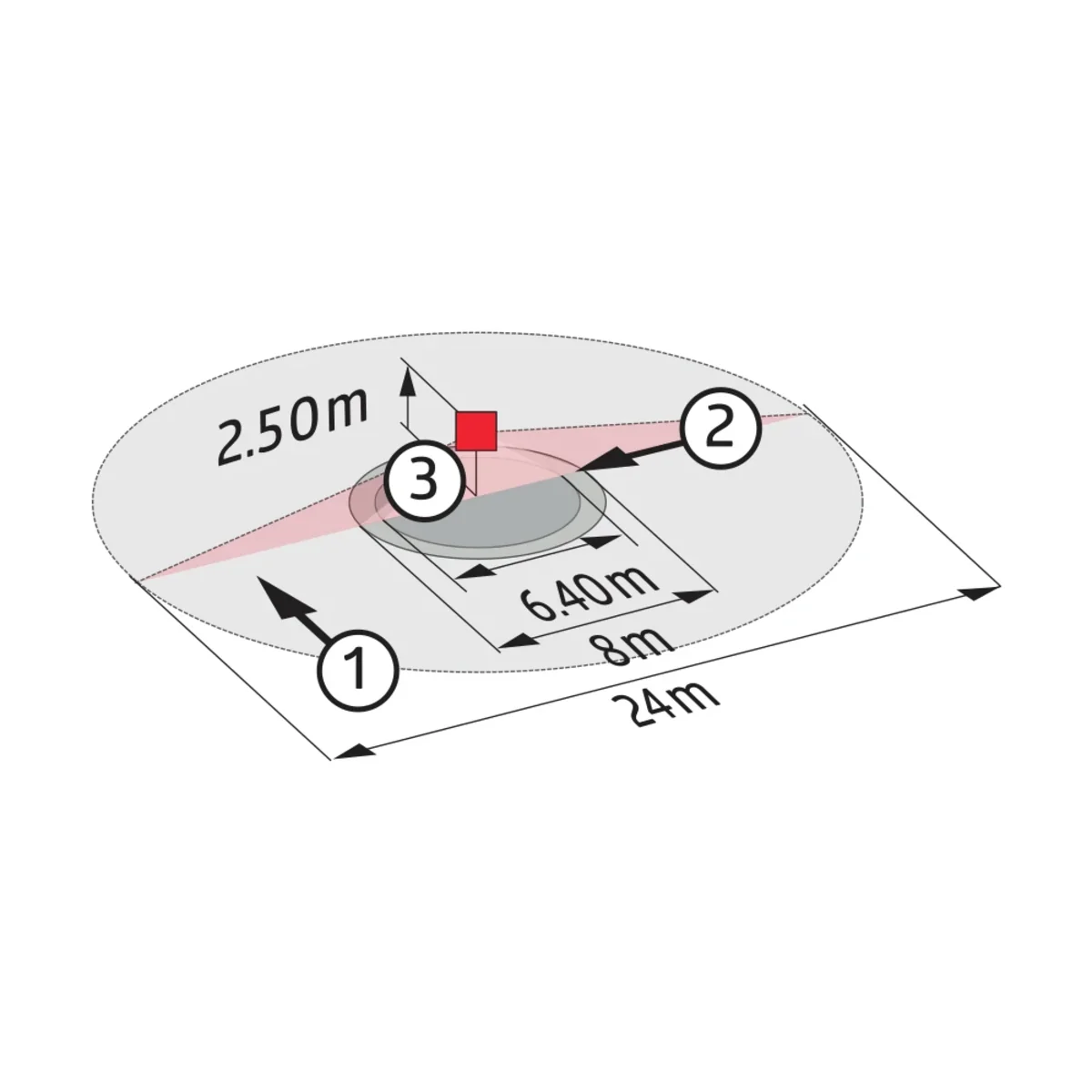

  • Max. reach sideways
    12 m
  • Diameter reach on floor
    24 m
  • Remote operation
    Yes
  • Response value sensitivity adjustable
    Yes
  • With signal unit
    No
  • Dim function with dimmer basic element
    No
  • Suitable for ceiling mounting
    Yes
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • Colour
    White
  • Transparent
    No
  • Impact strength
    IK04
  • Frequency
    50 ... 60 Hz
  • Min. switch-on time
    15 s
  • Switch-off delay
    0 s
  • Response value luminosity
    20 ... 2000 lx
  • Max. switching power LED
    800.0 W
  • Temperature
    -25 ... 50 °C
  • Max. starting current
    165 A
  • Substation input
    Yes
  • With acoustic sensor
    No

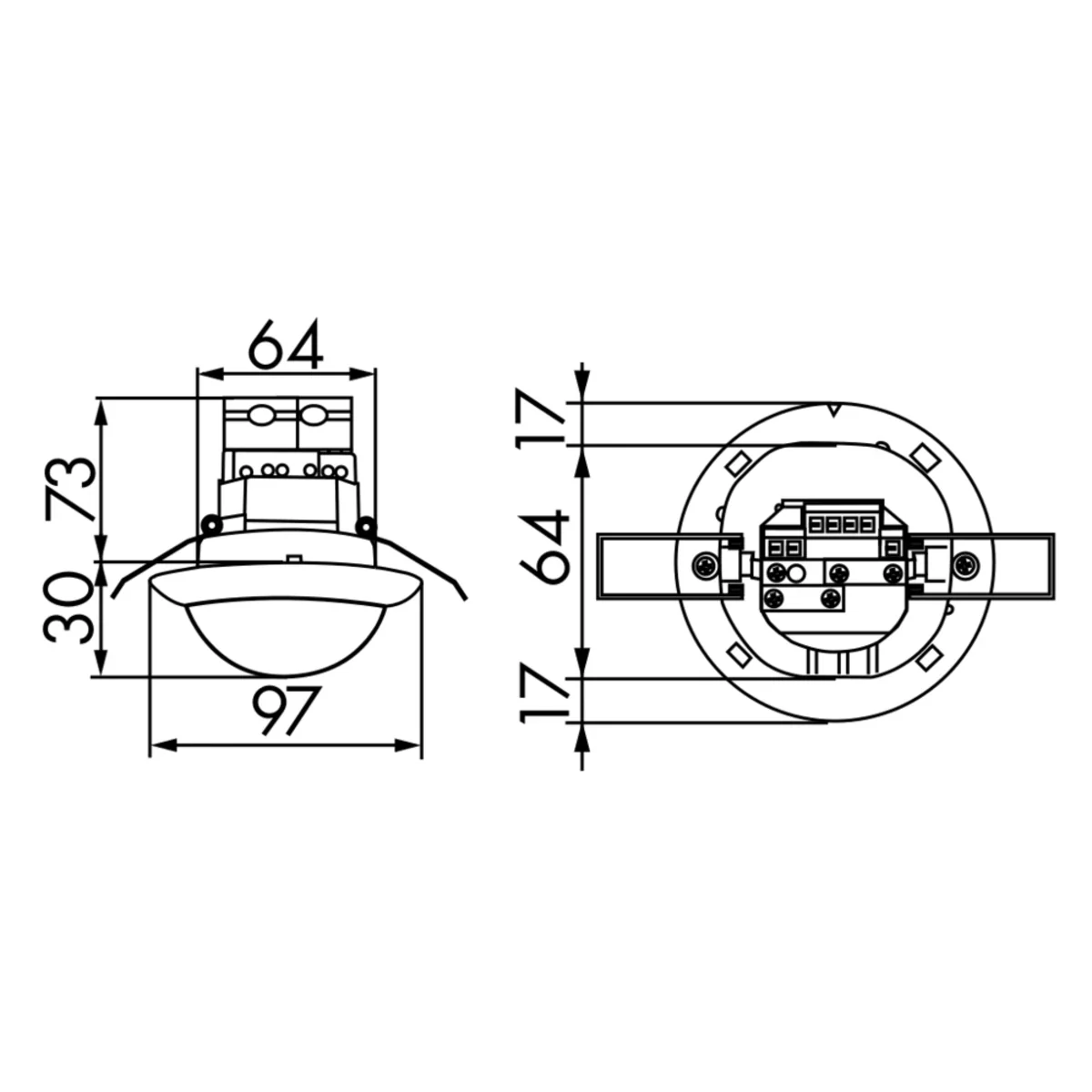

  • Diameter
    97 mm
  • Connection cable length
    0 mm
  • Compatible with Google Assistant
    No
  • IFTTT support available
    No
  • Sensor type
    Passive infrared
  • HVAC-control
    Yes
  • Animal zone
    No
  • Background monitoring
    No
  • Optimum mounting height
    2.5 m
  • Bridging switch
    No
  • Max. presence range
    32 m²
  • Suitable for wireless transmission
    No
  • With remote control
    No
  • Response value luminosity adjustable
    Yes
  • Teach-function for response value luminosity
    Yes
  • Mounting method
    Other
  • Suitable for wall mounting
    No
  • Material quality
    Other
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • RAL-number (similar)
    9010
  • Degree of protection (IP)
    IP20
  • Voltage type
    AC
  • Nominal voltage
    110.0 ... 240.0 V
  • Max. duty cycle
    30 min
  • Switching-on delay
    0 s
  • Max. switching power
    2300 W
  • Suitable for C-load
    No
  • Number of switching zones
    450.0
  • Control current
    2 mA
  • With alarm function
    Yes
  • Height
    103 mm
  • With connection cable
    No
  • Compatible with Apple HomeKit
    No
  • Compatible with Amazon Alexa
    No

Manufacturer details

  • Manufacturer
    B.E.G. Brück Electronic GmbH
  • Address
    51789 Lindlar Gerberstrasse 33 Niemcy
  • E-mail

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 48 pcs.
Weight (kg) 0,263 13,255
Volume (m3) 0,002 0,100
Width (m) 0,120 0,390
Length (m) 0,124 0,508
Depth (m) 0,124 0,503
