PD2-M-2C-SM Presence sensor 92150

Indice locale:
APK042BEGQ
Numero di catalogo:
92150
Codice EAN:
4007529921508
Produttore: B.E.G.
Prezzo:
581,25 zł
gross / pezzi
(inclusa IVA 23%)
fino a 4 settimane
Su ordinazione
Quantità pezzi
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa

Dati tecnici

Altri dati tecnici

  • Model
    Presence detector
  • With DALI interface
    No
  • Forced switch off
    Yes
  • Creep-under protection
    Yes
  • Networkable
    No
  • Staircase light controller
    Yes

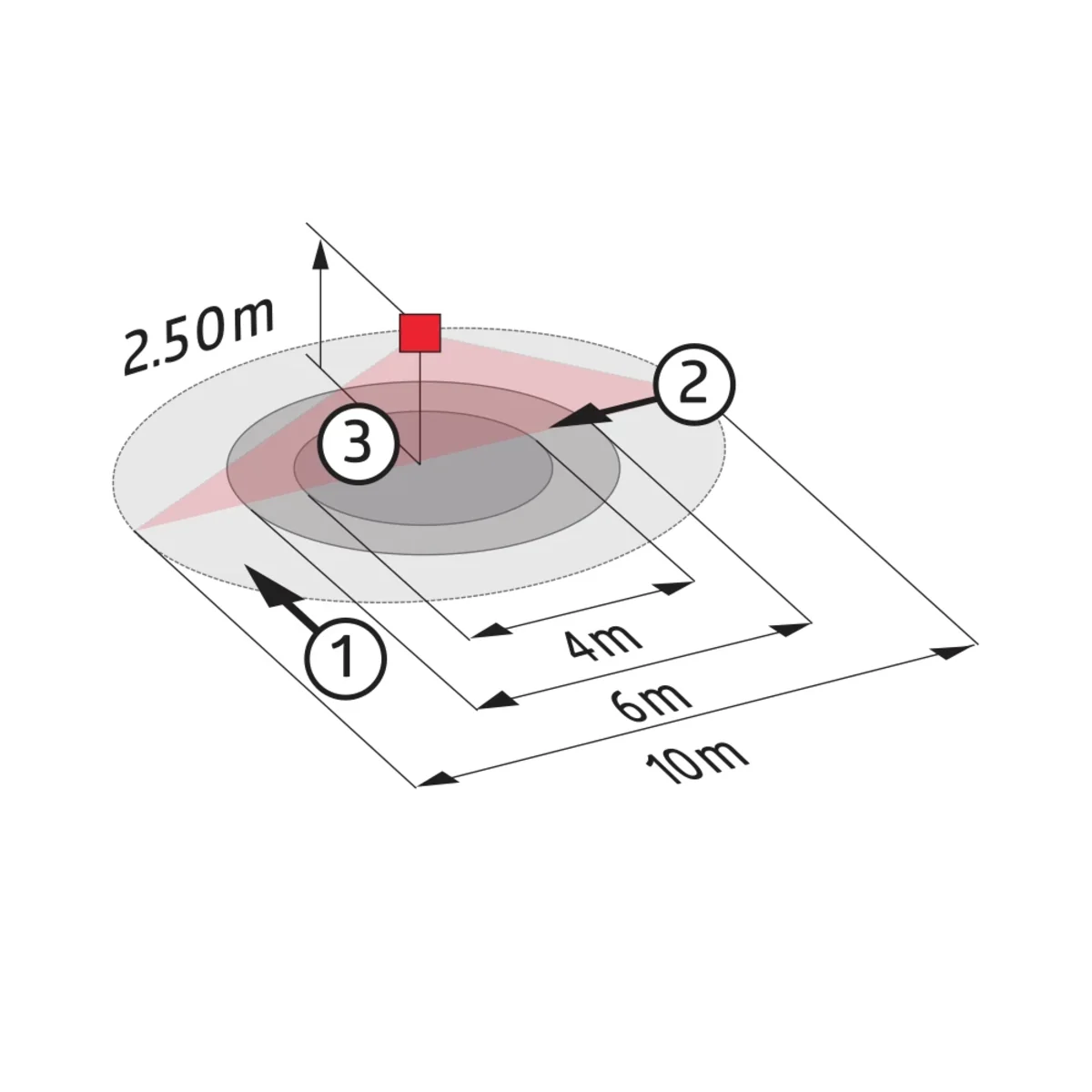

  • Max. reach sideways
    5 m
  • Diameter reach on floor
    10 m
  • Remote operation
    Yes
  • Response value sensitivity adjustable
    Yes
  • With signal unit
    No
  • Dim function with dimmer basic element
    No
  • Suitable for ceiling mounting
    Yes
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • Colour
    White
  • Transparent
    No
  • Impact strength
    IK05
  • Frequency
    50 ... 60 Hz
  • Min. switch-on time
    15 s
  • Switch-off delay
    0 s
  • Response value luminosity
    20 ... 2000 lx
  • Max. switching power LED
    800.0 W
  • Temperature
    -25 ... 50 °C
  • Max. starting current
    165 A
  • Substation input
    Yes
  • With acoustic sensor
    No

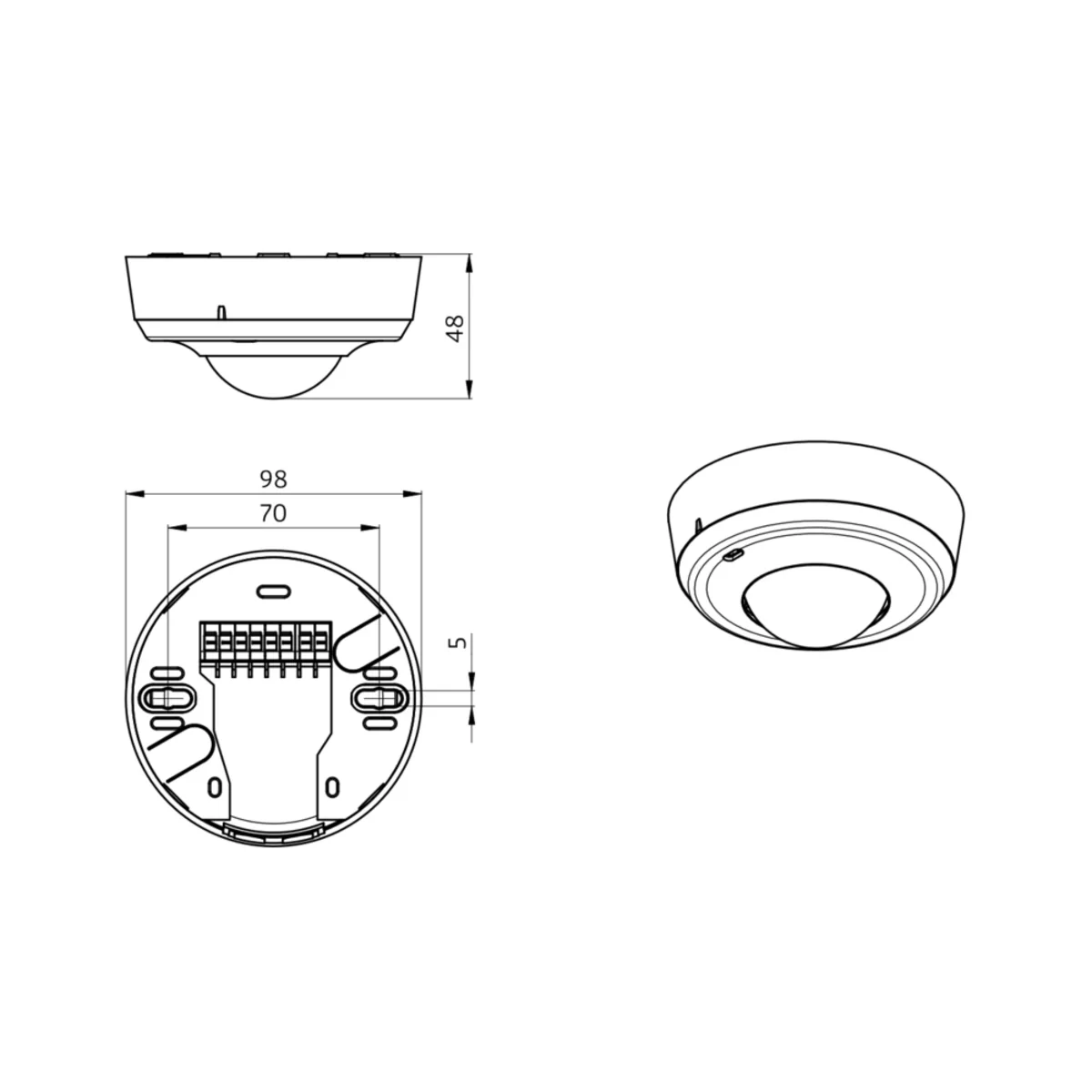

  • Diameter
    98 mm
  • Connection cable length
    0 mm
  • Compatible with Google Assistant
    No
  • IFTTT support available
    No
  • Sensor type
    Passive infrared
  • HVAC-control
    Yes
  • Animal zone
    No
  • Background monitoring
    No
  • Optimum mounting height
    2.5 m
  • Bridging switch
    No
  • Max. presence range
    12 m²
  • Suitable for wireless transmission
    No
  • With remote control
    No
  • Response value luminosity adjustable
    Yes
  • Teach-function for response value luminosity
    Yes
  • Mounting method
    Surface mounted
  • Suitable for wall mounting
    No
  • Material quality
    Other
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • RAL-number (similar)
    9010
  • Degree of protection (IP)
    IP20
  • Voltage type
    AC
  • Nominal voltage
    110.0 ... 240.0 V
  • Max. duty cycle
    30 min
  • Switching-on delay
    0 s
  • Max. switching power
    2300 W
  • Suitable for C-load
    No
  • Number of switching zones
    78.0
  • Control current
    2 mA
  • With alarm function
    Yes
  • Height
    47 mm
  • With connection cable
    No
  • Compatible with Apple HomeKit
    No
  • Compatible with Amazon Alexa
    No

Dettagli del produttore

  • Produttore
    B.E.G. Brück Electronic GmbH
  • Indirizzo
    51789 Lindlar Gerberstrasse 33 Niemcy
  • Email

Imballaggio sfuso

Una specie di pacchetto Paczka Karton
Quantità 1 pezzi 100 pezzi
Peso (kg) 0,177 18,585
Volume (m3) 0,001 0,091
Larghezza (m) 0,106 0,564
Lunghezza (m) 0,109 0,360
Profondità (m) 0,070 0,448
