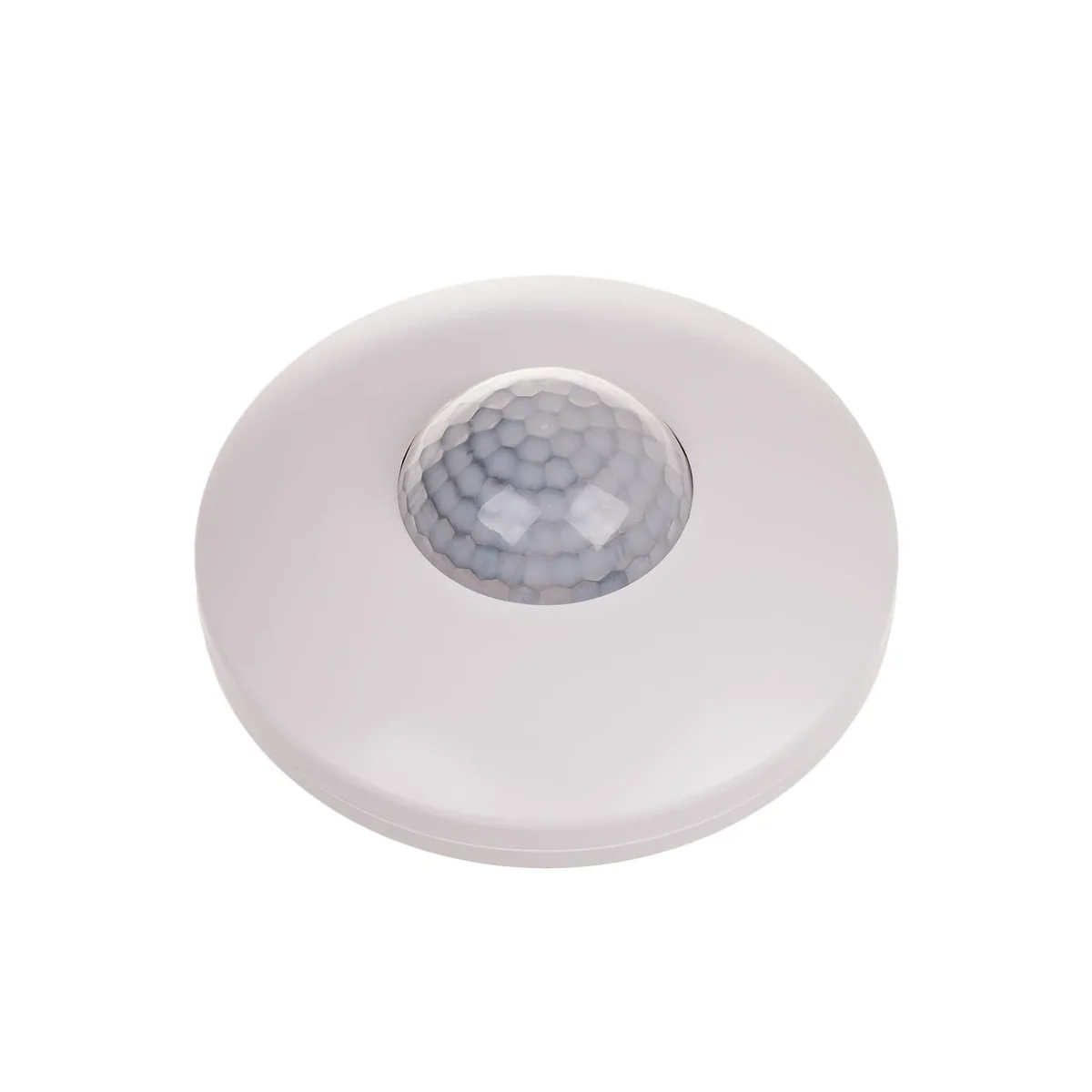

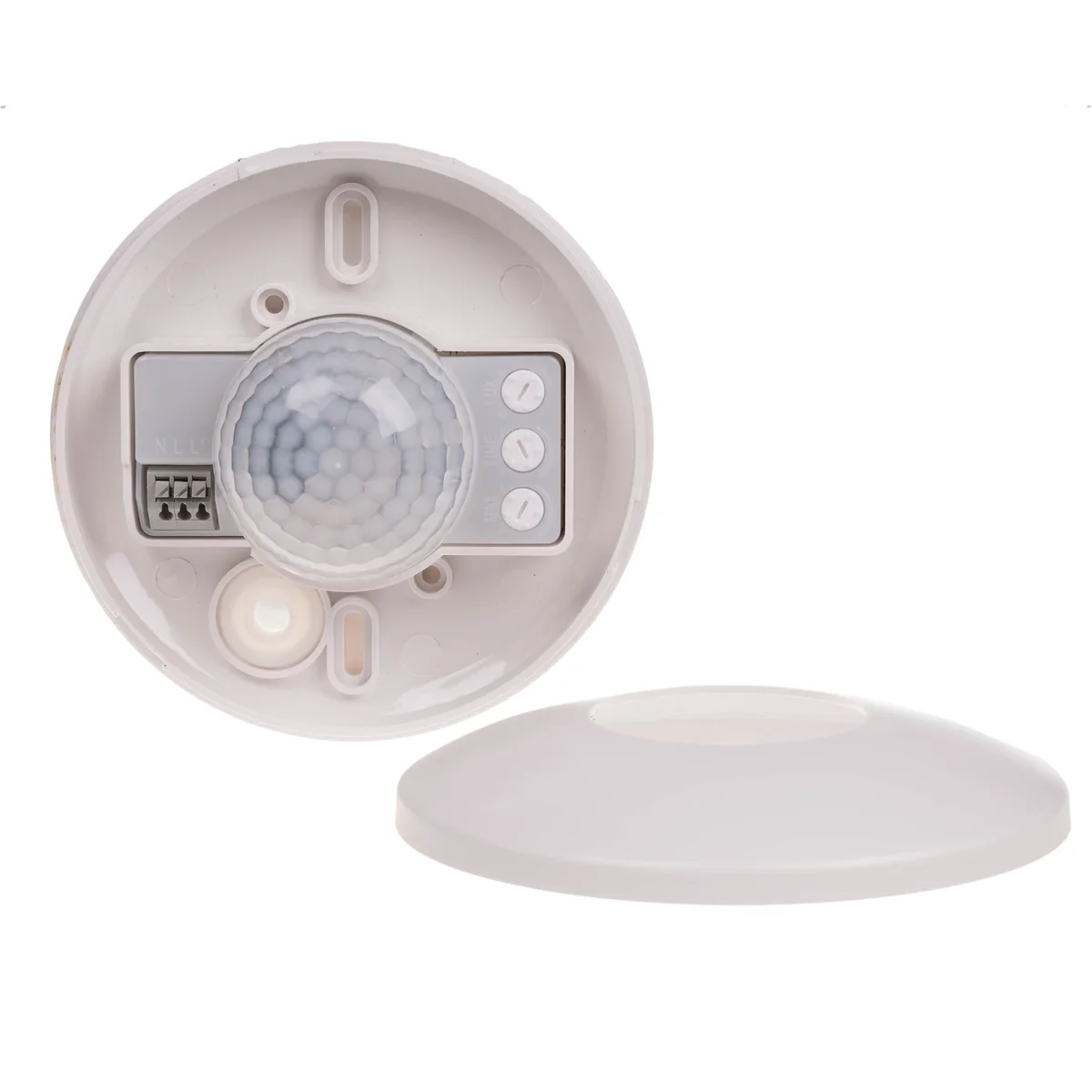

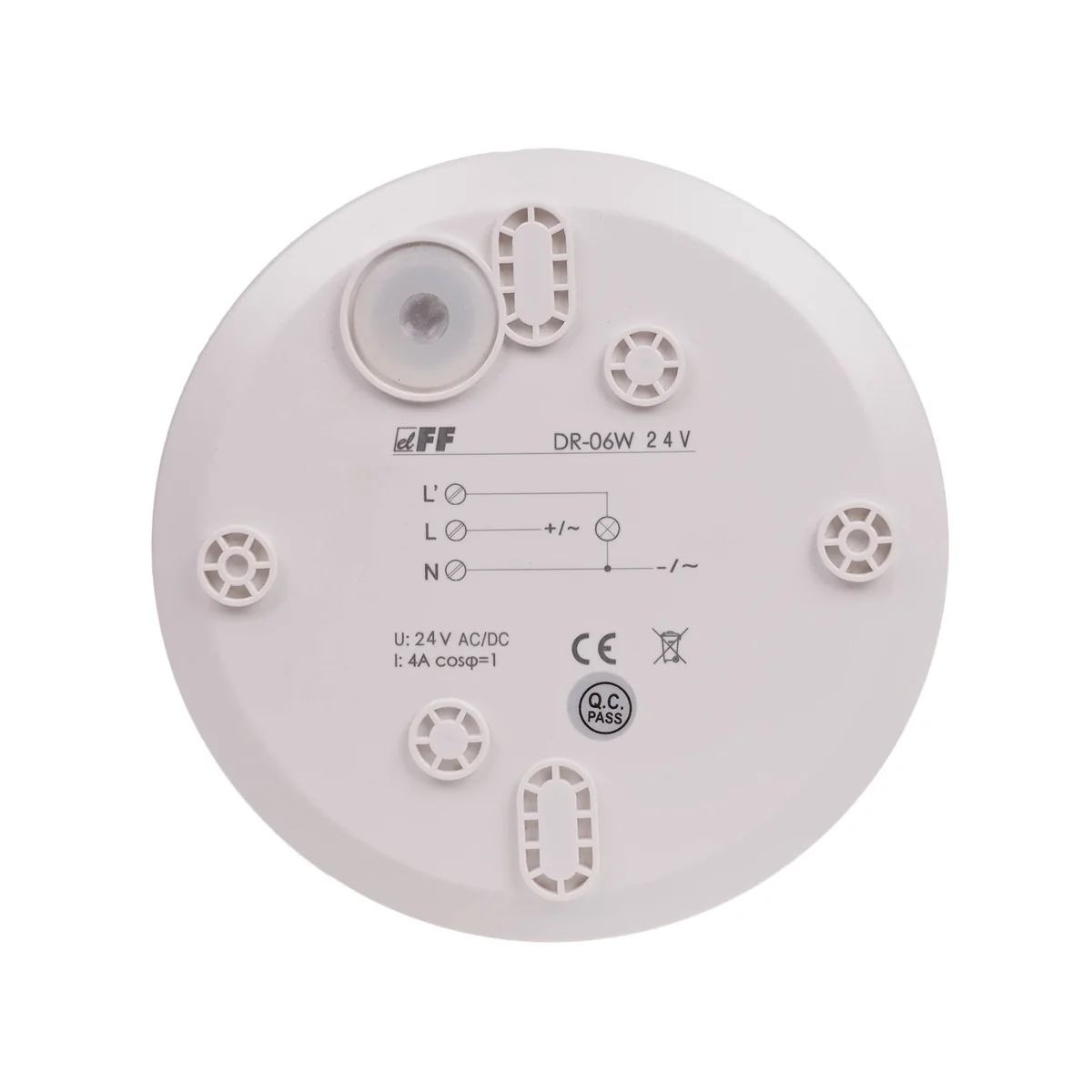

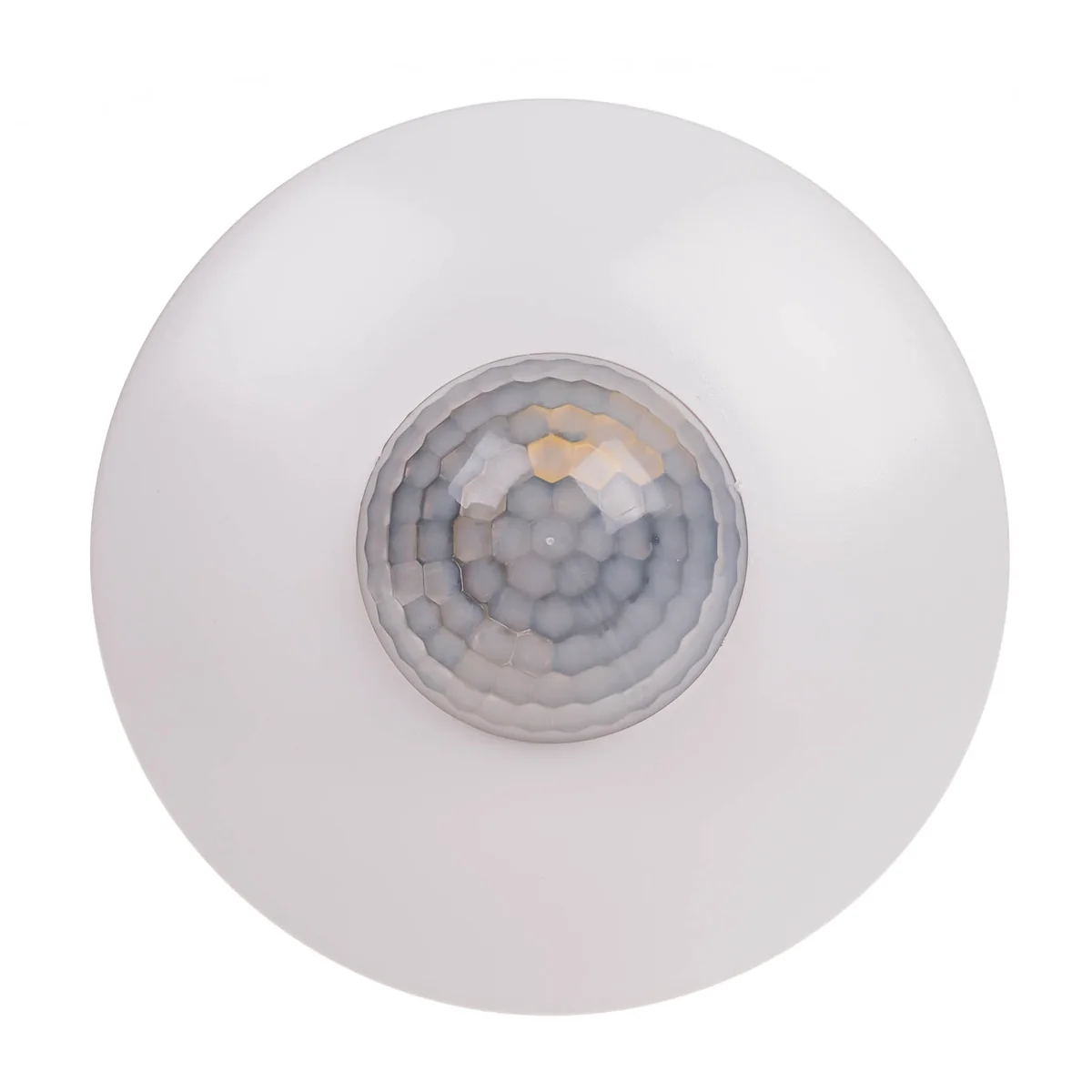

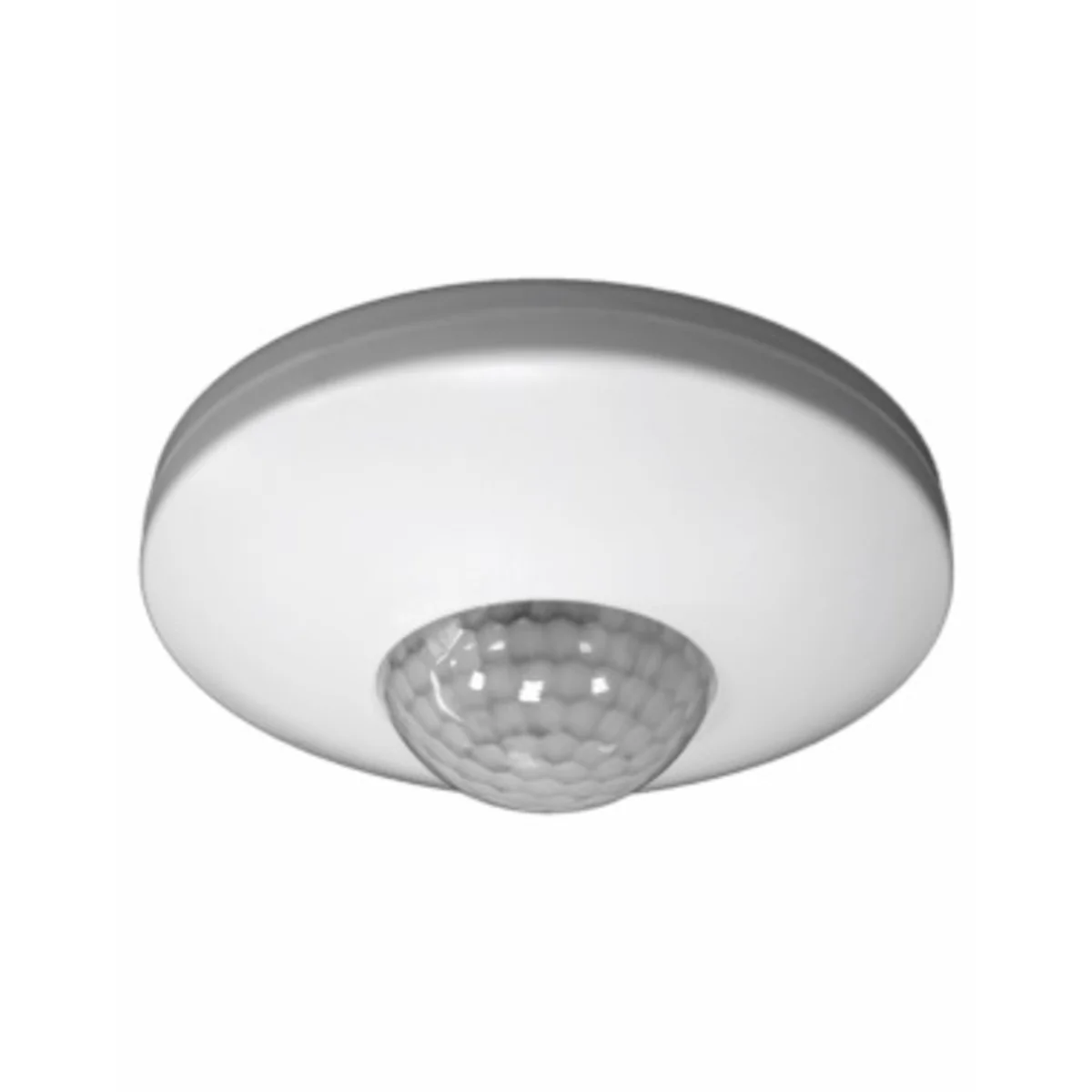

Motion sensor with temperature probe with battery power supply DR-06W-24V

local index:
APK009FIFQ
Catalog No:
DR-06W-24V
EAN code:
5908312597278
Manufacturer: F&F
Color: White
Rated voltage [V]: 24
Level of security: IP40
Price:
21,99 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 8 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Intended use
The motion sensor is used for automatic, temporary switching on of lighting in the event of the appearance of a person or other object in places such as  corridors, courtyards, approaches and driveways, garages, etc.


Operation
The sensor detects sources of infrared radiation. It analyzes parameters such as the size of the object, the amount of emitted heat and the speed of movement between individual detection sectors. Movement in the detection field automatically turns on the lighting. From the moment of switching on, continuous movement causes permanent switching on of the lighting. Only the lack of movement in the detection field triggers the lighting hold time. Another movement in the detection field and its disappearance during the time measurement will trigger the backup time from the beginning. The nature of operation allows the DR-06 to be used as a presence sensor. The motion sensor is equipped with a twilight switch that prevents switching on the controlled lighting during the day. The detection status and readiness to switch on the lighting are activated only after dusk. The activation time of the sensor can be corrected by the user with a potentiometer. In addition, it is possible to adjust the detection field area within the radius of 1÷5m (for h=2.5÷3.5m) and adjust the receiver activation time in the range of 3s-12min. Changes in temperature may affect motion detection.

The motion sensor can operate indoors and outdoors in places where it is not exposed to direct rain or snow and the housing may be splashed with water or other liquid sensor and its electrical connection points.


Specifications

sensor mounting height assembly
power
     DR-06W / DR-06B230V AC
     DR-06W 24V24V AC/DC
load current
     DR-06W<4A
     DR-06B / DR-06W 24V<7A
connected power
     incandescent lamps800W
     fluorescent lamps400W
twilight activation threshold 10÷2000Lx
motion detection0.6÷1.5m/s
off time3s÷12min. (±3min.)
vertical detection field 360°
max. detection radius
(for h= 2.3÷3.5m, T<24°C)
r=5m
h=2.5÷3.5m
power consumption
     Standby 0.10W
< b>     on status 0.45W
connection1.0mm² terminals
working temperature-10÷40°C
dimensionsØ=115mm, h=47mm
two screws to the surface
degree of protectionIP40

Technical data

  • Color
    White
  • Level of security
    IP40
  • Working temperature [°C]
    -10 - +40
  • Current [A]
    4
  • PKWIU
    27.12.24.0
  • Rated voltage [V]
    24
  • Diameter [mm]
    115
  • Height [mm]
    47
  • Accurate color
    White

Other technical data

  • Model
    Movement sensor
  • Constant light control
    no
  • Forced switch off
    yes
  • Creep-under protection
    no
  • Optimum mounting height
    2.5 m
  • Bridging switch
    no
  • Max. reach frontally
    4 m
  • Suitable for wireless transmission
    no
  • Response value sensitivity adjustable
    yes
  • With signal unit
    no
  • Dim function with dimmer basic element
    no
  • Material
    Plastic
  • Halogen free
    yes
  • Colour
    White
  • Degree of protection (IP)
    IP20
  • Frequency
    50 ... 50 Hz
  • Min. switch-on time
    10 s
  • Detection angle horizontal
    360 ... 360 °
  • Max. switching power
    800 W
  • Max. starting current
    5 A
  • With alarm function
    no
  • Sensor type
    Passive infrared
  • HVAC-control
    no
  • Animal zone
    no
  • Networkable
    no
  • Staircase light controller
    yes
  • Max. reach sideways
    4 m
  • Diameter reach on floor
    8 m
  • Remote operation
    no
  • Response value luminosity adjustable
    yes
  • Teach-function for response value luminosity
    no
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • Transparent
    no
  • Voltage type
    AC
  • Nominal voltage
    -24 V
  • Max. duty cycle
    10 min
  • Response value luminosity
    10 ... 2000 lx
  • Temperature
    -20 ... 40 °C
  • Substation input
    no

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Width (m) 0,115
Length (m) 0,047
Depth (m) 0,115
