Microwave motion sensor DRM-01-24V DRM-01-24V

local index:
APK004FIFQ
Catalog No:
DRM-01-24V
EAN code:
5908312594642
Manufacturer: F&F
Frequency [GHz]: 5.8
Color: White
Detection field: 360°
Price:
22,13 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

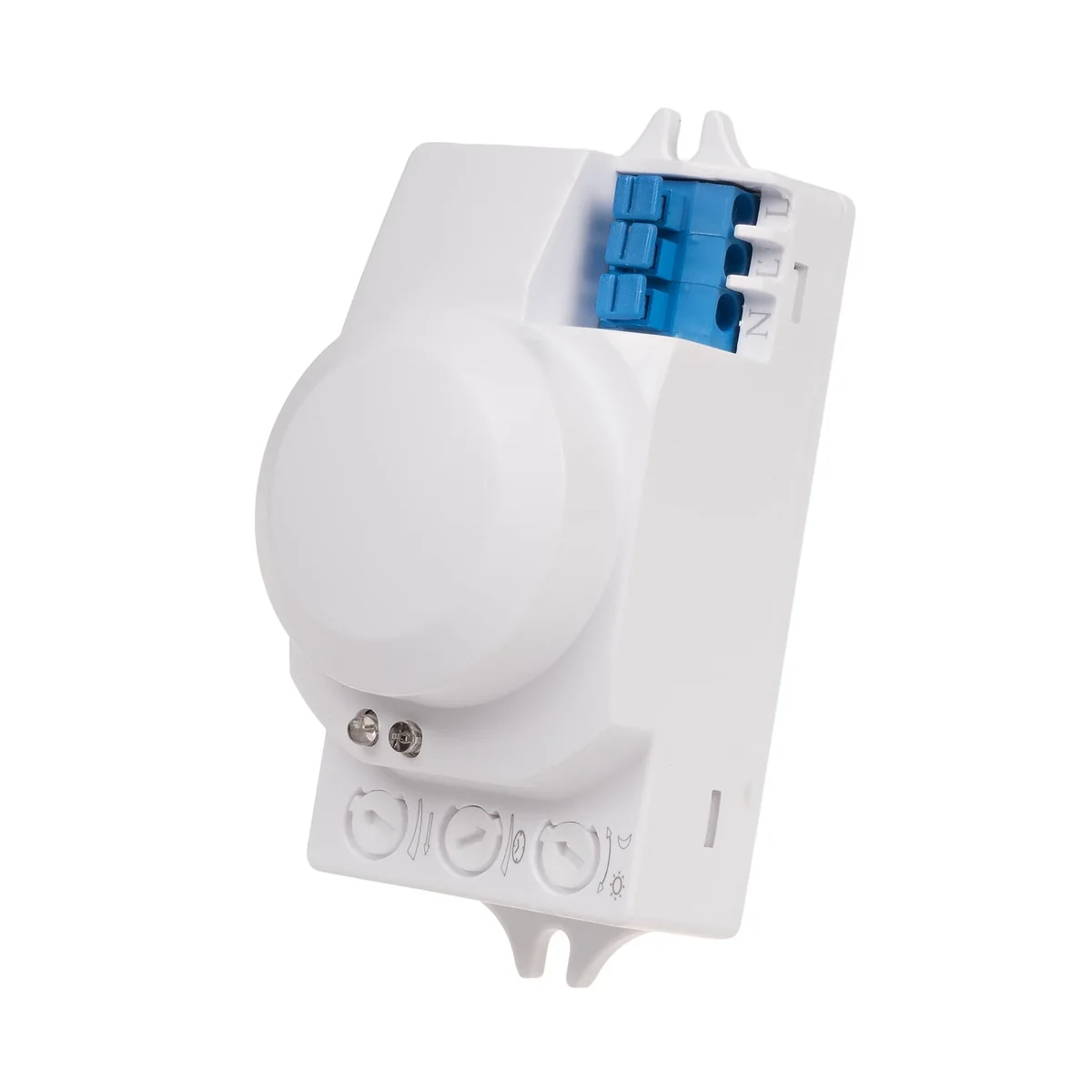

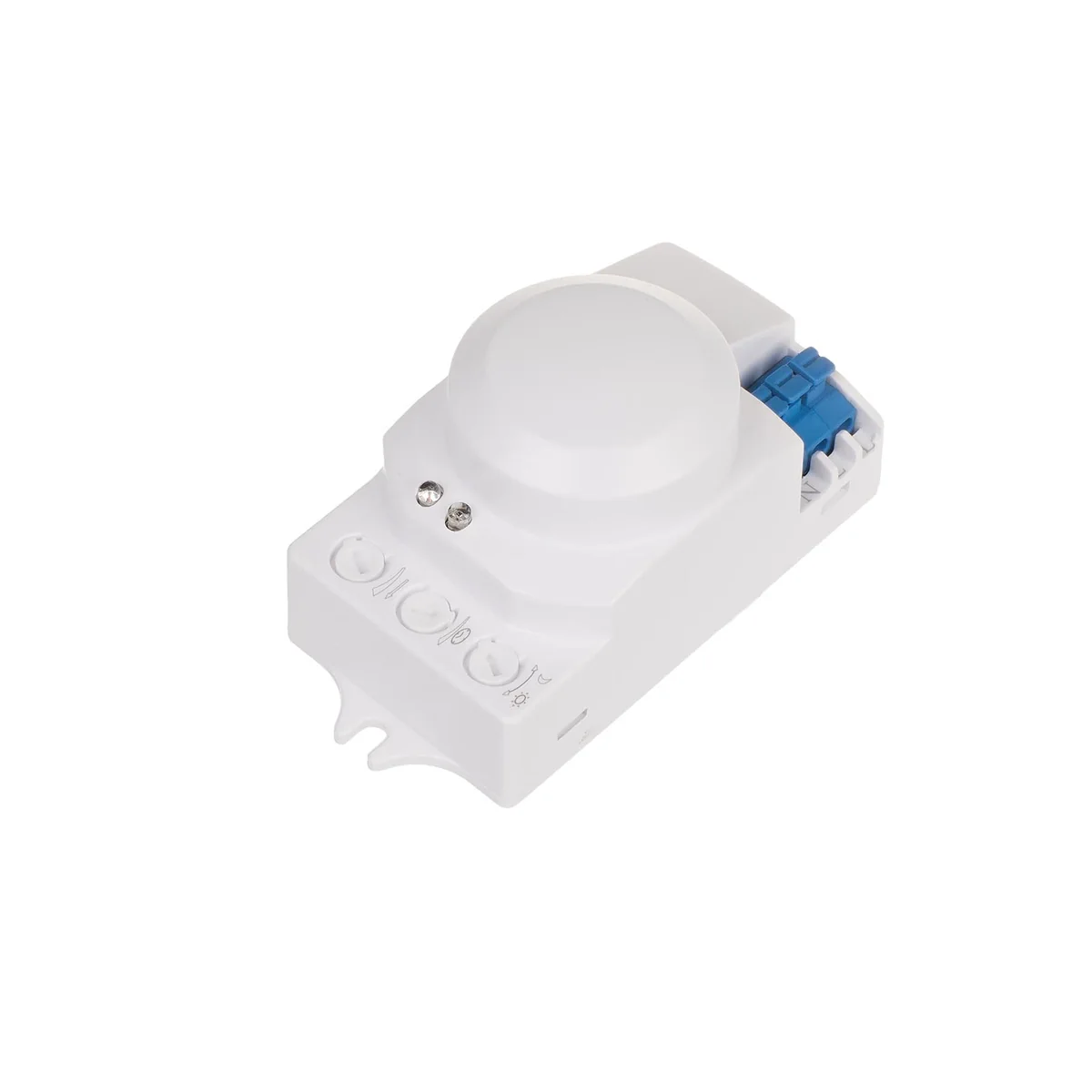

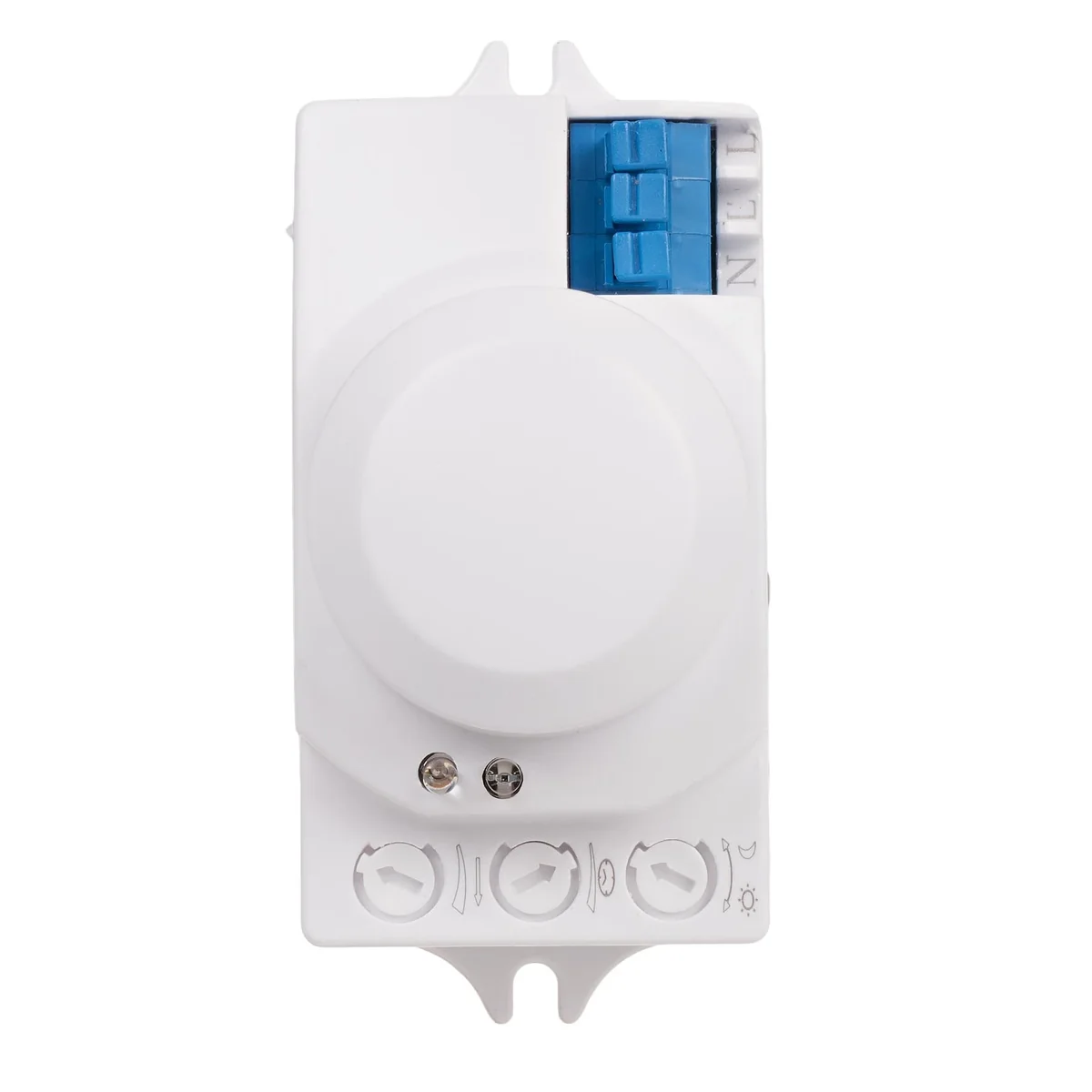

DRM-01 surface mounted microwave motion sensor.

Technical data:

  • load current  <5A
  • frequency of microwave radiation:5.8GHz
  • radiation power <10mW
  • detection field 360°
  • detection radius - adjustable (for h=2.5m)  1-10m
  • trigger speed - adjustable  45-2000Lx
  • receiver activation time - adjustable 5sec-12min
  • switching on delay  1sec
  • protection level: IP20
  • color: white

Application:

    < li>is used to automatically, temporarily switch on the lighting in the event of a person or other object appearing in such places  like  corridors, courtyards, approaches and driveways, garages, etc

Technical data

  • Frequency [GHz]
    5.8
  • Detection field
    360°
  • Accurate color
    White
  • Color
    White
  • Level of security
    IP20
  • PKWIU
    27.12.24.0

Other technical data

  • Model
    Presence detector
  • Constant light control
    No
  • Networkable
    No
  • Creep-under protection
    No
  • Max. reach sideways
    10 m
  • Diameter reach on floor
    20 m
  • Response value luminosity adjustable
    Yes
  • Dim function with dimmer basic element
    No
  • Staircase light controller
    Yes
  • Material quality
    Thermoplastic
  • Suitable for degree of protection (IP)
    IP20
  • Max. duty cycle
    12 min
  • Mounting method
    Flush-mounted
  • HVAC-control
    No
  • Suitable for wireless transmission
    No
  • Mounting height
    2.5 m
  • Max. reach frontally
    10 m
  • Response value sensitivity adjustable
    Yes
  • Teach-function for response value luminosity
    No
  • Animal zone
    No
  • Material
    Plastic
  • Halogen free
    Yes
  • Min. switch-on time
    5 s
  • Detection angle horizontal
    360 ... 360 °

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,085
Width (m) 0,055
Length (m) 0,105
Depth (m) 0,050
