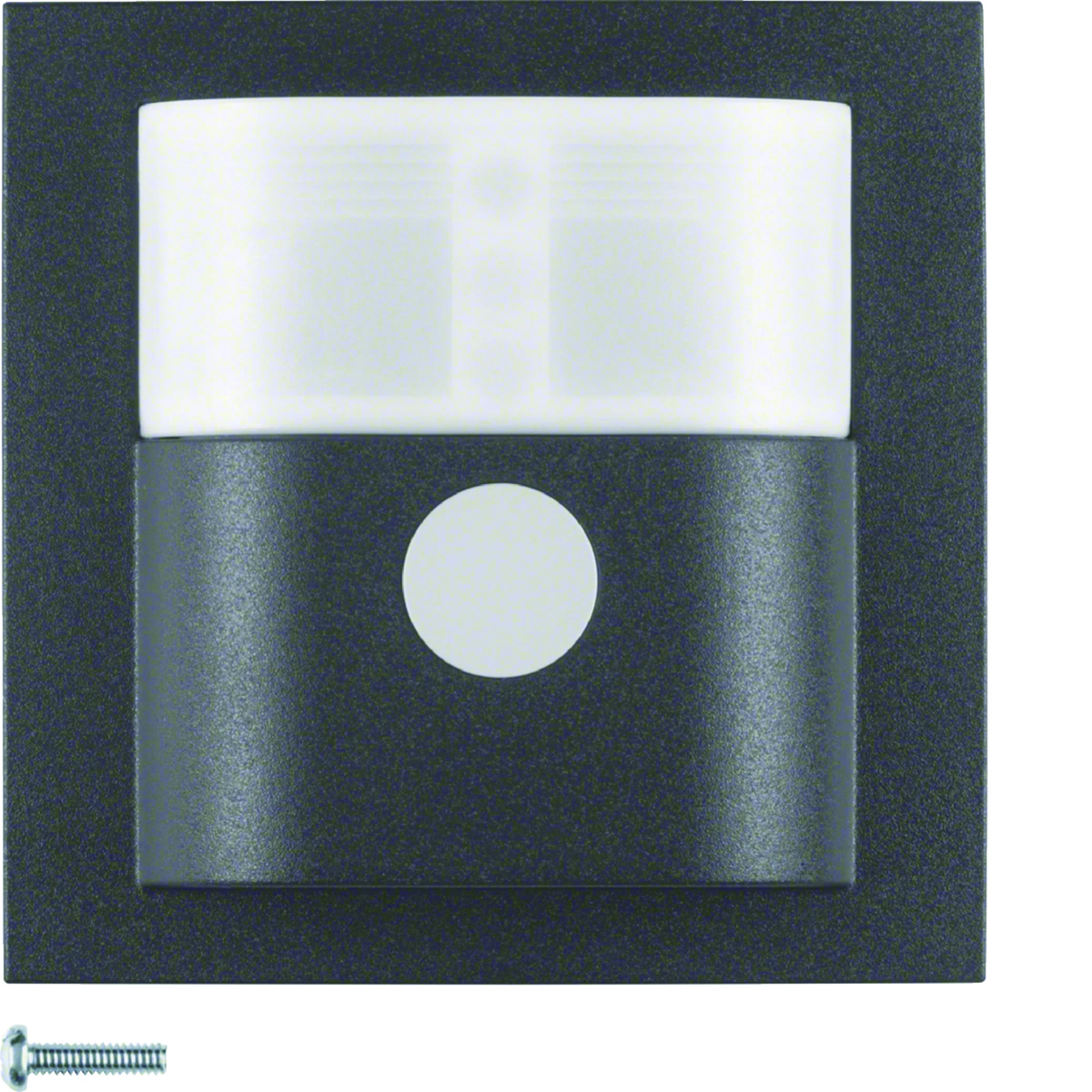

KNX RF QUICKLINK S.1/B.3/B.7 Comfort motion sensor 2.2m anthracite matt 85346185

Motion sensorcomfort from the KNX RF quicklink series. Nominal mounting height: 2.2 m. Main design line: Berker S.1/B.3/B.7.

Features:

< li> microprocessor control
• additional ETS functions: +6 scenes, operating mode on/off, push-button switch, status indicator, dimming value, illumination intensity indicator, recalling scenes - motion, recalling scenes - no movement
• reset function (factory settings)
• "party" function activated for 2 hours
• with memory function to simulate presence
• with button lock
• function of warning against switching off by dimming mechanisms
• function of programming the lighting intensity level activated by pressing the button
• triggering scenes by means of KNX radio devices< /li>
• the possibility of blocking the memory of scenes
• quicklink functions: switching, dimming, 2 scenes, time control, pushbutton switch (make contact), memory, forced control, Master-Slave mode

Controls and indicators:

• remote operation possible via quicklink transmitter
• with configuration and function button
• with on/off button/automatic mode/memory/party function

LED control:

• Attachment and Mechanism Compatibility LED
• with Configuration and Function LED
• with Red/Green/Orange Run and Status LEDs

Connection:

• integration with the KNX-TP system via the KNX radio network/TP surface-mounted gateway

Series characteristics :

KNX quicklink is a wireless alternative to the intelligent building technology system. An innovative wireless control system using radio communication in the KNX RF standard, without the need for complex cable routing. It has an extremely simple programming method.

• installation in places where cable installation is not possible (e.g. glass walls),
• the possibility of supplementing the traditional installation with additional functionality using a radio control system without high costs,
• the ability to control electrical receivers using remote controls,
• the ability to create light scenes and group and central control functions.
