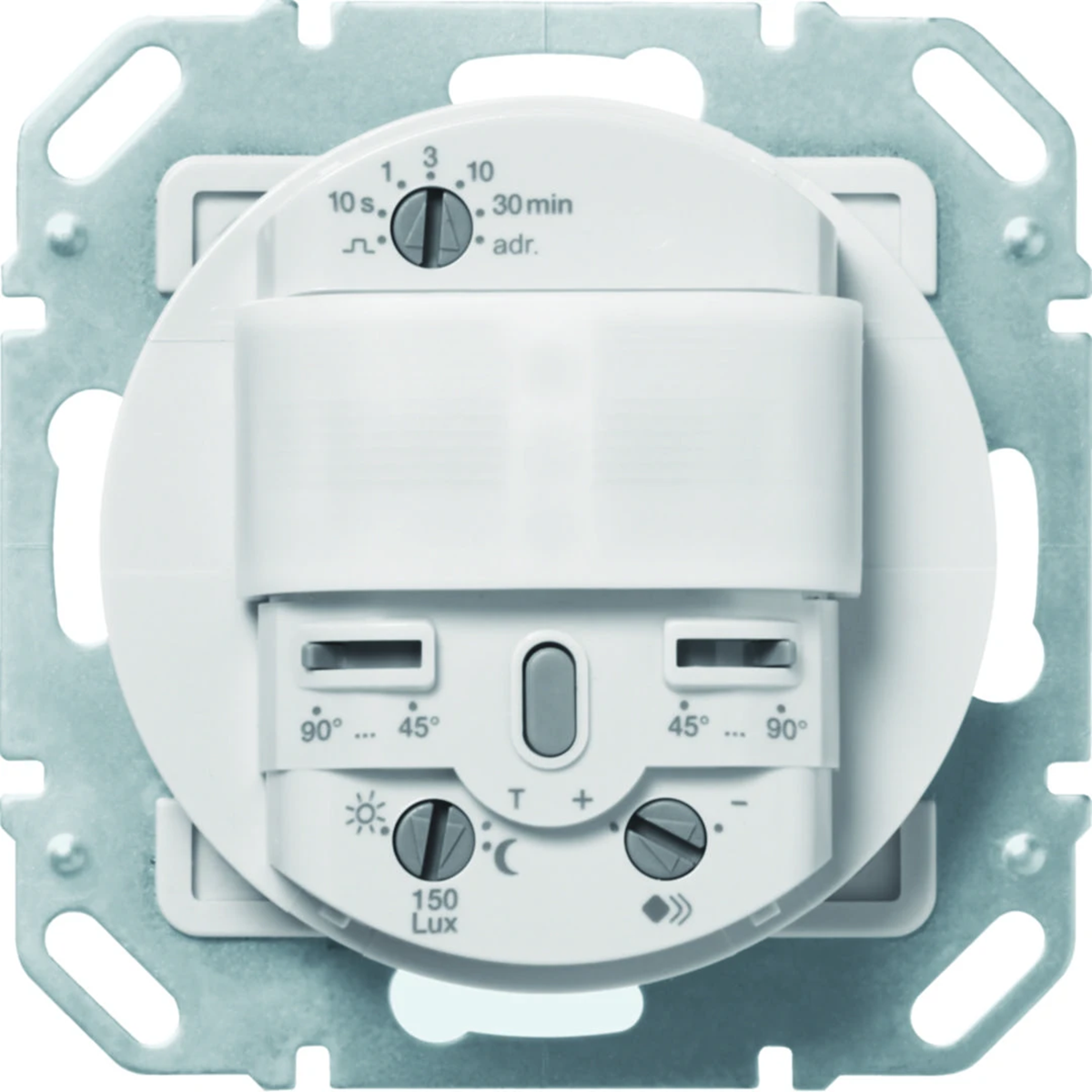

KNX e/s R.x Motion sensor module 1.1 m with bus port 80262160

local index:
APK041HAGE
Catalog No:
80262160
EAN code:
3250617153171
Manufacturer: HAGER
Halogen free: NO
Detection angle [°]: 45-90
Material: Plastic | Metal
Price:
206,21 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

KNX e/s R.x Motion sensor module 1.1 m with bus port

Technical data

  • Halogen free
    NO
  • Material
    Plastic Metal
  • Detection field
    12x16
  • Operating temperature range [°C]
    from -5 to 45
  • Bus current consumption (data transmission) [mA]
    10
  • Delay time, adjustable
    10 sec - 30 min
  • Detection angle [°]
    45-90
  • Installation
    Flush-mounted
  • Level of security
    IP20
  • Operating voltage via DC bus [V]
    21 - 32
  • storage temperature [°C]
    from -20 to 70
  • PKWIU
    27.33.11.0

Other technical data

  • Bus system KNX
    yes
  • Bus system radio frequent
    no
  • Bus system Powernet
    no
  • Radio frequent bidirectional
    no
  • Mounting method
    Flush-mounted
  • Material quality
    Other
  • Transparent
    no
  • Substation input
    yes
  • Operation mode switch
    yes
  • Staircase light controller
    yes
  • Teach-function for response value luminosity
    no
  • Optimum mounting height
    1.1 m
  • Max. reach frontally
    12 m
  • Detection angle vertical
    0 ... 7 °
  • Number of channels
    3
  • Min. switch-on time
    10 s
  • Bus system KNX-RF (Radio Frequent)
    no
  • Bus system LON
    no
  • Other bus systems
    None
  • Model
    Movement sensor
  • Material
    Other
  • Surface protection
    Untreated
  • With bus connection
    yes
  • Creep-under protection
    no
  • Animal zone
    no
  • Response value luminosity adjustable
    yes
  • Switch-off delay self-learning
    no
  • Max. reach sideways
    8 m
  • Diameter reach on floor
    0 m
  • Detection angle horizontal
    90 ... 180 °
  • Switching power
    0 W
  • Max. duty cycle
    30 min

Bulk packaging

A kind of package Pakiet Paczka Paleta
Quantity 1 pcs. 48 pcs. 1152 pcs.
Weight (kg) 0,150 7,555 204,320
Width (m) 0,085 0,305 0,800
Length (m) 0,070 0,335 1,155
Depth (m) 0,125 0,400 1,200
