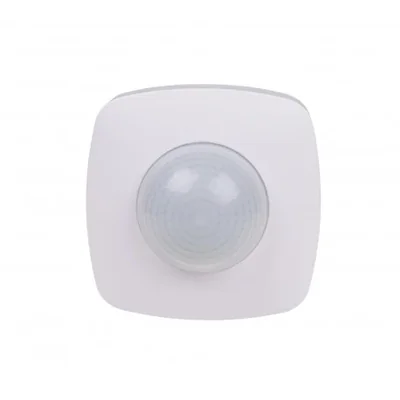

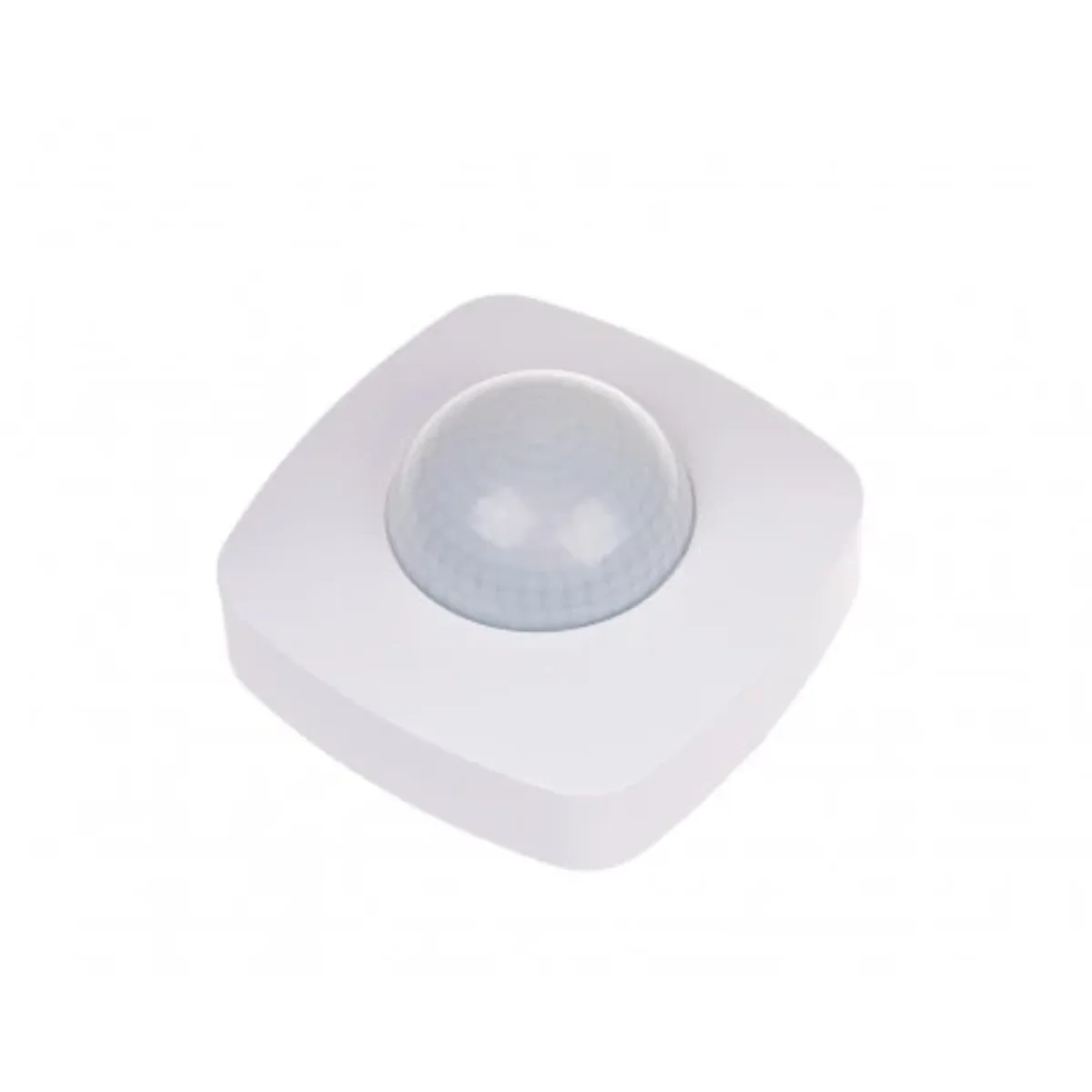

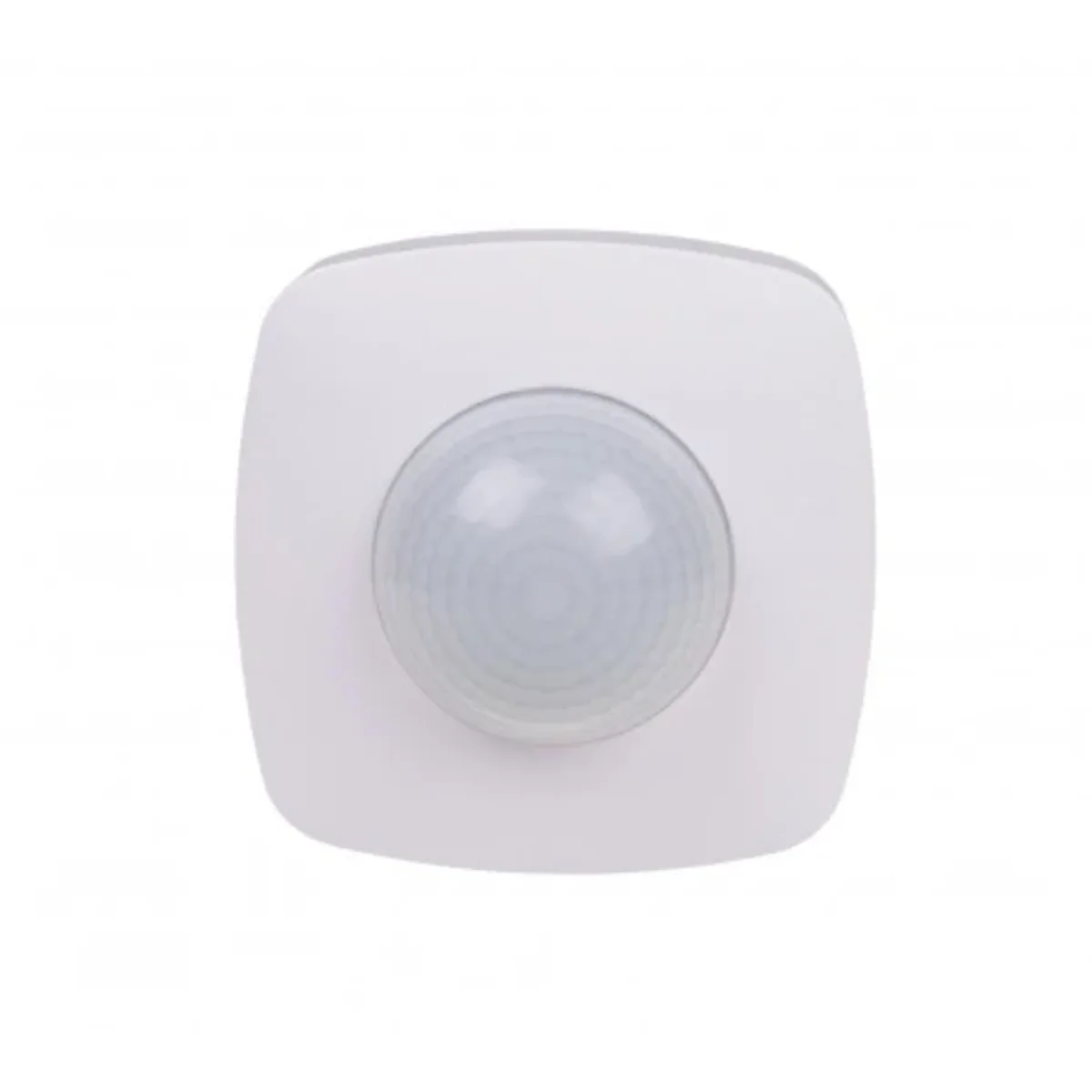

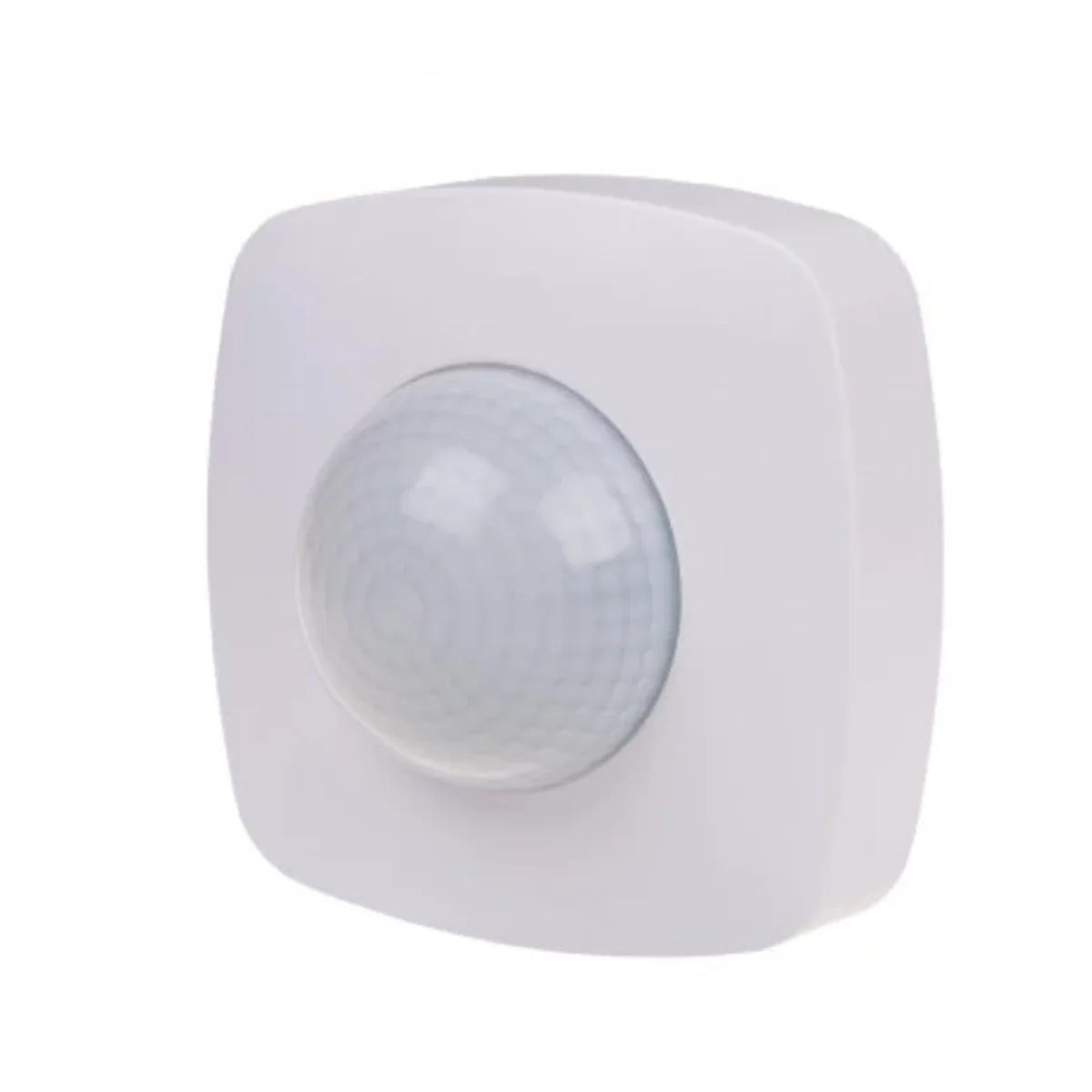

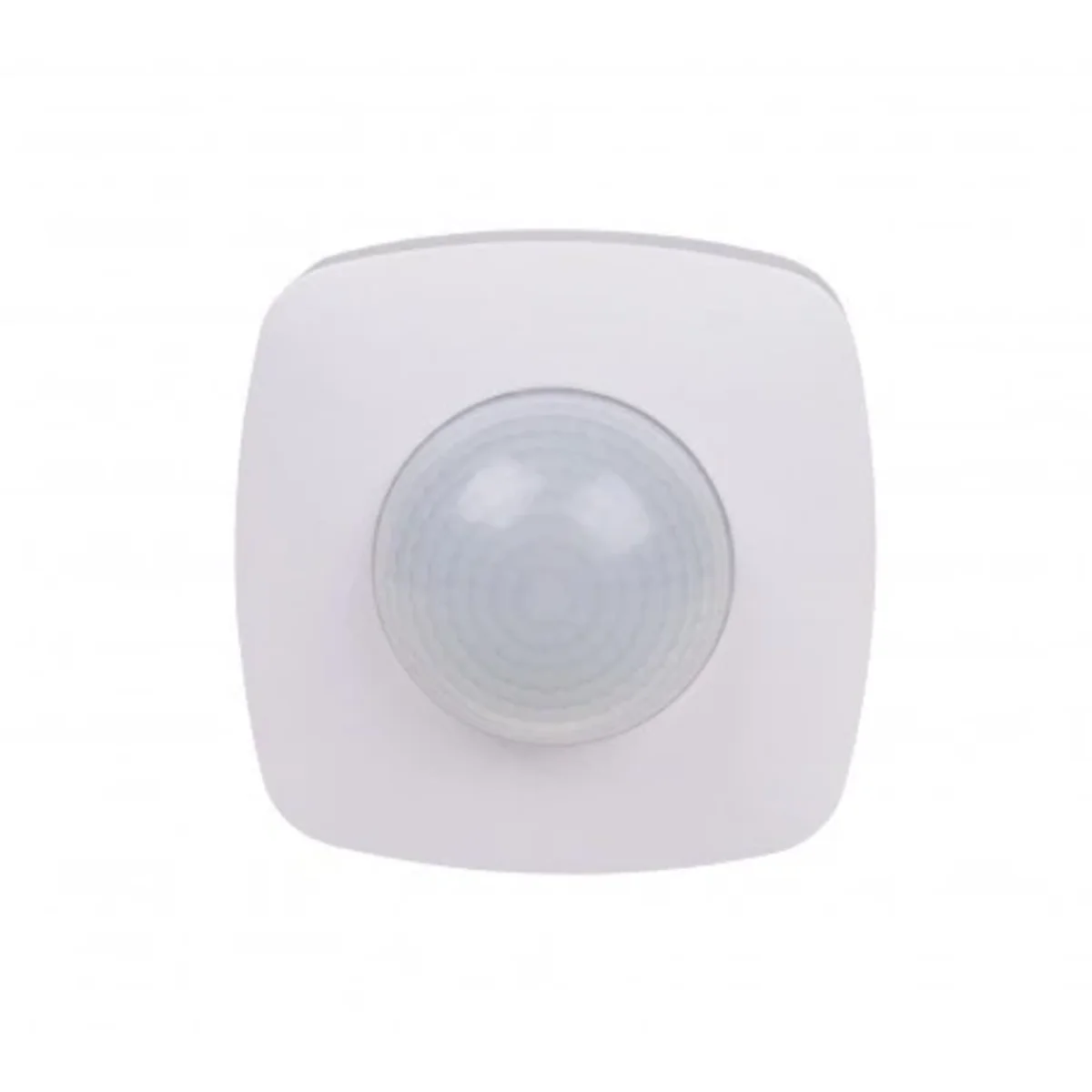

Infrared motion sensor for use in narrow corridors with presence sensor function DR-09

local index:
APK014FIFQ
Catalog No:
DR-09
EAN code:
5908312599890
Manufacturer: F&F
Maximum load current [A]: 10
Tightening torque [Nm]: 0.3
Installation: Surface-mounted
Price:
22,13 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 42 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Infrared motion sensor for use in narrow corridors with presence sensor from the manufacturer F&F . The product part number is DR-09. It allows automatic, temporary switching on of the light in case of the appearance of a person or other object in places such as: corridors, yards, approaches and driveways, garages, etc. The motion sensor can work indoors and outdoors . Outside only  in places where sensor housing and  its electrical connection points is not exposed to direct rain or snow and to splashing water or other liquids.



The infrared motion sensor works by detecting the movement of light sources  sources of heat, which are in the area of its operation. Significant elements affecting the detection efficiency are:

  • amount of heat emitted by a moving object and ambient temperature,
  • size of a moving object,
  • direction and movement speed.

The efficiency of the infrared motion sensor will be the lowest when:

  • the temperature of the moving object is close to the ambient temperature (e.g. in a sunny room, radiator in the detection field, etc.),
  • the object is moving at low speed directly towards the motion sensor,
  • the size of the moving object will be small compared to the area of the detection zone .

Examples of situations that may lead to incorrect operation of infrared motion sensor:

  • Light sources located in the sensor's detection field. Turning the light on or off causes a large and quick change in the temperature of the bulb, which can be interpreted by the infrared motion sensor as a moving object.



Parameters

  • Shutdown time: 3 seconds ÷ 9 minutes (± 2 min.).
  • Twilight activation threshold: 3÷2000 Lx.
  • Detection type: infrared radiation.
  • Connection: terminals 1 .5mm².
  • Operating temperature: -20÷40°C.
  • Dimensions: 102×102mm, h: 55mm.

Technical data

  • Maximum load current [A]
    10
  • Installation
    Surface-mounted
  • Horizontal detection field
    360°
  • Sensor mounting height [m]
    2÷6
  • Maximum detection radius [m]
    10
  • AC supply voltage [V]
    230
  • Tightening torque [Nm]
    0.3
  • Power consumption [W]
    0.5
  • Level of security
    IP20
  • Range [m]
    10
  • Motion detection [m/s]
    0.6÷1.5
  • PKWIU
    27.12.24.0

Other technical data

  • Model
    Movement sensor
  • Constant light control
    No
  • Forced switch off
    Yes
  • Creep-under protection
    No
  • Scan angle
    360 °
  • Staircase light controller
    Yes
  • Max. reach sideways
    8 m
  • Diameter reach on floor
    16 m
  • Remote operation
    No
  • Response value luminosity adjustable
    Yes
  • Teach-function for response value luminosity
    No
  • Suitable for wall mounting
    No
  • Mounting method
    Surface mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • Transparent
    No
  • Voltage type
    AC
  • Nominal voltage
    230 V
  • Max. duty cycle
    13 min
  • Detection angle horizontal
    360 ... 360 °
  • Max. switching power
    800 W
  • Max. starting current
    10 A
  • With alarm function
    No
  • Height
    102 mm
  • Diameter
    115 mm
  • Sensor type
    Passive infrared
  • HVAC-control
    No
  • Animal zone
    No
  • Networkable
    No
  • Optimum mounting height
    2.8 m
  • Bridging switch
    No
  • Max. reach frontally
    8 m
  • Suitable for wireless transmission
    No
  • Response value sensitivity adjustable
    Yes
  • With signal unit
    No
  • Suitable for ceiling mounting
    Yes
  • Dim function with dimmer basic element
    No
  • Material
    Plastic
  • Halogen free
    Yes
  • Colour
    White
  • Degree of protection (IP)
    IP20
  • Frequency
    50 ... 50 Hz
  • Min. switch-on time
    10 s
  • Switching-on delay
    1 s
  • Response value luminosity
    3 ... 2000 lx
  • Temperature
    -25 ... 50 °C
  • Substation input
    No
  • Width
    102 mm
  • Depth
    55 mm

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Width (m) 0,110
Length (m) 0,110
Depth (m) 0,065
