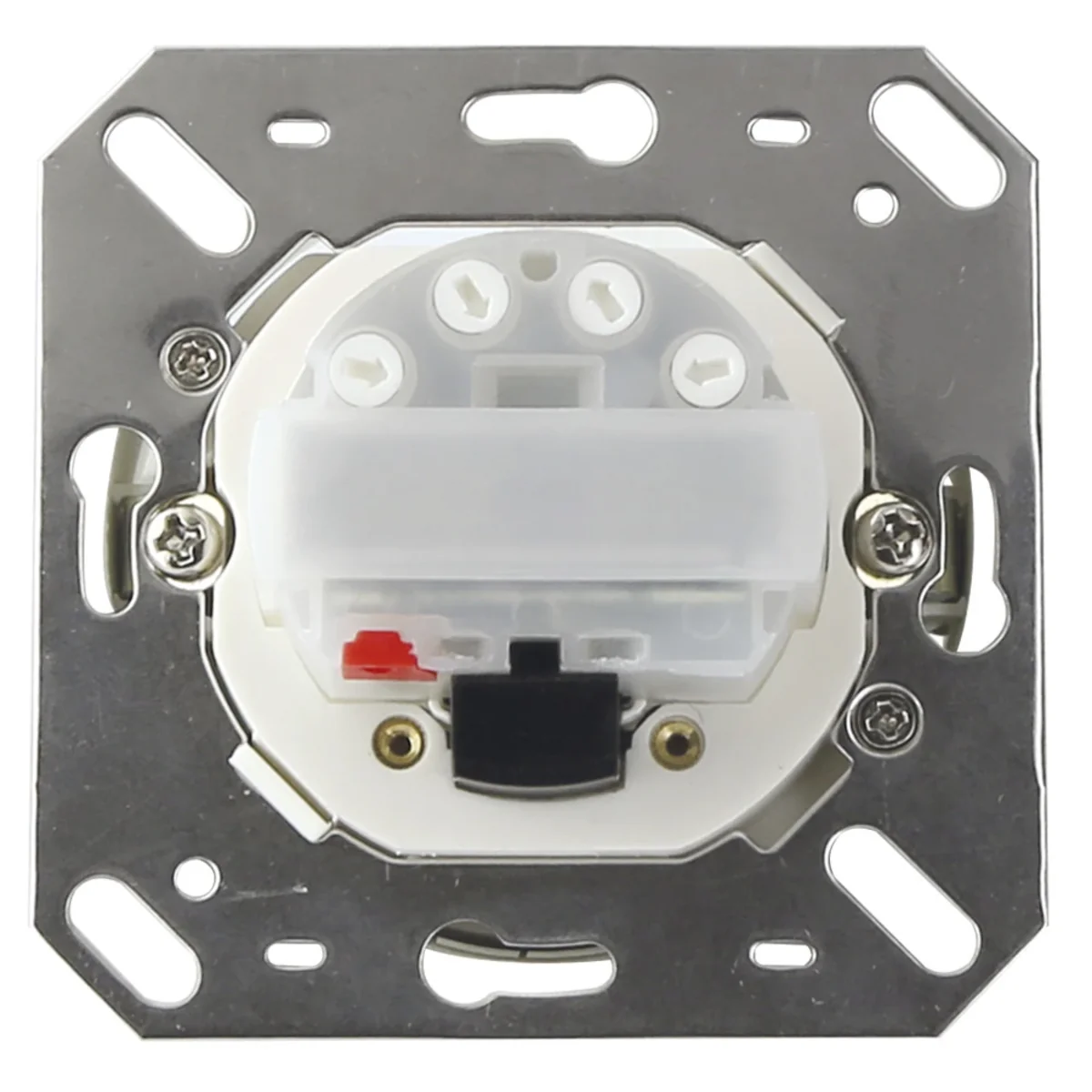

Indoor 140-L without frame Wall-mounted presence sensor 94325

Indeks lokalny:
APK035BEGQ
Numer katalogowy:
94325
Kod EAN:
4007529943258
Producent: B.E.G.
Cena:
497,63 zł
gross / szt.
(w tym VAT 23%)
do 4 tygodni
Na zamówienie
Ilość szt.
(wielokrotność:
1
)
Dodaj do zapytania ofertowego
Dodaj do schowka
Drukuj

Dane techniczne

Pozostałe dane techniczne

  • Sensor type
    Passive infrared
  • HVAC-control
    No
  • Creep-under protection
    No
  • Networkable
    No
  • Staircase light controller
    Yes

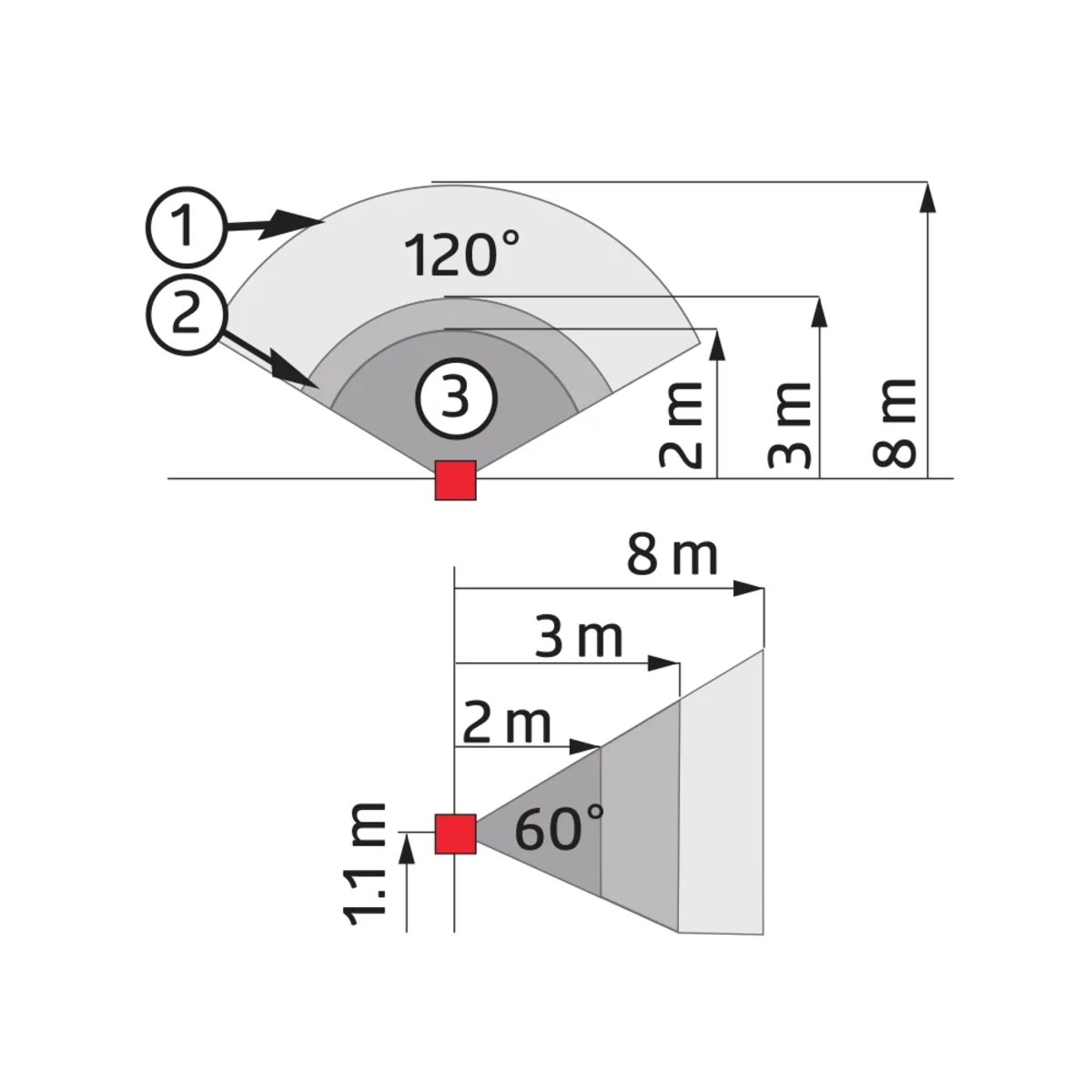

  • Max. reach sideways
    8 m
  • Max. reach frontally
    3 m
  • Suitable for wireless transmission
    No
  • With remote control
    No
  • With signal unit
    No
  • Dim function with dimmer basic element
    No
  • Suitable for ceiling mounting
    No
  • Halogen free
    Yes
  • Anti-bacterial treatment
    No
  • Degree of protection (IP)
    IP20
  • Voltage type
    AC
  • Nominal voltage
    110.0 ... 240.0 V
  • Max. duty cycle
    30 min
  • Switching-on delay
    0 s
  • Max. switching power LED
    800.0 W
  • Temperature
    -25 ... 50 °C
  • Max. starting current
    165 A

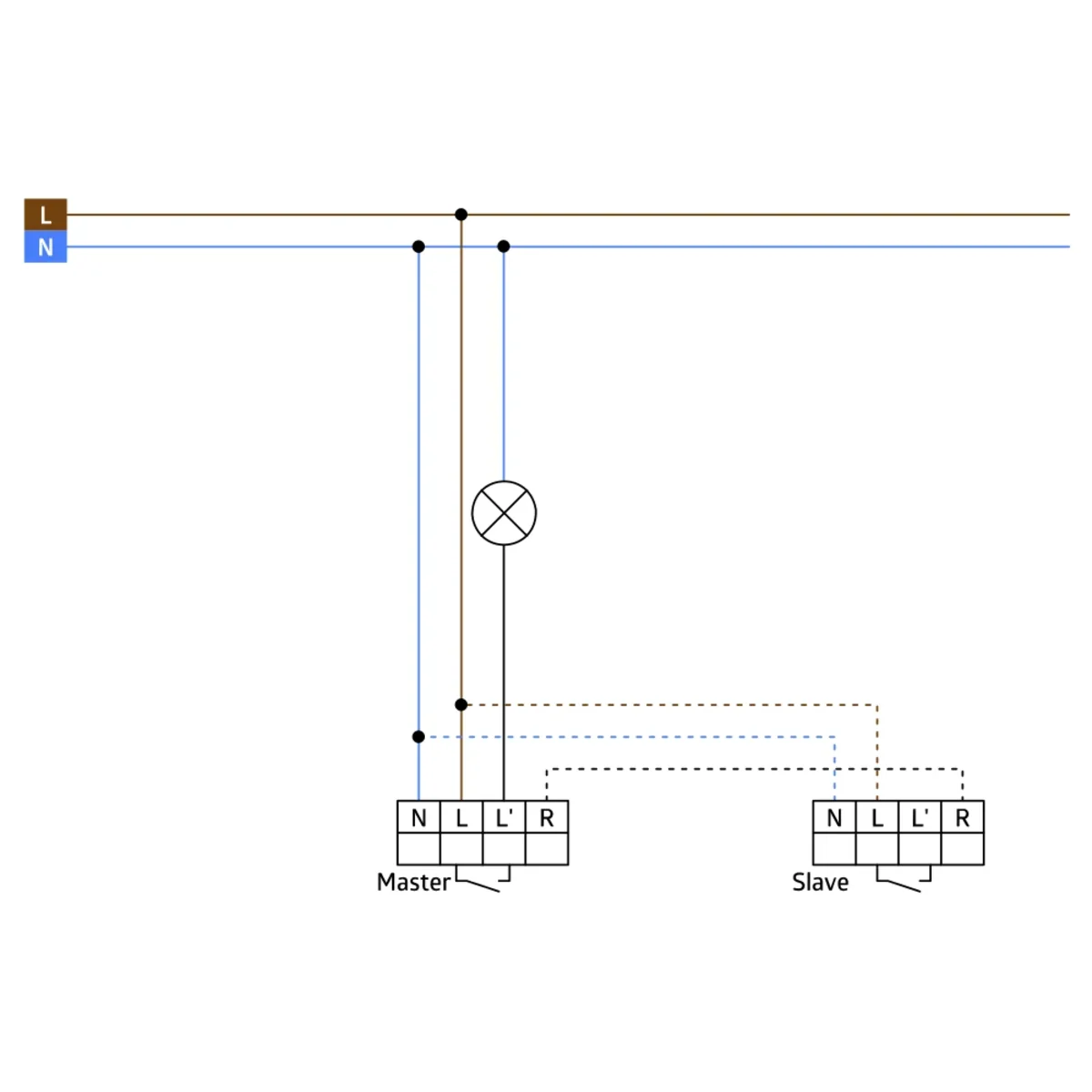

  • Substation input
    Yes
  • With acoustic sensor
    No

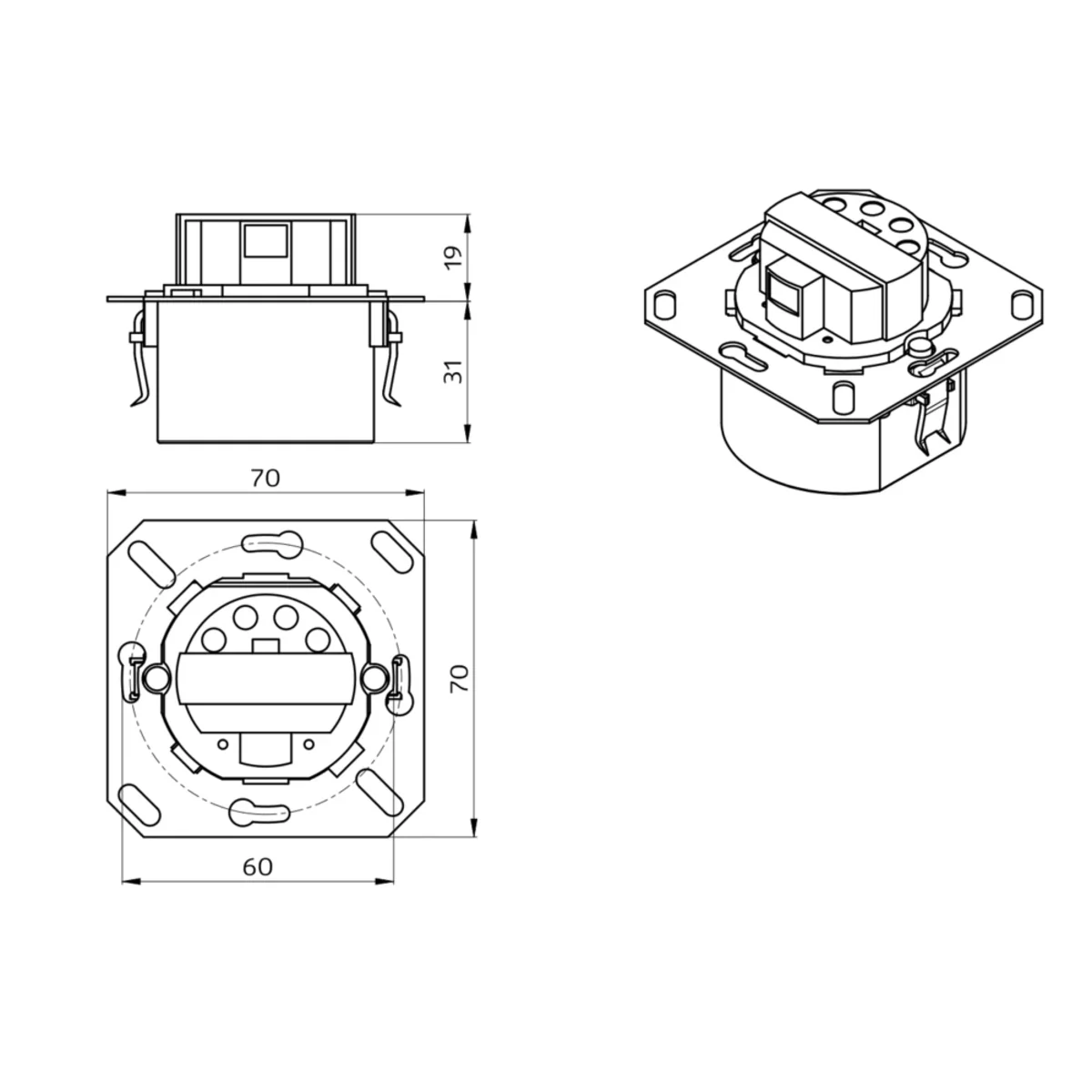

  • Height
    52 mm
  • With connection cable
    No
  • Compatible with Apple HomeKit
    No
  • Compatible with Amazon Alexa
    No
  • With DALI interface
    No
  • Animal zone
    No
  • Background monitoring
    No
  • Optimum mounting height
    1.1000000000000001 m
  • Bridging switch
    No
  • Max. presence range
    0 m²
  • Diameter reach on floor
    10 m
  • Remote operation
    No
  • Response value luminosity adjustable
    No
  • Teach-function for response value luminosity
    No
  • Mounting method
    Flush-mounted
  • Suitable for wall mounting
    Yes
  • Surface protection
    Untreated
  • Transparent
    No
  • Impact strength
    IK07
  • Frequency
    50 ... 60 Hz
  • Min. switch-on time
    15 s
  • Switch-off delay
    0 s
  • Max. switching power
    2000 W
  • Suitable for C-load
    No
  • Number of switching zones
    67.0
  • Control current
    2 mA
  • With alarm function
    No
  • Width
    70 mm
  • Depth
    70 mm
  • Connection cable length
    0 mm
  • Compatible with Google Assistant
    No
  • IFTTT support available
    No

Dane producenta

  • Producent
    B.E.G. Brück Electronic GmbH
  • Adres
    51789 Lindlar Gerberstrasse 33 Niemcy
  • Email

Opakowania zbiorcze

Rodzaj opakowania Paczka Karton
Ilość 1 szt. 100 szt.
Waga (kg) 0,150 15,750
Objętość (m3) 0,001 0,085
Szerokość (m) 0,095 0,403
Długość (m) 0,095 0,511
Głębokość (m) 0,075 0,415
