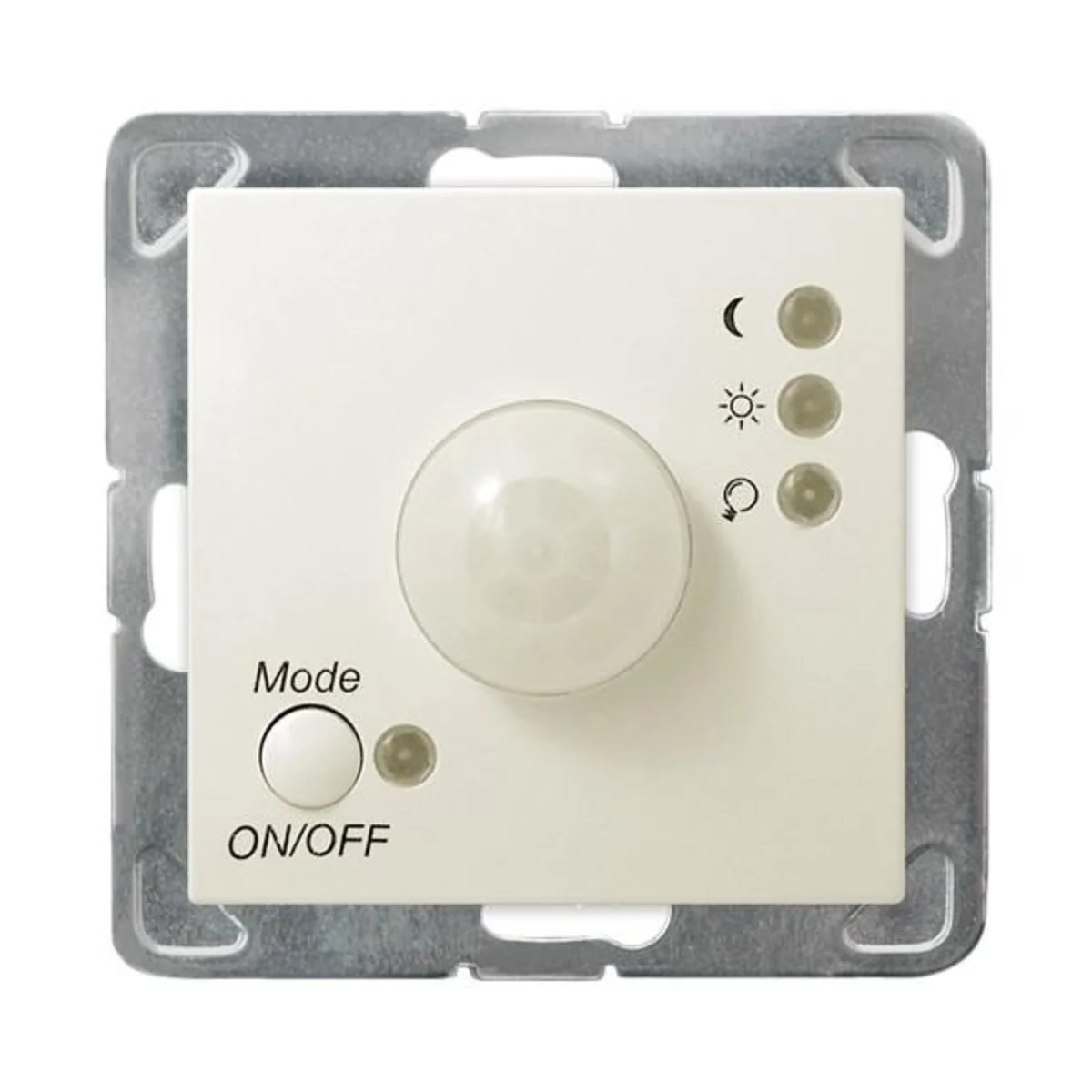

IMPRESJA Electronic motion sensor, without ecru frame ŁP-16Y/M/27
local index:
APK002OSPE
Catalog No:
ŁP-16Y/M/27
EAN code:
5907577438661
Price:
64,01 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
The electronic motion sensor is used to automatically switch on the light sources and signaling equipment (e.g. in home alarm systems) after detecting movement in the coverage area and automatically switch off after the set time.
The design of the sensor allows applicable for building serial installations consisting of any number of sensors, as well as with other standard household connectors (e.g. single-pole or variable). The sensor is controlled by pressing the button located in the lower left corner of the outer cover marked MODE/ON/OFF.
Maximum load: incandescent: 3200W, fluorescent: 750W, inductive: 750W.
Relay activation range: 3s-5min.
Detection field angle: 136°.
Technical data
-
ColorBeige
-
MaterialPlastic
-
Rated voltage [V]230
-
Mounting methodThread clamps
-
Typedimmers
-
PKWIU27.33.11.0
-
maximum range [m]7
-
InstallationFlush-mounted
-
FamilyIMPRESSION
-
Level of securityIP20
-
Accurate colorEcru
Other technical data
-
ModelMovement sensor
-
With DALI interfaceNo
-
HVAC-controlNo
-
Forced switch offYes
-
Creep-under protectionNo
-
Scan angle136 °
-
Staircase light controllerNo
-
Max. reach sideways7 m
-
Max. reach frontally4 m
-
Suitable for wireless transmissionNo
-
With remote controlNo
-
Response value luminosity adjustableYes
-
Teach-function for response value luminosityNo
-
Suitable for wall mountingYes
-
Mounting methodFlush-mounted
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
ColourWhite
-
TransparentNo
-
Impact strengthIK03
-
Frequency50 ... 50 Hz
-
Min. switch-on time3 s
-
Switch-off delay0 s
-
Detection angle horizontal0 ... 136 °
-
Pivoting range sensor, vertical0 ... 0 °
-
Max. switching power3200 W
-
Temperature5 ... 45 °C
-
Max. starting current14 A
-
Control current20 mA
-
With alarm functionNo
-

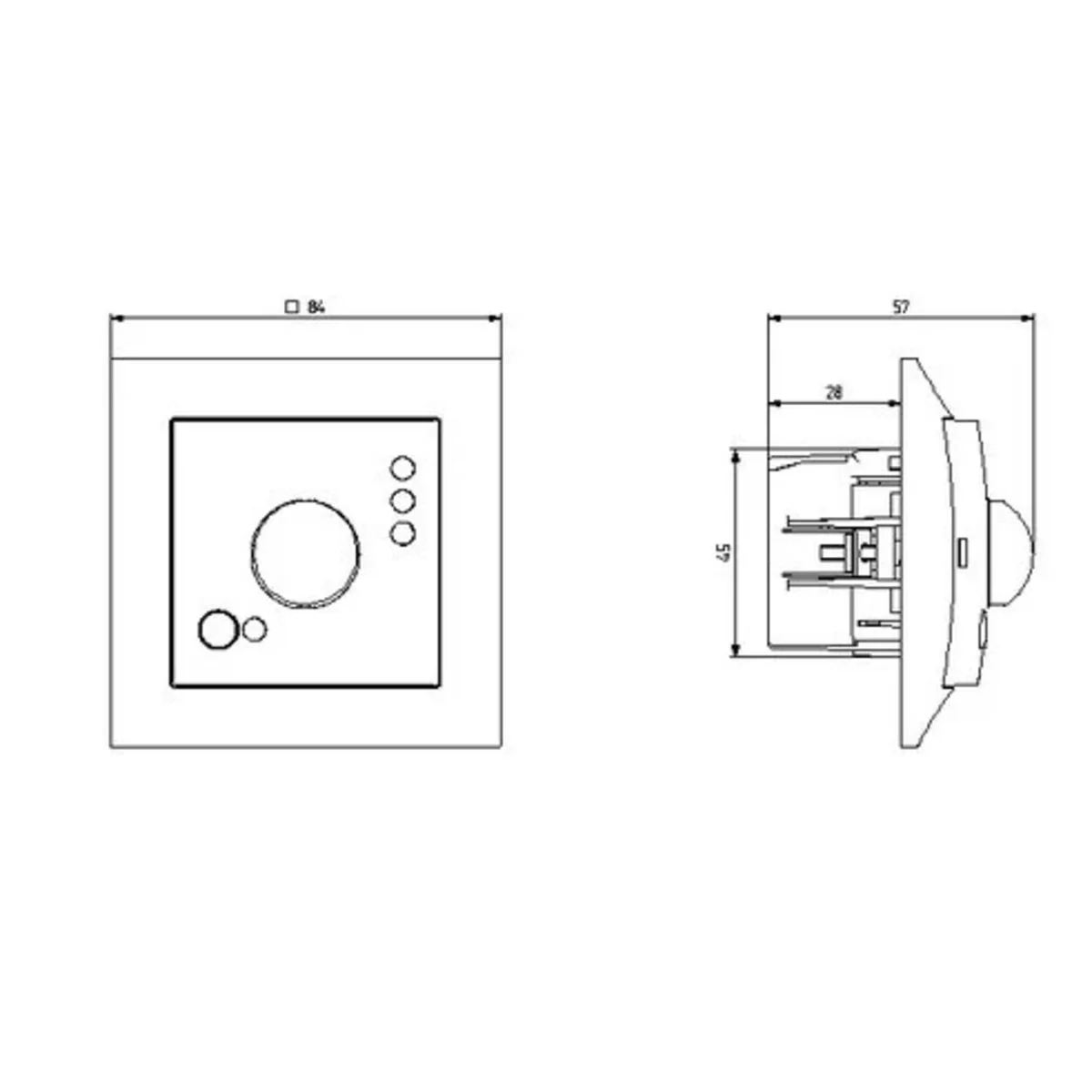

Height71 mm
-
Built-in depth28.5 mm
-
Sensor typePassive infrared
-
Constant light controlNo
-
Forced switch onNo
-
Animal zoneNo
-
NetworkableYes
-
Optimum mounting height1.4 m
-
Bridging switchNo
-
Max. presence range10 m²
-
Diameter reach on floor13 m
-
Remote operationNo
-
Response value sensitivity adjustableYes
-
With signal unitYes
-
Suitable for ceiling mountingNo
-
Dim function with dimmer basic elementNo
-
Connection typeScrewed terminal
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
Anti-bacterial treatmentNo
-
RAL-number (similar)1013
-
Degree of protection (IP)IP20
-
Voltage typeAC
-
Nominal voltage230 V
-
Max. duty cycle5 min
-
Switching-on delay0 s
-
Pivoting range sensor, horizontal0 ... 0 °
-
Response value luminosity0 ... 1000 lx
-
Suitable for C-loadYes
-
Number of switching zones1
-
Min. starting current0 A
-
Substation inputNo
-
Width71 mm
-
Depth57 mm
-
Min. depth of built-in installation box60 mm
Manufacturer details
-
ManufacturerOSPEL S.A.
-
Address42-436 PILICA Wierbka, ul. Główna 128
-
Phone number
-
E-mail
-
Tax identification number6490010864
-
GLN5909002028034
Bulk packaging
| A kind of package | Pudełko |
| Quantity | 5 pcs. |
| Width (m) | 0,162 |
| Length (m) | 0,237 |
| Depth (m) | 0,090 |
