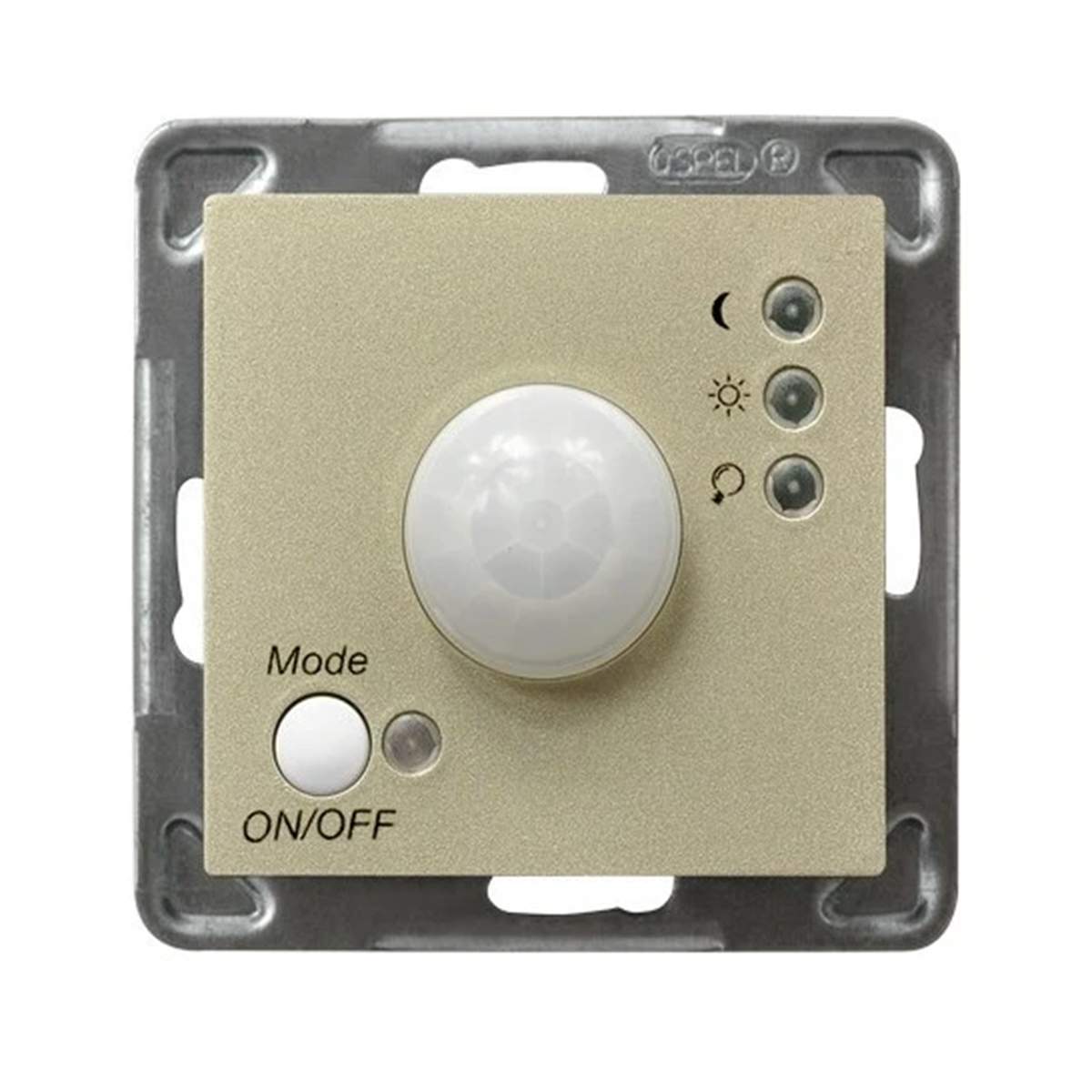

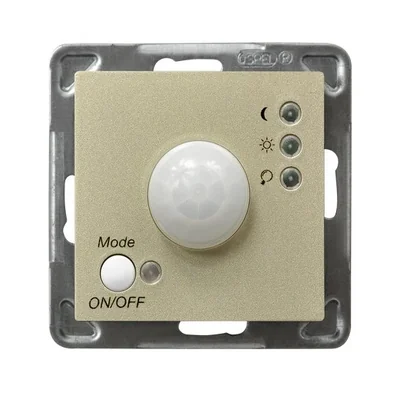

IMPRESJA Electronic motion sensor, frameless golden metallic ŁP-16Y/M/28

local index:
APK004OSPE
Catalog No:
ŁP-16Y/M/28
EAN code:
5907577440541
Manufacturer: OSPEL
Color: Golden
maximum range [m]: 7
Material: Plastic
Price:
65,17 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 8 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The electronic motion sensor is used to automatically switch on the light sources and signaling equipment (e.g. in home alarm systems) after detecting movement in the coverage area and automatically switch off after the set time.

The design of the sensor allows applicable for building serial installations consisting of any number of sensors, as well as with other standard household connectors (e.g. single-pole or variable). The sensor is controlled by pressing the button located in the lower left corner of the outer cover marked MODE/ON/OFF.

Maximum load incandescent: 3200W, fluorescent: 750W, inductive: 750W.

Relay activation range: 3s-5min.

Detection field angle: 136°.

Technical data

  • Color
    Golden
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Mounting method
    Thread clamps
  • Type
    dimmers
  • PKWIU
    27.33.11.0
  • maximum range [m]
    7
  • Installation
    Flush-mounted
  • Family
    IMPRESSION
  • Level of security
    IP20
  • Accurate color
    Golden metallic

Other technical data

  • Model
    Movement sensor
  • With DALI interface
    No
  • HVAC-control
    No
  • Forced switch off
    Yes
  • Creep-under protection
    No
  • Scan angle
    136 °
  • Staircase light controller
    No
  • Max. reach sideways
    7 m
  • Max. reach frontally
    4 m
  • Suitable for wireless transmission
    No
  • With remote control
    No
  • Response value luminosity adjustable
    Yes
  • Teach-function for response value luminosity
    No
  • Suitable for wall mounting
    Yes
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • Colour
    Gold
  • Transparent
    No
  • Impact strength
    IK03
  • Frequency
    50 ... 50 Hz
  • Min. switch-on time
    3 s
  • Switch-off delay
    0 s
  • Detection angle horizontal
    0 ... 136 °
  • Pivoting range sensor, vertical
    0 ... 0 °
  • Max. switching power
    3200 W
  • Temperature
    5 ... 45 °C
  • Max. starting current
    14 A
  • Control current
    20 mA
  • With alarm function
    No

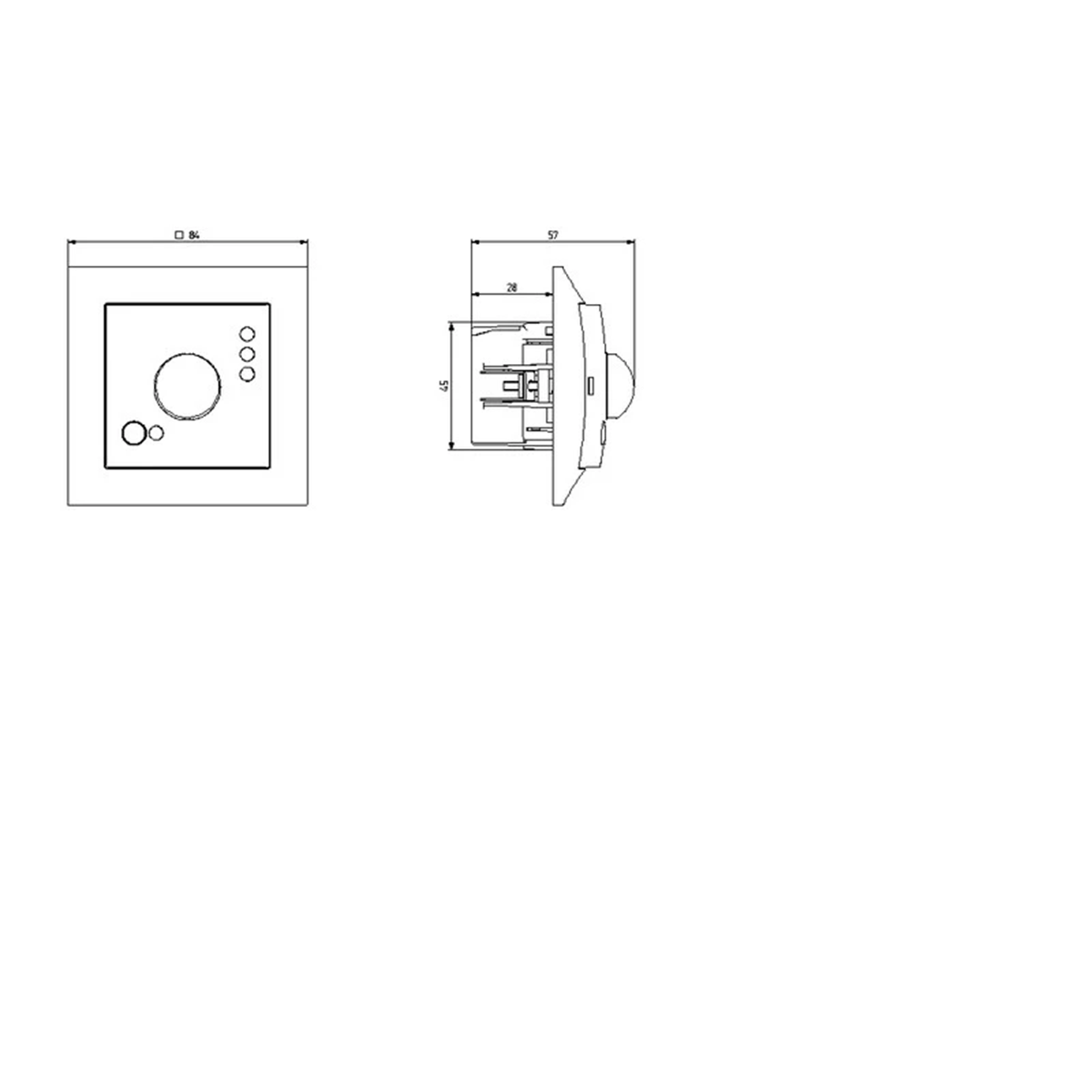

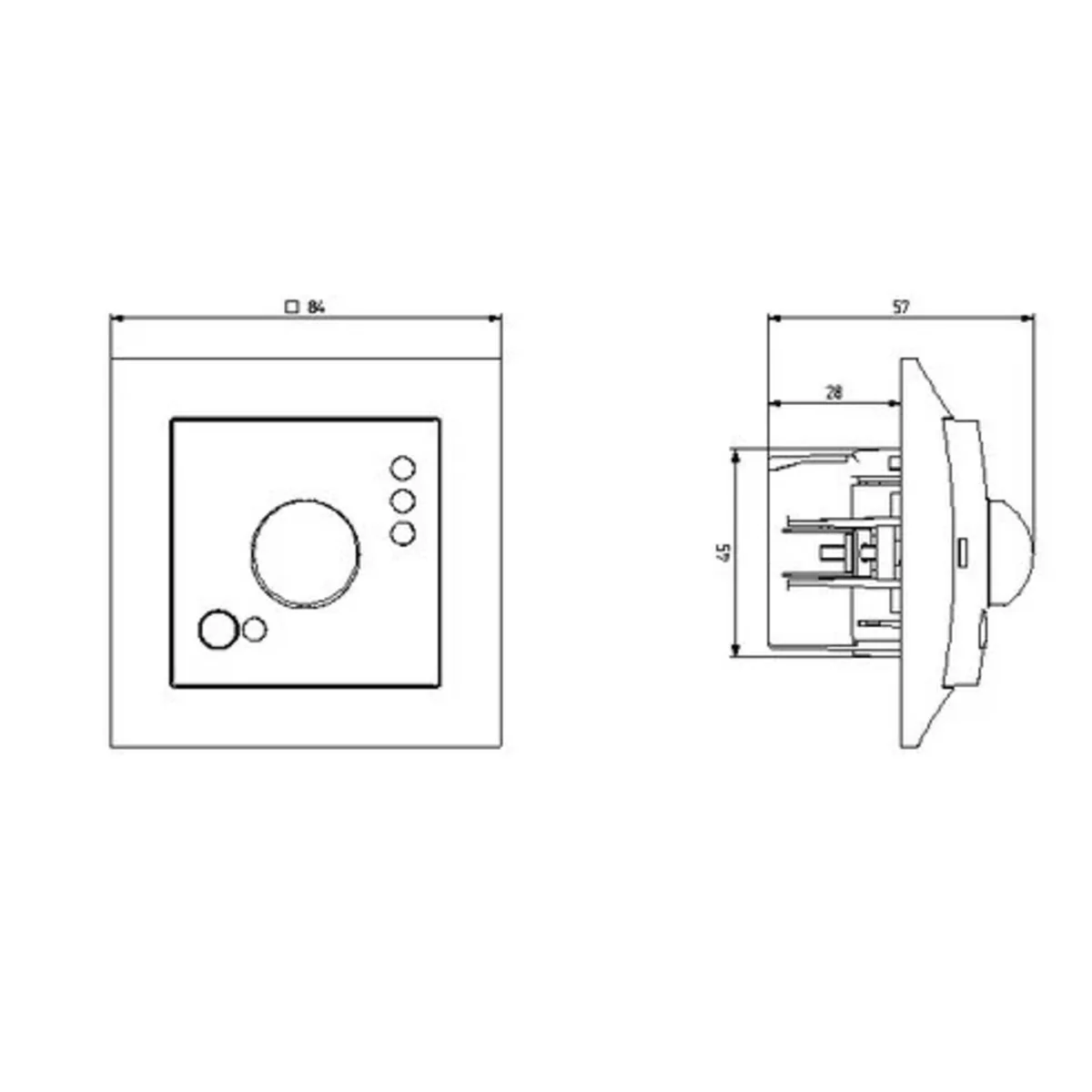

  • Height
    71 mm
  • Built-in depth
    28.5 mm
  • Sensor type
    Passive infrared
  • Constant light control
    No
  • Forced switch on
    No
  • Animal zone
    No
  • Networkable
    Yes
  • Optimum mounting height
    1.4 m
  • Bridging switch
    No
  • Max. presence range
    10 m²
  • Diameter reach on floor
    13 m
  • Remote operation
    No
  • Response value sensitivity adjustable
    Yes
  • With signal unit
    Yes
  • Suitable for ceiling mounting
    No
  • Dim function with dimmer basic element
    No
  • Connection type
    Screwed terminal
  • Material quality
    Thermoplastic
  • Surface protection
    Lacquered
  • Anti-bacterial treatment
    No
  • RAL-number (similar)
    1036
  • Degree of protection (IP)
    IP20
  • Voltage type
    AC
  • Nominal voltage
    230 V
  • Max. duty cycle
    5 min
  • Switching-on delay
    0 s
  • Pivoting range sensor, horizontal
    0 ... 0 °
  • Response value luminosity
    0 ... 1000 lx
  • Suitable for C-load
    Yes
  • Number of switching zones
    1
  • Min. starting current
    0 A
  • Substation input
    No
  • Width
    71 mm
  • Depth
    57 mm
  • Min. depth of built-in installation box
    60 mm

Bulk packaging

A kind of package Pudełko
Quantity 5 pcs.
Width (m) 0,162
Length (m) 0,237
Depth (m) 0,090
