Flush-mounted KNX DALI IR presence sensor with continuous intensity control, white TCC521E

local index:
APK051HAGE
Catalog No:
TCC521E
EAN code:
3250617579414

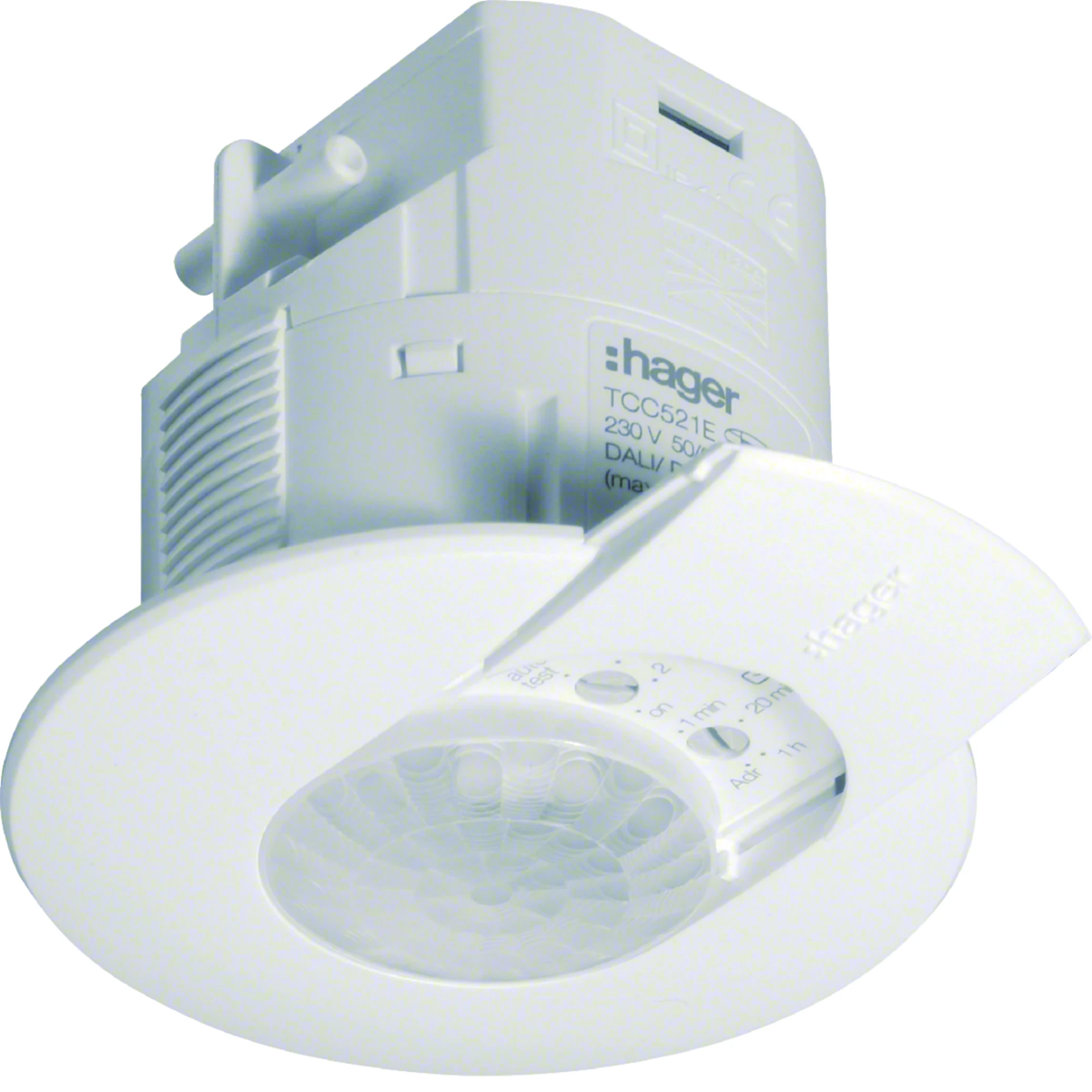

Flush-mounted KNX DALI IR presence sensor with continuous intensity control, white
Flush-mounted KNX DALI IR presence sensor with continuous intensity control, white

Click on the photo to enlarge

Manufacturer: HAGER
Halogen free: NO
Color: White
Material: PC | ABS
See full description
Price:
381,66 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Product description Technical data Bulk packaging

Product description

Flush-mounted KNX DALI IR presence sensor with continuous intensity control, white

Technical data

  • Halogen free
    NO
  • Material
    PC ABS
  • Operating temperature range [°C]
    from -10 to 45
  • Bus current consumption (data transmission) [mA]
    12
  • Delay time, adjustable
    1 mn - 1 h
  • Conductor cross-section (wire) [mm²]
    0.5 - 1.5
  • Color
    White
  • Surface
    Matt
  • Operating voltage via DC bus [V]
    21 - 32
  • storage temperature [°C]
    from -20 to 60
  • Wire cross-section (cord) [mm²]
    0.5 - 1.5
  • PKWIU
    26.30.50.0

Other technical data

  • Bus system KNX
    Yes
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Radio frequent bidirectional
    No
  • Mounting method
    Other
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • RAL-number (similar)
    9010
  • With bus connection
    No
  • Creep-under protection
    No
  • Animal zone
    Yes
  • Response value luminosity adjustable
    No
  • Switch-off delay self-learning
    No
  • Max. reach sideways
    8 m
  • Diameter reach on floor
    7 m
  • Detection angle horizontal
    360 ... 360 °
  • Min. switch-on time
    60 s
  • Bus system KNX-RF (Radio Frequent)
    No
  • Bus system LON
    No
  • Other bus systems
    None
  • Model
    Presence detector
  • Material
    Other
  • Surface protection
    Untreated
  • Colour
    White
  • Transparent
    No
  • Substation input
    No
  • Operation mode switch
    No
  • Staircase light controller
    No
  • Teach-function for response value luminosity
    No
  • Optimum mounting height
    4 m
  • Max. reach frontally
    7 m
  • Detection angle vertical
    55 ... 55 °
  • Number of channels
    1
  • Max. duty cycle
    60 min

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 24 pcs. 576 pcs.
Weight (kg) 0,100 0,180 4,700 135,800
Width (m) 0,100 0,085 0,315 0,800
Length (m) 0,084 0,100 0,215 1,050
Depth (m) 0,101 0,105 0,360 1,200
