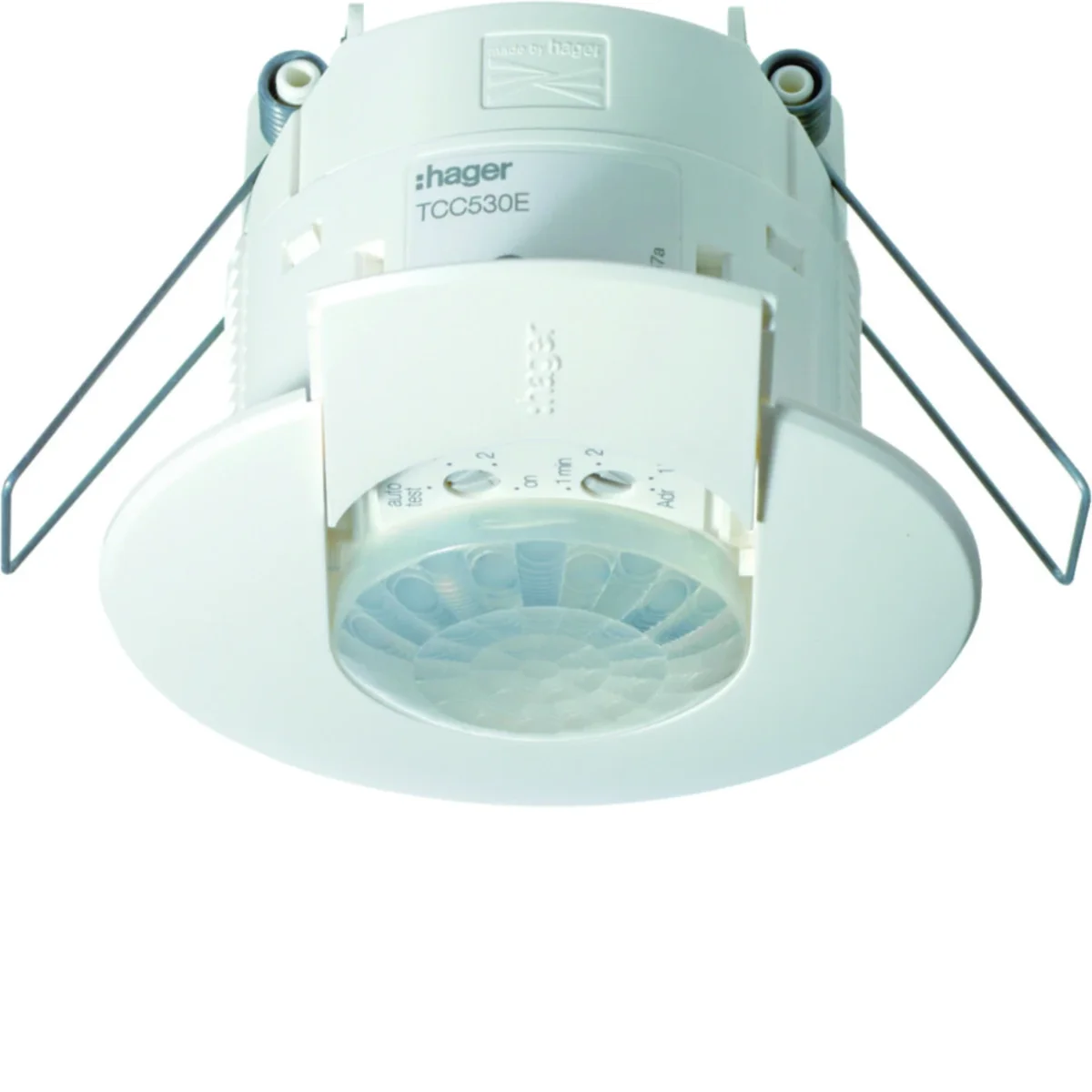

Flush-mounted KNX 2-channel presence sensor with continuous intensity control, white TCC530E

local index:
APK052HAGE
Catalog No:
TCC530E
EAN code:
3250617579261
Manufacturer: HAGER
Halogen free: NO
Color: White
Material: PC | ABS
Price:
313,91 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Flush-mounted KNX 2-channel presence sensor with continuous intensity control, white

Technical data

  • Halogen free
    NO
  • Material
    PC ABS
  • Operating voltage via DC bus [V]
    21 - 32
  • Delay time, adjustable
    1 mn - 1 h
  • Color
    White
  • Operating temperature range [°C]
    from -10 to 45
  • storage temperature [°C]
    from -20 to 60
  • PKWIU
    26.30.50.0

Other technical data

  • Bus system KNX
    Yes
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Radio frequent bidirectional
    No
  • Mounting method
    Other
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • RAL-number (similar)
    9010
  • With bus connection
    No
  • Creep-under protection
    No
  • Animal zone
    Yes
  • Response value luminosity adjustable
    No
  • Switch-off delay self-learning
    No
  • Max. reach sideways
    8 m
  • Diameter reach on floor
    7 m
  • Detection angle horizontal
    360 ... 360 °
  • Min. switch-on time
    5 s
  • Bus system KNX-RF (Radio Frequent)
    No
  • Bus system LON
    No
  • Other bus systems
    None
  • Model
    Presence detector
  • Material
    Other
  • Surface protection
    Untreated
  • Colour
    White
  • Transparent
    No
  • Substation input
    No
  • Operation mode switch
    No
  • Staircase light controller
    No
  • Teach-function for response value luminosity
    No
  • Optimum mounting height
    4 m
  • Max. reach frontally
    7 m
  • Detection angle vertical
    55 ... 55 °
  • Number of channels
    2
  • Max. duty cycle
    480 min

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 24 pcs. 576 pcs.
Weight (kg) 0,120 0,140 3,844 115,256
Width (m) 0,095 0,090 0,318 0,800
Length (m) 0,083 0,100 0,211 0,994
Depth (m) 0,099 0,100 0,364 1,200
