Flush-mounted IR presence detector white, matt EE815

local index:
APK038HAGE
Catalog number:
EE815
EAN code:
3250617579193

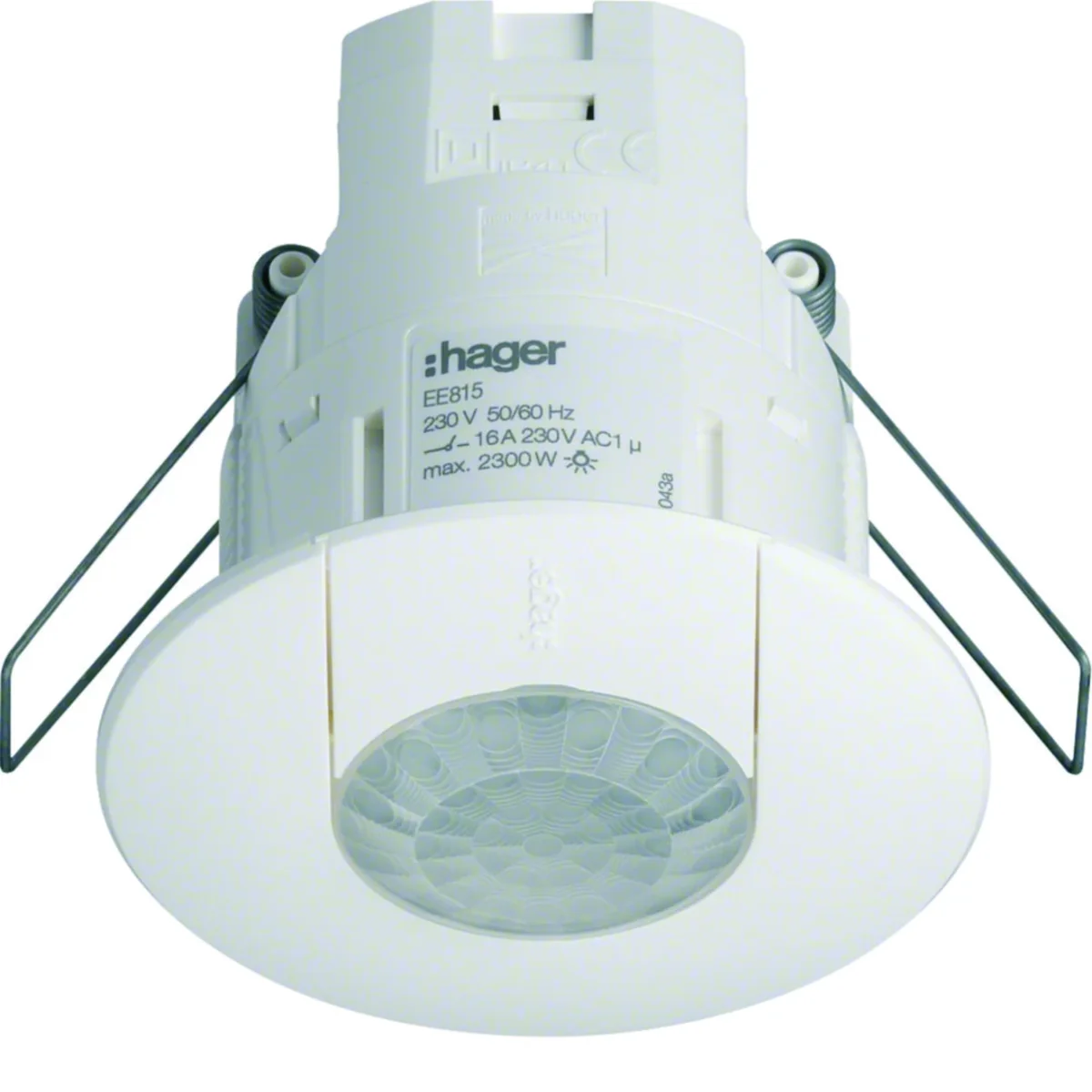

Flush-mounted IR presence detector white, matt
Flush-mounted IR presence detector white, matt
Flush-mounted IR presence detector white, matt
Flush-mounted IR presence detector white, matt

Click on the photo to enlarge

Manufacturer: HAGER
Rated frequency [Hz]: 60
Protection class: II
Color: White
See full description
Price:
907,92 zł
gross / pcs.
(including VAT 23%)
up to 2 weeks
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Flush-mounted IR presence detector white, matt

Technical data

  • Rated frequency [Hz]
    60
  • Color
    White
  • Supply voltage [V]
    230
  • Operating temperature range [°C]
    from -10 to 45
  • AC operating voltage [V]
    230
  • Electronic transformers [W]
    1500
  • Delay time, adjustable
    1 mn - 1 h
  • Conductor cross-section (wire) [mm²]
    0.5 - 1.5
  • Protection class
    II
  • Installation
    Flush-mounted
  • Level of security
    IP41
  • Maximum bulb power [W]
    2300
  • Connection type
    With screw terminals
  • Conventional transformers [VA]
    1500
  • Wire cross-section (cord) [mm²]
    0.5 - 1.5
  • PKWIU
    27.33.11.0

Other technical data

  • Model
    Presence detector
  • HVAC-control
    No
  • Forced switch off
    No
  • Creep-under protection
    No
  • Scan angle
    360 °
  • Staircase light controller
    No
  • Max. reach sideways
    6 m
  • Max. reach frontally
    7 m
  • Remote operation
    Yes
  • Response value sensitivity adjustable
    Yes
  • With signal unit
    No
  • Dim function with dimmer basic element
    No
  • Suitable for ceiling mounting
    No
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • Colour
    White
  • Degree of protection (IP)
    IP41
  • Voltage type
    AC
  • Nominal voltage
    230 ... 230 V
  • Max. duty cycle
    60 min
  • Switching-on delay
    0 s
  • Pivoting range sensor, horizontal
    360 ... 360 °
  • Max. switching power
    2300 W
  • Suitable for C-load
    Yes
  • Max. starting current
    16 A
  • Substation input
    Yes
  • Width
    80 mm
  • Depth
    70 mm
  • Built-in width
    0 mm
  • Built-in length
    0 mm
  • Min. depth of built-in installation box
    75 mm
  • Compatible with Apple HomeKit
    No
  • Compatible with Amazon Alexa
    No
  • Constant light control
    No
  • Forced switch on
    No
  • Animal zone
    No
  • Networkable
    Yes
  • Optimum mounting height
    4 m
  • Bridging switch
    No
  • Max. presence range
    20 m²
  • Suitable for wireless transmission
    No
  • With remote control
    Yes
  • Response value luminosity adjustable
    Yes
  • Teach-function for response value luminosity
    Yes
  • Mounting method
    Flush-mounted
  • Connection type
    Screwed terminal
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • RAL-number (similar)
    9001
  • Impact strength
    IK03
  • Frequency
    50 ... 60 Hz
  • Min. switch-on time
    60 s
  • Switch-off delay
    0 s
  • Detection angle horizontal
    360 ... 360 °
  • Response value luminosity
    5 ... 1000 lx
  • Max. switching power LED
    300 W
  • Number of switching zones
    1
  • Min. starting current
    0 A
  • With acoustic sensor
    No
  • Height
    75 mm
  • Diameter
    80 mm
  • Built-in depth
    70 mm
  • Built-in diameter
    68 mm
  • With connection cable
    No
  • Compatible with Google Assistant
    No
  • IFTTT support available
    No

Manufacturer details

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 24 pcs. 576 pcs.
Weight (kg) 0,185 4,815 138,560
Width (m) 0,080 0,310 0,800
Length (m) 0,090 0,210 1,050
Depth (m) 0,100 0,360 1,200
