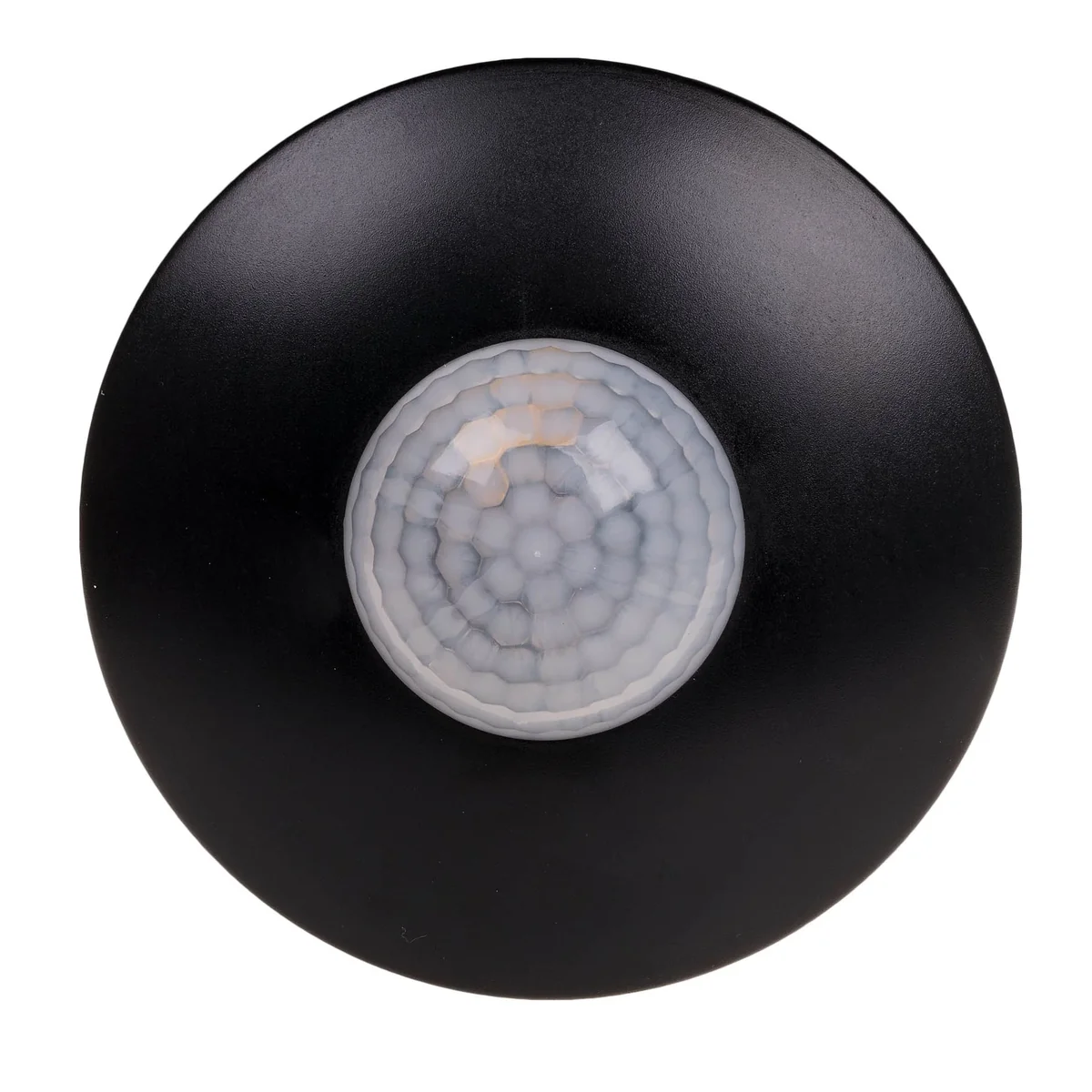

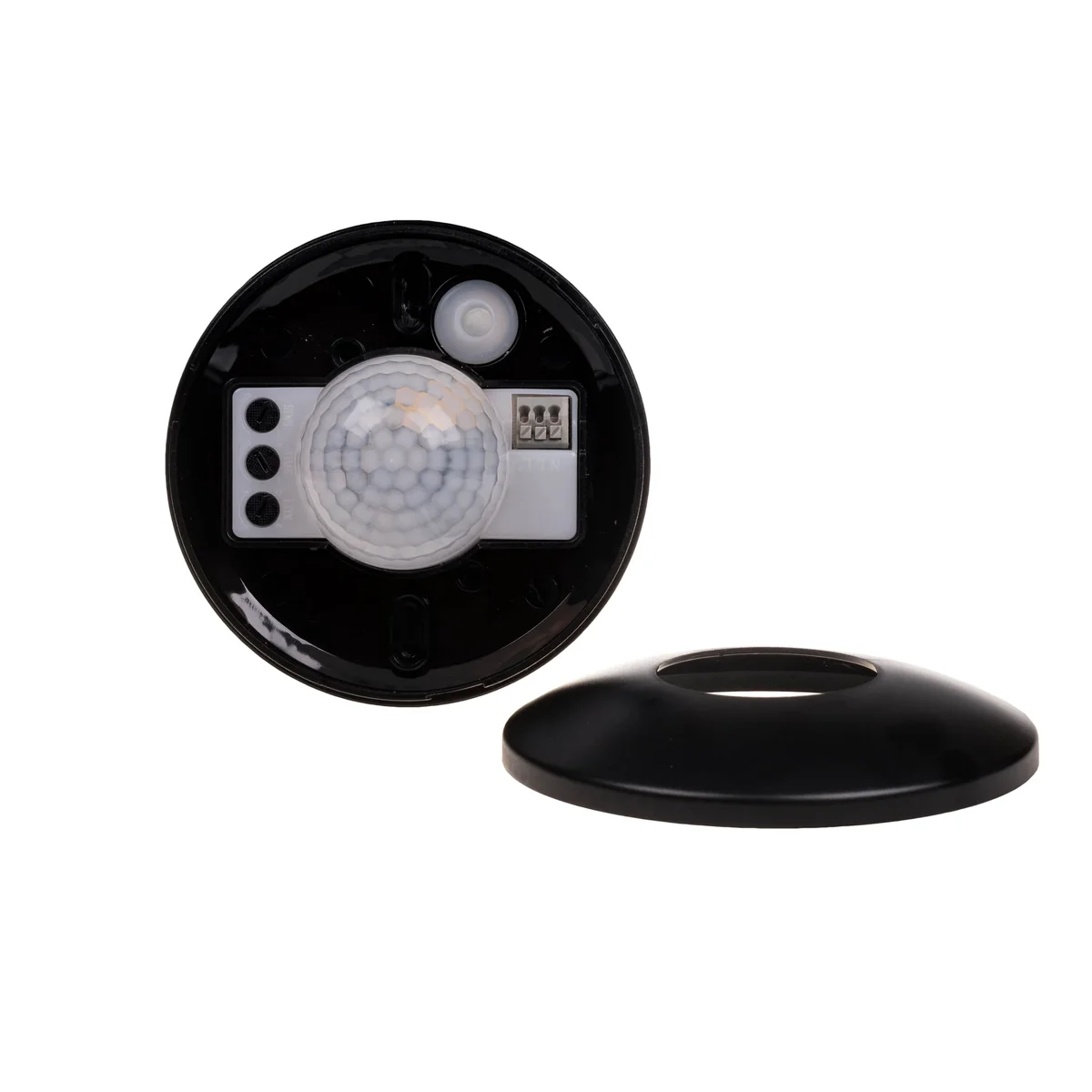

DR-06 B motion sensor DR-06B

local index:
APK008FIFQ
Catalog No:
DR-06B
EAN code:
5908312592709
Manufacturer: F&F
Shutdown time [ms]: 10sec±5sec - 4min±1min
Maximum detection distance (for <24°C) [m]: 12
Power [W]: 0.45
Price:
15,20 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description


The sensor detects sources of infrared radiation. It analyzes parameters such as the size of the object, the amount of emitted heat and the speed of movement between individual detection sectors. Movement in the detection field automatically turns on the lighting for the time set by the user. After this time, the lighting will be turned off automatically. The motion sensor is equipped with a twilight switch that prevents switching on the controlled lighting during the day. The detection state and readiness to switch on the lighting are activated only after dusk. The activation time of the sensor can be adjusted by the user with a potentiometer.Motion sensor  can work indoors and outdoors in places where it is not exposed to direct rain or snow and to the possibility of splashing water or other liquids on the sensor housing and its electrical connection points.


Maximum detection radius (for h=3m, T<24°C): 5m.

Technical data

  • Shutdown time [ms]
    10sec±5sec - 4min±1min
  • Power [W]
    0.45
  • Horizontal detection field
    360°
  • Twilight sensitivity threshold [lx]
    3-2000
  • Mounting method
    For screws
  • Diameter [mm]
    110
  • Height [mm]
    35
  • Package height [mm]
    35
  • Packaging diameter [mm]
    110
  • PKWIU
    27.12.24.0
  • Maximum detection distance (for <24°C) [m]
    12
  • Rated voltage [V]
    230
  • load current [A]
    <7

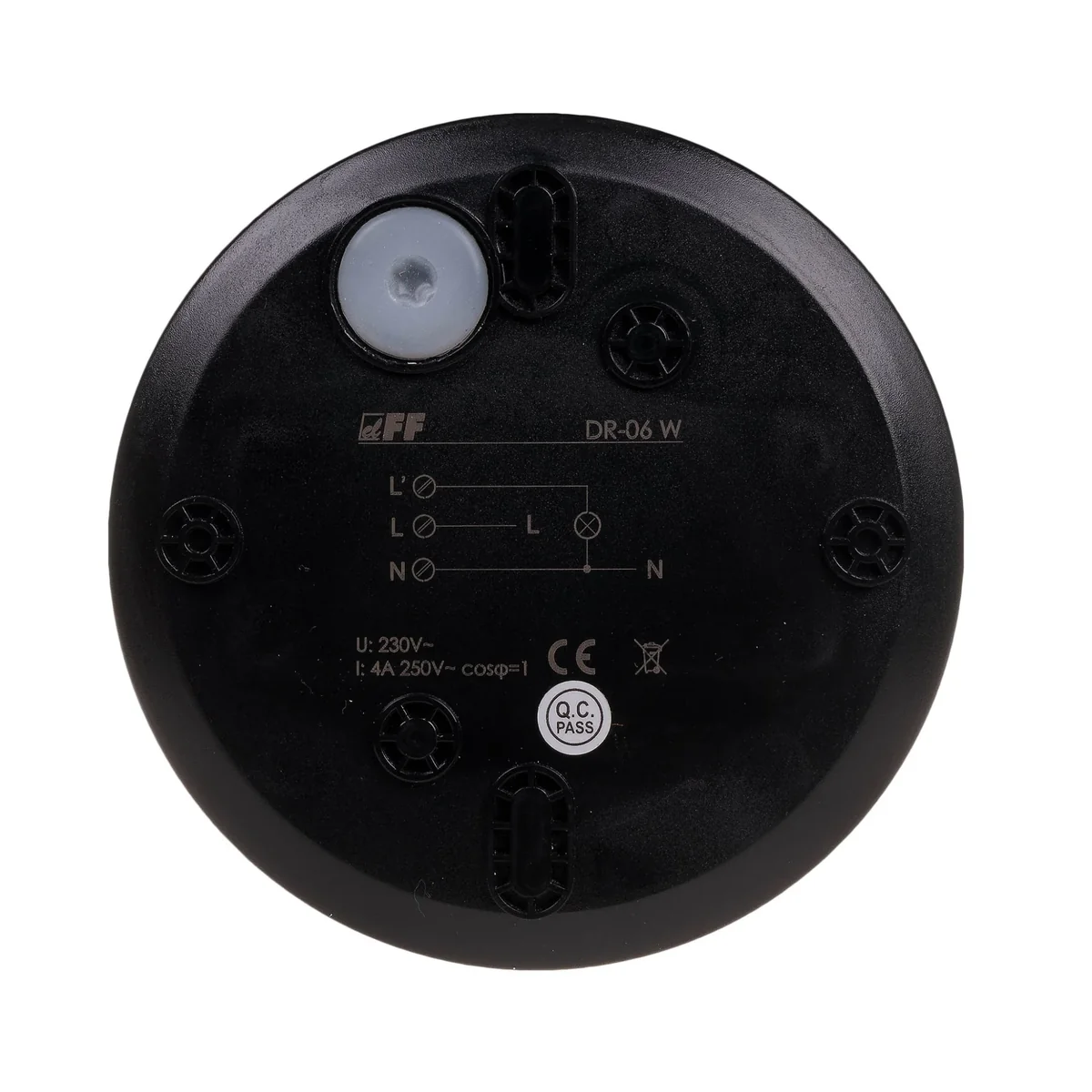

  • connection
    1.5mm screw terminals
  • Level of security
    IP20
  • Working temperature [°C]
    -10-40
  • Sensor mounting height [m]
    2.5-3
  • Package weight [kg]
    0.25
  • Motion detection
    0.6-1.5m/sec

Other technical data

  • Model
    Movement sensor
  • Constant light control
    No
  • Forced switch off
    Yes
  • Creep-under protection
    No
  • Optimum mounting height
    2.5 m
  • Bridging switch
    No
  • Diameter reach on floor
    10 m
  • Remote operation
    No
  • Response value luminosity adjustable
    Yes
  • Teach-function for response value luminosity
    No
  • Mounting method
    Surface mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • Transparent
    No
  • Voltage type
    AC
  • Nominal voltage
    230 V
  • Max. duty cycle
    10 min
  • Response value luminosity
    3 ... 2000 lx
  • Temperature
    -20 ... 40 °C
  • Substation input
    No
  • Sensor type
    Passive infrared
  • HVAC-control
    No
  • Animal zone
    No
  • Networkable
    No
  • Staircase light controller
    Yes
  • Max. reach frontally
    5 m
  • Suitable for wireless transmission
    No
  • Response value sensitivity adjustable
    No
  • With signal unit
    No
  • Dim function with dimmer basic element
    No
  • Material
    Plastic
  • Halogen free
    Yes
  • Colour
    Black
  • Degree of protection (IP)
    IP20
  • Frequency
    50 ... 50 Hz
  • Min. switch-on time
    8 s
  • Detection angle horizontal
    360 ... 360 °
  • Max. switching power
    800 W
  • Max. starting current
    7 A
  • With alarm function
    No
