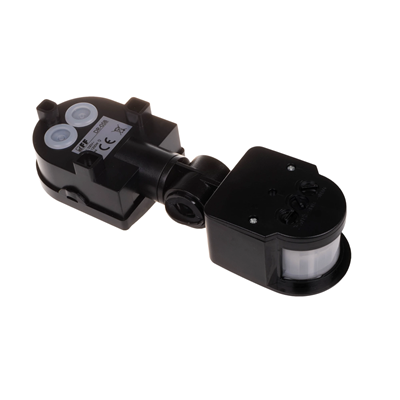

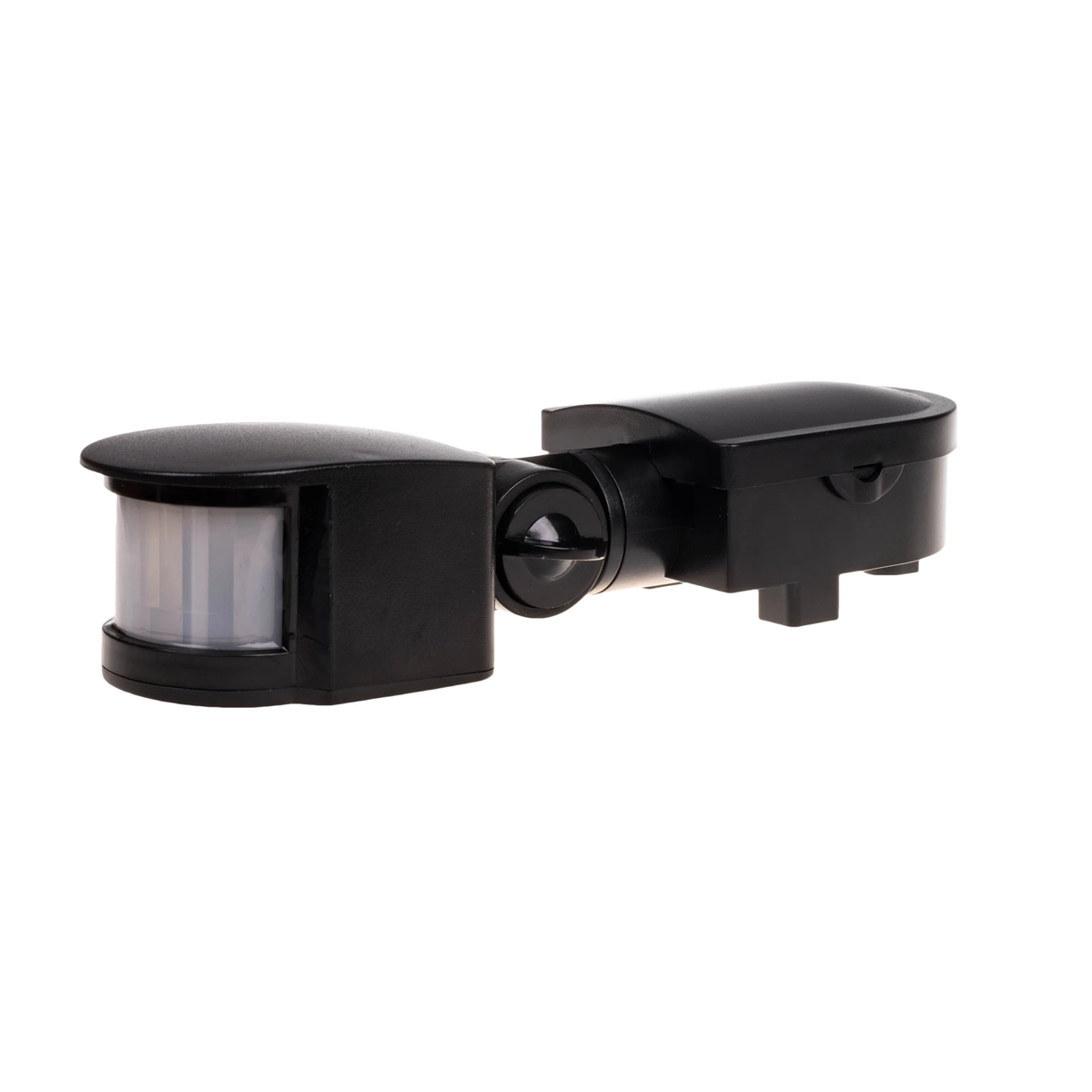

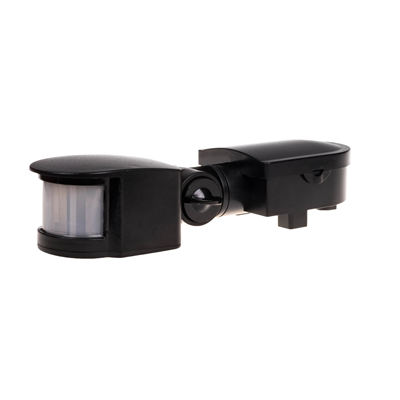

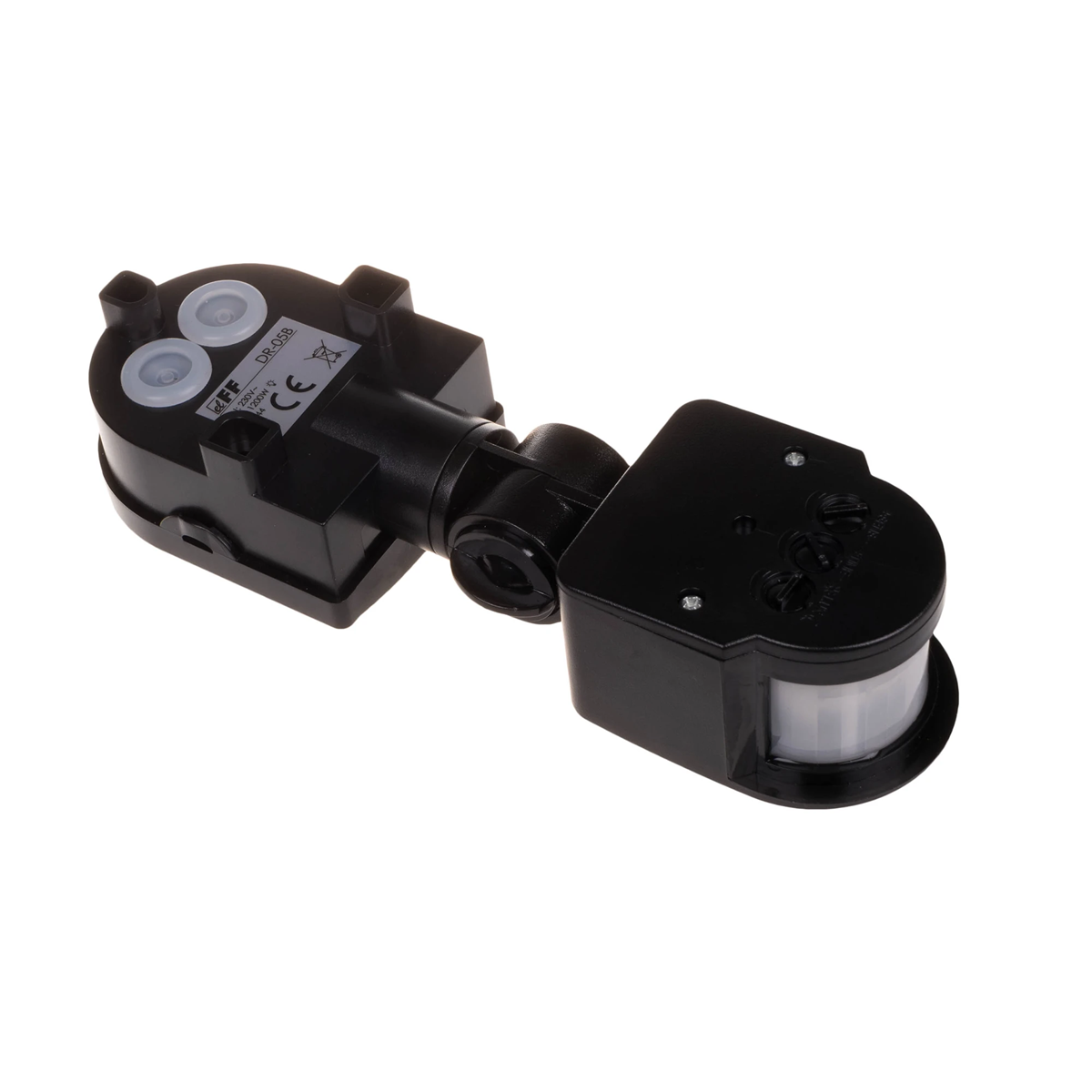

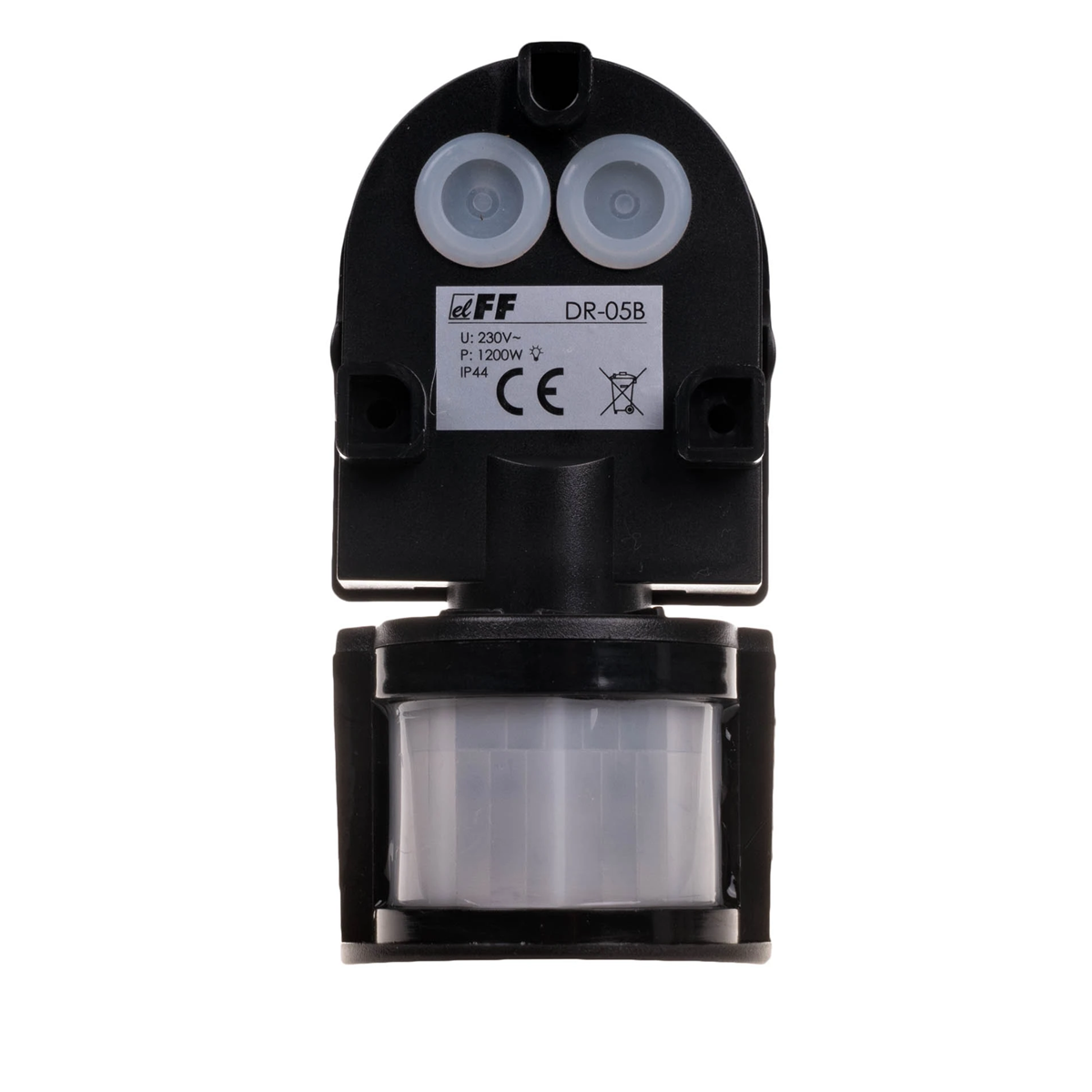

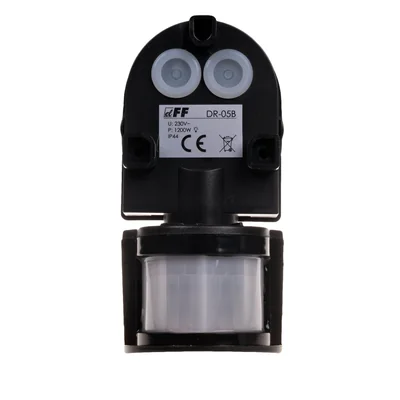

DR-05 B motion detector DR-05B

local index:
APK001FIFQ
Catalog No:
DR-05B
EAN code:
5908312591894
Manufacturer: F&F
Shutdown time [ms]: 8sec±3sec - 10min±2min
Depth [mm]: 210
Color: White
Price:
14,53 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The motion sensor is used to automatically, temporarily switch on the lighting in the event of the appearance of a person or other object in such places as corridors, courtyards, approaches and driveways, garages, etc. The sensor detects sources of infrared radiation. It analyzes such parameters as the size of the object, the amount of emitted heat and the speed of movement between individual detection sectors. The detector head is movable in two planes, which allows for precise setting of the detection field tailored to the individual requirements of the user. Movement in the detection field automatically turns on the lighting for the time set by the user. After this time, the lighting will be turned off automatically. The motion sensor is equipped with a twilight switch that prevents switching on the controlled lighting during the day. The detection status and readiness to switch on the lighting are activated only after dusk. The activation time of the sensor can be corrected by the user with a potentiometer. The motion sensor can work indoors and outdoors in places where it is not exposed to direct rain or snow and the possibility of splashing water or other liquid on the sensor housing and its electrical connection points.

Technical data

  • Shutdown time [ms]
    8sec±3sec - 10min±2min
  • Color
    White
  • Power [W]
    0.45
  • Horizontal detection field
    140°-180°
  • Twilight sensitivity threshold [lx]
    3-2000
  • Mounting method
    For screws
  • Width [mm]
    67
  • Height [mm]
    95
  • Package height [mm]
    95
  • Package weight [kg]
    0.25
  • Motion detection
    0.6-1.5m/sec
  • PKWIU
    27.12.24.0
  • Depth [mm]
    210
  • Maximum detection distance (for <24°C) [m]
    12
  • Rated voltage [V]
    230
  • load current [A]
    <5
  • Connection screw terminals
    1.5mm screw terminals
  • Level of security
    IP44
  • Working temperature [°C]
    from -20 to +40
  • Sensor mounting height [m]
    0.5-3.5
  • Package width [mm]
    67
  • Vertical detection field
    0°-45°
  • Accurate color
    White

Other technical data

  • Model
    Movement sensor
  • Constant light control
    No
  • Forced switch off
    Yes
  • Creep-under protection
    No
  • Optimum mounting height
    2.5 m
  • Bridging switch
    No
  • Suitable for wireless transmission
    No
  • Response value sensitivity adjustable
    No
  • With signal unit
    No
  • Dim function with dimmer basic element
    No
  • Material
    Plastic
  • Halogen free
    Yes
  • Colour
    Black
  • Degree of protection (IP)
    IP44
  • Frequency
    50 ... 50 Hz
  • Min. switch-on time
    8 s
  • Detection angle horizontal
    140 ... 180 °
  • Max. switching power
    600 W
  • Max. starting current
    5 A
  • With alarm function
    No
  • Sensor type
    Passive infrared
  • HVAC-control
    No
  • Animal zone
    No
  • Networkable
    No
  • Staircase light controller
    Yes
  • Max. reach frontally
    12 m
  • Remote operation
    No
  • Response value luminosity adjustable
    Yes
  • Teach-function for response value luminosity
    No
  • Mounting method
    Surface mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • Transparent
    No
  • Voltage type
    AC
  • Nominal voltage
    230 V
  • Max. duty cycle
    10 min
  • Response value luminosity
    3 ... 2000 lx
  • Temperature
    -20 ... 40 °C
  • Substation input
    No

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Width (m) 0,140
Length (m) 0,095
Depth (m) 0,105
